The Ultimate Guide to the York PHE4 Packaged Heat Pump System of 3 Tons

At AirGreen, we pride ourselves on offering top-tier HVAC services to the communities of Montreal, Laval, Longueuil, North Shore, and South Shore. Our commitment to quality and innovation is evident in our selection of HVAC systems, particularly the packaged heat pump systems. Today, we delve deep into one of our flagship products, the York PHE4 Packaged Heat Pump unit. This comprehensive guide will provide you with everything you need to know about this state-of-the-art system.

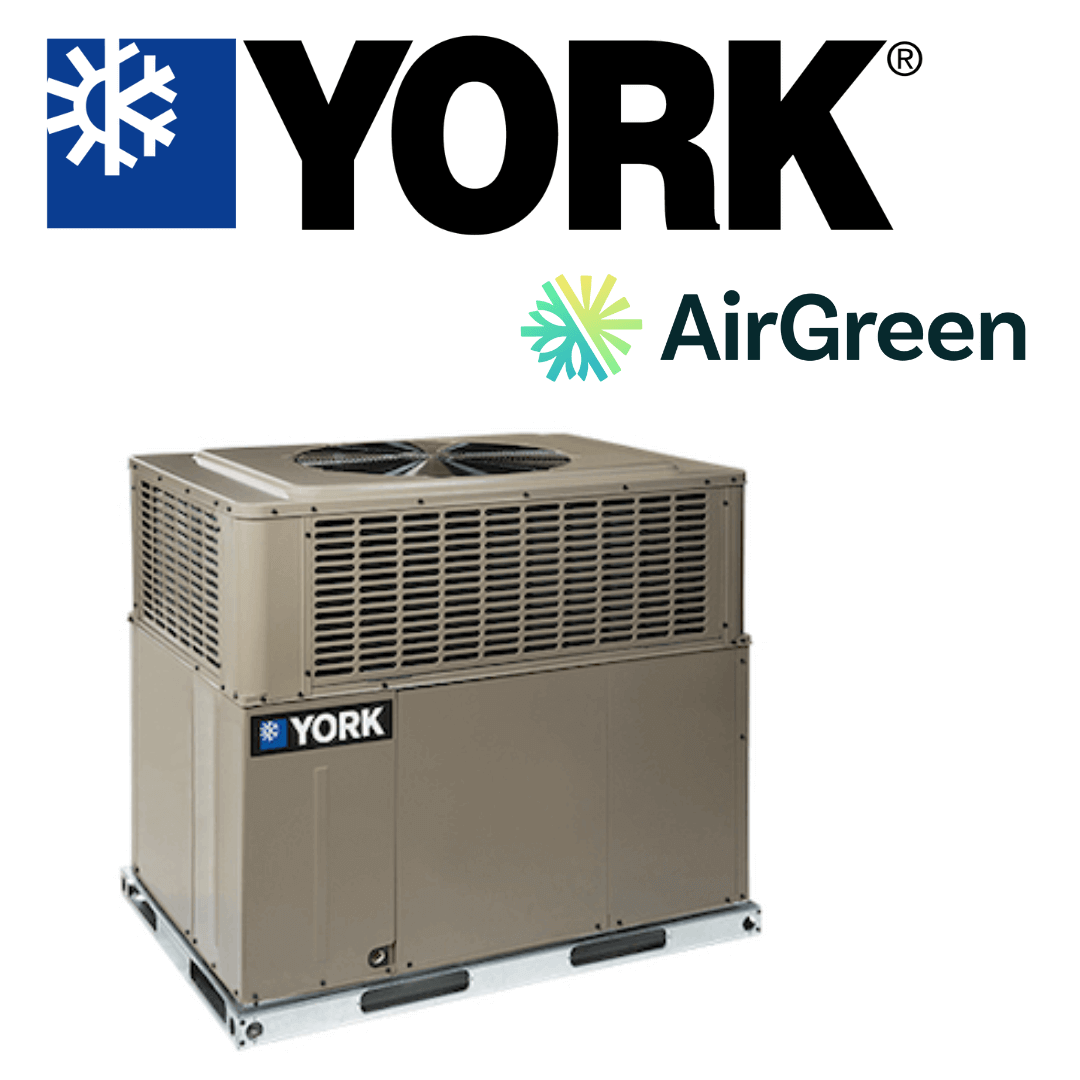

Introducing the York PHE4B3634

The York PHE4, with its model number PHE4B3634, is a SINGLE PACKAGE HEAT PUMP/ELECTRIC HEAT system. Designed for efficiency and reliability, this unit boasts a 14 SEER rating, ensuring optimal energy consumption. Here are some key specifications:

• SEER: 14
• HSPF: 8
• Tonnage: 3 Tons
• Sound Level: 73.7 dB
• Indoor Airflow: 1150 CFM
• Refrigerant: R-410A
• Dimensions: 45.75 x 51.25 x 47 inches
• Warranty: 10-10-10 (Compressor-Coil-Parts)

Features That Set the PHE4 Apart

• On-Site Flexibility: Its compact design cabinet comes in two footprints, allowing for versatile placement on curbs or pads.

• Convertible Airflow Design: This design offers maximum field flexibility with easy transitions from side supply/return to down supply/return without additional inventory.

• Efficient Utility Connections: Electric utility access is available through the bottom or side of the unit, ensuring quick connections with minimal field labor.

• Lower Installation Cost: The unit's design reduces installation time and costs. It's pre-wired, pre-charged with R-410A refrigerant, and tested before shipment.

• Quality Assurance: The unit undergoes rigorous testing using state-of-the-art computerized systems to ensure top-notch product quality.

Additional Features for Enhanced Performance

• Condensate Pan: This corrosion-resistant pan collects and drains all condensate, preventing stagnant water buildup.

• Durable Finish: The cabinet is crafted from G90 galvanized steel with a powder paint coating, ensuring durability and resistance against corrosion.

• Full Perimeter Base Rails: These removable rails provide a solid foundation, ensuring stability during shipment and installation.

• Protected Compressor: The compressor has internal protections against high pressure and temperature, ensuring longevity and optimal performance.

Installation and Maintenance

The York PHE4 is designed for ease of installation and maintenance. With utility connections made easy, on-site flexibility, and a design that reduces installation costs, it's a hassle-free solution for HVAC needs. Moreover, its design ensures low maintenance, with long-life, permanently lubricated motor bearings that require no annual upkeep.

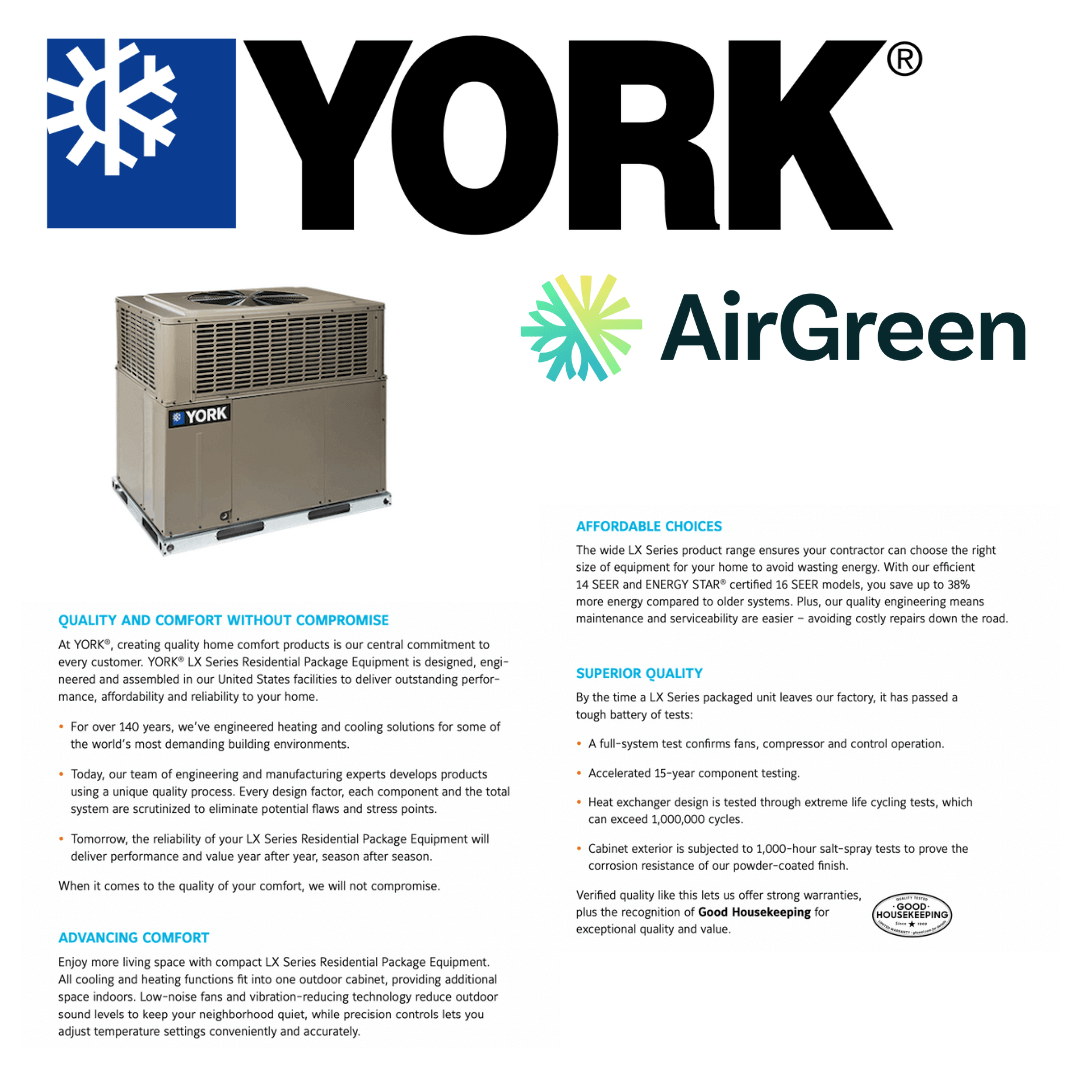

From the Official Brochure

The York PHE4 is not just about specifications; it's about a commitment to quality and performance. The unit is designed for outdoor installation, requiring only utility and duct connections at the installation point. With an operating efficiency rated at 14.0 SEER and 8.0 HSPF, it promises efficient cooling and heating operations. The unit's low operating sound level ensures that your peace is never disturbed, while features like the upward airflow design ensure that the unit's noise is carried away from your living area.

Conclusion

The York PHE4 Packaged Heat Pump unit is a testament to AirGreen's commitment to quality and innovation. Designed for efficiency, flexibility, and ease of use, it's the perfect HVAC solution for those in Montreal, Laval, Longueuil, North Shore, and South Shore. Trust in AirGreen to keep your spaces comfortable all year round.
