A perfectly laid installation in a bright office for four-season comfort, designed for Montreal
Client context and objectives

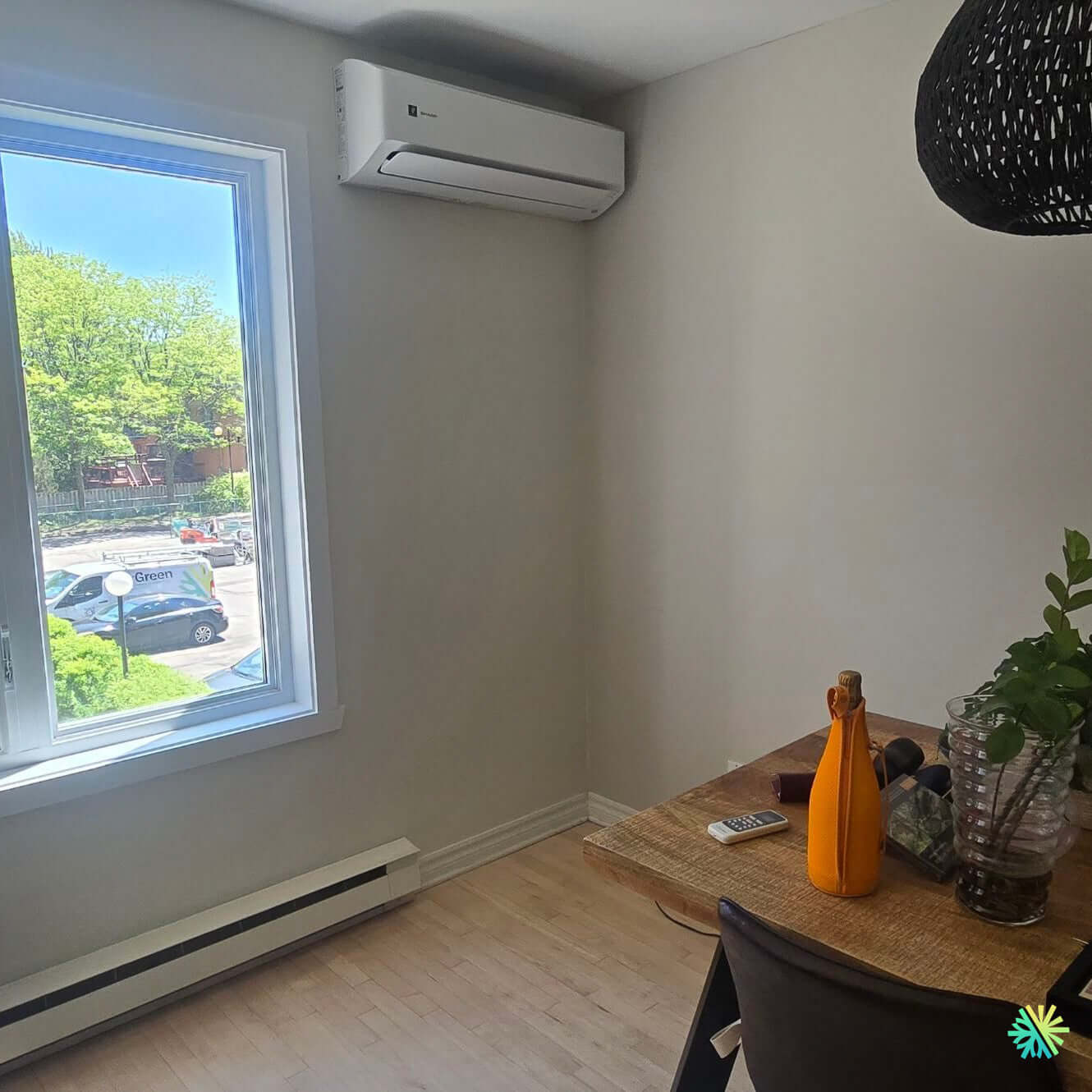

At AirGreen , we were commissioned to modernize the comfort of a room converted into an office in the heart of Villeray–Saint-Michel–Parc-Extension . The space has large southwest-facing windows , an existing electric baseboard heater , and a shallow corner wall . The need is clear: responsive cooling in the summer , stable heating in the off-season , silence during online meetings, and superior energy efficiency compared to a convector. Our recommendation: a Sharp wall-mounted heat pump – ZU1 series (R-32) , calibrated for a medium-sized workspace (≈ 12,000 BTU ).
What we have achieved
Load study and location selection
We start with a load assessment (orientation, glazed surfaces, infiltration, occupancy). The best location is the top of the side wall , close to the window: this position allows free blowing along the partition, sweeping the work area without direct air current on the user and promoting effective destratification in heating mode.
Constraints taken into account:
-
Ceiling clearance optimized for suction.
-
Front filter access for easy HVAC maintenance .
-
Short outlet of the connections to the outside (≈ 1.5 to 3 m) in order to reduce pressure losses and maximize seasonal efficiency .
Drilling, refrigeration connections and finishing
The drilling is carried out with a gravity slope towards the outside for the evacuation of condensates. The insulated copper pipes (controlled pre-flaring) and the communication cable follow a direct route towards the exterior wall. We install a discreet cover on the outside (color matching the brick) and carefully seal the crossing (fireproof foam + sealant) to prevent any air infiltration.
AirGreen quality point : flaring carried out with a calibrated flare and tightening torques measured with a dynamometer . This protocol prevents micro-leaks and guarantees the durability of the fittings.
Test pressure, vacuuming and commissioning
-
High pressure nitrogen application with drop control to detect the slightest leak.
-
Deep vacuum drawing down to ≤ 500 microns , stabilization then resistance test.
-
Opening of pre-charged R-32 refrigerant according to validated line length, superheat/subcooling check and fan setting .
We then carry out a complete test in cold and then in hot conditions , checking the defrosting behavior , the noise level , the gravity flow and the stability of the setpoint .
Electrical connection and protections
The heat pump is powered via a dedicated, code-compliant circuit with an external disconnect box . Terminal block 1-2-3 is controlled in correspondence between the indoor and outdoor units to prevent any inversion. The existing convector remains as a backup , but its use becomes marginal thanks to the advantageous COP of the heat pump .
Why the Sharp ZU1 (R-32) in an office in Villeray?
Comfort and silence
-
Inverter technology : fine modulation, stable blowing at low speed, very low noise pollution during calls.
-
Uniform diffusion : the position at the top of the wall clears the work area and covers the entire room without a direct “throw” on the chair.
Performance and savings
-
R-32 refrigerant with low GWP and better volumetric capacity , for high seasonal efficiency .
-
Consumption significantly lower than electric baseboard: when used as mid-season heating, the bill drops without compromising comfort .
Reliability and air hygiene
-
Sharp's own Plasmacluster function to limit odors and particles (appreciated in a workspace).
-
Easy-access filters : 10 seconds to remove, vacuum and replace.
Integration Details: What Makes the Difference
Short journey and preserved aesthetics
The very short path between the head and the exterior reduces refrigeration losses, limits vibrations and improves performance in extreme cold . Inside, the invisible line maintains a clean aesthetic ; outside, our colored capping blends into the facade.
Gravity condensates
The slope of the borehole eliminates the need for a lift pump : less noise and zero additional maintenance . We test the flow rate in cool mode to validate continuity.
Fine calibration of the setpoint
In an office, rapid load variations (sun, computer, presence) require flexible regulation. We configure:
-
Cold mode at 23–24°C in summer for comfort without overconsumption,
-
Heating mode at 20–21°C in mid-season,
-
Night mode to reduce noise in the evening,
-
Orientation of the fins to avoid any direct jet on the seated person.
Measurable results
Immediate comfort
When switched on, the room reaches the set point within a few minutes . Destratification in winter homogenizes the temperature and reduces the need for the convector.
Reduced consumption
The heat pump covers almost all of the room's heating needs. Customers have noticed a significant reduction in their use of electric baseboard heaters , particularly during the off-season.
Silence in operation
The Sharp ZU1 head operates at low speed most of the time, with a contained noise level that is easily forgotten during video conferences.
Best practices and HVAC maintenance by AirGreen
User interview
-
Clean filters every 4 to 8 weeks during heavy use.
-
Maintain 1 m of clearance in front of the unit for optimal mixing .
-
Use DRY mode during very humid episodes.
Annual professional interview
Our HVAC maintenance package includes:
-
Cleaning the evaporator (foaming detergent + controlled rinsing),
-
Checking connections and electrical tightening ,
-
Control of parameters (temperatures, pressures, intensities),
-
Condensate drain test and defrost inspection.
Regular maintenance preserves the performance and extends the life of the heat pump .
Grants and compliance in Quebec
The ZU1 series wall-mounted heat pump (R-32) meets modern efficiency standards; depending on the configuration, it may be eligible for certain assistance programs. We support our customers in:
-
validate eligibility ,
-
prepare the required documents ,
-
ensure electrical and refrigeration compliance,
-
submit the necessary certificates .
Common Mistakes…and How We Avoid Them
-
Drilling without slope → stagnation and odors: systematic gravity slope .
-
Tight fittings “by feel” → micro-leaks: torque checked with a dynamometer .
-
Long connections to bypass a piece of furniture → pressure losses: installation close to the outside for a short, straight path.
-
Direct air jet on the workstation : adjustment of fins and positioning which promote lateral sweeping .
Why AirGreen for Montreal, Laval, Longueuil, North Shore and South Shore?
We master the specificities of plexes and condos in Greater Montreal: load-bearing walls, short lines, facade management, drilling rules and finishes . Our approach combines sizing , rigorous refrigeration methods (nitrogen, deep vacuum), and sustainable after-sales service . Whether you are in Montreal , Laval , Longueuil , on the North Shore or the South Shore , we deliver clean, efficient and easy-to-live-in HVAC installations .
Express Fair
Does the ZU1 heat up in the cold Montreal weather?
Yes, it maintains a useful capacity in moderate cold ; we set it for minimal electrical backup when the temperature drops sharply.
Is maintenance complex?
No. Filter access is front-facing, and our HVAC maintenance visits ensure exchanger cleanliness and stable seasonal performance .
Conclusion
This Sharp ZU1 wall-mounted heat pump installation in Villeray–Saint-Michel–Parc-Extension illustrates our way of working: load analysis , precise installation , short lines , gravity slope , and controlled commissioning . The result: a more comfortable, quieter , and more energy-efficient office every day. At AirGreen, we transform architectural constraints into sustainable and elegant HVAC solutions .
