Installation of a Thermolec ACU-5 steam humidifier in Ville-Marie (Montreal)

In many renovated condos and plexes in Ville-Marie , a very common problem arises in winter: the air becomes dry as soon as the heating is running continuously. The result: irritated throats, dry skin, static electricity, stressed plants… and sometimes even shrinkage of the wood (floors, moldings, furniture). At AirGreen , we often intervene to correct this invisible but essential discomfort by adding a central humidifier directly to the ductwork.

This installation features a Thermolec ACU-5 (AcuSteam) steam humidifier , neatly integrated into a compact mechanical room, close to a ventilation system (a Fantech unit is visible), with optimized service access despite the limited space.

Why use a steam humidifier in a Montreal apartment?

In Montreal, the outside air is cold and naturally low in humidity during the winter. When it's heated, its relative humidity drops even further. In a condo in Ville-Marie, which is often well-insulated and airtight, the dry air can become a real daily nuisance.

A steam humidifier like the Thermolec ACU-5 is particularly relevant because it:

• produces stable and controllable humidity, even when the furnace operates in cycles;

• integrates very well into a central ducted system ;

• avoids excessively abrupt variations in humidity, which are common with portable solutions;

• improves perceived comfort without overheating.

The installed system: Thermolec ACU-5 (AcuSteam)

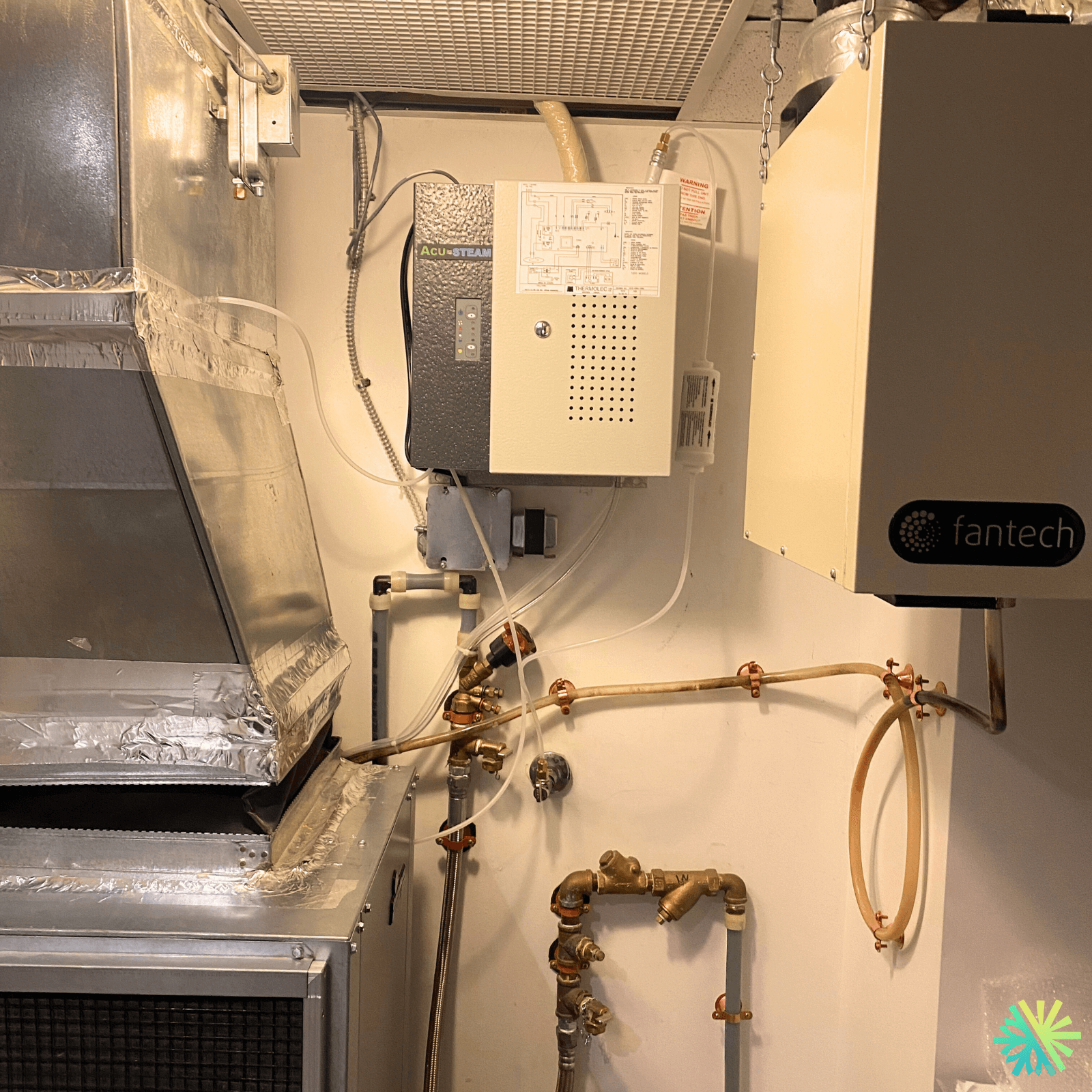

Here, the chosen solution is a Thermolec ACU-5 , a steam humidifier designed for residential applications with ductwork. It's clearly visible in the photo: the wall-mounted AcuSteam module, with its housing and control panel, and the connection to the duct.

Machine type

Central steam humidifier (ducted installation).

Make and model (to be used as fact)

Thermolec – ACU-5 (AcuSteam) .

What the image reveals: salient installation details

Even without being there in person, one can see several very telling elements, typical of a carefully designed installation in an urban environment:

• Mechanical room integration : suspended ceiling, metal conduits, compact access — classic for Ville-Marie condos.

• Connection to the water supply : copper piping, visible valves and fittings; this is essential for a reliable and safe steam generator.

• Accessory management : wiring and pipes fixed neatly, without excessive tension, with a logical routing.

• Proximity to a ventilation device (Fantech) : a good indicator that the dwelling has mechanical ventilation (air exchange), which can accentuate drying in winter if the humidity is not compensated.

• Connection to the duct : humidity is injected into the distributed air, allowing for uniform diffusion throughout the dwelling.

In short: it's not humidity "in a room", it's humidity managed at the building level , which changes everything.

The constraints of the construction site in Ville-Marie: small space, high requirements

In Ville-Marie, mechanical rooms are often:

• narrow ;

• filled with equipment (ventilation, heating, filtration, plumbing);

• Designed for minimal maintenance, not for additions.

In this context, AirGreen's objective is clear: to add humidification without compromising maintenance , without complicating access to other devices, and while maintaining a sustainable installation.

For this installation, we therefore prioritized:

1. A logical wall-mounted positioning (access to components, visibility of connections).

2. Clean and safe plumbing , with accessible valves.

3. A clean routing of the pipes , to avoid friction, crushing and weak points.

4. Seamless integration into the duct network , for stable diffusion.

What humidification actually changes on a daily basis

In a home heated during the winter, maintaining a reasonable and stable humidity level can transform the experience. After this type of installation, customers often tell us:

• more comfortable sleep (less dry throat);

• less sensation of “aggressive” air;

• a reduction of static electricity;

• better preservation of wood (floors, instruments, furniture);

• a comfort that immediately “seems” softer, without turning up the thermostat.

And in an area like Ville-Marie, where heating is sometimes prolonged and intense (winds, large temperature differences), the impact is very real.

AirGreen Best Practices for a Central Steam Humidifier

For equipment to perform optimally over time, installation and commissioning are just as important as choosing the right model. At AirGreen, we particularly emphasize:

• A reliable and easily isolated water connection (accessible valves).

• An installation designed for maintenance (access to the box, minimal clearance).

• An injection into the duct optimized to avoid misplaced condensation.

• A control consistent with the habits of the household (objective: stability, not “too humid”).

• A realistic approach for Montreal : we seek comfort and protection of materials, while avoiding excessive humidity.

Common mistakes to avoid (and why we systematically avoid them)

In Greater Montreal, we still see facilities where:

• access to the case is blocked (complicated maintenance → performance drops);

• the water supply is not designed to be easily isolated;

• moisture is injected into a poorly chosen duct section (risk of condensation);

• The humidity control is poorly calibrated (too dry or too humid).

On this construction site, everything is assembled in a clear and structured way: we are in a “clean, accessible, sustainable” logic — exactly what we aim for in urban mechanical rooms.

Why Thermolec ACU-5 is a consistent choice here

In a condo or centralized ducted residence, the Thermolec ACU-5 is a logical choice when you want to:

• regular humidification (not dependent on a portable device);

• uniform distribution in the rooms;

• an integrated, discreet system, designed for Quebec winters;

• a solution that works well with mechanical ventilation (often present in condos).

Conclusion: an “invisible” comfort, but one that is immediately felt

This installation of a Thermolec ACU-5 steam humidifier in Ville-Marie illustrates what we do on a daily basis at AirGreen: improve the overall comfort of a home with solutions that integrate cleanly, even in complex technical spaces.

If your home in Montreal (Ville-Marie, Plateau-Mont-Royal, Rosemont, Verdun, etc.) becomes too dry in winter, it's not just a minor detail: it's a key factor in comfort , well-being, and often in protecting building materials. And when it's done correctly, the difference is noticeable from the very first days.
