A neat HVAC installation in a Montreal apartment with narrow passages

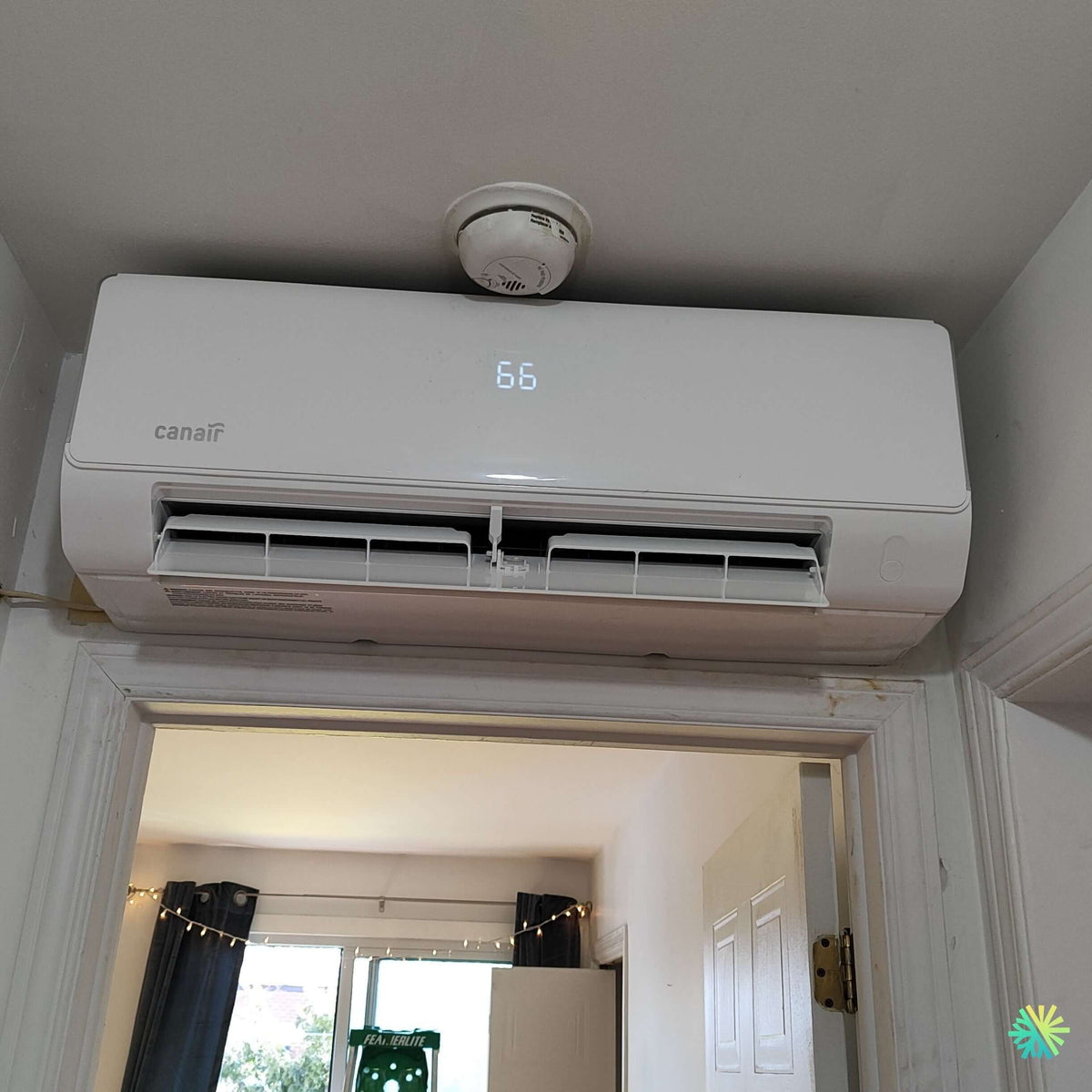

At AirGreen , we support co-owners and tenants in Rosemont–La Petite-Patrie who want to modernize their comfort with a discreet and efficient wall-mounted heat pump . In this project, our team installed a CanAir indoor unit placed above a door frame, at the heart of the circulation between the living room and the bedrooms. This strategic positioning ensures even air diffusion while freeing up wall space.
Client background and objectives
The accommodation, typical of Montreal buildings, presents:
-
Adjoining rooms and narrow corridors .
-
A standard ceiling height with a central smoke detector .
-
A need for additional heating in winter and cooling in summer , without invasive work or ducts.
The objective is twofold: to improve year-round comfort and reduce operating costs, with a reliable, quiet and easy-to-maintain system.
Why a wall-mounted CanAir for an apartment in Montreal?
The chosen solution—a CanAir wall-mounted heat pump —perfectly meets the requirements of an urban apartment:
-
Inverter technology to modulate power according to actual demand and limit consumption.
-
Low temperature heating mode allowing stable heat input during the cold weather of Montreal.
-
Quiet operation suitable for open living areas.
-
Remote control and digital display for easy daily use.
-
Minimally intrusive HVAC installation : clean drilling, refrigerant connection and controlled slope condensate management.
Depending on the surface area and insulation, we usually recommend a range of 12,000 to 15,000 BTUs for a typical 4 1/2; our team always validates the actual heat load before the final proposal.
Positioning the inner head: precision and method
Choosing a high mount above a door brings several advantages:
-
Optimized air distribution to adjacent rooms thanks to the corridor effect.
-
Protection of shutters against impacts and maximum clearance for furniture.
-
Clean aesthetics , discreet cables and connections.
Our points of attention during positioning:
-
Top and side clearance as specified.
-
Orientation of horizontal and vertical shutters to circulate air from the corridor to the living room and then the bedrooms.
-
Respect the minimum distance from the smoke detector in order to avoid any direct blast likely to create unwanted triggers.
Refrigeration path and condensate evacuation
In this apartment, we favor a short route through the exterior load-bearing wall in order to:
-
Limit the total length of the links (reducing losses and optimizing efficiency).
-
Obtain a continuous gravity slope of the condensate line , without an additional pump when the configuration allows it.
-
Cover the outlet with an aesthetic cover matching the facade, ensuring watertightness and UV protection.
When a natural slope is not possible (inverted landings, complex extensions, internal obstacles), we offer a silent mini-condensate pump with an anti-overflow tray and annual maintenance.
Outdoor unit and urban layout
On the exterior side (balcony, courtyard or facade), several solutions are possible:
-
Anti-vibration wall mount with silent blocks when the floor space is limited.
-
Base on the ground on an insulated slab if space permits (practical for winter maintenance).
-
Facade-colored covered ducts for discreet visual integration.
In dense areas of Montreal, we take into account:
-
Noise levels vis-à-vis neighbors.
-
Clearances for air circulation, away from appliance exhausts and recessed corners.
-
Easy access for maintenance and winter de-icing .
Key steps in AirGreen installation
-
Electrical verification and sizing of the dedicated circuit breaker according to the nominal current of the CanAir unit.
-
Trace the drilling respecting the axis of the interior head and the drainage slope.
-
Clean drilling with coring adapted to the type of wall; installation of a waterproof passage (sleeve + mastic).
-
Installation of the interior head above the door, fixing on the plate and leveling.
-
Passage of connections (refrigeration, drain, communication) with continuous insulation and anti-UV tapes; discreet interior/exterior capping.
-
Installation of the outdoor unit on the chosen support, vacuum drawing, leak test and additional load weighing if necessary.
-
Commissioning : superheating/subcooling measurements, checking supply/return temperatures , checking flow and dampers.
-
Setting of modes and instructions; usage advice adapted to the accommodation.
Construction site challenges and solutions provided
-
Limited space at the doorway : we install the plate to the millimeter, with screws adapted to the type of partition, in order to avoid any sagging and to preserve the clearances.
-
Drain management : the slope is checked along the entire length; an anti-odor valve is added on the outside to prevent air from returning.
-
Noise and vibrations : calibrated silent blocks and fan speed adjustment; post-commissioning check in the presence of the customer.
Results for the occupant
-
Consistent comfort throughout the rooms thanks to central placement.
-
Energy savings compared to a traditional air conditioner and electric baseboard heaters used alone.
-
Discreet operation (low noise level at nominal speed) and simple control (visible digital display).
-
Clean HVAC installation : aligned covers, watertight drilling, tidy wiring.
HVAC Maintenance and Best Practices
To preserve equipment performance and longevity:
-
Clean the inner head filters every 4 to 8 weeks during use.
-
Clear the outdoor unit of snow, leaves, and objects to ensure air circulation.
-
Schedule an annual AirGreen maintenance : refrigeration inspection, electrical check, condensate test, parameter check, exchanger cleaning.
-
In co-ownership, inform the union of maintenance dates to guarantee access to the balcony or common areas.
Grants and Eligibility
Efficient wall-mounted heat pumps may be eligible for support programs based on their performance (Energy Star, low temperature capacity maintenance, high SEER/HSPF). We guide our clients in Montreal, Laval, Longueuil, the North Shore and the South Shore in verifying criteria, preparing documents and submitting applications when applicable.
AirGreen Tips for Apartments and Plexiglas
-
Choose the right capacity : An oversized appliance cycles too often; an undersized appliance struggles to reach the setpoint. We size according to the actual heat load, orientation, and envelope.
-
Consider air circulation : the location above a door is relevant if the shutters direct the flow towards the main space, even if it means adding a discreet deflector when the configuration requires it.
-
Anticipate defrosting : in winter, keep the base of the outdoor unit free and check drainage to avoid ice build-up.
-
Maintain aesthetics : favor matching capping and aligned passages; these details enhance the property and facilitate resale.
Why entrust your installation to AirGreen?
We operate weekly in the central districts of Montreal , with certified teams, equipped for tight spaces and complex routes . Our added value:
-
Precise technical studies before work.
-
Clean execution and compliance with electrical and refrigeration standards.
-
Responsive after-sales service and maintenance options tailored to condominiums.
Whether you are in Rosemont–La Petite-Patrie , Villeray , Le Plateau-Mont-Royal , Laval , Longueuil , on the North Shore or the South Shore , we offer reliable HVAC solutions, tailored to your needs and ready for Quebec winters.
