Installation of a GREE FLEXX Electric Furnace Air Handler in Verdun: Central HVAC System Connected to Existing Ducts in a Compact Mechanical Space

A central installation in Verdun where integration with the ducts made all the difference

In Verdun, AirGreen completed the installation of a GREE FLEXX Air Handler electric furnace, a central unit designed to ensure efficient air distribution through a duct network. This type of project requires a different expertise than a wall-mounted installation: the main challenge is not just replacing equipment but integrating the unit into a complete system composed of an air return, a plenum, metal ducts, electrical controls, and, depending on the chosen configuration, an outdoor central heat pump.

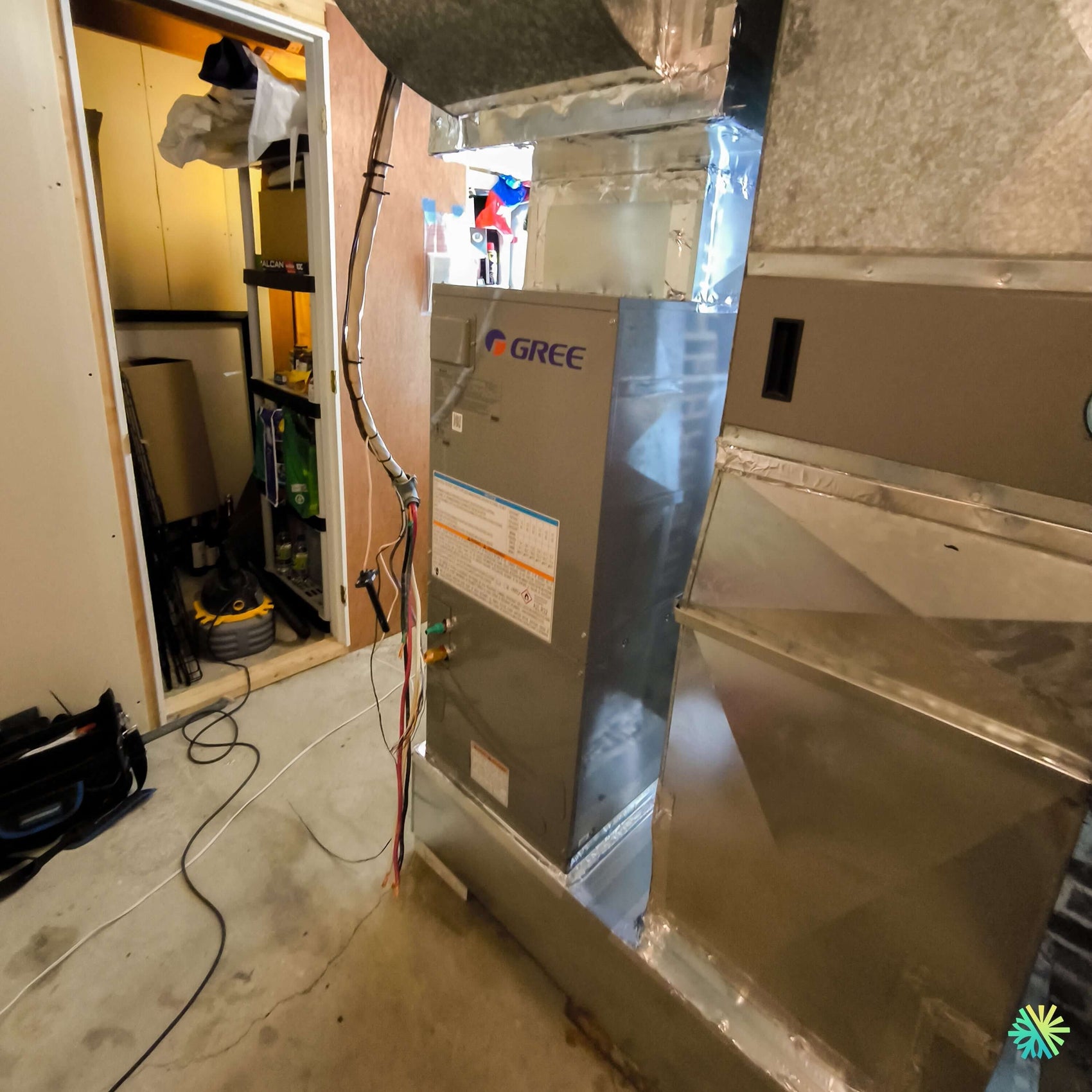

The site photo clearly shows the reality on the ground: an indoor mechanical room with limited access, existing galvanized sheet metal ducts, transitions to adjust, control cables still visible during the work, and a GREE FLEXX unit installed vertically at the heart of the ventilation network. The unit is placed in a useful space, between a storage area and a large duct section. In a property in Verdun, where basements and mechanical spaces can be tight, every inch must be planned before the final installation.

Our team had to work precisely to ensure three essential outcomes: a clean connection to the ducts, reasonable access for future HVAC maintenance, and stable air circulation to the different rooms of the house. A central electric furnace, even when efficient, can only deliver its full performance if the installation around the unit is well executed.

Why the GREE FLEXX Air Handler was suitable for this project

The GREE FLEXX range is designed for central heating and air conditioning systems. GREE presents the FLEXX platform as a central solution combining Inverter technology, installation flexibility, and efficiency reaching up to 17 SEER2 and 10.5 HSPF2 depending on the installed configuration. The latest versions of the FLEXX Ultra R32 family also show, depending on pairings, efficiencies up to 19 SEER2, 12.5 EER2, and 10.5 HSPF2, with a published heating range from -22 °F to 75 °F and a maximum line length indicated at 164 feet.

In the context of this installation in Verdun, these technical data are important, but they don’t tell the whole story. The right choice mainly depended on the real environment: the ducts already in place, the available mechanical space, the possibility of properly aligning the plenum, easy access to service panels, and the system’s ability to supply the house evenly.

A GREE FLEXX Air Handler electric furnace is particularly interesting when a client wants to keep a central distribution rather than install multiple wall units. It allows air to be distributed to several rooms through existing outlets, with a very discreet visual presence in living spaces. For a house or duplex in Verdun, this approach can be very relevant when the building already has a duct infrastructure or when a modernization project aims to improve overall comfort without changing the interior layout.

A limited mechanical space, but used intelligently

The first challenge of this project was space. The unit had to be installed in an area where several elements already coexisted: storage, ducts, concrete surfaces, cable passages, metal transitions, and technical access. In this type of environment, a poorly planned installation can quickly lead to problems:

• difficult access to the filter;
• blocked service panels;
• too abrupt duct connection;
• air leaks at the joints;
• vibrations transmitted to the structure;
• higher ventilation noise;
• longer and more costly maintenance.

At AirGreen, we approach this type of project with a full integration mindset. Before finalizing the position of the unit, we assess the direction of the airflow, the shape of the existing ducts, the available height, the location of electrical connections, and the possibility of later intervention on the system. A central installation must not only work on the day of commissioning; it must remain practical, safe, and durable.

Connecting to the ducts: a critical step

The most visible part of this installation is the duct network surrounding the device. To the right of the GREE FLEXX, you can see a large metal transition connected to the distribution system. Above, the existing ducts have been connected with sealed joints to limit air loss. This sheet metal work is essential because the performance of a central system directly depends on the quality of the network.

A poorly adjusted plenum or transition can create turbulence, reduce airflow, generate noise, and unbalance the temperature between rooms. In neighborhoods like Verdun, where buildings have sometimes undergone several renovation phases, existing ducts are not always perfectly suited to modern equipment. So it is necessary to know how to adjust, seal, and reinforce on site.

Our team paid special attention to:

• alignment of the device with the ducts;
• sealing of joints;
• stability of transitions;
• reducing air leaks;
• the quality of the passage between the air handler and the existing network;
• preserving access to service panels.

This rigor improves not only comfort but also the overall efficiency of the system. A well-installed central device works less hard to deliver the same result.

The visible cables in the photo: a normal stage of the worksite

In the image, control wires and cables are still visible. This corresponds to a work stage before the complete finalization of connections, closure, and testing. On an Air Handler GREE FLEXX, electrical connections and controls must be done carefully, especially when coordinating with a thermostat, an outdoor heat pump, auxiliary electric heating, or other accessories.

A common mistake in central installations is focusing only on the physical connection of the device, underestimating the importance of controls. Yet, the thermostat, heating sequences, fan speed, and calls for cooling or heating must work together. Poor configuration can lead to uncomfortable cycles, unnecessary consumption, or poorly adapted ventilation.

At AirGreen, startup tests are an integral part of the project. We check the device's response, air circulation, controls, connections, and operating logic before considering the installation complete.

The role of an electric furnace in a modern central system

An electric furnace or Air Handler mainly serves to circulate air in the house and, depending on the setup, to provide supplemental or primary electric heating. In a central system with a heat pump, it often acts as the indoor component that distributes heated or cooled air through the duct network.

This distinction is important for owners comparing a wall-mounted heat pump, a central heat pump, and an electric furnace. A wall unit is excellent for a specific zone, but it does not always replace the logic of a central system when a house already has ducts. A central system can better distribute comfort between rooms, especially in multi-level properties or those with closed interior divisions.

In Verdun, this solution was consistent with the client's goal: to improve the overall comfort of the property while using an existing duct infrastructure. Rather than adding several visible wall units, installing a GREE FLEXX Air Handler allowed working from the central network.

Technical points that ensure a reliable HVAC installation in the long term

Proper sizing above all

A central system should never be chosen solely based on a quick BTU estimate. Proper sizing depends on several factors: area, insulation, windows, ceiling height, number of floors, duct condition, air volume to move, static pressure, and actual heating and cooling needs.

A unit that is too small risks running too long without reaching the expected comfort. A unit that is too large can create an overly aggressive airflow, noise, short cycles, or an unbalanced temperature. In the case of an Air Handler, it is also necessary to ensure that the duct network can handle the required airflow without excessive restriction.

Our approach in Verdun was to consider the unit as part of a complete system. The GREE FLEXX had to integrate with the building, not the other way around.

The importance of service access

The photo shows a relatively compact space, but still accessible for work. This is a major point. A central unit must allow for filter replacement, component inspection, connection checks, cleaning, and possible diagnostics.

In projects in Montreal, Laval, Longueuil, the North Shore, and the South Shore, we often see old installations where service becomes complicated because the unit has been stuck behind ducts, walls, shelves, or storage objects. This can turn a simple maintenance visit into a long and costly intervention.

On this site, the position of the unit was designed to maintain maintenance logic. It is a detail that the customer does not always immediately notice but becomes very important after a few years.

Sealing of ducts and joints

The ducts visible around the unit must be solid and well sealed. Even a small air leak can reduce the actual system performance. Air escaping into a mechanical room does not contribute to the comfort of the served rooms. It also forces the unit to work harder.

A good central HVAC installation therefore includes serious work on metal transitions. Joints must be clean, connections well supported, contact surfaces stable, and unnecessary openings eliminated. In a basement or mechanical room, this step directly influences the final result.

Compatibility with grants

For customers considering a central heat pump paired with a Air Handler GREE FLEXX, the question of grants often comes up. Eligibility does not depend solely on the logo on the indoor unit; it depends on the complete combination, the outdoor model, the AHRI number, the recognized capacity, and the current program conditions. Since recent changes to aid programs, many owners must refer to the LogisVert program for eligible heat pumps, rather than the old mechanisms linked to Rénoclimat.

At AirGreen, we always check these elements before confirming a grant estimate. For an Air Handler alone, financial aid should not be automatically assumed. It is the complete system, when paired with an eligible heat pump, that must be validated.

Mistakes to avoid in a central installation

An installation like the one in Verdun highlights several mistakes that homeowners should avoid when planning a furnace or air handler replacement.

Replacing the device without checking the ducts

New equipment does not automatically fix a poorly designed duct system. If air returns are insufficient or ducts are too restrictive, comfort will remain limited. Network analysis is therefore essential.

Choosing capacity without serious calculation

The number of BTUs or tonnage should not be chosen randomly. A quick estimate can lead to an ill-suited device, especially in renovated houses where insulation and windows have changed over the years.

Blocking access to panels

An inaccessible device costs more to maintain and complicates repairs. In a mechanical space in Verdun, future service must always be planned before finalizing the location.

Neglecting the controls

The thermostat, controls, ventilation speeds, and coordination with a central heat pump must be properly configured. Comfort depends greatly on this less visible part.

Accepting poorly sealed duct joints

Air leaks reduce actual efficiency. A good machine with poor connections rarely delivers good results.

A solution adapted to houses and duplexes in Verdun

Verdun has a diverse real estate portfolio: row houses, duplexes, triplexes, partial renovations, renovated basements, and often compact mechanical spaces. This context requires real adaptability. Installing a GREE FLEXX Air Handler electric furnace in this type of property demands a precise reading of the building and careful execution.

AirGreen regularly operates in environments similar to Montreal, Laval, Longueuil, on the North Shore and on the South Shore. Each project has its constraints: limited access, aging ducts, electrical panel to verify, different comfort expectations, noise to reduce, or subsidy to confirm. Our role is to turn these constraints into practical solutions without compromising safety or finishing quality.

The result for the client

At the end of this installation, the client obtains a solid central base for heating, ventilation, and air conditioning according to the system’s complete configuration. The unit is integrated into the ducts, transitions were worked on site, connections were methodically prepared, and the whole is designed to offer more stable air distribution.

The result is not limited to the appearance of the equipment. It is felt in how the air circulates, in temperature stability, ease of maintenance, and the system’s ability to meet daily needs. A successful central HVAC installation is often discreet, but it influences every room in the house.

Why AirGreen for a GREE FLEXX installation in Verdun

AirGreen specializes in heat pump, electric furnace, Air Handler, central air conditioner, central heat pump systems and complete HVAC solutions. For this project in Verdun, our work was based on a rigorous approach: understanding the building, respecting the existing space, neatly connecting the ducts, planning maintenance, and ensuring reliable commissioning.

The GREE FLEXX Air Handler installed here represents an excellent example of a project where the quality of work around the unit matters as much as the unit itself. In a compact mechanical room, good alignment, a well-executed transition, and a neat setup make all the difference.

For owners in Verdun, Montréal, Laval, Longueuil, the North Shore and the South Shore, this type of installation shows that a central system can be effectively modernized, even when available space is limited. With an experienced team, serious planning, and clean execution, a central electric furnace can become the heart of much more stable residential comfort.
