Installation of a MIDEA EVOX G3 1.5-ton electric furnace with central system and air handler in Rosemont–La Petite-Patrie, Montreal

A compact central installation, designed for limited mechanical space in Rosemont–La Petite-Patrie

In the Rosemont–La Petite-Patrie district of Montreal, our AirGreen team installed a MIDEA EVOX G3 1.5 ton electric furnace, integrated into a central system with an air handler. This type of project requires particular attention, as the appliance must not only provide stable comfort throughout the residence but also adapt to often limited mechanical space, especially in Montreal properties where walls, clearances, and technical access leave no room for improvisation.

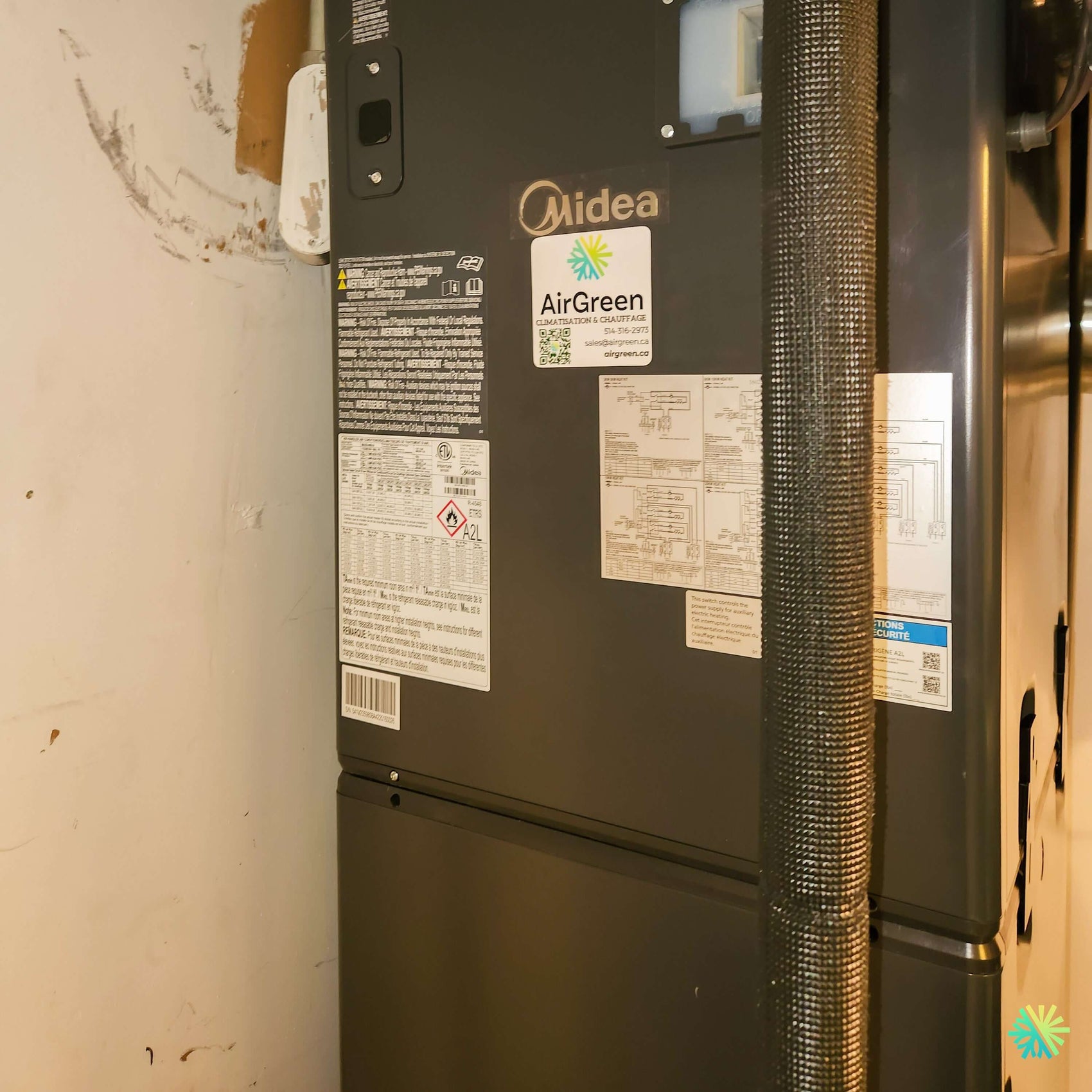

The photo immediately shows a very compact installation: the MIDEA indoor unit is positioned close to the wall, with front access to technical panels, compliance labels, electrical diagrams, and safety information. Side clearance is limited, which is a frequent challenge in Montreal buildings, particularly in denser areas like Rosemont–La Petite-Patrie, Villeray, Le Plateau-Mont-Royal, or Ahuntsic.

Our role, in this context, is not simply to "install a machine." A central HVAC installation must follow a complete logic: air circulation, service access, electrical connections, safety, future maintenance, compatibility with existing ducts, and stable performance in both heating and cooling.

Why choose a MIDEA EVOX G3 1.5 ton for a residential central system?

The MIDEA EVOX G3 is a popular central solution for projects seeking modern, efficient equipment well-suited to residential needs. In this installation, the 1.5 ton size was particularly well-suited to the area served and the existing air distribution network.

Too high a capacity could have led to short cycling, uneven comfort, and poorer humidity management in summer. Conversely, insufficient capacity would have forced the unit to run too long, especially during periods of extreme cold or intense heat. This is why the choice of a MIDEA EVOX G3 1.5 ton air handler is based on a practical analysis of the building, its insulation, its ducts, and the client's expectations.

A central electric furnace adapted to Montreal homes

In many Montreal properties, replacing or installing a central system must contend with existing constraints: existing ducts, old mechanical location, available electrical supply, panel access, finished walls, low ceilings, or storage spaces converted into mechanical rooms.

Here, the installation of the MIDEA electric furnace was planned to maximize three essential elements:

• central heating performance;
• uniform air circulation;
• accessibility for future HVAC maintenance.

A good central system must not only be efficient on the day of installation. It must also remain easy to inspect, clean, and maintain for several years.

The importance of the air handler in a central system

The air handler plays a central role in a residence's comfort. It ensures air circulation through the ducts, distributes heat or coolness to different rooms, and directly influences noise levels, static pressure, and the system's overall efficiency.

In this installation in Rosemont–La Petite-Patrie, our team paid particular attention to the unit's position and its integration with surrounding elements. The insulated vertical passage visible at the front of the unit clearly illustrates the importance of properly protecting ducts and associated lines to limit losses, reduce condensation, and preserve installation quality.

A central unit that requires true installation precision

An electric furnace with a central system is not installed in the same way as a simple wall-mounted unit. Every detail impacts the final performance:

• unit alignment;
• support strength;
• access to service panels;
• quality of electrical connections;
• respect for clearances;
• adjustment to the duct network;
• seal integrity of connections;
• air circulation verification.

On this project, the available space required a clean, tight, and methodical installation. The unit's technical labels remain accessible, which is important for inspections, potential diagnostics, and future maintenance.

Challenges encountered in this project in Rosemont–La Petite-Patrie

The first challenge was space. In Montreal properties, particularly in established neighborhoods like Rosemont–La Petite-Patrie, mechanical rooms are rarely designed with generous clearances. It is often necessary to work close to a wall, around existing obstacles, and with limited openings.

The second challenge concerned the clean integration of the unit into an already finished environment. The photo shows marks on the wall and a typical technical space for a replacement or adaptation. In this type of project, our team must install the new unit without unnecessarily damaging the surrounding surfaces, while ensuring a functional and safe finish.

The third challenge was accessibility. An installation that is too tight can become a problem during maintenance or repair. We therefore took care to preserve access to the essential elements of the unit: front panel, electrical diagrams, unit identification, control area, and connections.

What we check before finalizing a central installation

At AirGreen, a central HVAC installation is always validated before the work is completed. In a project like this, our technicians specifically check:

• the mechanical stability of the unit;
• compliance of electrical connections;
• proper closing of panels;
• absence of obstruction around the unit;
• air circulation in the ducts;
• communication between system components;
• operation of heating and ventilation modes;
• basic settings necessary for client comfort.

This step is essential. A quality machine, even a MIDEA EVOX G3, can only perform at its best if it is installed and adjusted correctly.

An attractive solution for homeowners who want to modernize their comfort

Many clients in Montreal, Laval, Longueuil, the North Shore, and the South Shore contact us when they want to modernize an existing central system. The reasons are often the same: noisy old equipment, less uniform heating, high energy costs, difficulty finding parts, or a desire to prepare the house for a more efficient long-term solution.

In this specific case, choosing a MIDEA EVOX G3 1.5 ton electric furnace allowed for a compact, clean central solution adapted to a residence where mechanical space had to be used intelligently.

Mistakes to avoid with a central electric furnace

One of the most frequent mistakes is choosing capacity based only on a rough rule, without considering the actual building. A 1.5 ton unit may be perfect in some homes, but insufficient or excessive in others. This is why context analysis is essential.

Another mistake is neglecting future access. A poorly positioned unit may seem acceptable initially, but become problematic during maintenance, part replacement, or diagnosis. In central systems, maintenance is not a minor detail: it is part of the installation's lifespan.

It is also necessary to avoid approximate connections to the ducts. An air leak, poor alignment, or poorly adapted transition can reduce comfort in certain rooms, increase noise, and negatively affect system efficiency.

AirGreen's expertise on MIDEA central systems

Our team regularly installs central systems in a wide variety of contexts: single-family homes, condos, duplexes, triplexes, renovated properties, and older buildings. In Montreal, projects often require precise adaptation, as technical spaces are not uniform from one building to another.

With MIDEA, we appreciate the ability to offer solutions that are well-positioned in terms of performance, availability, and value for money. The EVOX G3 range integrates well into many residential projects where clients want a modern solution without falling into an unnecessarily complex installation.

An installation that also prepares for future maintenance

A good installation does not stop at immediate operation. We always think about the HVAC maintenance that will follow. In this project, access to panels and technical information remains visible and usable, which simplifies future inspections.

For the owner, this means fewer complications during service visits. For our technicians, it allows for quicker, cleaner interventions with less risk of damaging elements around the unit.

Practical advice for homeowners in Rosemont–La Petite-Patrie

For homeowners considering the installation of an electric furnace, a central system, or an air handler in Rosemont–La Petite-Patrie, we recommend paying attention to a few points before requesting a quote:

• check the general condition of existing ducts;
• plan for reasonable access around the unit;
• confirm available electrical capacity;
• choose a capacity adapted to the house;
• avoid blocking access to the unit with storage;
• plan for periodic maintenance after installation.

These elements may seem simple, but they make a big difference in the quality of the final result.

A project representative of AirGreen's technical work

This installation of a MIDEA EVOX G3 1.5 ton in Rosemont–La Petite-Patrie accurately represents our approach: a clean, well-thought-out installation, adapted to the building and designed for long-term performance. Each central project requires careful reading of the space, the duct network, and existing mechanical constraints.

At AirGreen, we work with the same rigor in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore. Whether the project concerns a central heat pump, an electric furnace, a central air conditioner, or an air handler replacement, our goal remains the same: to deliver a reliable, clear, durable installation adapted to the client's real needs.
