Installation of a MIDEA EVOX G3 2.5-ton electric furnace with central Air Handler system in LaSalle

A central installation designed for stability, comfort, and precision in a LaSalle home

In this project carried out in LaSalle, our AirGreen team installed a MIDEA EVOX G3 2.5-ton electric furnace, integrated into a central Air Handler system. This type of installation requires special attention, as it's not just about replacing a unit: it's essential to ensure complete compatibility between the indoor unit, existing ducts, available mechanical space, electrical connections, airflow, and the property's actual comfort needs.

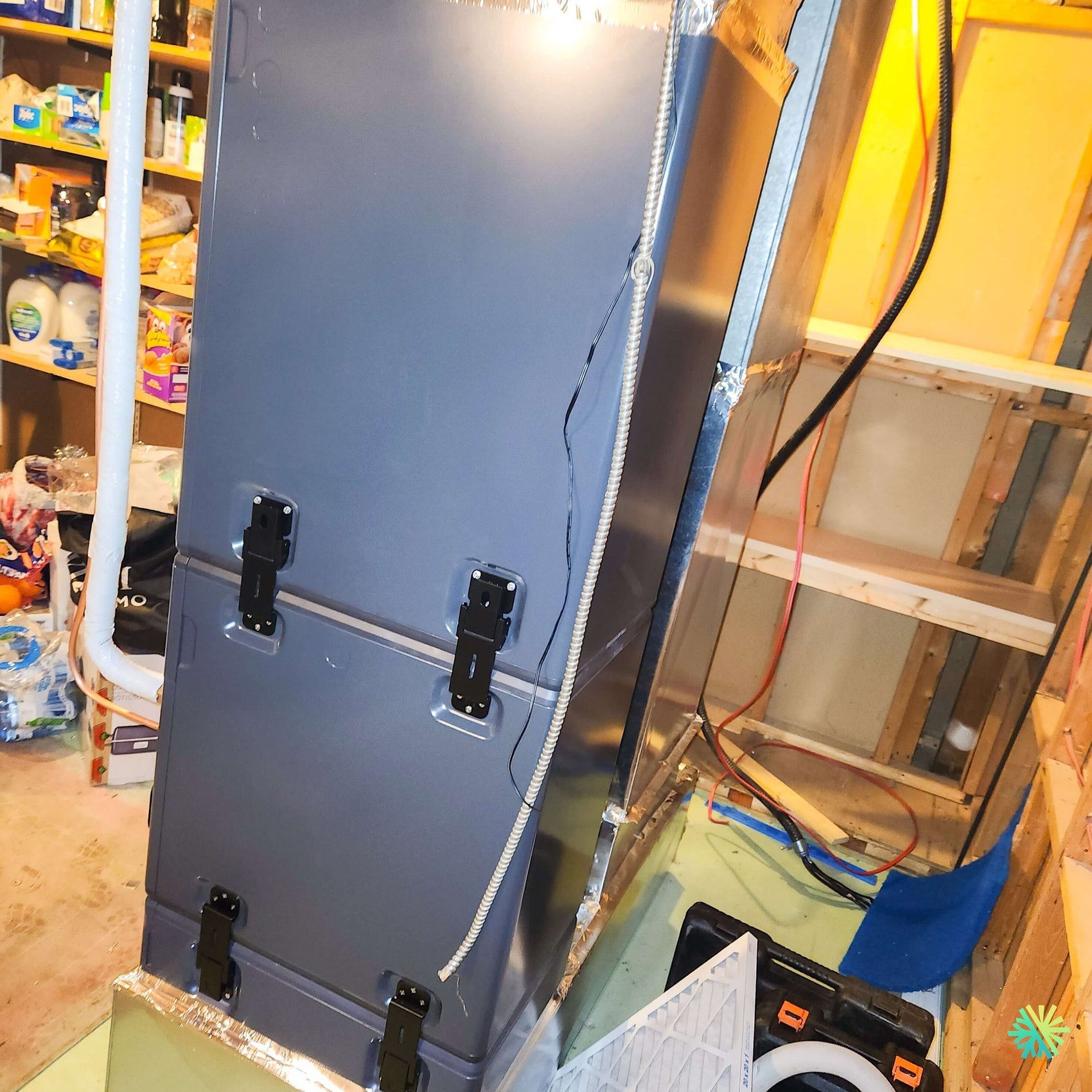

The job site photo shows a typical residential mechanical room environment: restricted space, existing metal ducts, open wall structure nearby, pending wiring, air return, and limited technical access. These are precisely the conditions that demand a rigorous, clean, and planned HVAC installation. In an area like LaSalle, where single-family homes, duplexes, triplexes, and progressively renovated properties are found, each central installation must be adapted to the building, not just installed according to a standard model.

The MIDEA EVOX G3 2.5-ton is a modern solution for homeowners looking to improve their indoor comfort, optimize air distribution, and prepare their home for more stable energy performance. In this specific case, the unit was installed vertically, connected to the existing ductwork, with careful attention to mechanical alignment and future accessibility for maintenance.

Why a MIDEA EVOX G3 central electric furnace in this property?

The choice of an electric furnace with a central Air Handler system is particularly relevant when a property already has ductwork or when an owner wishes to standardize comfort in multiple rooms from a single system. Unlike an individual wall-mounted solution, the central system distributes conditioned or heated air through ducts, ensuring a more uniform feeling throughout the entire house.

In this LaSalle installation, the goal was clear: to provide a reliable, compact, and well-integrated central solution in a mechanical space already occupied by various building and service elements. The MIDEA EVOX G3 2.5-ton unit is well-suited for this type of project due to its format adapted to residential installations, its modern design, and its compatibility with high-efficiency central systems.

A capacity of 2.5 tons generally corresponds to approximately 30,000 BTUs, a power frequently used for medium-sized homes when load calculations, insulation, room configuration, and client needs permit. At AirGreen, we never choose a capacity based solely on approximate surface area. We consider several elements: the age of the building, sun exposure, window quality, number of floors, ductwork, available airflow, and the owner's comfort expectations.

Site assessment: a technical space requiring precision

The image shows several important details. The indoor unit is installed in a storage space or a compact mechanical room, with storage shelves nearby, adjacent metal ducts, and a partially open wall structure. This type of environment dictates practical decisions from the outset.

The first challenge is access. A central electric furnace must remain accessible for future maintenance, filter replacement, inspections, electrical checks, and ventilation adjustments. In this project, the location was designed to preserve reasonable access to the unit's service panels. The black fasteners visible on the unit's front allow for secure opening of the panels, which is essential for any future intervention.

The second challenge is alignment with the ducts. An Air Handler only functions correctly if airflow is well directed, without excessive restriction or significant leaks. In the photo, we observe the immediate proximity of insulated and sealed metal ducts. Our team therefore had to ensure a clean junction between the unit and the network, while respecting the constraints of the available space.

The third challenge is connection management. The visible wires, flexible electrical conduits, and pending elements show that such a site is built in coordinated stages. A central installation is not limited to simply placing the unit on the floor: circuits, clearances, stability, safety, mechanical protection, and finishing around the connections must be validated.

A central HVAC installation that requires more than a simple replacement

In several homes in Montreal, Laval, Longueuil, on the North Shore and South Shore, we encounter central installations where the old unit was replaced quickly, without a thorough check of the distribution network. This often leads to comfort problems: rooms too cold, ground floor too hot, excessive noise in the ducts, high static pressure, short cycling, or difficult maintenance.

For this MIDEA EVOX G3 2.5-ton installation in LaSalle, our approach was to consider the entire system. The proper functioning of a central electric furnace depends as much on the unit itself as on its mechanical environment. A high-performance unit poorly connected will never deliver its full potential.

We therefore paid attention to several essential points:

• the stability of the unit on the floor;
• alignment with existing ducts;
• accessibility of service panels;
• protection of connections;
• continuity of airflow;
• ease of filter replacement;
• finish around metal junctions;
• general safety of the technical space.

This rigor is particularly important in homes where the mechanical space also serves as storage. Products, boxes, tools, or objects stored near an HVAC appliance can sometimes complicate access or impair ventilation. Our role is also to advise the client on the space to keep clear around the equipment to preserve the system's performance and safety.

The concrete advantages of a central Air Handler system

A central Air Handler system offers several advantages when properly sized and installed. For the owner of this LaSalle home, the goal was to achieve more uniform air distribution, better integration with the ducts, and a solution capable of supporting daily comfort without multiplying visible units in the rooms.

Among the most important benefits is discretion. The main equipment is located in the mechanical room, while air is distributed through existing grilles. This suits homeowners who want to maintain a clean interior aesthetic.

There is also uniformity. When ducts are in good condition and airflow is well adjusted, a central system can provide stable comfort in several areas of the home. This is particularly appreciated in family homes, properties with multiple bedrooms, or buildings where occupants want to avoid significant variations from room to room.

Finally, a central system often facilitates integration with other HVAC components, such as a central heat pump, humidifier, enhanced filtration system, or certain indoor air quality accessories. This flexibility is a major advantage for homeowners who wish to progressively modernize their home.

MIDEA EVOX G3: a modern solution for residential projects

The MIDEA EVOX G3 range is often chosen for projects where a good balance between performance, accessibility, efficiency, and adaptability is sought. In the field of residential HVAC, MIDEA has established itself as a prominent brand in the Canadian market, thanks to equipment designed to meet the needs of modern homes and energy renovations.

In this installation, the 2.5-ton capacity allows for central distribution adapted to the building's configuration. The role of the electric furnace or Air Handler is to ensure controlled air movement in the ducts, while integrating the necessary electrical elements for heating when required.

This type of appliance can be particularly relevant in projects where the aim is to reduce reliance on older, less efficient systems or to modernize an existing installation without completely transforming the home's interior architecture.

Specific challenges encountered during installation

Every central installation brings its own set of constraints. In this LaSalle project, the main difficulty was related to the available space around the unit and the presence of building elements very close to the system. The open wall structure on the right, existing ducts, and pending connections required precise coordination.

In a compact mechanical room, a few centimeters can make a big difference. A poorly positioned appliance can make maintenance difficult, force ducts, create vibrations, or complicate electrical connections. Our team therefore worked carefully on the unit's placement, considering both the present and the future: not only did the installation have to function today, but it also had to remain accessible for future maintenance.

Duct management also represented an important aspect. A metal connection must be stable, well-adjusted, and properly sealed. The visible junctions around the unit show the level of precision required to integrate the equipment into an existing network without creating unnecessary losses. Good sealing helps limit air leaks, improve system performance, and maintain more efficient distribution.

The importance of the filter and future maintenance

In the photo, a filter is visible near the equipment, which highlights an often underestimated point: the maintenance of a central system begins with filter access. A neglected filter can reduce airflow, increase system pressure, cause noise, decrease comfort, and unnecessarily strain internal components.

During a central HVAC installation, we therefore pay particular attention to ease of filter access. A well-installed system should allow the owner or technician to replace the filter without having to move a significant amount of objects or dismantle unnecessary elements.

We generally recommend checking the filter regularly, especially in homes with pets, ongoing renovations, frequent dust, or heavy heating and cooling use. Simple yet consistent maintenance protects the owner's investment.

Mistakes to avoid during central electric furnace installation

An installation like this may seem simple at first glance, but several common mistakes can compromise the result.

The first mistake is to choose a capacity based solely on an approximate rule. A MIDEA EVOX G3 2.5-ton electric furnace may be ideal in one home and unsuitable in another if the thermal loads are not comparable. Sizing must always be carefully considered.

The second mistake is neglecting the ductwork. A new appliance connected to improperly sized or poorly sealed ducts can yield disappointing results. The client then believes the appliance is at fault, when the problem often stems from air distribution.

The third mistake is sacrificing technical access. In many mechanical rooms, attempts are made to maximize storage space, but an HVAC appliance must remain accessible. Panels, filters, electrical connections, and ducts must be inspectable.

The fourth mistake is not planning for the finish. A temporary joint, a poorly sealed connection, or incomplete protection can create problems over time. At AirGreen, we know that a durable installation depends as much on visible details as on hidden elements.

A project representative of central installations in Montreal and the surrounding areas

This LaSalle project clearly illustrates the realities of the residential market in Greater Montreal. Homes are rarely identical. Some have been renovated multiple times, others have compact mechanical rooms, modified ducts, or significant access constraints. This is why our team regularly works on similar projects in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, with an approach adapted to each building.

We have carried out central installations in finished basements, mechanical spaces shared with water heaters, residential warehouses, insulated garages, and homes where existing ducts required correction before installing the new appliance. This experience allows us to anticipate problems before they become costly.

In the case of this MIDEA EVOX G3 2.5-ton electric furnace installation in LaSalle, our priority was to deliver a clean, accessible, and consistent system with the existing structure. The equipment had to integrate into the space without compromising maintenance, airflow, or safety.

The result: a clean, robust installation ready for lasting central comfort

The final result is a central installation that meets the client's needs while respecting the building's real constraints. The MIDEA EVOX G3 2.5-ton is stably positioned, connected to the ductwork, and prepared to provide efficient air distribution through the central system.

This type of project demonstrates the value of a specialized HVAC team. A good installation is not limited to the brand or model chosen. It relies on understanding the building, the quality of connections, respect for clearances, electrical coordination, duct finishing, and understanding the client's expectations.

At AirGreen, we place particular importance on these details because they determine the real comfort after installation. A new appliance must be efficient, but above all, it must be well integrated. This difference is what allows for a quieter, more stable, easier-to-maintain, and better-suited system for the home.

Practical advice for homeowners considering a central system

For homeowners in LaSalle, Montreal, Laval, Longueuil, the North Shore or the South Shore who are considering installing a central electric furnace or an Air Handler, a few tips can help avoid unpleasant surprises.

Before choosing a model, the mechanical space must be evaluated. Available height, access to ducts, passage width, proximity to walls, and the possibility of future service are important elements.

Existing ducts must also be examined. Ducts that are too small, damaged, or poorly sealed can limit the performance of the new appliance. In some cases, a partial correction of the network can significantly improve comfort.

Finally, maintenance must be considered. A central system is a long-term investment. The filter, access panels, electrical connections, and internal components must remain accessible. A well-thought-out installation today reduces complications tomorrow.

AirGreen: a local, technical, and transparent approach

AirGreen supports homeowners in their heating, air conditioning, heat pump, electric furnace, central system, and HVAC maintenance projects throughout Greater Montreal. Our approach is direct: we analyze the building, explain the available options, and install the equipment according to the actual requirements of the site.

For this installation in LaSalle, the photo truly reflects the type of work we regularly perform: a modern central unit, installed in an existing space, with concrete constraints and significant technical decisions. It is precisely in this kind of context that experience makes the difference.

A successful HVAC installation is not only measured on the day it is commissioned. It is measured in the months and years that follow: constant comfort, easy access, stable operation, simplified maintenance, and owner satisfaction. It is this long-term vision that guides our work at AirGreen.
