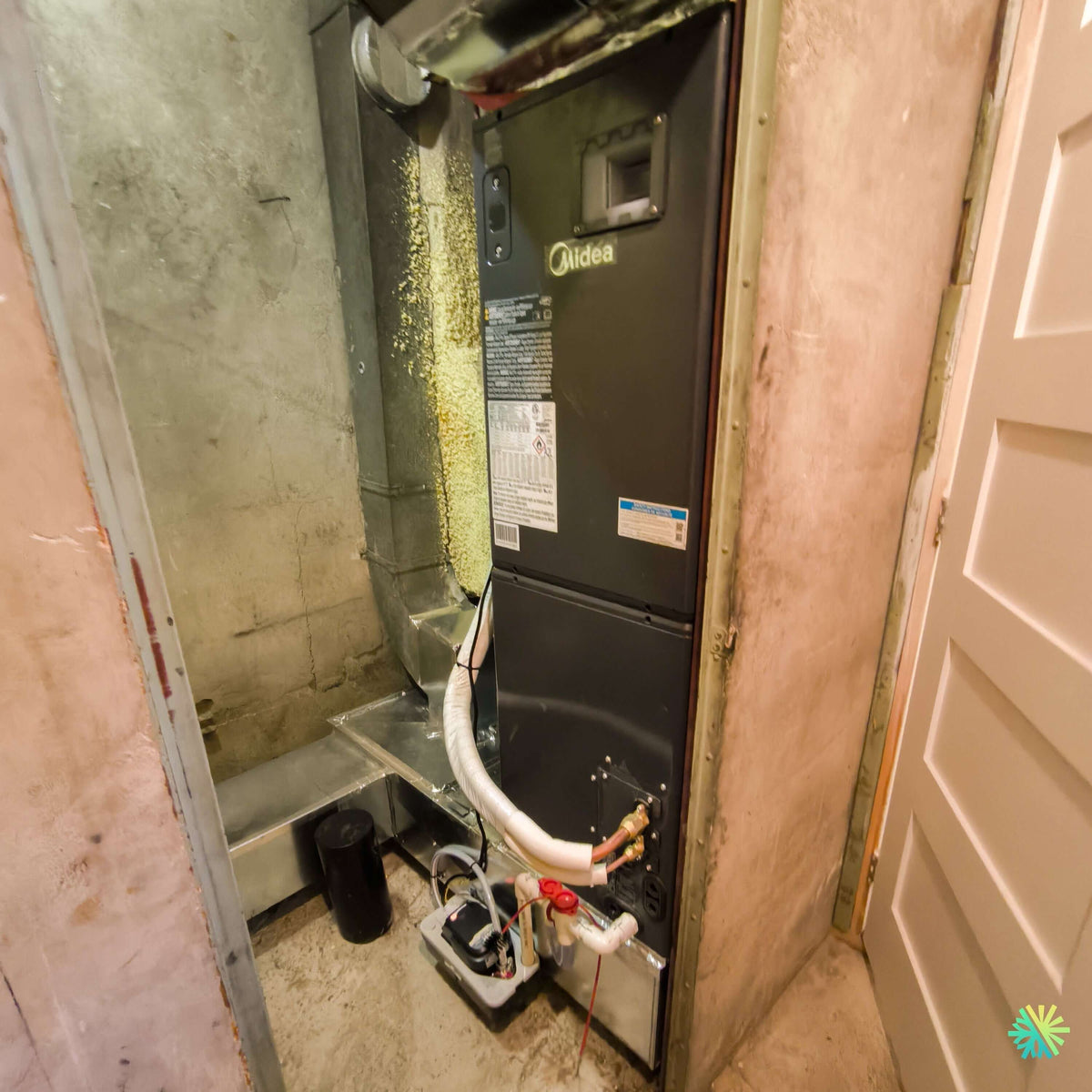

Installation of a 2-ton MIDEA EVOX G3 electric furnace in Île-des-Sœurs: compact central system with air handler in a confined mechanical space

An HVAC installation designed to maximize comfort in a narrow mechanical room

In Île-des-Sœurs, our AirGreen team installed a MIDEA EVOX G3 2-ton electric furnace, also known as a central system with an air handler, in a particularly cramped mechanical space. The photo clearly illustrates the context: a central unit installed between a concrete wall, a nearby door opening, an existing duct network, and a lower area containing connections, drainage, and operating accessories.

This type of HVAC installation requires much more than simply placing the unit. In a condo or urban residence in Île-des-Sœurs, every inch counts. The goal was not just to install a new MIDEA unit, but to integrate it cleanly into the existing air distribution system, while ensuring reasonable access for HVAC maintenance, future service, and long-term performance.

Why choose a MIDEA EVOX G3 2-ton electric furnace?

The MIDEA EVOX G3 2-ton is a central solution suitable for properties seeking uniform comfort in multiple rooms, without multiplying visible wall units. Unlike a wall-mounted air conditioner or a single-zone wall-mounted heat pump, this type of system uses existing ducts to distribute air throughout the entire dwelling.

In this project, the choice of a MIDEA EVOX G3 air handler met several specific needs:

• to ensure better air distribution within the unit;
• to maintain an already existing central configuration;
• to modernize the equipment without completely transforming the duct network;
• to optimize heating and air conditioning comfort;
• to prepare a more efficient solution for the variable seasons in the Montreal region.

For many homeowners in Montreal, Laval, Longueuil, on the North Shore and the South Shore, the central system remains a highly appreciated option when the property already has functional ducts.

A significant challenge: limited mechanical access

The most visible characteristic of this installation is the available space around the appliance. The new air handler is placed in a narrow mechanical room, with a very close door on the right side and a raw wall on the left. This configuration requires precise planning even before the work begins.

Our technicians had to consider several elements:

• the alignment between the new MIDEA unit and the existing ducts;
• the available height under the upper plenum;
• the position of the refrigeration connections;
• the location of the condensation drain;
• access to the service panel;
• safety around electrical connections;
• air circulation in a confined area.

In this type of installation, an error of a few centimeters can complicate filter replacement, make a panel difficult to open, or hinder future diagnostics. This is why our approach at AirGreen is to analyze not only the current installation but also the actual use of the equipment for the following years.

Integration into the existing duct network

The photo shows that the appliance is connected to an existing metal duct network. One of the most important aspects of this project was to ensure a solid and well-adjusted transition between the new MIDEA electric furnace and the existing air distribution.

A poor transition can create several problems:

• pressure losses;
• excessive air noise;
• air leaks in the mechanical room;
• reduced efficiency;
• uneven comfort from one room to another.

Our technicians therefore paid particular attention to the sealing and stability of the connections. In a central system, actual efficiency does not depend solely on the installed machine. It also depends on the quality of the duct network, balancing, sealing, and compatibility between the equipment and the existing infrastructure.

Drainage and accessories management

The lower part of the installation shows the presence of a condensation drainage system and accessories related to the unit's operation. In a central installation, especially when it also serves for air conditioning, the evacuation of water produced by condensation is a critical point.

Poorly designed drainage can lead to:

• overflows;
• humidity in the mechanical room;
• floor damage;
• safety shutdowns;
• avoidable service calls.

In this project in Île-des-Sœurs, our team ensured that the components were functionally positioned despite the restricted space. The goal was to maintain a clean, accessible, and safe installation.

A clean installation in a raw environment

The mechanical room shown in the photo is not a finished space like a living room. It features concrete, unpainted surfaces, exposed studs, and a compact technical area. Yet, it is precisely in this kind of environment that the quality of an HVAC installation is most noticeable.

A professional installation must remain clear, logical, and durable, even when space is challenging. Ducts, connections, drains, and access points must be organized to avoid complicated interventions later on.

At AirGreen, we treat these technical spaces with the same rigor as a visible installation in a living area. The customer may not look at their air handler every day, but they feel the result of the installation every day: stable airflow, reliable heating, efficient air conditioning, and a system that is easier to maintain.

What this installation in Île-des-Sœurs teaches homeowners

Never choose a machine based solely on tonnage

The mention of 2 tons gives an indication of capacity, but it is not enough on its own to guarantee a good result. In a property with a central system, you must also consider:

• the duct configuration;
• the serviced area;
• insulation;
• sun exposure;
• ceiling height;
• the desired comfort level;
• the space available for installation;
• electrical constraints.

A unit that is too small risks running for too long. A unit that is too large can create short cycles, less efficient dehumidification, and less stable comfort. The right choice is based on the overall context, not just a spec sheet.

Service space is as important as installation space

In many condos and residences in Montreal, mechanical rooms are very compact. It can be tempting to install the appliance simply because it "fits" physically into the space. But a good installation must also allow for:

• opening the panels;
• accessing the filters;
• inspecting the drain;
• electrical diagnostics;
• potential component replacement;
• periodic cleaning.

In this project, the proximity of the door and walls necessitated a precise approach. The unit's placement had to consider the reality of future service, not just the installation day.

The importance of entrusting the project to a team accustomed to central systems

Installing a wall-mounted heat pump and installing a central system with an air handler are two different realities. A central system often involves a more complex interaction between the machine, ducts, drainage, electricity, filtration, and air circulation.

This is where AirGreen's field experience makes a difference. We regularly work on central systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore, in single-family homes, condos, duplexes, older buildings, and renovated properties. This variety of projects allows us to anticipate constraints that are not always visible at first glance.

Common mistakes to avoid

For homeowners considering a similar installation, here are the mistakes we see too often:

Choosing a unit without checking the ducts

A good appliance does not compensate for a poorly adapted duct network. Before installation, the overall compatibility of the existing system must be checked.

Neglecting drainage

The drain is often perceived as a minor detail. In reality, it can become one of the main sources of problems if the installation is poorly thought out.

Forgetting filter access

A hard-to-access filter will often be neglected. And a neglected filter reduces performance, increases consumption, and can shorten the system's lifespan.

Comparing price alone

Two quotes may seem similar but include very different levels of finish, adaptation, verification, and responsibility. In HVAC, the lowest price is not always the best long-term cost.

The result: a well-integrated MIDEA central system ready for Montreal's seasons

At the end of this installation in Île-des-Sœurs, the client benefits from a modern, compact, and well-integrated central system. The MIDEA EVOX G3 2-ton electric furnace allows for maintaining central air distribution while modernizing existing equipment.

This type of project perfectly represents the work we do at AirGreen: adapting the right technology to the right environment, without neglecting the practical details that will make a difference in five, ten, or fifteen years.

Whether for an installation in Montreal, a central system replacement in Laval, an HVAC modernization in Longueuil, a residential project on the North Shore, or a conversion on the South Shore, our approach remains the same: thorough analysis, clean installation, accessible service, and a result designed for the client's actual comfort.

Why AirGreen for your central HVAC installation?

AirGreen specializes in heating, ventilation, and air conditioning solutions adapted to local realities. We understand the constraints of Montreal buildings: cramped mechanical rooms, existing ducts, co-ownerships, limited access, high comfort requirements, and the need for reliable service.

For a central HVAC installation like this one, our team provides:

• a precise assessment of the space;
• a good understanding of central systems;
• a clean and thoughtful installation;
• particular attention to service access;
• practical advice on HVAC maintenance;
• field experience throughout the greater Montreal area.

A high-performance machine deserves an installation to match. In this project in Île-des-Sœurs, the MIDEA EVOX G3 was carefully integrated into a demanding technical environment, exactly as a central system designed to provide daily comfort should be.
