Installation of a MIDEA EVOX G3 2-ton electric furnace in Montreal-East: a compact, clean, and well-integrated central system

An HVAC installation designed to maximize comfort without encroaching on mechanical space

In many homes in Montréal-Est, the space reserved for mechanical equipment is often limited, especially when the mechanical room already houses a water heater, main ducts, electrical connections, refrigeration lines, and service access. This installation of a MIDEA EVOX G3 2-ton electric furnace, also known as a central system or air handler, represents exactly the type of project where precision, order, and on-site adaptation make all the difference.

At AirGreen, we carried out this installation with particular attention to three essential elements: integration with the existing ductwork, the quality of refrigeration and electrical connections, and ease of access for future maintenance. The result is a modern, compact central system, well-aligned with the distribution duct, and designed to provide stable comfort throughout the house.

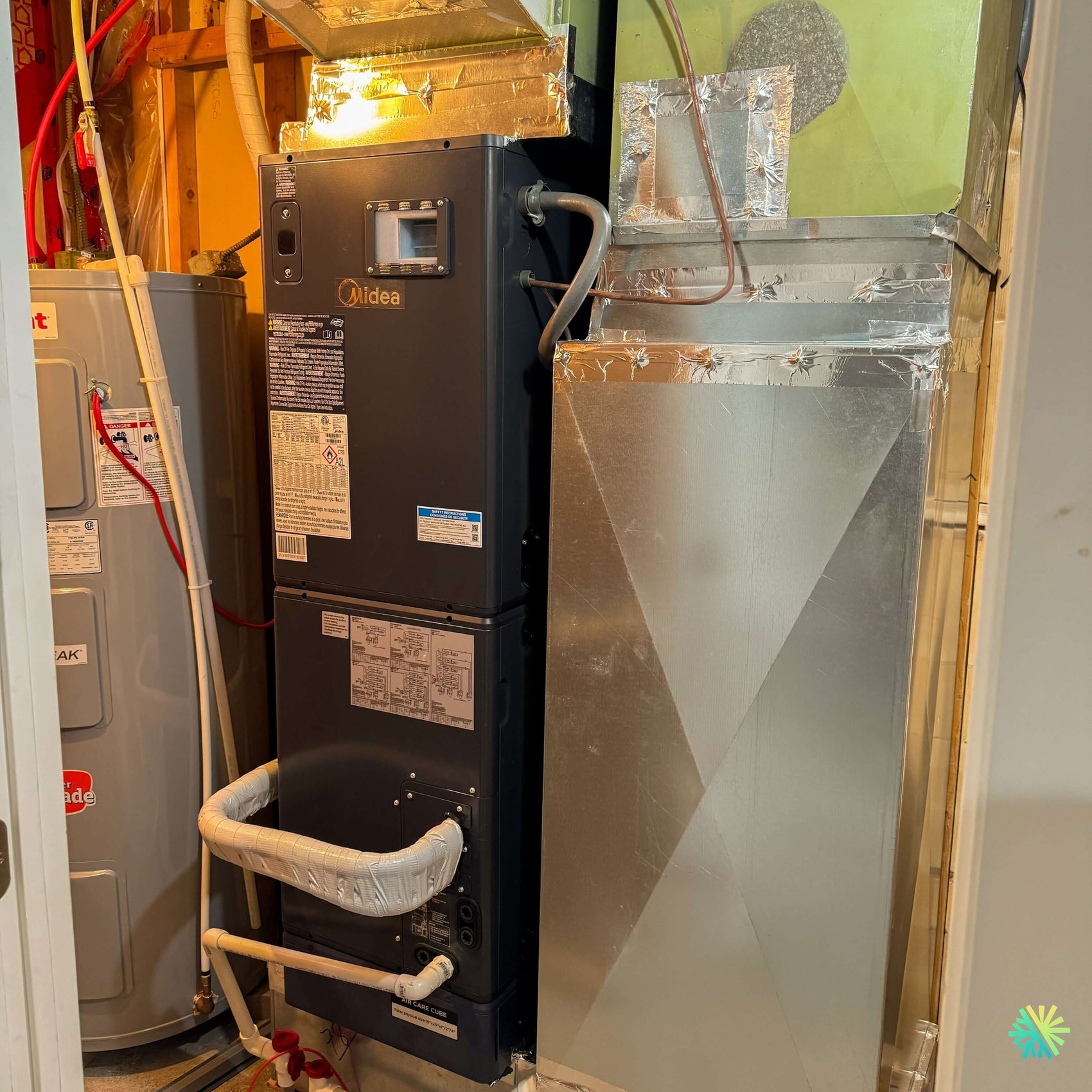

The project photo clearly illustrates the reality on the ground: a narrow mechanical room, a nearby water heater, a vertically installed MIDEA indoor unit, custom-fitted metal ducts, careful insulation around transitions, and well-protected lines. This is not a theoretical installation on paper; it's a concrete intervention in a real residential environment, with its constraints, angles, clearances, and technical details to respect.

A MIDEA EVOX G3 2-ton unit adapted to homes in Montréal-Est

The MIDEA EVOX G3 2-ton unit is an interesting central solution for homeowners who wish to replace or modernize their heating and air conditioning system without installing multiple visible wall-mounted units in rooms. The central system allows air to be distributed through existing ducts, providing more uniform comfort and a more discreet appearance inside the home.

In this project in Montréal-Est, the choice of a 2-ton capacity corresponds to a residential configuration where the objective was to provide efficient performance without oversizing the equipment. Proper sizing is a critical step in HVAC installation, as an oversized machine can lead to short cycling, reduce comfort, increase indoor humidity in summer, and prematurely wear out certain components. Conversely, an undersized machine may run too long without reaching the desired temperature during periods of intense cold or heat.

The MIDEA EVOX G3 range is often chosen for its excellent balance of performance, efficiency, compatibility with central installations, and operation adapted to the needs of homes in Quebec. In an installation like this, the indoor unit acts as the heart of the air distribution network: it receives return air, conditions it, and then pushes it through the ducts to the different rooms.

Vertical installation in a confined space

One of the most visible elements of this installation is the vertical position of the MIDEA electric furnace. This configuration is very common in residential mechanical rooms, as it allows for the use of available height rather than monopolizing more floor space.

In this specific case, the unit was installed next to the existing water heater, while maintaining the necessary access to service panels. The proximity of other equipment required careful planning. It was necessary to avoid blocking access to the water heater, maintain a clear path to the furnace panels, position refrigeration lines safely, and properly connect the unit to the metal ducts.

The installation also demonstrates the importance of a well-fabricated transition between the indoor unit and the main duct. The metal duct visible on the right was adapted to align correctly with the air outlet, then sealed and insulated to limit air loss. This part of the job is often underestimated by homeowners, but it directly influences the actual performance of the system.

A very efficient machine can lose some of its performance if the ducts are poorly connected, poorly sealed, or poorly balanced. This is why, at AirGreen, we treat duct connection as a major component of the installation, and not just a finishing detail.

Carefully adapted and sealed metal ducts

In the photo, a large section of metal duct is visible on the right side of the unit. This transition was designed to ensure smooth airflow between the MIDEA EVOX G3 and the existing network. The joints were covered and sealed with appropriate metal tape, which helps limit air leaks into the mechanical room.

In a home, every leak in the ductwork can have concrete consequences: pressure loss, less comfortable rooms, increased noise, higher energy consumption, and difficulty maintaining a stable temperature. In areas like Montreal, Laval, Longueuil, the North Shore, and the South Shore, we regularly see high-performance systems that are underperforming simply because the old ductwork was not properly adapted to the new equipment.

For this installation in Montréal-Est, our work was therefore not limited to installing the unit. It was also necessary to ensure a solid, clean, and durable connection between the central equipment and the existing air distribution. This level of detail is particularly important with a modern central system, as performance depends not only on the machine's technical specifications but on the entire installation.

Refrigeration lines: protection, curvature, and accessibility

The photo also shows the refrigeration lines connected to the indoor unit. They are protected, insulated, and guided to respect the available space around the furnace. In a central heat pump installation, these lines play an essential role: they connect the indoor unit to the outdoor unit and allow for the energy transfer necessary for heating and cooling.

Poor curvature, a poorly supported line, damaged insulation, or a difficult-to-access connection can lead to long-term problems. This is why our technicians pay particular attention to the trajectory of the lines, the quality of the connections, and mechanical protection. In a confined space like this, the challenge is to route the lines neatly without creating excessive tension or blocking service panels.

The work visible on this installation reflects a practical approach: connections are accessible, lines are protected, and the mechanical space remains usable. This is exactly what a homeowner should look for when comparing HVAC contractors in Montréal-Est.

Special attention to evacuation and drainage details

A central indoor unit used for air conditioning must manage the condensation produced by the indoor coil. Drainage is therefore an essential part of the system. Even if this detail seems simple, a poorly installed drain can cause water damage, system shutdowns, odors, or humidity problems around the furnace.

In this type of project, we always check the slope, accessibility, drain protection, and evacuation logic. A clean installation should not only allow for efficient operation at startup but also simple maintenance in the following years. The goal is to prevent a small drainage oversight from becoming a major problem during a period of intensive air conditioning.

The main challenge: integrating new into existing mechanicals

This installation in Montréal-Est illustrates a common challenge: installing modern technology in an environment that was not originally designed for it. The ductwork, the space around the water heater, clearances, access points, heights, and old pipe runs impose very concrete limitations.

In this type of project, the team's experience makes a big difference. It's not enough to have the right machine; you need to know how to install it in a real home, with its real constraints. On this site, our technicians had to work with precision around existing elements, position the unit to maintain service access, adapt the metal ducts, and carefully connect them without unnecessarily cluttering the mechanical room.

It is often in these details that a professional HVAC installation is recognized. A quick but poorly thought-out installation may work initially, but then become difficult to maintain, noisy, or less efficient. Conversely, a well-organized installation from the start allows the system to breathe better, distribute air better, and remain more reliable over time.

Why a central electric furnace instead of a wall-mounted system?

Several homeowners who contact us in Montreal, Laval, Longueuil, on the North Shore or the South Shore hesitate between a wall-mounted and a central solution. The choice depends on the house, the ductwork, the budget, the desired comfort level, and the interior aesthetics.

In a house already equipped with ducts, a MIDEA EVOX G3 central electric furnace can be a very interesting option, as it allows heating and cooling of several rooms from a single distribution system. Instead of having multiple visible units in different rooms, air is distributed through existing vents. This provides a more homogeneous and discreet feel.

A central solution is particularly relevant when:

• the house already has usable ductwork;
• the owner desires uniform comfort in several rooms;
• interior appearance is important;
• the goal is to modernize an existing system without multiplying wall-mounted units;
• the mechanical space allows for the installation of a compact air handler;
• the owner is looking for a solution compatible with a central heat pump.

However, such an installation must be properly evaluated. It is necessary to check the condition of the ducts, available electrical capacity, clearances, unit dimensions, compatibility with the outdoor unit, the quality of duct insulation, and the feasibility of connections. At AirGreen, this analysis is an integral part of our approach.

Mistakes to avoid during a central installation

A central system can offer excellent comfort, but only if the installation is well executed. Here are the mistakes we specifically aim to avoid in this type of project:

• choosing a capacity without considering the actual house;
• installing the unit without respecting service access;
• connecting ducts with excessively abrupt transitions;
• neglecting the sealing of metal joints;
• poorly protecting refrigeration lines;
• forgetting the importance of the condensation drain;
• blocking access to the water heater or electrical panels;
• leaving ducts uninsulated in areas where losses are possible;
• installing a high-performance machine on an inadequate duct network.

On this installation in Montréal-Est, our priority was precisely to avoid these pitfalls. The system had to be functional, clean, accessible, and durable. The space was compact, but the installation was organized to allow for good operation and simpler future maintenance.

A solution compatible with current energy needs

Homeowners are increasingly looking to reduce their reliance on less efficient systems, improve comfort in both winter and summer, and better control their energy costs. A central heat pump associated with an electric furnace can meet these objectives, especially when the installation is well-sized and well-integrated.

The MIDEA EVOX G3 is often appreciated for its modern approach to central heating and air conditioning. In a Quebec context, it is important to choose a machine capable of responding to temperature variations, but also to install the system in a way that achieves the expected performance on the ground.

Efficiency does not just come from the model. It also comes from the installation: well-connected ducts, well-protected lines, reliable drainage, logical configuration, functional testing, pressure verification, and clear explanation to the client. It is this combination that allows a central system to offer a real improvement in comfort.

The importance of maintenance after installation

Once the installation is complete, maintenance remains essential. For a MIDEA EVOX G3 central system, the owner should pay attention to filters, cleanliness around the unit, drainage, unusual noises, and seasonal performance. An obstructed filter can reduce airflow, increase motor effort, and harm the overall efficiency of the system.

At AirGreen, we recommend not waiting until a problem arises to schedule HVAC maintenance. A periodic inspection allows for checking components, cleaning necessary elements, confirming that drainage is working properly, and ensuring that the system continues to deliver stable performance.

In central installations, maintenance is particularly important because the entire house often depends on the same equipment. An airflow or drainage problem can therefore affect multiple rooms at once. Preventive maintenance is generally much less expensive than an urgent intervention in the middle of a heatwave or severe cold spell.

A local installation with an AirGreen approach

This project in Montréal-Est is part of our daily work throughout Greater Montreal. We regularly install central systems, heat pumps, wall-mounted air conditioners, electric furnaces, and multi-zone solutions in very different contexts: single-family homes, condos, duplexes, triplexes, small rental buildings, and more complex buildings.

Each sector has its specificities. In Montreal, mechanical space is often limited. In Laval, recent homes sometimes have very good ductwork, but precise zoning needs. In Longueuil and on the South Shore, we often see replacements of older central systems. On the North Shore, several projects require good heating performance and particular attention to sizing.

The advantage of a local team like AirGreen is knowing these realities. We don't just offer a machine; we adapt the solution to the building, the available space, the existing network, and the owner's expectations.

What this installation concretely shows

This installation of a 2-ton MIDEA EVOX G3 electric furnace in Montreal East shows that a successful HVAC project relies on concrete and observable choices:

• a compactly positioned unit;
• metal ducts adapted to the available space;
• well-sealed joints;
• protected refrigerant lines;
• maintained access to service panels;
• clean integration into an existing mechanical room;
• an approach focused on real performance, not just appearance.

The owner thus benefits from a modern, discreet, and well-integrated central system, capable of improving home comfort while maintaining a clean mechanical organization.

Advice for homeowners considering a central system

Before choosing an electric furnace, a central heat pump, or an air handler, it is important to have the entire installation evaluated. The model is important, but it is only one part of the decision. The ductwork, electrical capacity, mechanical space, clearances, insulation, quality of transitions, and feasibility of connections must all be taken into account.

For homeowners in Montreal East and Greater Montreal, the best choice is not always the largest or most expensive system. It's the one that truly fits the house, is well installed, and can be properly maintained for several years.

At AirGreen, our goal is to make every HVAC installation clearer, more reliable, and better suited to the customer's reality. This 2-ton MIDEA EVOX G3 is a good example: modern equipment, carefully installed in a confined space, with particular attention to details that influence daily comfort.
