Installation of a MIDEA EVOX G3 3-Ton Electric Furnace with Central System and Air Handler in Varennes

A central MIDEA EVOX G3 installation in a technical attic in Varennes: precision, difficult access, and custom adaptation

The installation of a MIDEA EVOX G3 3-ton electric furnace in Varennes allowed us to put into practice one of the most demanding aspects of our profession: integrating a high-performance central HVAC system into a confined space, already occupied by an existing duct network, a wooden roof structure, blown insulation, and several suspended elements. This type of project requires much more than just installing equipment. It demands a precise understanding of the building, rigorous coordination, and clean execution, especially when the unit is installed in an attic or a technical crawl space.

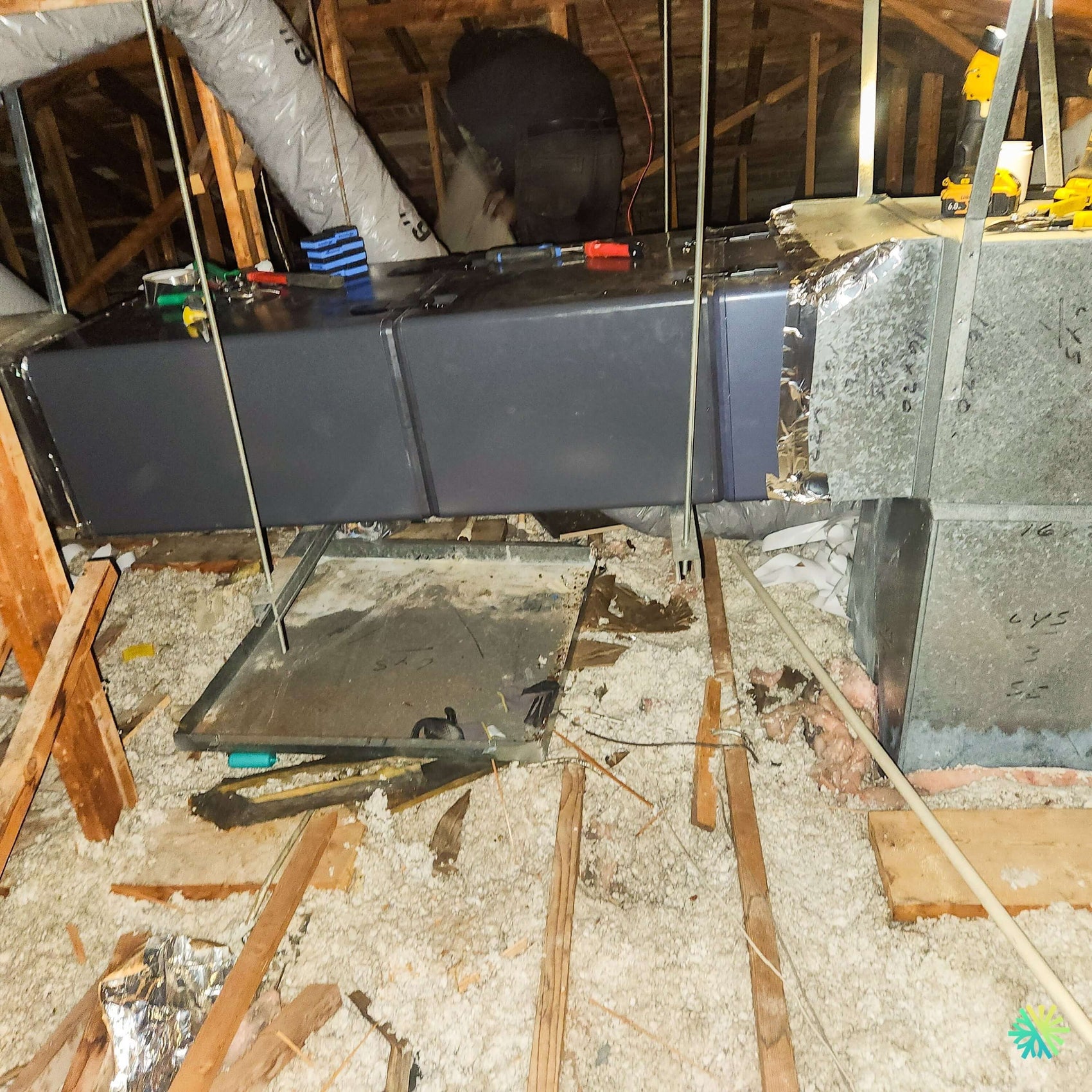

The project photo clearly shows the work environment: an area under the roof with exposed framework, existing metallic ducts, blown insulation on the floor, suspension rods, insulated flexible duct, and ventilation connections. This is exactly the kind of context where AirGreen's experience makes a concrete difference. An HVAC installation in an attic is never limited to connecting a machine. It requires evaluating the available space, protecting existing components, securing access, controlling the airtightness of connections, and ensuring that the new electric furnace works efficiently with the air distribution network.

In Varennes, as in several properties on the South Shore, homes can present complex mechanical configurations: equipment installed in unfinished spaces, ducts sometimes modified over the years, limited access for technicians, and abundant insulation that complicates movement around the appliance. In this project, our team had to install and connect a MIDEA EVOX G3 3-ton air handler while respecting the physical constraints of the attic. The result had to be reliable, stable, secure, and designed for future maintenance.

Why choose a MIDEA EVOX G3 3-ton electric furnace for a central system

The choice of a MIDEA EVOX G3 3-ton unit is driven by the desire for a modern central system, compatible with the heating and cooling needs of a single-family residence of good size. The 3-ton capacity, equivalent to approximately 36,000 BTU, is suitable for many medium to large homes, provided that the sizing is confirmed according to the actual characteristics of the building: insulation, area, orientation, number of floors, fenestration, duct configuration, and occupancy habits.

In a central project, the air handler plays an essential role. It ensures the circulation of treated air through existing ducts and distributes comfort evenly throughout different rooms. When properly installed, this type of system offers several important advantages:

• more uniform air distribution than with multiple wall-mounted units;
• discreet integration into the home;
• better compatibility with existing duct networks;
• a solution adapted for properties seeking centralized comfort;
• potential for improved overall performance when paired with a compatible central heat pump.

The MIDEA EVOX G3 range is often appreciated for its very attractive positioning in the residential market: serious performance, competitive cost, availability of parts through the local distribution network, and compatibility with replacement or modernization projects for central systems. For our customers in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, this type of equipment often represents a balanced option between budget, efficiency, and reliability.

An attic installation: a higher level of difficulty

Installing an electric furnace or an air handler in an attic is completely different from an installation in a clear mechanical basement. The attic imposes several immediate constraints: low headroom, limited lighting, careful movement on joists, presence of blown insulation, risk of crushing flexible ducts, necessity of properly supporting the unit, and absolute importance of airtight connections.

In this Varennes installation, the work area presented several typical elements of a technical crawl space: galvanized sheet metal ducts, existing plenum, vertical suspension rods, insulated flexible ducts, and close-knit wooden structure. The central unit had to be positioned to allow for a clean connection to the air distribution network, while leaving enough space for electrical connections, access to service panels, and future checks.

Our team paid particular attention to three critical points.

The mechanical support of the unit

A central unit of this type must be solidly supported. In an attic, the weight of the appliance, vibrations, connections, and movements around the equipment must be anticipated. A poor base or support can cause noise, stress on the ducts, or long-term alignment problems.

We therefore worked with a structured approach: stabilization of the area, verification of support points, alignment of the unit with the plenum, and precise connection to existing ducts. This step is particularly important when the unit is installed near already suspended or partially rigid ducts.

The airtightness of the connections

A central system can lose a significant part of its efficiency if duct connections are poorly sealed. In an attic, these losses are even more problematic, as heated or air-conditioned air can end up in an uninhabited space rather than in the rooms of the house. This is a common mistake we observe during inspections or replacements of old systems.

For this HVAC installation in Varennes, the airtightness of the connection between the MIDEA air handler and the duct network was a priority. Joints, transitions, and contact areas were carefully treated to limit air leaks and ensure adequate pressure in the network. A high-performance central installation depends as much on the machine as on the quality of the connections around it.

Protection of insulation and workspace

The blown insulation visible on the floor requires constant attention. It is important to avoid compacting it unnecessarily, scattering it into the ducts, or leaving debris around the equipment. In this type of environment, good working methods help maintain the site as clean as possible despite difficult access.

Our technicians also had to contend with pieces of wood, old material sections, and construction elements present in the crawl space. This kind of reality is common in replacement or central installation projects in existing homes. The goal is not only to install the appliance but to make the whole system more functional and safer for years to come.

Technical specifics of the MIDEA EVOX G3 3-ton model

The MIDEA EVOX G3 3-ton is a central solution designed to meet the needs of residences seeking an efficient and modern system. In a complete configuration with a compatible central heat pump, this type of equipment can offer a cooling capacity of approximately 36,000 BTU, heating performance adapted to Quebec winters, and interesting energy efficiency depending on the exact combination of installed components.

According to commonly used configurations for the EVOX G3 range, performance levels can reach SEER2 around 17.7, HSPF2 around 10.0, and EER2 around 12.0, when the indoor-outdoor unit combination is properly matched and validated by the applicable technical datasheets. This data must always be confirmed based on the exact indoor unit number, outdoor unit number, and the AHRI combination used for the project.

The central EVOX G3 version can also be associated with features sought after by homeowners: efficient operation, modern technology, compatibility with current market requirements, and use of next-generation refrigerant in some configurations. In many cases, the equipment may be eligible for financial aid programs, especially when the installed combination meets current energy efficiency criteria. For a Varennes customer, this verification is important, as subsidies can significantly influence the net cost of a central heat pump or complete central system project.

At AirGreen, we always emphasize one point: eligibility for a subsidy does not depend solely on the brand name. It depends on the exact model, the certified combination, the capacity, the AHRI number, the project address, and the program rules at the time of application. That's why we validate the equipment before presenting a final estimate when the subsidy is part of the client's decision.

A project that demonstrates the importance of good HVAC planning

On an installation like this, several errors can negatively impact the final result. The most common is treating an attic as a simple technical storage space. In reality, it is often a delicate environment where every action can have a consequence: walking in the wrong place can damage a ceiling, moving a duct can reduce airflow, poorly sealing a transition can create a loss of efficiency, and overlooking service access can complicate all future maintenance.

In Varennes, our planning focused on system durability. The unit had to be accessible, service panels had to remain usable, and connections had to be clean enough to facilitate any future inspection. This is a part of the work that clients do not always immediately see, but which makes a significant difference after a few years of use.

For a central system, airflow quality is as essential as the nominal performance of the equipment. A 3-ton unit can only perform at its best if the ducts are adapted, if the return air is sufficient, and if the airflow is not restricted by bottlenecks, poorly sized ducts, or faulty connections. During our installations, we always observe the existing network to ensure that a new, high-performance unit is not hampered by inadequate air distribution.

What this installation in Varennes teaches homeowners on the South Shore, Montreal, Laval, Longueuil, and surrounding areas

This installation of a MIDEA EVOX G3 3-ton electric furnace in Varennes perfectly illustrates a reality we often encounter: the choice of the machine is important, but the quality of the installation is equally so. A modern unit, even if very powerful on paper, will not deliver the expected results if its integration into the building is neglected.

For homeowners considering a similar installation in Montreal, Laval, Longueuil, on the North Shore, or the South Shore, several points deserve particular attention before signing a contract.

Check the condition of the existing duct network

Before installing a new air handler or electric furnace, the duct network must be analyzed. Some older systems exhibit air leaks, improvised transitions, crushed sections, or insufficient returns. Installing a new unit without correcting these problems can limit comfort and lead to complaints of uneven temperature.

In the case of Varennes, the environment visible in the attic clearly shows the importance of this verification. Existing ducts must be connected methodically, without creating unnecessary stress on the appliance. Metal transitions must be solid, well-aligned, and properly sealed.

Consider HVAC maintenance access

Another often-overlooked aspect is maintenance access. A central installation in an attic must allow technicians to return to inspect, clean, adjust, or repair the system. If the unit is placed too close to a roof truss, blocked by a duct, or surrounded by materials, every future intervention becomes more costly and riskier.

At AirGreen, we always consider post-installation. A good HVAC project doesn't end when the machine starts. It must also allow for realistic, safe, and efficient HVAC maintenance.

Avoid improper sizing

A 3-ton capacity is suitable for many residences, but it should never be chosen merely because it seems "standard." A unit that is too small will run too long and may not achieve the desired comfort. A unit that is too large can create short cycles, insufficient dehumidification during cooling, and premature wear.

Proper sizing relies on an analysis of the home. In Varennes and elsewhere on the South Shore, properties vary greatly: renovated bungalows, multi-story houses, newer constructions, extensions, finished basements, attics with different insulation. Every detail counts.

Do not underestimate attic work

An attic installation requires more time, more caution, and better logistics than a basement installation. Access is often narrow, equipment sometimes needs to be carefully moved through limited openings, and technicians must work in a less comfortable position. This reality must be taken into account in project planning, the time allotted, and the expected level of finish.

In this project, the presence of tools, materials, suspended ducts, and blown insulation illustrates the complexity of the work. This is not an environment where one can improvise. A good installation requires patience, method, and genuine experience in residential HVAC installation.

AirGreen's role in this type of central project

Our approach at AirGreen is based on a simple idea: installing a system that works well in the client's real home, not just on a technical sheet. For this MIDEA EVOX G3 installation in Varennes, our team took into account the actual attic configuration, existing connections, available access, and the specific requirements of a central system.

We regularly carry out this type of project in Greater Montreal, particularly in Montreal, Laval, Longueuil, on the North Shore and on the South Shore. Each installation reminds us that the best decisions are often made on site: adjusting a fitting, repositioning a transition, reinforcing a support, improving access, or recommending a correction to the duct network. These details are not always spectacular, but they determine the quality of daily comfort.

A result focused on lasting comfort

After installation, the main objective is clear: to provide reliable airflow, efficient central heating, and a solid foundation for home comfort. A well-installed MIDEA EVOX G3 3-ton electric furnace can enhance the occupants' experience by reducing temperature variations, modernizing the central system, and preparing the residence for better energy efficiency.

For the Varennes client, this project represented a significant modernization of the HVAC infrastructure. The attic installation required more technical execution, but it allowed for central distribution and maximized the use of the existing network. It is precisely in this kind of context that our expertise becomes essential: transforming a difficult mechanical area into a clean, functional, and durable installation.

Practical tips before replacing an electric furnace or central air handler

Before planning a similar installation, we recommend that homeowners prepare a few things:

• have the general condition of the ducts checked;
• confirm the available space around the existing unit;
• check access to the attic or mechanical room;
• request validation of sizing;
• confirm eligible models for subsidies before purchase;
• plan for future maintenance from the project's inception;
• choose an HVAC contractor accustomed to complex central installations.

These steps can prevent unforeseen costs, performance issues, and post-installation adjustments. They also allow for a more realistic estimate and a more predictable outcome.

An installation that reflects AirGreen's expertise

This installation of a MIDEA EVOX G3 3-ton electric furnace with air handler in Varennes is a good example of the work we do at AirGreen: analyzing the building, choosing an appropriate method, respecting site constraints, and delivering a reliable central solution. In an attic, every detail counts. The support, alignment, sealing, service access, and protection of the workspace directly influence the final quality.

For homeowners in Varennes and across the Greater Montreal area considering a central heat pump, an electric furnace, or an air handler replacement, this project demonstrates the importance of entrusting the installation to a team that understands both the machine and the building. A good HVAC installation is not just about plugging in a device: it's about creating a coherent, durable system adapted to the real needs of the home.
