Installation of a MIDEA EVOX G3 5-ton electric furnace with a central Air Handler system in Boucherville

A MIDEA EVOX G3 Central Replacement Designed for a Boucherville Home with Existing Ducts

In Boucherville, on the South Shore, our AirGreen team recently completed a particularly interesting HVAC installation: the integration of a 5-ton MIDEA EVOX G3 electric furnace, configured as a central system with an Air Handler, into an existing mechanical room where every inch counted. The project perfectly illustrates the type of intervention we regularly carry out in homes across the greater Montreal, Longueuil, Laval, North Shore, and South Shore regions: modernizing a central system without starting from scratch, while improving execution quality, air network efficiency, and long-term reliability.

The installation photo immediately reveals a typical older residential basement environment: concrete foundation walls, existing metal ducts, limited workspace, already occupied pipe passages, and HVAC connections that needed precise adaptation. This was not a "laboratory" installation, but a real-world intervention in a live mechanical room, where we had to contend with the building's structure, the constraints of the existing ventilation network, and the need to deliver a clean, stable, and functional result.

The choice of the 5-ton MIDEA EVOX G3 here met a clear need: to provide significant capacity for a central system, with air distribution capable of supplying several zones of the house through existing ducts. A 5-ton unit represents high capacity, suitable for larger residences or homes with significant thermal loads. In this type of project, sizing must never be improvised. A unit that is too small runs constantly; a unit that is too large can create short cycles, discomfort, and poor humidity management. This is why analyzing the duct network, available airflow, home configuration, and actual customer needs is an integral part of our approach.

A Central Electric Furnace Designed to Work with a Duct Network

The MIDEA EVOX G3 electric furnace installed here acts as the air distribution heart of the central system. In an Air Handler configuration, the unit ensures the circulation of heated or air-conditioned air through the house's ducts. Depending on the complete system configuration, this type of unit can be paired with a central heat pump to optimize heating and cooling throughout the year.

For the homeowner, the goal was not just to replace one metal box with another. It was about obtaining a more coherent system, better connected, cleaner in terms of condensate drainage, and better integrated into the existing infrastructure. In a Boucherville home, where winters can be demanding and summers humid, a central system must offer consistent performance, but also good distribution quality. A poorly connected electric furnace or Air Handler can lose a significant portion of its efficiency simply due to air leaks, poorly manufactured transitions, or misalignment with existing ducts.

What the Image Reveals About the Project's Real Complexity

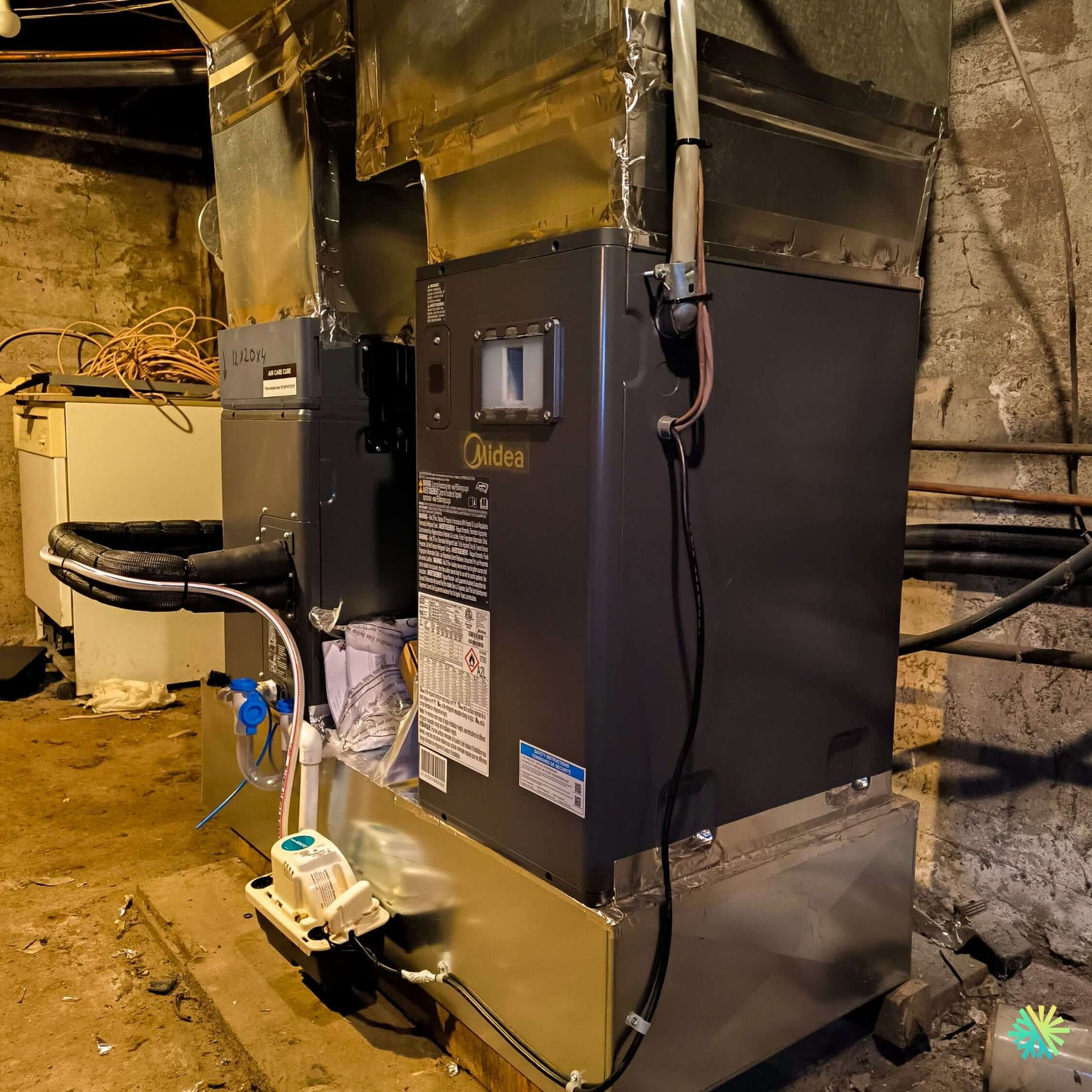

The photo shows several important elements worth highlighting. First, the MIDEA unit is installed on a custom-fabricated and adjusted metal base to allow for a solid connection to the network. The duct transitions above and around the unit were carefully sealed, notably with metal surfaces and duct-specific sealing tape. This step is often overlooked in quick installations, but it is essential to limit air losses and maintain more stable static pressure.

The presence of a condensate pump installed near the base of the system is also noticeable. This detail is important: in many basements, gravity drainage is not always possible or practical. A well-positioned condensate pump allows for the evacuation of water produced by the air conditioning system or by heat exchange, depending on the configuration. At AirGreen, we place great importance on these details, because poorly conceived drainage can lead to water damage, system shutdowns, or avoidable service calls.

The insulated conduits and visible lines also show that the system had to be integrated into an environment where several components were already present. The routing of cables, pipes, and accessories had to be organized without obstructing service access. A central unit must remain accessible for future maintenance: filter replacement, inspection, electrical check, cleaning, diagnosis, and potential adjustments.

A Meticulous HVAC Installation That Requires More Than a Simple Equipment Replacement

A successful central HVAC installation depends on several technical decisions made on-site. In this project in Boucherville, our team had to adapt the MIDEA EVOX G3 unit to a duct network that was not originally designed for this specific appliance. This is a very common situation in central system replacements on the South Shore, in Longueuil, in Montreal, and in more established residential areas.

Duct Adaptation: A Central Point of Performance

The connection between the appliance and the existing ducts directly influences the comfort felt in the house. A poor connection can create turbulence, noise, uneven distribution, or loss of airflow. Here, the metal transitions were crafted to connect the unit to the existing network despite height and width constraints.

The challenges encountered in this type of installation often include:

• aligning the new cabinet with the existing ducts;
• ensuring good sealing of the joints;
• maintaining convenient access to the service panel;
• avoiding mechanical stress on the ducts;
• correctly positioning accessories like the condensate pump;
• preserving a clean path for cables and service lines.

In this installation, the visible structure demonstrates a custom-fitting job. The ducts are not simply "placed" on the appliance: they are connected, sealed, and stabilized so that the system can function correctly on a daily basis.

Why the 5-Ton Model Requires Special Attention

A 5-ton central unit demands increased attention to airflow. The higher the capacity, the more the duct network must be able to keep up. Even the best equipment can be limited if the ducts are too restrictive, if air returns are insufficient, or if transitions cause significant pressure losses.

In the case of a 5-ton MIDEA EVOX G3 electric furnace, the goal is to ensure sufficient air circulation to allow the system to operate without strain. Excessive static pressure can increase noise, reduce efficiency, and prematurely wear out certain components. This is why our team pays particular attention to the entire air path: return, filtration, supply, transitions, and main ducts.

In Boucherville, the installation had to respect the available space while giving the system the best possible conditions. It is this invisible work that often makes the difference between a correct installation and a durably performing one.

The Role of the Condensate Pump in a Central Installation

The condensate pump visible at the bottom of the unit is a discreet yet essential component. During air conditioning, moisture from the air condenses on the indoor coil. This water must be reliably drained. In a basement where natural flow to a drain is not always ideal, the pump channels the condensate to an appropriate discharge point.

A common mistake in some installations is underestimating drainage. Insufficient slope, a poorly secured pipe, or a mispositioned pump can cause overflows. At AirGreen, we consider condensate drainage an integral part of installation quality, just as much as electrical connections or duct sealing.

Electrical and Mechanical Details Not to Overlook

The photo also shows the wiring and electrical conduits connected to the appliance. For a central electric furnace, the electrical supply must be compliant, safe, and adapted to the equipment's capacity. A system of this size is not a light appliance: it requires rigorous installation, appropriate checks, and precise coordination with existing components.

The positioning of the access panel is also important. In this installation, the appliance remains accessible for future interventions. This is a point we always emphasize: a well-installed system must be maintainable without unnecessary dismantling of elements around the unit.

A MIDEA EVOX G3 Solution Adapted to South Shore Residential Needs

The MIDEA EVOX G3 range is increasingly present in central residential projects, especially for clients who wish to modernize their system without necessarily opting for the market's most expensive brands. For homeowners in Boucherville, Longueuil, Saint-Bruno, Sainte-Julie, Brossard, or La Prairie, this solution can represent an excellent balance between performance, availability, installation cost, and compatibility with various replacement projects.

In a complete configuration with an eligible central heat pump, some systems may be linked to financial assistance programs like LogisVert, depending on the current lists, the exact model, the installed combination, and the applicable criteria at the time of application. To avoid any confusion, we always validate eligibility based on precise model numbers, the complete system configuration, and official requirements in force. The indoor unit alone is not always sufficient to determine eligibility: it is often the entire central system that must be evaluated.

Common Mistakes to Avoid When Replacing a Central System

Replacing an electric furnace or Air Handler may seem simple at first glance, but several mistakes can harm the final result.

Choosing capacity based only on the old appliance

Automatically replacing an old system with an identical capacity is not always the best approach. Renovations, insulation, windows, room additions, and occupancy habits may have changed the home's real needs.

Ignoring the condition of the ducts

A new appliance connected to poorly sealed or improperly sized ducts loses some of its potential. In this Boucherville installation, duct adaptation was a central element of the project.

Neglecting condensate drainage

A poorly installed condensate pump can cause recurrent problems. Access, stability, pipe routing, and reliability of drainage must be planned.

Forgetting service access

A central system needs maintenance. Therefore, access to panels, filter, connections, pump, and electrical components must be maintained.

Underestimating static pressure

Insufficient airflow can reduce comfort, increase noise, and affect the system's lifespan. On a 5-ton unit, this issue becomes particularly important.

Customer Experience Focused on Clarity and Durability

For the Boucherville client, our role was to install a reliable central system, but also to explain the essential elements: Air Handler operation, importance of maintenance, role of filtration, condensate pump monitoring, and good seasonal practices.

We always recommend that homeowners regularly check their filter, especially with a high-capacity central system. A clogged filter can reduce airflow and increase fan effort. Regular HVAC maintenance also helps detect early signs of problems: unusual noise, slow drainage, reduced comfort, odor in ducts, or temperature variation between rooms.

What This Installation Demonstrates About the AirGreen Approach

This 5-ton MIDEA EVOX G3 electric furnace installation in Boucherville clearly shows our way of working: we adapt the equipment to the building, not the other way around. Every home has its constraints. In some cases, the challenge is available space; in others, it's duct configuration, electrical access, drainage, or compatibility with an old system.

Our team regularly works on similar projects in Montreal, Laval, Longueuil, on the North Shore and South Shore, with particular attention to details that are not always visible on a quote: quality of transitions, sealing, service access, mechanical stability, cleanliness of connections, and future maintenance logic.

In this project, the mechanical room did not offer ideal space, but the final result is solid, clean, and functional. The MIDEA unit is well-positioned, connections are organized, the condensate pump is accessible, and the ducts have been adapted to allow for consistent air distribution. This is exactly what we look for in a central installation: a system that not only works on start-up day, but remains practical, stable, and efficient over time.

Practical Advice for Boucherville Homeowners Considering a Central System

Before replacing an electric furnace or a central Air Handler, it is useful to have several elements checked:

1. the general condition of the ducts;
2. the available electrical capacity;
3. the actual space around the appliance;
4. the possibility of adding or replacing a condensate pump;
5. compatibility with a central heat pump;
6. future access for maintenance;
7. applicable subsidy programs according to the complete configuration.

A good project rarely starts with choosing a model alone. It begins with understanding the house. This approach allows for the installation of a central system that truly meets the client's needs.

A MIDEA EVOX G3 5-ton installation that enhances the central comfort of the home

Ultimately, this project in Boucherville represents an excellent example of a well-executed central HVAC installation in a real residential context. The MIDEA EVOX G3 5-ton provides a robust basis for air distribution, while custom integration allows for the best use of the existing network.

For homeowners comparing options for replacing an electric furnace, air handler, or central system in the Montreal, Laval, Longueuil, North Shore, or South Shore areas, this type of project demonstrates the importance of choosing an HVAC contractor capable of analyzing the entire system, not just the appliance.

At AirGreen, we view each installation as a balancing act between performance, safety, comfort, durability, and the reality of the building. This installation in Boucherville is concrete proof of that.
