A Wall-Mounted Heat Pump Integrated Above an Interior Passageway: A Precise Project in a Laval Home
In this project carried out in Laval, our AirGreen team installed a GREE CROSSOVER R32 wall-mounted heat pump in an interior space where every detail mattered: limited height, existing wall opening, air circulation between two rooms, visible finish, and harmonious integration into an already well-appointed residential decor. The indoor unit was positioned above a passageway leading to a bedroom, on a dark accent wall, with the conduit exit located very close to the ceiling.

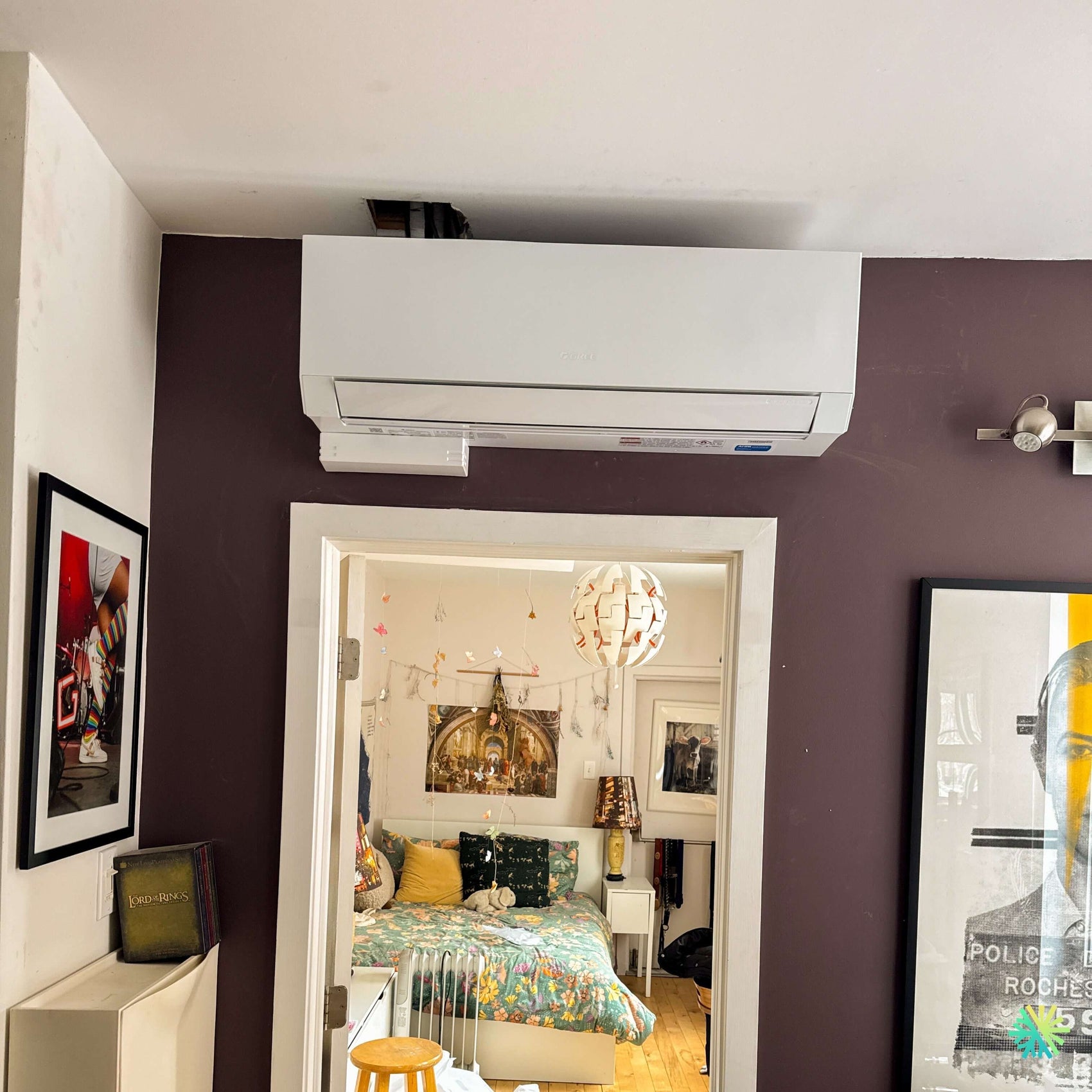

This type of installation requires a more detailed analysis than a standard wall mount. The photo clearly shows a common scenario in homes in Laval, Montreal, Longueuil, the North Shore, and the South Shore: homeowners want to improve their comfort without turning their residence's interior into a permanent construction site. Here, the challenge was to install a high-performance mini-split wall-mounted air conditioner in a strategic location, while maintaining a clean and discreet finish in a living area open to a bedroom.
The GREE CROSSOVER R32 was a particularly relevant choice for this project. It meets summer cooling needs while offering very useful heating capacity for a large part of the year. For a Laval home, where one can quickly go from a humid spring to sustained periods of heat, then to cold nights starting in autumn, a well-installed wall-mounted heat pump becomes a true tool for daily comfort.
Why Install the Unit Above an Interior Passageway
The chosen location is not trivial. Installing a wall unit above an opening between two rooms often allows for air to be diffused over a wider area, especially when a home has an enfilade configuration or a living space connected to a bedroom. In this specific case, the unit is positioned above the door frame, maximizing the use of an otherwise underutilized wall.
This solution offers several advantages:
- it frees up main walls for furniture, frames, and decorative elements;
- it limits the visual impact of the appliance in the room;
- it allows for air diffusion into the adjacent space;
- it avoids placing the unit too close to a corner or an obstacle;
- it is well-suited for homes where available wall space is scarce.
However, this choice requires extremely precise execution. The top of the wall offers little space between the ceiling and the unit. The exit for refrigeration lines, the drain, and wiring must be carefully aligned. The drilling must be correctly placed to avoid an imprecise finish, especially when the opening is near the ceiling. The photo also shows the technical area above the unit, where the conduits pass to the exterior or to a concealed path. In an installation of this type, the precision of the wall preparation is crucial.
An HVAC Installation Designed for the Real Architecture of the Home
At AirGreen, we adapt each HVAC installation to the reality of the building. In an old or already renovated home, walls are not always perfectly straight, ceilings may vary slightly, and existing openings can sometimes limit options. Here, the indoor unit had to be installed in a confined space while remaining perfectly level, securely anchored, and accessible for maintenance.
The appliance was functionally centered in relation to the opening, without obstructing the passage or the use of the room. This attention to ergonomics is essential. A heat pump must not only be effective on paper; it must also integrate into the client's daily life. A poorly placed unit can blow air directly onto a seating area, create discomfort in a bedroom, or become difficult to clean. In this project in Laval, the goal was to find the right balance between performance, comfort, and visual integration.
The Choice of GREE CROSSOVER R32 for Versatile Residential Comfort
The GREE CROSSOVER R32 is among the modern wall-mounted systems that meet current residential needs very well. It uses R32 refrigerant, a technology increasingly present in the HVAC field, notably because it allows for the design of efficient equipment better adapted to contemporary energy performance requirements.
For a homeowner in Laval, this model offers several concrete benefits:
- effective air conditioning during hot periods;
- comfortable heating during intermediate seasons;
- modulating operation thanks to inverter technology;
- better controlled energy consumption than a non-modulating appliance;
- a compact wall-mounted format suitable for residential spaces;
- a ductless solution, ideal for homes where a central system is not realistic.
Inverter technology allows the appliance to adjust its capacity according to actual demand. Instead of constantly starting and stopping at full power, the heat pump modulates its operation to maintain a more stable temperature. This contributes to better comfort, reduced temperature variations, and more efficient energy use.
In a home with multiple open zones, this stability is greatly appreciated. The air doesn't arrive abruptly; it is distributed more regularly. For customers who use their wall-mounted air conditioner for long periods in summer, this difference is quickly felt.
Technical Challenges Encountered During This Installation in Laval
Working Close to the Ceiling Without Compromising the Finish
The photo shows that the indoor unit is installed very close to the ceiling. This type of configuration may be necessary when available wall space is limited, but it requires great rigor. A wall unit must maintain the necessary clearances recommended for air intake from above and for access to filters. It must also allow the front panel to open during maintenance operations.
Before proceeding, our technicians check:
- available height;
- necessary space for maintenance;
- location of studs or anchor points;
- possible passage of conduits;
- drain slope;
- visual impact of the finish;
- position of the unit relative to the served room.
In a project like this, a few millimeters can make a difference. A unit installed too high can become difficult to maintain. A unit installed too low can visually encroach on the opening. A poorly leveled installation can impair condensate drainage. This is why the measuring and marking stage is as important as the installation itself.
Condensate Drainage: An Invisible but Essential Detail
A mini-split in cooling mode removes humidity from the indoor air. This humidity becomes condensate water, which must be properly drained. In an installation above an interior passageway, drainage must be particularly well planned, as any error can lead to water marks, drips, or wall damage.
The drain slope must be sufficient and constant. When the configuration does not allow for simple gravity drainage, an adapted solution may be required. At AirGreen, we analyze the path before installation to avoid unpleasant surprises. A clean installation is not just aesthetic; it must also be reliable over time.
The Passage of Refrigerant Lines in a Visible Area
In this project, the conduit exit area is above the unit. This part is particularly sensitive because it is within the client's visual field. Refrigerant lines, wiring, and the drain must be routed carefully, protected, and connected correctly.
One of the most important elements in an HVAC installation is the quality of the refrigerant connections. Poor flaring, inadequate tightening, or contamination in the lines can lead to performance loss or refrigerant leaks. Our technicians follow a rigorous procedure: line preparation, clean connection, vacuuming, leak testing, and careful commissioning.
In an appliance using R32, adherence to good installation practices is essential. Refrigerant should only be handled by qualified professionals. This is one of the reasons why AirGreen offers complete installations rather than just equipment sales without installation.
Air Diffusion to an Adjacent Room
The unit installed above the opening allows treated air to circulate to the main area and to the bedroom visible in the photo. This strategy is often used in homes where it is desired to improve the comfort of multiple spaces with a single wall-mounted unit. It doesn't always replace a multi-zone solution, but it can be very effective when the interior layout lends itself to it.
During evaluation, we analyze natural air circulation. Doors, hallways, ceilings, obstacles, furniture, and even light fixtures can influence distribution. Here, the opening under the unit creates a logical passage to the adjacent room. The location therefore allows for intelligent use of the interior volume, without unnecessarily multiplying appliances.
Common Mistakes to Avoid in This Type of Installation
An indoor installation above a door or passageway can be very successful, but it can also become problematic if it is improvised. Here are the mistakes we systematically avoid:
Installing the unit too close to the ceiling
Insufficient clearance can impair air intake and complicate filter maintenance. Even if space is limited, the appliance must remain usable and conform to good practices.
Neglecting visual alignment
In a living space, a slightly tilted or off-center unit is immediately noticeable. Our technicians take the time to position the appliance cleanly and consistently with the lines of the wall and door frame.
Underestimating the drain slope
A poorly designed drain can cause significant problems. Water must drain reliably, without backflow, stagnation, or leaks.
Placing the unit without considering the direction of airflow
A wall-mounted heat pump must be positioned to distribute air efficiently, not simply to be easy to install. In this project in Laval, the location above the passageway allows for better use of the interior space.
Forgetting access for HVAC maintenance
Filters must be accessible. The panel must be able to open. The unit must be inspectable. An overly tight installation can complicate future cleanings and increase service costs.
A Solution Adapted to Laval Homeowners
Residences in Laval exhibit a wide variety of configurations: condos, plexes, semi-detached houses, bungalows, renovated homes, older buildings, and recent constructions. The same heat pump is never installed in exactly the same way from one property to another. This is why our approach is based on building analysis before the final recommendation.
In this project, the GREE CROSSOVER R32 met several needs:
- improving comfort without a central system;
- efficiently air conditioning a living area;
- offering supplementary heating;
- limiting the visual impact of the installation;
- utilizing a strategic interior location;
- respecting the constraints of an already decorated and occupied home.
The result is a compact, functional installation adapted to the client's daily life.
Subsidies, Efficiency, and Long-Term Value
Homeowners who invest in a wall-mounted heat pump often want to know if the chosen model may be eligible for financial aid programs. Eligibility always depends on the exact model, its capacity, its certifications, and the criteria in force at the time of installation. For GREE systems, as for other brands, it is important to validate technical information before finalizing the choice.
AirGreen assists its clients in this verification by providing available information on the installed appliance and the necessary documents after the work. In many cases, an eligible heat pump can reduce the net cost of the project. For clients in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this step is often an integral part of the decision.
Beyond subsidies, the value of a system is also measured by the quality of its installation. A well-installed unit consumes less, offers better comfort, and requires fewer corrective interventions. This is why we emphasize the precision of the work, even when the installation seems simple at first glance.
The Importance of Regular HVAC Maintenance
After installation, good HVAC maintenance helps preserve the performance of the GREE CROSSOVER R32. The filters of the indoor unit must be cleaned regularly, especially in a home where dust, textiles, pets, or frequent use can accelerate clogging.
Proper maintenance helps maintain:
- better air quality;
- more efficient ventilation;
- more stable energy consumption;
- extended lifespan;
- reduced odors;
- better performance in cooling and heating.
We also recommend having the outdoor unit inspected as needed, particularly after winter or after a season of heavy use. Even if the photo here shows the indoor unit, the system's performance always depends on the proper functioning of the entire assembly: indoor unit, outdoor unit, conduits, drain, controls, and electrical supply.
Why Choose AirGreen for a Wall-Mounted Heat Pump Installation in Laval
An installation like this requires experience. You need to understand the machine, but also the building, the interior aesthetics, the client's expectations, and the technical constraints. At AirGreen, we perform installations of wall-mounted heat pumps, wall-mounted air conditioners, and mini split systems throughout the greater metropolitan area.
Our expertise covers:
- condos and co-ownerships;
- Montreal plexes;
- single-family homes;
- residential buildings in Laval;
- projects with confined spaces;
- installations requiring meticulous interior finishing;
- configurations with complex duct runs;
- replacements of old units;
- new installations without existing ductwork.
In this project in Laval, our role was not just to install a GREE CROSSOVER R32. It was about creating a solution coherent with the living space. The unit had to operate efficiently, remain accessible, not obstruct passage, and integrate into an already personalized decor. This level of attention is part of our way of working.
A result designed for the client's real comfort
The success of this installation rests on several technical decisions: the location above the opening, adherence to clearances, unit alignment, duct routing, drainage management, and system commissioning. Each of these choices contributes to the final result.
For the client, the benefit is concrete: a GREE CROSSOVER R32 wall-mounted heat pump that improves indoor comfort without taking up floor space, without requiring central ducts, and without disrupting the existing layout. In summer, the system helps maintain a pleasant temperature. During cooler seasons, it provides an efficient and convenient heating source.
This installation perfectly illustrates what homeowners are looking for when they contact AirGreen: clear recommendations, professional installation, clean finishing, and a reliable system. Whether the project is in Laval, Montreal, Longueuil, on the North Shore or on the South Shore, our priority remains the same: installing the right equipment, in the right place, with the necessary rigor to ensure lasting comfort.
