A GREE FLEXX installation adapted to the mechanical constraints of a West Island home
In the West Island of Montreal, we completed the installation of a GREE FLEXX Electric Furnace – Air Handler in a mechanical space where every detail had to be carefully considered: nearby wood structure, existing duct network, insulated refrigerant connections, condensate drainage, service access, and integration with an already existing central distribution. This type of project is very different from installing a wall-mounted heat pump or a wall air conditioner. Here, the goal was to integrate a central system capable of distributing air to multiple zones of the house while respecting the realities of a residential technical basement.

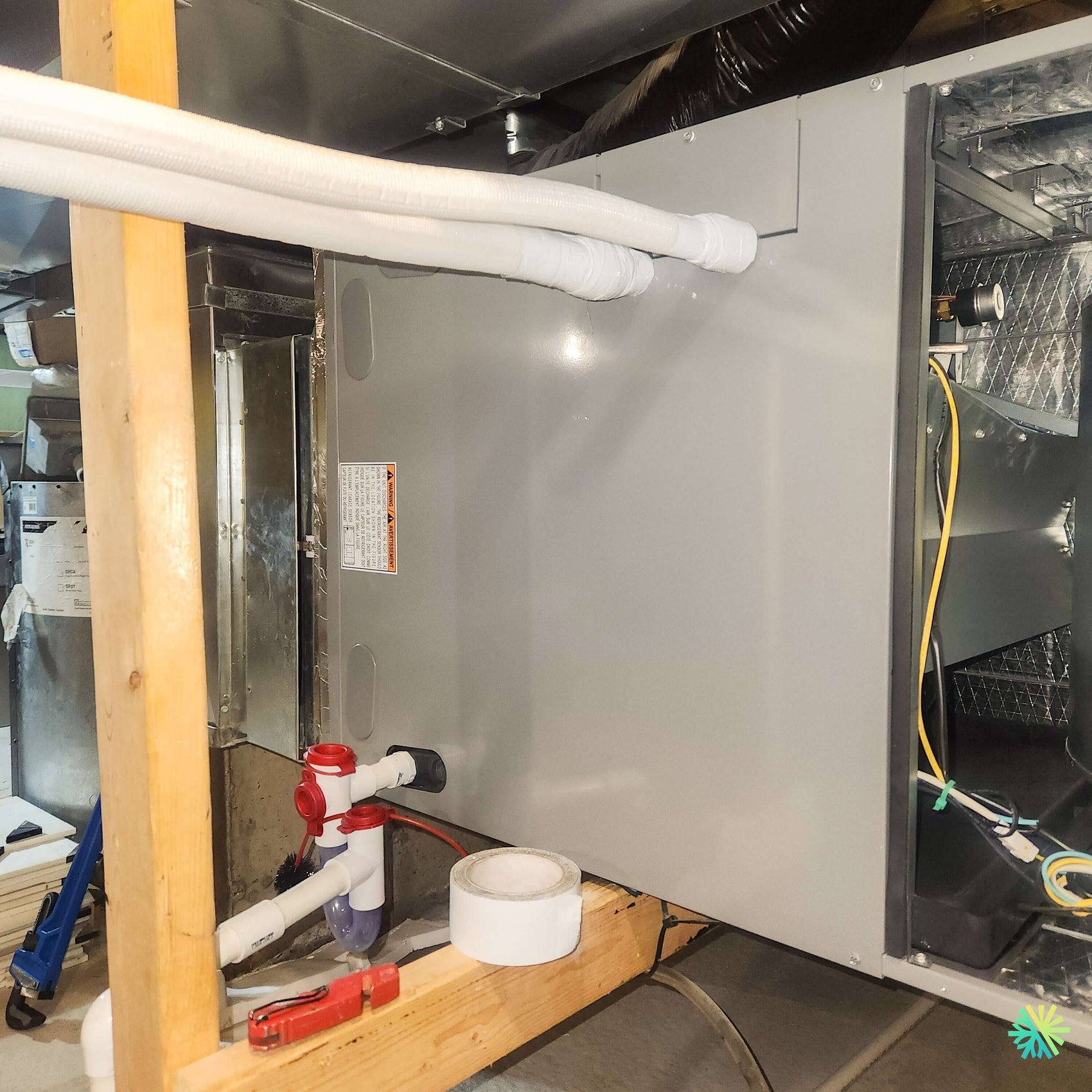

The photo shows an important element of this installation: the GREE FLEXX unit was positioned in a compact space, connected to the ducts, refrigerant lines insulated in white, and condensate drain carefully prepared with a trap. This is not an installation where you can simply place the device and connect the ducts roughly. The system had to be aligned with the existing network, mechanically stable, accessible for HVAC maintenance, and configured to provide a constant airflow throughout the house.
For a homeowner in the West Island, whether in Pointe-Claire, Beaconsfield, Kirkland, Dollard-des-Ormeaux, Baie-D’Urfé or Dorval, this type of central system often represents a very interesting solution when the house already has ducts. The GREE FLEXX Electric Furnace – Air Handler allows for modernizing the indoor equipment without adding visible wall units in the rooms. Comfort remains centralized, discreet, and better distributed.
Why the GREE FLEXX is suitable for homes with existing ducts
The GREE FLEXX range is designed for central installations where performance, flexibility, and integration with a duct network are sought. An electric furnace – air handler is used to circulate air in the house, with the possibility of pairing it with a compatible outdoor heat pump. This configuration provides air conditioning in summer and heating during much of the cold season, with electric backup when required depending on the chosen setup.
In West Island homes, several central systems were installed years ago with older devices. When an owner wants to modernize their comfort, they often ask the same questions:
- Can the existing ducts still be used?
- Will the new system be compatible with the available space?
- Will the house be better air-conditioned in summer?
- Will the central heat pump help reduce the use of traditional electric heating?
- Will the device be easy to maintain?
- Can the system qualify for a subsidy?
In this project, our work began with analyzing the mechanical space and duct network. A central installation must be thought of as a whole: the indoor unit, outdoor unit, ducts, air return, drainage, electricity, thermostat, and service clearances must work together. A good brand never compensates for poor integration.
A tight mechanical space that required a clean and structured installation
One of the main challenges of this project was the available space around the unit. The photo shows the installation near a wooden structure, with a duct network above and on the side. The insulated refrigerant lines run horizontally, while the condensate drain is connected with a visible and accessible trap.
This type of configuration requires rigorous execution. Our technicians had to consider several elements:
- the clearance needed to open service panels;
- the position of the drain to ensure reliable drainage;
- the slope and protection of condensate pipes;
- insulation of refrigerant lines;
- alignment with existing ducts;
- reducing air leaks at the connections;
- future access for cleaning, inspection, and HVAC maintenance;
- Safety around electrical components.
The condensate drain is a detail often underestimated by homeowners. Yet, when a central system operates in cooling mode, it removes moisture from the air. This water must be properly drained. A poorly designed slope, a missing trap, or a connection that is too difficult to access can cause drainage problems, safety shutdowns, or even water damage. In this installation, drainage was treated as a central element of the project, not just a simple secondary finish.
The importance of insulated refrigerant lines
The white lines visible in the photo are another important detail. Refrigerant lines must be properly insulated to protect system performance and avoid unwanted condensation. Neglected insulation can cause efficiency losses, moisture on surfaces, and premature wear of some components.
In a GREE FLEXX installation, the quality of the connection between the indoor unit and the outdoor unit is essential. The lines must be sized according to the manufacturer's requirements, routed neatly, protected against friction, and prepared before commissioning. At AirGreen, we pay special attention to vacuuming, sealing the refrigerant circuit, and validating startup parameters.
Even if these steps are not always visible to the client, they determine the system's reliability. A successful central HVAC installation is measured as much in the hidden details as in the final appearance.
A central solution to improve comfort, air distribution, and long-term reliability
Adapting existing ducts to the new air handler
In a home with a central system, the ducts play a role as important as the device itself. The air handler can be efficient, but if the ducts are poorly sized, poorly sealed, or poorly adapted, comfort can be uneven. Some rooms may receive too much air, others not enough. The system can become noisy or work harder than necessary.
During this installation in the West Island, we paid special attention to the connection between the GREE FLEXX Electric Furnace – Air Handler and the existing network. The transitions must be solid, the joints well sealed, and access to the filter or panels must remain convenient.
The points checked include notably:
- continuity between the unit and the main duct;
- condition of ducts near the device;
- quality of metal joints;
- air return;
- flow direction;
- static pressure;
- access to the filter;
- compatibility with the thermostat and controls.
In many homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore, we see systems where equipment replacement was done without real duct adaptation. This is a costly mistake. A central system must be installed based on the building, not just the device's technical sheet.
Electric furnace, air handler, and central heat pump: understanding how it works
An electric furnace – air handler is used to circulate air through the duct network. Depending on the chosen configuration, it can be paired with a compatible outdoor heat pump to provide air conditioning and a significant portion of heating. The electric elements can then serve as backup when outdoor conditions or home needs require it.
This approach is especially relevant for homeowners who want to keep central distribution. It allows:
- a more uniform temperature in several rooms;
- a discreet interior appearance;
- centralized control via thermostat;
- better integration in homes already equipped with ducts;
- a solution suited for families who want to avoid multiple wall units;
- a more natural transition to replace an old forced-air system.
The BTU capacity level, exact performance, and eligibility for subsidies must be verified with the precise model of the indoor unit, the corresponding outdoor unit, the AHRI number, and the complete configuration. For GREE FLEXX systems, several combinations may exist depending on the home's needs. At AirGreen, we do not assume a device's eligibility based solely on its trade name. We check the exact data of the installed system so the customer has the necessary information.
Mistakes to avoid when installing a central system in the West Island
A central installation may seem simple at first glance, but several mistakes can reduce performance or complicate maintenance.
Neglecting the condensate drain
A poorly installed drain can cause backups, leaks, or system shutdowns. The trap, slope, access, and cleanliness of the connection must be checked.
Blocking access to the service panel
An air handler must remain accessible. Installing the unit too close to a structure, wall, or obstacle can make future repairs longer and more expensive.
Poorly insulating refrigerant lines
Incomplete insulation can cause condensation, efficiency losses, and less durable finishing.
Reusing ducts without inspection
Ducts must be evaluated before commissioning. Their condition, size, and configuration directly influence comfort.
Choosing capacity based only on the old unit
An old system was not necessarily properly sized. Renovations, insulation, windows, and usage habits must be considered.
Ignoring static pressure
A central system must move air without excessive resistance. Too high static pressure can reduce airflow, increase noise, and harm the fan's longevity.
A commissioning that confirms the quality of the installation
After the mechanical installation, commissioning is a crucial step. Our technicians check the system operation, control connections, heating and cooling sequences, drainage, airflow, thermostat, and safety features.
For a GREE FLEXX system, this step confirms that the installation meets the customer's expectations and that the equipment is operating under good conditions. A well-done commissioning also allows explaining to the owner how to use their system daily.
We generally recommend avoiding sudden and frequent temperature changes. A modern central system often works better with a stable setpoint. This helps improve comfort and reduce unnecessary cycles. The customer also receives advice on filter replacement, drain access, signs to watch for, and maintenance frequency.
HVAC Maintenance: protecting the performance of a GREE FLEXX
A central HVAC installation requires regular maintenance. For a GREE FLEXX Electric Furnace – Air Handler, the most important actions are simple, but they have a direct effect on performance:
- replace or clean the filter according to recommendations;
- keep the service panel accessible;
- check that return and supply grilles are not blocked;
- monitor for unusual noises;
- ensure the drain remains clear;
- keep the mechanical space clean;
- schedule a professional inspection before periods of heavy use.
In a central system, a dirty filter can affect the entire house. It reduces airflow, increases motor effort, and can harm comfort. That’s why we always emphasize the importance of simple, regular maintenance that the client fully understands.
AirGreen expertise tailored to West Island homes
The West Island features a wide variety of homes: bungalows with mechanical basements, multi-story houses with central ducts, renovated properties, extensions added over time, and older systems requiring modernization. This diversity calls for a personalized approach.
At AirGreen, we carry out installations of central heat pumps, electric furnaces, air handlers, wall-mounted heat pumps, wall air conditioners, and mini splits in Greater Montreal. Each project is evaluated based on the actual space, client needs, duct condition, electrical constraints, and desired capacity.
This installation of a GREE FLEXX Electric Furnace – Air Handler in Montreal's West Island demonstrates the importance of precise work in mechanical spaces. The insulated lines, accessible drain, integration with ducts, and respect for technical clearances all contribute to the system's reliability.
For homeowners who want to modernize their comfort without installing multiple wall units, a central solution like the GREE FLEXX can be an excellent choice when the house already has an adequate duct network. The difference then lies in the quality of the installation: alignment, sealing, drainage, connections, commissioning, and usage advice.
