Discreet, efficient and well-designed four-season comfort for a contemporary condo

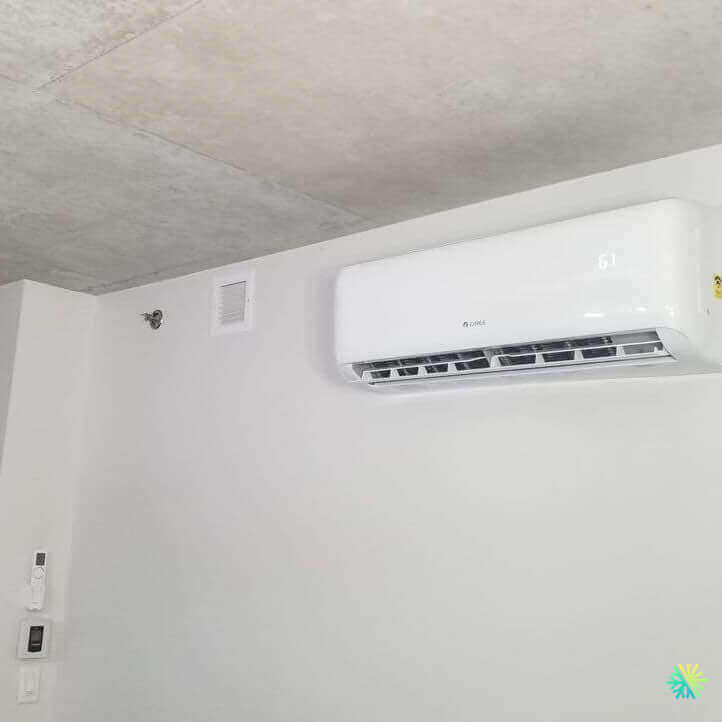

In a modern condo in Le Sud-Ouest , Montreal, our team installed a Gree wall-mounted heat pump . The space features an exposed concrete ceiling, white walls, and a clean layout typical of recent constructions in the area. The client's goal: to achieve efficient air conditioning in the summer, stable heating support during the off-season, and minimal visual integration.
The context: real constraints of an urban condo
In this type of unit, the challenges are clear:
-
Concrete structure on the ceiling, limiting visible paths and requiring precise drilling points.
-
Condensate management by gravity without a pump, in order to limit noise and maintenance risks.
-
Short, sealed route of refrigerant connections to the outside (often a balcony), to preserve seasonal efficiency and reduce losses.
-
SDC regulations : compliance with the size of outdoor equipment, work schedules, and acoustic requirements.
We intervene with a methodology calibrated for condos in downtown Montreal: study of the air volume , analysis of the load-bearing wall, the most direct option for the rear exit, and validation of the location of the electrical disconnect to the condenser according to standards.
Choosing the right equipment: why choose a Gree wall-mounted heat pump ?
Gree residential ranges are recognized for:
-
High efficiency in air conditioning and light heating (effective modulation at low speed).
-
Quiet operation of the interior head, essential in a bedroom or open plan space.
-
Rounded aesthetics and glossy facade that blends into contemporary interiors.
-
Reliable electronics and defrosting optimized for the Montreal climate.
In this project, the capacity chosen aims for comfortable performance for the main room and the adjoining area (typical range 9,000 to 12,000 BTU depending on the volume and sunlight). We systematically size based on the thermal load of the space, and not on a rough rule per square foot: this is the condition for a truly efficient, quiet and durable HVAC installation .
Inner head implantation: precision and air diffusion
We place the wall head high on the wall , under the concrete ceiling, to maximize:
-
The blowing range and the homogeneous mixing of the air;
-
The Coanda effect (the air follows the ceiling before descending), very useful for avoiding cold areas near the ground;
-
Visual discretion in the room.
Nearby is a small wall-mounted ventilation grille (condo exhaust system/building air exchanger). We always check that there is no parasitic recirculation between the exhaust vent and the wall-mounted head to avoid short cycles and performance losses.
Wall crossing and connecting routes: short, clean, sustainable
We opt for a rear exit directly behind the unit, on the outside. Advantages:
-
Shortened refrigerant line (approximately 2 m to 3 m depending on configuration), which improves seasonal performance;
-
Less visible cowling inside;
-
Fewer weak points (fewer bends, less risk of vibration).
On the outside, the connections are insulated with high-density foam , taped and covered in white to protect against UV rays and rain. We add a vapor barrier to the penetrations and careful mastication to preserve the airtightness of the building's air barrier, an often overlooked point which, in the long term, affects comfort and energy costs.
Condensate management: priority to gravity
The drain line is laid with a continuous slope (≈ 1% to 2%) towards the outside. This strategy:
-
Avoids the installation of a condensate pump (potential source of noise and maintenance).
-
Reduces maintenance points.
-
Secures the assembly against backflow during air conditioning periods.
When gravity isn't an option, we use a high-end pump with a check valve and maintenance access. Here, a natural slope was the best solution.
Power supply and commissioning
The outdoor condenser receives its power via a dedicated, code-compliant circuit , with a disconnect readily available. Indoor/outdoor communication is run in the same path, with conductor marking and standard crimping .
Commissioning follows our protocol:
-
Nitrogen leak test of connections;
-
Deep vacuum (≤ 500 microns) until stabilization;
-
Refrigerant release , checking operating pressures;
-
Delta T measurements and blowing calibration;
-
Customer training : filters, modes, HVAC maintenance, seasonal adjustments.
Result: immediate comfort, contained noise, preserved aesthetics
Once in operation, the Gree head offers a regular blowing , adjustable blades that avoid direct air currents, and a low noise level suitable for bedrooms. The integration under the concrete ceiling remains discreet, without visible cables, and respects the minimalist spirit of the condo.
Preventive maintenance: the key to longevity
Even with a high-performance device, maintenance remains essential:
-
Cleaning the filters (every 4 to 8 weeks depending on use and dust).
-
Annual inspection by our technicians: early detection of anomalies, verification of condensates, electrical and electronic checks, cleaning of exchangers.
-
Outside: clearing around the condenser , checking the support and level, cleaning the fins if necessary.
These simple actions maintain performance , reduce consumption and protect the warranty .
Grants and Eligibility
Wall-mounted heat pumps in this category, Energy Star certified and designed to perform well at low temperatures, are generally eligible for subsidies in Quebec. We assist our clients with eligibility , required documents and work sequencing to avoid unpleasant surprises.
What we bring to our clients in Greater Montreal
At AirGreen , we design each HVAC installation as a custom project:
-
Precise sizing based on thermal load, orientation and solar gains;
-
Thoughtful connection path to preserve the envelope, performance and aesthetics;
-
Compliance with SDC regulations (noise, location, timetables);
-
Responsive after-sales service for condos in Montreal, Laval, Longueuil, North Shore and South Shore .
Our experience in co-ownerships in the Southwest allows us to anticipate the details that make the difference: management of drilling in exterior walls, choice of cover , slope of drains, access for maintenance, and coordination with the trustee when necessary.
Practical advice for a similar project
-
Do not oversize : an overly powerful device will cycle quickly, consume more and make more noise.
-
Demand a documented vacuum : a guarantee of the compressor's tightness and longevity.
-
Use gravity for condensates** when possible.
-
Consider maintenance access : filters, condenser clearance, removable cover.
-
Ask for proof of materials : UV insulators, tapes, mastics, clamps - these are what ensure durability over time.
By choosing a carefully installed Gree wall-mounted heat pump , this condo in Le Sud-Ouest now enjoys four-season comfort that is both discreet and economical. Our team remains available for HVAC maintenance , seasonal adjustments, and assistance with grant programs .
