A GREE VITA R32 wall heat pump precisely installed above a patio door in Delson
This installation carried out in Delson, on the South Shore, represents a very common case in condos, apartments, and modern houses: integrating a wall heat pump in a largely glazed room, where available wall space is limited, while maintaining effective air distribution and a neat interior appearance.

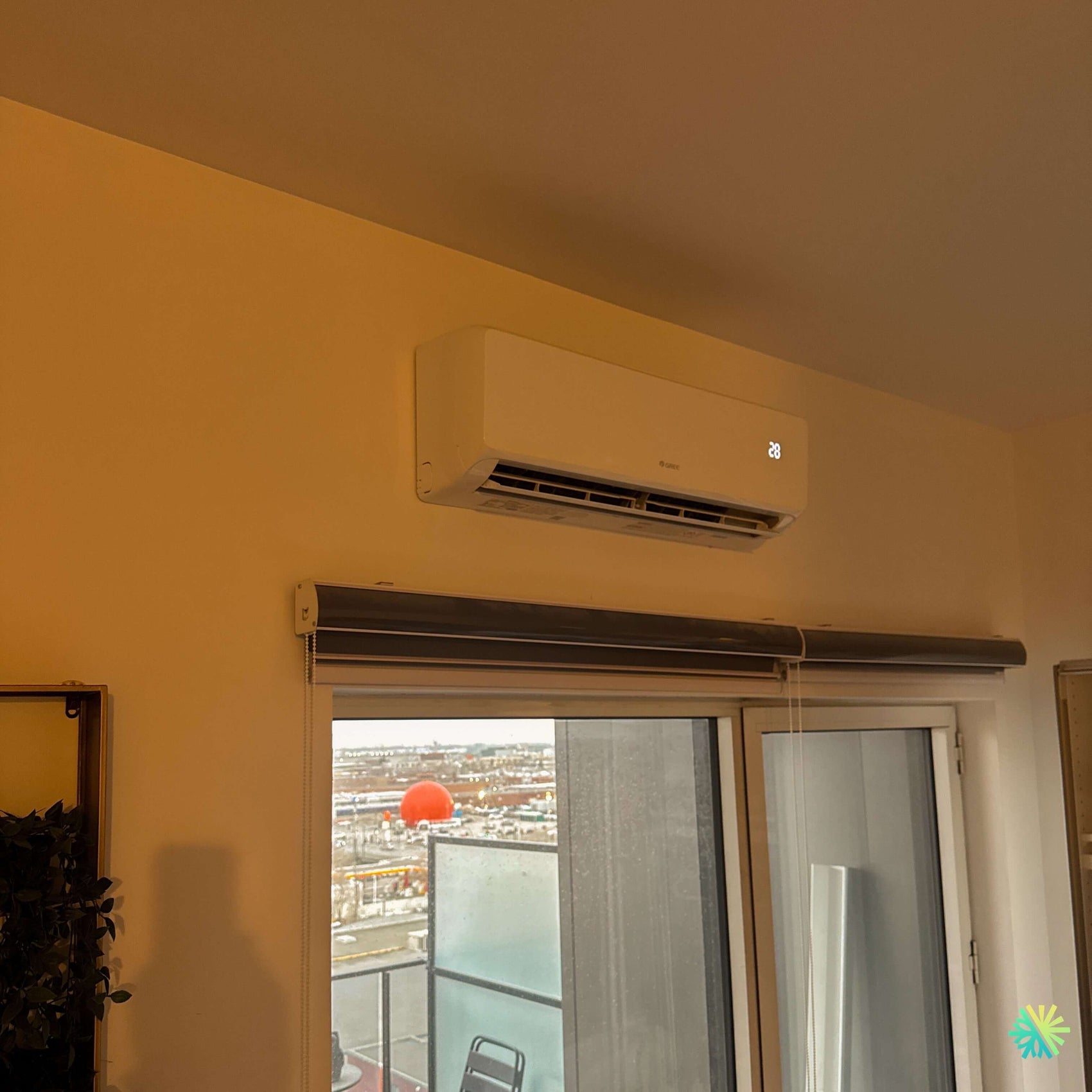

In the photo, the indoor unit GREE VITA R32 is installed above a large patio door with blinds. This positioning requires special attention. A glass opening often creates more pronounced temperature variations: solar heat in summer, cold wall sensation in winter, possible infiltration around the frames, and uneven comfort zones near the window. By placing the wall air conditioner above this strategic area, our AirGreen team was able to direct the airflow into the room while using a wall space that would have been difficult to utilize otherwise.
The unit is installed near the ceiling, well aligned, with a simple finish that naturally blends into the wall. The visible light display on the device confirms it is operational and allows the customer to easily check the programmed temperature. This practical detail is appreciated in living spaces, especially when the unit is installed high up.
Why this type of location requires true HVAC expertise
Installing a mini split heat pump above a patio door is not simply a matter of aesthetics. Several elements must be checked before confirming the location:
- the necessary top clearance for air intake;
- the distance between the unit and the blinds;
- the airflow direction;
- the presence of lintels or structural reinforcements above the opening;
- the passage of refrigerant lines;
- condensation drainage;
- future access for filter cleaning and HVAC maintenance;
- the possible location of the outdoor unit, often on a balcony, terrace, wall mount, or floor slab depending on the building.
In this project in Delson, the main challenge was to achieve a clean installation in an area already occupied by a large glass opening and window coverings. The goal was clear: maximize comfort without interfering with the daily use of the patio door or the blinds.
A solution adapted to condos and residences on the South Shore
Delson and neighboring municipalities on the South Shore, such as Candiac, Sainte-Catherine, Saint-Constant, Brossard, and Longueuil, have many homes where patio doors occupy a significant part of the exterior wall. In these spaces, the choice of location for an HVAC installation becomes crucial.
A poorly positioned unit can create several problems:
- a draft too direct towards the sofa or table;
- limited diffusion by curtains or blinds;
- air intake too close to the ceiling;
- poorly drained condensation;
- difficult access for maintenance;
- an unbalanced visual appearance in the room.
Our job is to avoid these mistakes from the technical visit. Before starting, we analyze the room, the available height, the wall structure, external constraints, and the customer's habits. A well-installed wall heat pump must be efficient, quiet, accessible, and pleasant to look at daily.
The GREE VITA R32: a compact choice for heating and air conditioning
The GREE VITA R32 is an interesting solution for customers who want to combine heating and air conditioning in a single ductless wall system. This type of device is well suited for residential spaces where comfort improvement is desired without major renovations.
The VITA R32 model uses the refrigerant R32, a newer generation refrigerant commonly used in modern wall systems. Its main advantage lies in its efficiency and its suitability with the new HVAC market trends. For the customer, this means a current device designed to offer good seasonal performance when the capacity and installation are well adapted to the building.
In this project, the exact capacity was selected according to the actual needs of the room, the glazed exposure, the area, the insulation, and the layout of the dwelling. At AirGreen, we avoid recommending a capacity based solely on an approximate area rule. Two rooms of similar dimensions can have very different needs depending on orientation, number of windows, type of construction, ceiling height, and air circulation.
The specific challenges of an installation above a large window
The installation visible in the photo clearly shows the importance of detail. The unit is placed above the patio door, which frees the side walls and keeps the room functional. However, this approach requires several technical validations.
Respecting clearance above the unit
A wall heat pump draws ambient air from the top and redistributes it through the front outlet. If the unit is installed too close to the ceiling, air intake can be less effective. In this project, the location was chosen to maintain appropriate clearance while respecting the available height above the opening.
Protecting the blinds and interior finish
The blinds installed under the unit had to remain fully functional. Our team therefore took into account their mechanism, their upper casing, and the side chains. An installation too low could have hindered their use or created a visual overload impression. An installation too high could have impaired air intake. The right positioning lies in this balance.
Planning for comfortable diffusion
In a glazed room, air conditioning can be very effective if the air is well directed. The goal is not only to cool quickly but to maintain a stable temperature. The orientation of the louvers and the choice of ventilation mode then allow adjusting comfort according to the seasons.
Managing drainage with rigor
In cooling mode, the unit produces condensation water. This water must be properly drained. Insufficient slope, a poorly secured drain, or a poorly planned passage can cause leaks and damage. This is one of the most important points of any wall air conditioner installation.
An AirGreen installation designed for performance, finish, and long-term use
Our field method
For this installation in Delson, our team followed a rigorous method to ensure a reliable result. Every AirGreen project starts with a building assessment. We don’t just place the unit where there is space; we look for the spot that will provide the best overall outcome.
The important steps included:
-
Validation of the interior location
We confirmed that the wall above the patio door allowed for a solid attachment, sufficient clearance, and effective diffusion. -
Duct path analysis
The refrigerant lines, communication cable, and drain must follow a clean, as direct as possible path, without compromising interior aesthetics or exterior durability. -
Mounting the wall plate
The indoor unit must be perfectly straight. A slight misalignment can become visible in such a clean room, especially above a horizontal opening like a patio door. -
Connection and vacuuming
Work on the refrigeration circuit must be done carefully. Proper vacuuming, tight connections, and leak checks are essential to protect the device. -
Operational testing
After installation, we test the main modes, unit response, airflow, drainage, and controls. -
Explanation to the customer
We show the customer how to use the device, clean the filters, adjust the louvers, and adopt the right settings according to the season.
Concrete benefits for the customer
A well-installed GREE VITA R32 can significantly improve daily comfort. In this type of housing in Delson, the benefits are especially noticeable during hot periods, when the sun hits glass surfaces and the room quickly becomes uncomfortable.
The desired benefits in this project were as follows:
- stabilize the temperature in the main room;
- reduce comfort gaps near the patio door;
- offer effective ductless air conditioning;
- add a supplementary heating source;
- preserve available wall space for furniture and decoration;
- maintain a discreet interior appearance;
- make daily use easier with a unit accessible by remote control.
This type of installation is also relevant for homeowners who want to reduce their dependence on less efficient systems, improve comfort in a specific area, or modernize their home with a more flexible HVAC solution.
Grants and eligibility: the importance of verifying exact models
Financial aid programs for heat pumps are of great interest to many customers in Delson, Montreal, Laval, Longueuil, on the North Shore and the South Shore. However, eligibility always depends on several factors: the exact combination of indoor and outdoor units, model numbers, applicable certification, installed capacity, and the program criteria in effect at the time of the work.
At AirGreen, we help our clients understand these requirements and prepare the necessary information. We always recommend validating eligibility before making a decision based on an estimated subsidy amount. This approach avoids surprises and allows the client to compare options realistically.
Mistakes to avoid before installing a wall-mounted heat pump
Many owners start their search by comparing only price or brand. These criteria are useful, but they do not guarantee a good result. A successful HVAC installation depends on the entire project.
Here are the mistakes we often encounter:
Choosing a capacity without analyzing the room
A unit that is too small will run too often at full capacity. A unit that is too large can cause short cycling, less dehumidification, and uneven comfort. The right capacity depends on the building, not just the area.
Installing the unit in a convenient spot for drilling but bad for comfort
The duct route is important, but it should not be the only factor. The unit must primarily properly condition the room.
Ignoring windows and sunlight exposure
A large glazed surface can change air conditioning needs. In this project, the presence of the patio door was one of the key elements to consider.
Neglecting access to filters
Filters must be cleaned regularly. If the unit is hard to reach or installed too close to an obstacle, maintenance is likely to be neglected.
Underestimating the outdoor unit
The outdoor unit must be well ventilated, stable, and accessible. In a condo or apartment with a balcony, this aspect must be carefully considered, especially to comply with building regulations.
AirGreen's experience in Greater Montreal
AirGreen installs wall-mounted heat pumps, wall air conditioners, and mini split systems in a wide variety of buildings: urban condos in Montreal, single-family homes in Laval, multiplexes in Longueuil, residences on the North Shore, family properties on the South Shore, and compact housing like the one shown here in Delson.
This diversity allows us to adapt our methods to each situation. An installation in a house with an unfinished basement does not have the same constraints as an installation above a patio door in a condo. A balcony, a brick facade, a shared wall, a low ceiling, or a bay window can all influence the final decision.
Our advantage is based on this practical experience. We know that a good result is seen in the details: a well-aligned unit, well-planned ducts, a reliable drain, a complete commissioning, and a client who understands how to use their system.
Usage tips after installation
To get the best performance from a GREE VITA R32, we recommend a few simple habits:
- clean the filters regularly, especially during periods of heavy use;
- avoid blocking the unit with curtains, furniture, or decorative objects;
- use a stable temperature rather than constantly changing the settings;
- keep the shutters positioned to promote good air circulation;
- have the system checked periodically by a professional;
- monitor any changes in noise, smell, or performance;
- keep the area around the outdoor unit free of snow, leaves, or obstacles.
These actions extend the lifespan of the unit and help maintain consistent performance.
A clean result for a bright and demanding space
This installation of a GREE VITA R32 wall-mounted heat pump in Delson shows that a wall unit can be successfully integrated even in a room where available space is limited by a large patio door. The result is clean, functional, and suited to the client’s lifestyle.
The indoor unit is strategically placed above the glass opening, with a discreet visual presence and air distribution designed for comfort. This project perfectly reflects what we look for at AirGreen: a durable, well-planned installation that meets the real needs of the building.
For owners in Delson, the South Shore, Montreal, Laval, Longueuil, and the North Shore, this kind of project demonstrates the importance of entrusting your project to a team that understands both HVAC technology and the practical constraints of a residential interior. A good heat pump starts with the right equipment choice, but its true performance is confirmed by the quality of the installation.
