A central heat pump precisely installed in a residential yard in Anjou
This installation of a MIDEA EVOX G3 2.5 Ton Central Heat Pump in Anjou perfectly illustrates the type of project where execution quality is as important as equipment selection. In this eastern Montreal area, houses often have relatively narrow side yards, concrete foundations, brick or textured stone walls, and technical spaces already occupied by old air conditioning or heating equipment. This is exactly what we encountered on this site: a well-designed backyard, a nearby fence, an old outdoor unit visible on the ground, and a new MIDEA unit installed elevated on wall brackets to optimize clearance, safety, and durability.
At AirGreen, we approached this project as a complete HVAC (heating, ventilation, and air conditioning) intervention. The goal was not simply to add a high-performance machine, but to integrate a 2.5-ton central heat pump into an existing environment, with particular attention to positioning, refrigerant connections, HVAC maintenance access, noise level, and protection of the unit against Quebec's climatic realities.

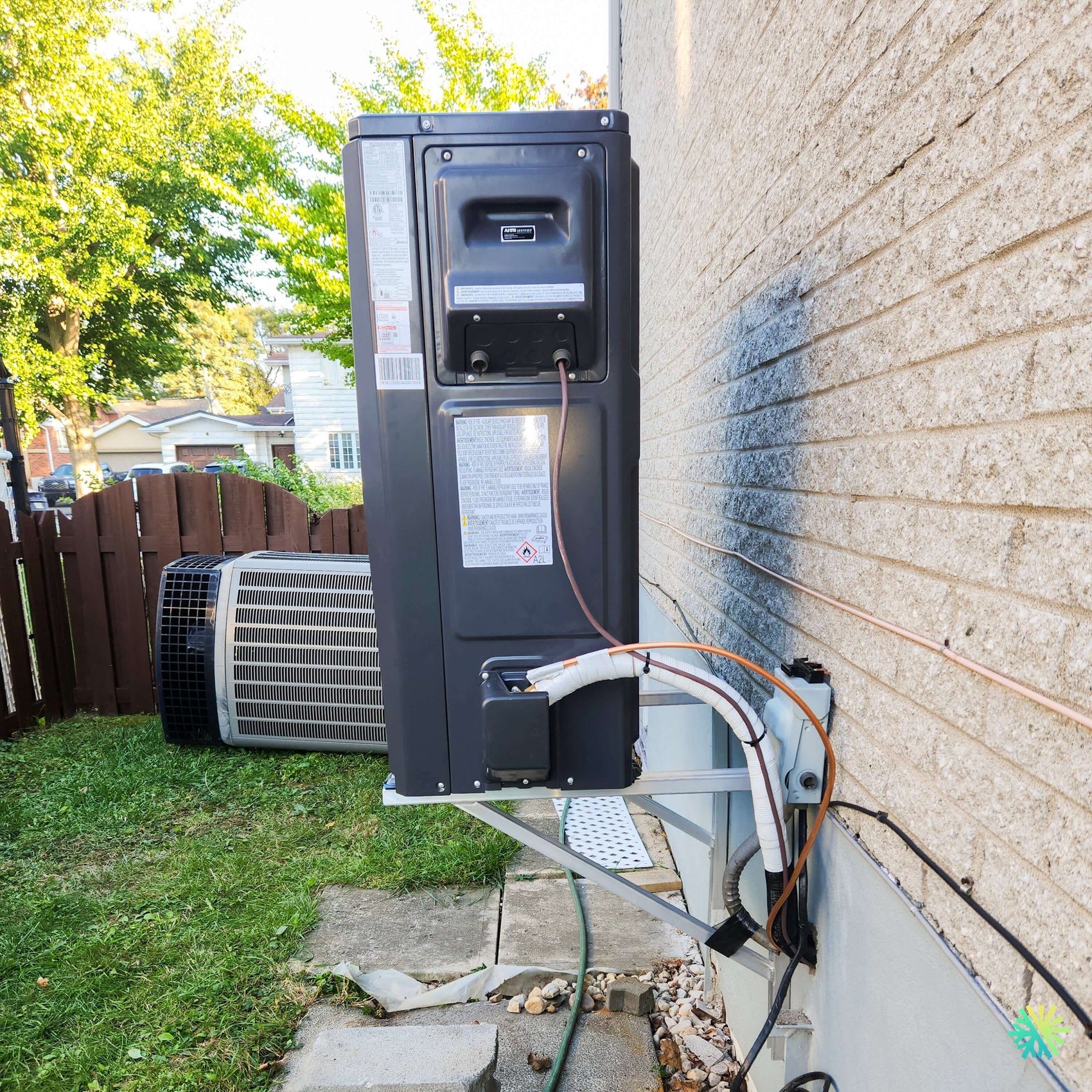

The project photo reveals several important details. The outdoor unit is fixed on a metallic wall structure, high enough to avoid snow accumulation issues on the ground. Refrigerant lines are insulated and routed along the wall, while electrical and technical connections are arranged to preserve future accessibility. This type of installation requires rigorous coordination, especially when dealing with a narrow side facade, a fenced yard, and an old appliance still present in the immediate environment.
A MIDEA EVOX G3 central solution tailored to the needs of a home in Anjou
Why a 2.5-ton capacity was chosen
A 2.5-ton central heat pump, typically equivalent to about 30,000 BTU, is often recommended for medium-sized homes when a building analysis confirms that this capacity is consistent with actual needs. In Anjou, as in several residential areas of Montreal, properties built at different times, sometimes partially renovated, with varying levels of insulation, are found. The choice of a central system must therefore be made carefully.
Sizing is a critical step. A unit that is too small risks running continuously without achieving the desired comfort during periods of intense cold or heat. Conversely, a unit that is too powerful could lead to short cycles, less efficient dehumidification in summer, and faster wear of certain components. In this project, the MIDEA EVOX G3 2.5 ton offered a relevant balance between capacity, efficiency, and comfort.
This central model is designed to supply a duct network, allowing for more uniform air distribution throughout the different rooms. For homeowners who want to avoid the presence of multiple visible wall-mounted units, the central heat pump represents a discreet and efficient option. It preserves the interior appearance of the house while improving overall comfort.
The advantages of a central heat pump for a family home
Unlike a wall-mounted air conditioner or a wall-mounted heat pump which primarily treats the area where the indoor unit is installed, a central system acts on the entire house thanks to existing ducts. This is a significant advantage for families who want a more stable temperature between the ground floor, upper floor, and more distant rooms.
In this installation in Anjou, the priority was to obtain:
- more uniform air conditioning during the summer;
- more stable heating during cold seasons;
- better humidity management;
- quieter indoor operation;
- a solution compatible with the existing architecture of the house;
- an outdoor installation protected against snow and backyard constraints.
The MIDEA EVOX G3 fits this logic: it offers modern technology adapted to homes that want to improve their comfort without multiplying visible appliances in living areas.
Outdoor installation: a strategic choice on wall brackets
One of the most important aspects of this project is the choice to install the outdoor unit on wall brackets. This technical detail has great value in a climate like Quebec's. In Montreal, Laval, Longueuil, on the North Shore and the South Shore, snow, ice, dead leaves, and yard debris can reduce the efficiency of an outdoor unit when it is installed too close to the ground.
On this Anjou site, the backyard had limited space between the wall, the fence, and existing equipment. Installing the unit on the ground would have reduced maneuverability and exposed the appliance more to winter accumulations. By opting for a wall installation, we improved several elements:
- clearance under the unit;
- protection against snow;
- visual access to connections;
- air circulation around the appliance;
- stability of the installation;
- ease of future maintenance.
The brackets were carefully fixed to the appropriate structure, respecting level and alignment. A central HVAC installation must always take vibrations into account. Even if modern appliances are designed to operate more quietly, a poorly executed fastening can transmit vibrations to the building. This is why our team pays particular attention to anchor points, supports, the level of the appliance, and the clearance around the unit.
Refrigerant connections: a detail that influences performance
In the image, the insulated refrigerant lines connecting the outdoor unit to the indoor system are clearly visible. These lines play an essential role in the operation of a central heat pump. They must be correctly sized, insulated, protected, and connected according to industry best practices.
During an installation like this, our technicians specifically check:
- the quality of line insulation;
- the routing of pipes to avoid unnecessary stress;
- the tightness of connections;
- mechanical protection of exposed sections;
- drainage and electrical component management;
- vacuuming before commissioning.
An error in this part of the work can lead to loss of efficiency, refrigerant leaks, or premature compressor wear. This is why we reject improvised installations and technical shortcuts. A well-installed MIDEA EVOX G3 can offer excellent performance, but only if the entire system is treated with rigor.
Careful integration despite limited outdoor space
Backyards and side yards in Anjou can pose a challenge for an HVAC team. Fences, narrow passages, concrete slabs, steps, old equipment, and limited access often complicate logistics. On this project, the unit had to be installed without hindering yard use, while maintaining sufficient access for future services.
Our approach consisted of placing the appliance in a way that respected the necessary clearances, without creating unnecessary obstacles in the passage. The old unit visible on the ground in the background recalls a frequent situation: many homeowners are gradually replacing their old systems with more efficient equipment, but outdoor mechanical space remains limited. In these cases, the location of the new heat pump must be considered long-term.
We also considered the visual impact. A central outdoor unit is bulkier than a small wall-mounted unit, but a clean, aligned, and well-positioned installation integrates much better into the environment. Well-grouped lines, accessible connections, and solid supports provide a professional finish that reflects the quality of the work.
The role of the duct network in final comfort
A central heat pump directly depends on the home's duct network. Even the best appliance cannot offer optimal comfort if air circulation is poor. During this type of installation, we pay attention to airflow, return air, registers, more distant zones, and signs of imbalance.
In a house in Anjou, occupants may sometimes notice that certain rooms are more difficult to heat or cool. This can be due to overly long ducts, poor insulation, poorly adjusted registers, or a previous system that was improperly calibrated. The installation of a MIDEA EVOX G3 2.5 Ton Central Heat Pump is therefore an opportunity to better understand the house's behavior.
Once the appliance is installed, commissioning adjustments ensure that the system operates stably. Customers particularly appreciate the difference when the temperature becomes more constant between the main rooms and the bedrooms. This is often where the value of a central system becomes evident.
Energy performance and eligibility for subsidies
The search for better energy efficiency is one of the main reasons homeowners replace their old system with a modern central heat pump. The MIDEA EVOX G3 is an interesting option for customers who want to reduce their reliance on less efficient heating, improve their summer comfort, and benefit from technology better suited to current needs.
Eligibility for subsidy programs, including those related to energy efficiency in Quebec, must always be verified according to the exact model, current criteria, installed capacity, and available documentation. At AirGreen, we support our clients through this step to provide them with the necessary information after installation: model, invoice, proof of installation, and technical details when required.
For homeowners in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, this assistance can influence the final decision, but it should never be the only criterion. The right choice remains the one that combines performance, compatibility with the house, installation quality, and long-term reliability.
Mistakes to avoid when replacing a central system
From our experience on similar installations in Anjou and elsewhere in Greater Montreal, some mistakes often recur.
Installing the unit too low
An outdoor unit installed directly on the ground can become problematic in winter. Snow, ice, and meltwater can hinder operation. The wall brackets used in this project offer better protection.
Neglecting access for maintenance
An appliance placed in too tight a corner can complicate inspections and repairs. A good installation must allow access to service panels, connections, and important components.
Choosing capacity without analysis
The 2.5-ton capacity must match the house. Copying the tonnage of the old appliance without evaluation can lead to a poor choice.
Underestimating the importance of ducts
Ducts directly influence comfort. Before concluding that an appliance is not working well, sometimes the air distribution needs to be examined.
Prioritizing only price
A lower price may hide a less complete installation, inferior quality supports, neglected finish, or lack of follow-up. For a central system, installation quality is crucial.
A customer experience focused on clarity and durability
Clients who contact us for a central heat pump often want to understand what they are truly buying. They compare brands, warranties, performance, subsidies, and contractors. Our role is to make this decision clearer.
On this installation in Anjou, we explained the project steps, the reasons for choosing the outdoor location, the importance of wall brackets, the precautions related to connections, and maintenance recommendations. Once the system was started, we verified its operation and took the time to ensure that the occupants understood the basics of use.
This approach avoids many frustrations. A well-informed client knows how to use their system, when to change filters, why to keep the outdoor unit clear, and when to request professional HVAC maintenance.
AirGreen in Anjou: local expertise that makes the difference
We regularly carry out installations of central heat pumps, wall-mounted heat pumps, wall-mounted air conditioners, and complete HVAC systems in eastern Montreal, including Anjou, Saint-Léonard, Mercier, Rosemont, Rivière-des-Prairies, and surrounding areas. Each neighborhood has its constraints: rear access, alleys, narrow yards, brick walls, co-ownerships, semi-detached houses, or old systems to replace.
This local knowledge allows us to anticipate challenges even before the project begins. For this MIDEA EVOX G3 2.5 Ton Central Heat Pump in Anjou, our team delivered a clean, solid installation adapted to the real environment of the house. The wall brackets, unit clearance, pipe routing, and technical finish demonstrate attention to detail.
For a homeowner, this difference is seen in the final result, but especially in the years that follow: fewer problems related to poor installation, simpler access for maintenance, more stable operation, and increased peace of mind.
An installation designed for Quebec's seasons
Quebec's climate imposes particular demands on HVAC systems. A heat pump must be able to handle the humid heat of July, the cool nights of autumn, unpredictable thaws, snow accumulation, and prolonged cold spells. The outdoor installation must therefore be designed for these conditions.
In this project, elevating the unit on wall mounts is an essential choice. It helps maintain better clearance beneath the unit and reduces risks associated with ground accumulation. The orientation, access, and protection of the lines also contribute to the system's reliability.
A correctly installed MIDEA EVOX G3 thus becomes a consistent central solution for a home in Anjou: comfortable, discreet, modern, and better adapted to current energy needs.
An installation representative of the AirGreen standard
This installation of a MIDEA EVOX G3 2.5-ton Central Heat Pump in Anjou demonstrates what distinguishes an ordinary installation from a well-thought-out one. The machine matters, but the work around the machine matters just as much: location, supports, refrigerant lines, connections, clearances, commissioning, and client explanation.
At AirGreen, we view every project as a combination of technical performance and human comfort. Homeowners don't just want an outdoor unit fixed to the wall; they want a more pleasant home to live in, better controlled bills, reliable equipment, and a contractor capable of providing follow-up.
This is the approach we apply in Anjou, in Montreal, in Laval, in Longueuil, on the North Shore and the South Shore, for residential and commercial projects where the quality of HVAC installation makes all the difference.
