A Compact and Tidy Installation on a Residential Terrace in Westmount
In Westmount, every HVAC installation project requires particular attention. Homes there often present precise architectural constraints, limited outdoor access, landscaped terraces, brick walls, high aesthetic demands, and, most importantly, very clear expectations for comfort and discretion. It is in this context that AirGreen carried out the installation of a MIDEA35 12,000 BTU wall-mounted heat pump, a mini-split system designed to offer both efficient air conditioning in summer and powerful heating throughout a large part of the cold season.

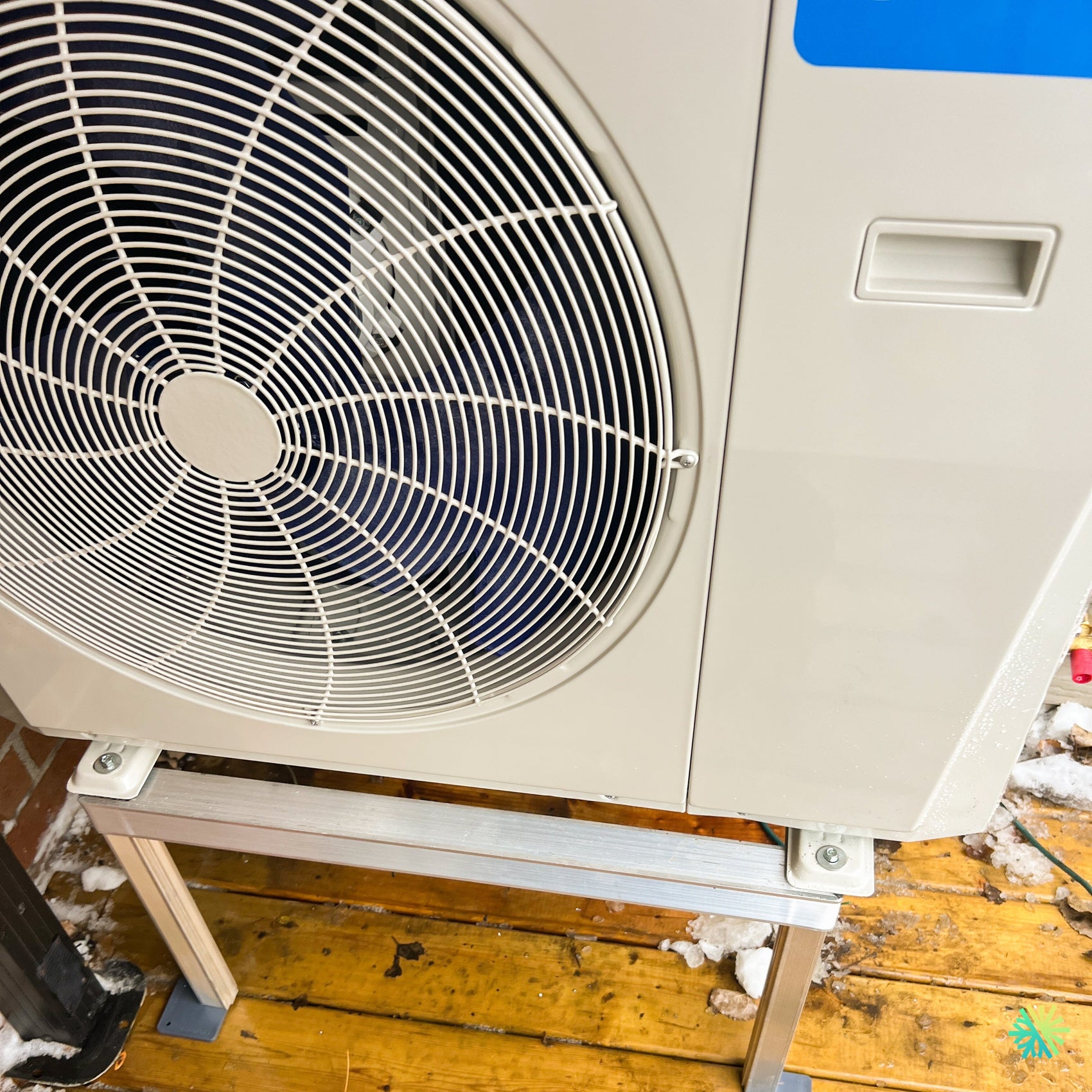

The image of this installation shows a particularly important detail: the outdoor unit was placed on a raised metal support, directly above a wooden deck. This choice is not insignificant. In a region like Montreal, where snow accumulation, ice, humidity, and freeze-thaw cycles can affect the durability of an installation, the clearance height under the outdoor unit plays an essential role. A machine placed too low risks being exposed to snow accumulation, splashes, fallen leaves, stagnant water, and debris. Here, our team opted for a stable, clean structure adapted to the site, in order to protect the system while respecting the available space.
This installation in Westmount perfectly illustrates our approach at AirGreen: we don't just install a heat pump. We evaluate the environment, building constraints, air circulation around the unit, support stability, access for HVAC maintenance, finish aesthetics, and the system's long-term performance.
Why the MIDEA35 12,000 BTU was perfect for this project
The MIDEA35 12,000 BTU is a particularly interesting solution for homeowners seeking a balance between performance, comfort, operating cost, and reliability. In this Westmount project, the 12,000 BTU capacity perfectly met the needs of a targeted residential area: living room, main floor, master bedroom, home office, or an open section of a well-insulated house.
A unit that was too small would have run constantly, resulting in less stable comfort and potentially higher consumption. A unit that was too large could have created short cycles, reduced dehumidification in summer, and compromised the precision of indoor comfort. The choice of a 12,000 BTU wall-mounted heat pump often represents an excellent compromise when the area, insulation, solar orientation, and interior configuration are correctly analyzed.
A mini-split system adapted to Westmount's realities
In several neighborhoods of Montreal, and particularly in Westmount, residential buildings are often older, with thick walls, exterior bricks, restricted mechanical spaces, and sometimes regulations or aesthetic preferences to respect. The wall-mounted mini-split then becomes a very practical solution, as it allows adding an air conditioning and heating system without installing air ducts.
The wall-mounted heat pump also allows for precise targeting of the area to be treated. In this case, the client wanted to improve the comfort of a specific space without undertaking major work throughout the house. The MIDEA35 met this requirement thanks to its compact size, stable performance, and discreet operation.
Efficient air conditioning and intelligent auxiliary heating
The MIDEA35 12,000 BTU serves as both a wall-mounted air conditioner and a heat pump. In summer, it helps maintain a comfortable temperature while removing humidity from the indoor air, a feature highly appreciated in the greater Montreal area, from Laval to Longueuil, including the North Shore and the South Shore. In mid-season and during several cold periods, it can also provide efficient heating, reducing reliance on the main heating system.
This type of system is particularly useful in homes where certain rooms become too hot in summer or too cool in fall and spring. Rather than overheating or over-cooling the entire house, the client can adjust comfort in the targeted zone.
Technology designed for daily comfort
Modern wall-mounted systems like the MIDEA35 are designed to modulate their operation. This modulation helps avoid abrupt starts and stops. The result is more stable comfort, better humidity management, reduced noise levels, and more controlled consumption. For a Westmount homeowner, where acoustic comfort and discretion are often priorities, this technical detail becomes very concrete in daily life.
Specific Challenges of This Westmount Installation
An outdoor unit installed on a wooden deck
The most visible element of this project is the location of the outdoor unit. It was installed on a wooden deck, near a brick wall and an existing structure. This type of installation requires rigorous analysis, as wood, unlike concrete, can move slightly over time, react to humidity, transmit certain vibrations, and require adequate weight distribution.
Our team therefore opted for a solid, elevated, and well-anchored metal support. The unit's feet are neatly fixed to the structure, with particular attention paid to stability. The goal was to create a reliable base that limits vibrations, keeps the unit at a good height, and facilitates access for future inspections.
Snow and debris management
In Westmount, as elsewhere in the greater Montreal area, a poorly positioned outdoor unit can quickly become problematic in winter. Snow accumulations can obstruct airflow, reduce system efficiency, and force the machine to work harder. On a terrace, snow removal, meltwater, and areas where ice can form must also be considered.
The raised support visible in the installation helps reduce these risks. The machine remains clear of the ground, which improves air circulation under the unit and limits direct exposure to accumulations. This decision contributes to the system's durability and seasonal performance.
Ventilation around the outdoor unit
A heat pump needs to breathe. The outdoor unit rejects or captures heat depending on the mode used. If it is installed too close to an obstacle, in a corner that is too enclosed, or without sufficient clearance, its performance can decrease. In this project, the unit is placed to maintain adequate airflow in front of the fan and around the casing.
This is a common error we see in some correction projects: an outdoor unit installed in an aesthetically discreet, but technically too confined, location. At AirGreen, we always strive for the right balance between appearance, performance, and accessibility.
Deck protection and site cleanliness
On a wooden deck, the finish matters immensely. A poorly executed installation can leave marks, unnecessary drill holes, misplaced cables, or overly exposed mechanical elements. Our team worked with precision to preserve the site's appearance. The positioning of the support, the alignment of the unit, and the stability of the base were all done with a clean finish.
This attention is particularly important in Westmount, where homeowners often care about preserving the architectural character of their residence. A good HVAC installation must function efficiently, but it must also blend respectfully into the existing environment.
Future access for HVAC maintenance
A wall-mounted system needs maintenance to maintain its efficiency. The indoor unit's filters must be cleaned regularly, and the outdoor unit must remain clear. When installing a machine on a terrace or in a confined space, future access for HVAC maintenance must be considered. The installation carried out here allows access to the outdoor unit for checks, cleaning, and interventions as needed.
A good location today avoids costs and complications tomorrow. This is a simple rule we apply to all our projects, whether in Montreal, Laval, Longueuil, on the North Shore or on the South Shore.
Key Steps of Our Intervention
Site evaluation and location validation
Before installation, we evaluated the outdoor location, refrigerant line path, indoor unit position, electrical access, and overall project feasibility. In Westmount, this type of preparation is essential, as each residence can present different constraints: wall height, rear access, clearance near neighbors, existing terrace, old bricks, wooden structure, narrow spaces, or particular aesthetic requirements.
We chose the location visible in the photo because it allowed us to reconcile several priorities: good airflow, stable installation, convenient access, acceptable visual integration, and protection against ground accumulations.
Installation of the elevated support
The metal support was carefully installed to provide a solid base for the outdoor unit. On a terrace, this step is crucial. The support must be straight, stable, and robust enough to hold the unit over time. It must also reduce direct contact with the wooden surface and allow for good elevation of the machine.
This approach improves the durability of the installation. It also helps reduce risks associated with humidity, snow, and vibrations.
Installation of the MIDEA35 outdoor unit
Once the support was ready, we fixed the outdoor unit of the MIDEA35 12,000 BTU. The alignment of the machine, the solidity of the fasteners, and the clearance around the fan were checked. These details directly influence the system's performance and ease of use.
The outdoor unit visible in the photo shows a clean, stable, and well-clear installation. The front fan has the necessary space to ensure efficient heat exchange.
Refrigerant and electrical connections
Refrigerant connections must be performed by qualified professionals. Improper handling of lines, inadequate tightening, improper evacuation, or incorrect charging can affect system performance and cause long-term problems. At AirGreen, we comply with applicable HVAC standards and pay particular attention to sealing, connection cleanliness, and commissioning.
The electrical connection is also a determining factor. A wall-mounted heat pump must be supplied correctly, according to manufacturer requirements and applicable regulations. Our team ensures that the installation is safe, clean, and compliant.
Commissioning and final checks
After installation and connections, we performed operational checks. This step confirms that the system starts correctly, that the cooling mode works, that heating responds well, that drainage is adequate, and that the outdoor unit operates without abnormal vibration.
Commissioning is a step that some underestimate, but it is essential. It confirms that the installation is truly ready for daily use.
What this installation brings to the client
More precise comfort in the targeted zone
The client now benefits from direct control over a specific area of the house. The MIDEA35 12,000 BTU wall-mounted heat pump allows for rapid temperature adjustment, without relying solely on the central system or open windows in summer.
In a Westmount home, where floors, thick walls, and sun exposure can create temperature variations, this kind of solution significantly improves comfort.
Improved energy efficiency
A modern wall-mounted air conditioner generally consumes less than a portable air conditioning system or an ill-suited solution. In heating mode, a heat pump can also offer interesting performance during many periods of the year. The main advantage is to heat or cool only the necessary area, rather than the entire house.
This approach is particularly relevant for homeowners who want to better control their energy costs without sacrificing comfort.
A discreet and durable installation
The outdoor unit is installed cleanly, with attention paid to stability and integration into the outdoor space. On a terrace, this aspect makes a big difference. The client maintains a functional space while benefiting from a high-performance system.
Durability does not depend solely on the brand or model. It also depends on the quality of the installation, the support, clearances, connections, and future maintenance.
Mistakes to avoid when installing a wall-mounted heat pump
Choosing solely based on price
Price is important, but it shouldn't be the only criterion. A less expensive, but poorly adapted, installation can lead to noise, performance, efficiency, or maintenance problems. A wall-mounted heat pump should be chosen based on area, insulation, actual room usage, indoor location, outdoor location, and quality of after-sales service.
Underestimating the importance of outdoor support
The image of this installation clearly shows the importance of adequate support. Installing an outdoor unit directly on the ground, too close to snow, or on an unstable base can reduce the system's lifespan. In Montreal, Laval, Longueuil, on the North Shore, and the South Shore, winter conditions require a thoughtful installation.
Neglecting clearances around the unit
An outdoor unit needs space to function properly. Too often, we see machines trapped between walls, fences, stairs, or objects stored too close. This hinders air exchange and can increase consumption.
Forgetting regular maintenance
Even a good system loses efficiency if not maintained. Filters must be cleaned, the outdoor unit must remain clear, and periodic inspection helps identify problems before they become costly. HVAC maintenance is an essential part of long-term performance.
AirGreen's Expertise in HVAC Installations in Westmount and Greater Montreal
At AirGreen, we perform installations of wall-mounted heat pumps, wall-mounted air conditioners, mini-split systems, and HVAC solutions throughout the greater Montreal area, including Westmount, Laval, Longueuil, the North Shore, and the South Shore. Each project leads us to adapt our method to the building, the client, and the site constraints.
In residential areas like Westmount, our experience makes a real difference. We know that the installation must be efficient, but also clean, discreet, durable, and respectful of the property. We take the time to evaluate the right locations, explain the technical choices, and deliver a result that inspires confidence.
Installations Adapted to Existing Homes
Many homes in Westmount were not originally designed to accommodate modern wall-mounted air conditioning systems. This does not mean that comfort must be sacrificed. It means that a methodical approach is required. The choice of line routing, surface protection, integration of the outdoor unit, and precision of connections then become essential.
A Clear and Transparent Approach
Our clients appreciate our ability to explain the available options, the real benefits of each model, potential technical limitations, and best installation practices. We don't aim to offer a generic solution. We seek the right solution for each property.
A Finish That Matters as Much as Performance
A successful installation is seen in the details: straight support, well-secured unit, sufficient clearance, clean connections, space left for maintenance, respect for the deck, and quiet operation. It is this rigor that allows an HVAC installation to perform well for several years.
A Successful MIDEA35 Project in a Demanding Environment
This installation of a MIDEA35 12,000 BTU in Westmount demonstrates that a residential project can be both technical, compact, and elegant. The choice of an elevated support, the management of available space, the protection of the wooden deck, and the attention paid to air circulation show the importance of an installation carried out by an experienced team.
For the client, the result is tangible: improved indoor comfort, efficient air conditioning, a practical heating option, a stable outdoor installation, and a system well integrated into its environment. For us, at AirGreen, this project accurately reflects our way of working: precision, cleanliness, technical expertise, and attention to detail.
Whether for a house in Westmount, a condo in Montreal, a residence in Laval, a family project in Longueuil, a property on the North Shore, or a house on the South Shore, we approach each installation with the same professional standard. A well-chosen and well-installed wall-mounted heat pump can transform the comfort of a space, reduce seasonal irritants, and offer a durable solution when properly planned from the outset.
