Installation of a Sharp Eco Inverter wall-mounted heat pump in Boucherville
In Boucherville, AirGreen is installing a Sharp Eco Inverter heat pump on a galvanized stand with a short path and gravity drain: comfort, silence, and durability. Experts in HVAC installation in Greater Montreal.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A clean, durable installation designed for our winters on the South Shore

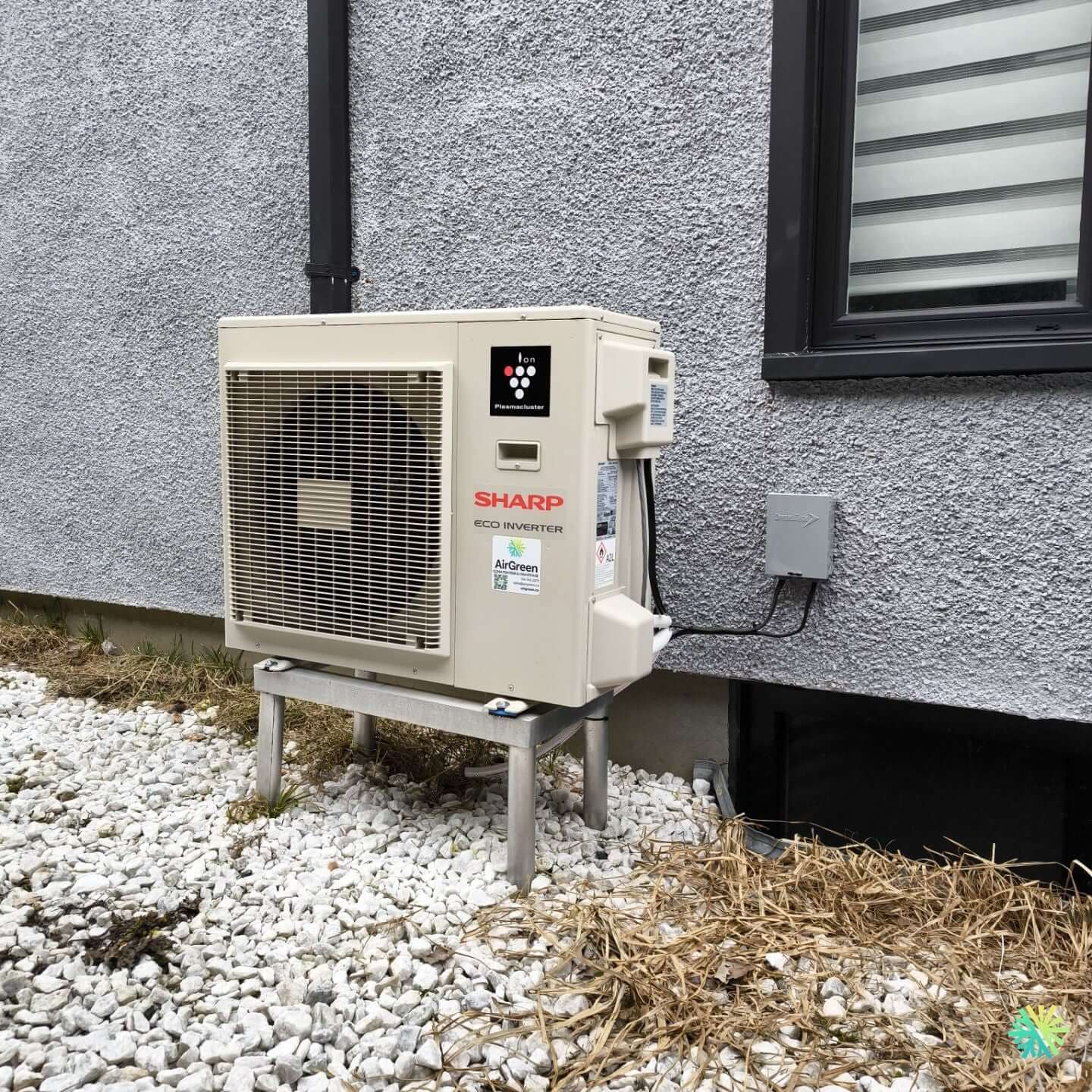

In a single-family home in Boucherville , our team installed a Sharp Eco Inverter wall-mounted heat pump designed to provide four-season comfort with controlled consumption. The outdoor unit is located along a gray acrylic coated wall, in a typically residential environment on the South Shore , where compact, quiet, and reliable solutions are sought. Sharp's own Plasmacluster Ion technology enhances indoor air quality, a real plus for occupants sensitive to allergens.
Why the Sharp Eco Inverter range is a must here
Sharp's choice meets three customer requirements:
-
Energy efficiency thanks to the Inverter, which adapts power in real time and limits jolts.
-
Stable comfort in summer and winter , with fine modulation of the compressor and resistance to cold adapted to Greater Montreal.
-
Improved air quality via Plasmacluster Ion, acting on particles and odors — a differentiator compared to conventional wall units.
Without displaying the exact reference on the visible label, the Sharp Eco Inverter range belongs to the recent wall-mounted units with modern refrigerant and offers common capacities (from 9,000 to 24,000 BTU depending on the configuration). This spectrum covers the majority of living rooms and floors of houses on the South Shore .
Reading the site and preparing the worksite
The site had several characteristics that guided our HVAC installation :
-
Rendered facade with black-framed window and new cladding , requiring clean and perfectly sealed holes.
-
Open exterior space allowing ideal installation for ventilation and maintenance.
-
Electrical disconnect box already positioned nearby, ensuring a short, safe and compliant connection.
-
Bed of white draining stones on the ground: a positive point for water flow and cleanliness around the condenser.
A layout designed for winter durability
We chose a raised structure with galvanized legs/stands rather than wall brackets or a floor slab. Advantages:
-
Snow/Ice Clearance : The raised base places the unit at a safe height for air intake and prevents direct winter accumulations.
-
Stability and anti-corrosion : galvanized metal is resistant to salt and freeze/thaw cycles.
-
Easy maintenance : access under the unit remains free for inspection and seasonal cleaning.
The refrigeration path is short and direct , with a clean wall crossing ; discreet capping protects the connections while remaining minimalist to preserve the aesthetics. Condensate drainage is gravity-driven down the wall, which eliminates the use of a pump and reduces future maintenance .
Key installation steps (excerpt from our AirGreen method)
-
Thermal verification of the main room to be served and consistent BTU sizing (taking into account insulation, solar gains and occupancy habits).
-
Choice of drilling point inside (lateral clearance, absence of structural obstacle, shortest pipe path).
-
Fixing the stand with anchors adapted to the slab and millimetric leveling to limit vibrations and structural noise.
-
Brazing under nitrogen and deep vacuum , followed by a leak test and pressure control.
-
Electrical connection to the external disconnection box , circuit breaker dedicated to the panel, then commissioning with verification of blowing temperatures , currents and superheating/subcooling .
-
Finish : sealing joints at the drilling, collars and caps at the ends, drain slope confirmed.
Result: comfort, silence and careful aesthetics
As soon as it is switched on, the occupants perceive:
-
Fast air conditioning blowing , without excessive air current thanks to Inverter modulation.
-
Low noise level both outside and inside, with the unit decoupled from the ground by the stand and placed above the stone bed.
-
Clean visual integration : reduced capping, well-channeled cabling, no water trailing against the foundation.
Good practices and pitfalls to avoid (AirGreen field feedback)
-
Always raise wall-mounted condensers in snowy areas; installation directly on the ground often ends up blocked in January-February.
-
Favor short routes : beyond a certain length, the additional refrigerant charge must be calculated and recorded.
-
Avoid air discharges in front of immediate obstacles (low walls, sheds) which recycle the air and degrade performance.
-
Take care of the slope of the drain : in summer, a siphon or a counter-slope quickly results in droplets in the wrong place.
-
Check maintenance access : free space at the front and sides is essential for the longevity of the heat pump .
Recommended maintenance
To maintain performance season after season:
-
Clean the inner head filters every 4 to 8 weeks during periods of heavy use.
-
Gentle washing of the condenser exchanger (air sweep, no high-pressure jet too close to the fins).
-
Annual inspection by a technician: electrical readings, pressure, condition of insulation and capping, tightness of connections.
-
Winter clearance around the unit (drifted snow) to keep the air inlet and outlet clear.
Grants and Eligibility
Recent, high-efficiency wall-mounted heat pumps , using new-generation refrigerants and offering good cold-weather performance, are generally eligible for grant programs in Quebec. Final eligibility depends on capacity , seasonal performance , and housing configuration. Our team supports clients in Montreal, Laval, Longueuil, the North Shore, and the South Shore to validate criteria and prepare applications .
Why AirGreen for your wall projects on the South Shore?
-
Local expertise : daily installation of wall-mounted heat pumps in residential areas of Boucherville, Saint-Bruno, Brossard, etc.
-
Careful finishing : sealed drilling, aligned capping , gravity drain management where possible.
-
Complete service : BTU sizing, HVAC installation , HVAC maintenance advice, grant assistance and after-sales service .
Sizing Tips for a Typical House in Boucherville
-
9,000–12,000 BTU : Closed rooms, offices, well-insulated master bedrooms.
-
18,000 BTU : Medium-sized open living room-kitchen area.
-
24,000 BTU : Large open areas, high ceilings or higher heat loss.
Correct sizing avoids overconsumption , short cycles and improves the compressor's lifespan .
Summary of the project
This Sharp Eco Inverter installation in Boucherville illustrates what we prioritize: a raised installation that anticipates winter, a short cooling path to maintain efficiency, a reliable gravity drain , and an aesthetic integration that matches the building. The result is an efficient, quiet, and durable system, ready for our heat waves as well as our biting cold.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
