Installation of a Sharp ZU series wall-mounted heat pump in Rosemont–La Petite-Patrie

A thoughtful upgrade for a Montreal condo, designed for 4-season comfort

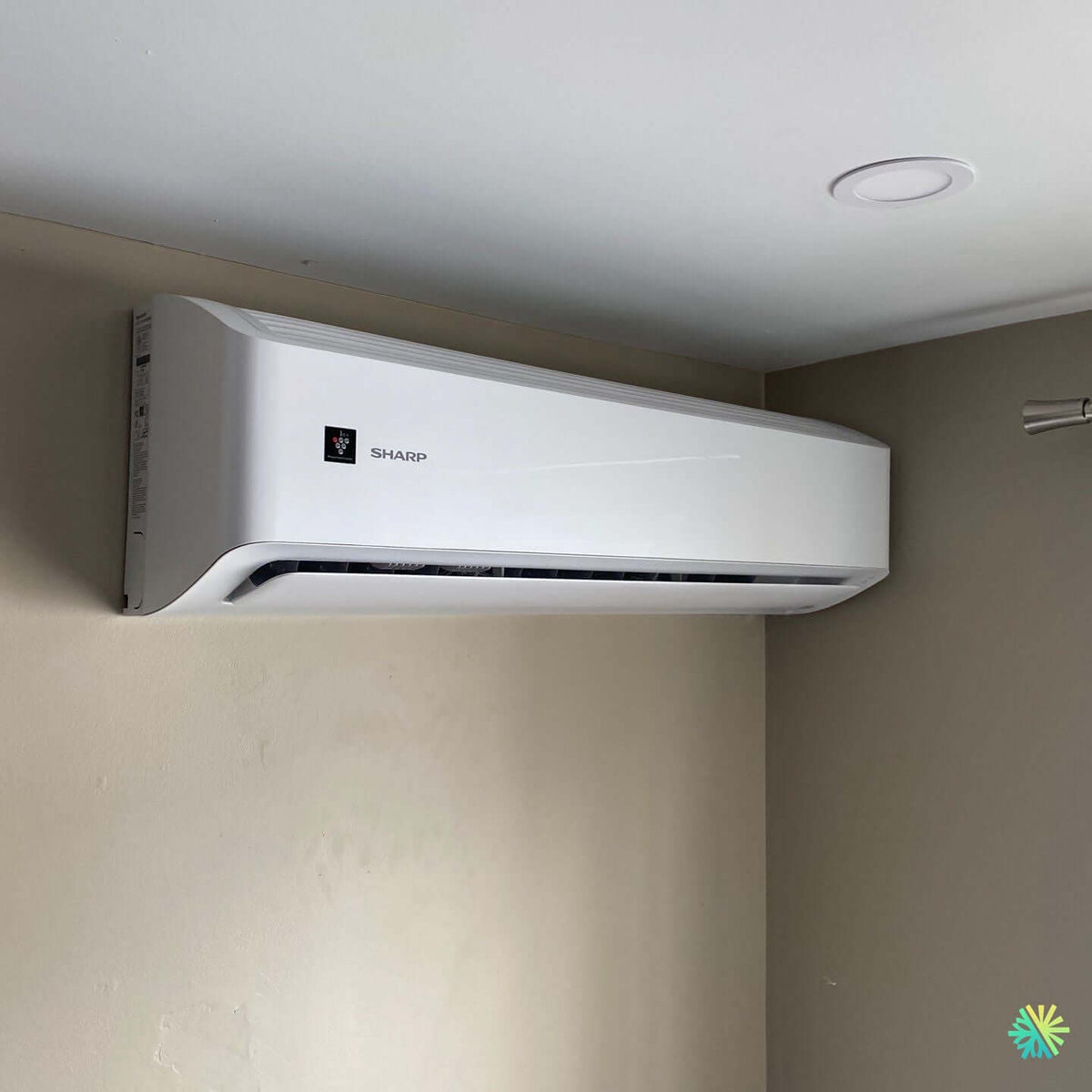

In a condo in Rosemont–La Petite-Patrie , our team is installing aSharp wall-mounted heat pump ( ZU series, Plasmacluster technology). The owner wants a high-performance, discreet, and reliable HVAC solution to provide air conditioning in the summer and heating in the winter without encroaching on the living space. The indoor unit is integrated into the upper corner of the room, near a curtain rod and under a clean ceiling, which requires precise work on clearances and air diffusion.

Project background

• Building : recent co-ownership, good insulation, open spaces.

• Objective : modernize comfort, reduce energy bills, limit noise.

• Constraints : corner positioning, limited ceiling clearance, maintaining a minimalist aesthetic.

Why the Sharp wall-mounted heat pump is a must here

Sharp 's ZU series units combine an inverter compressor, reliable electronics, and air filtration enhanced by Plasmacluster technology. For an urban condo, the benefits are tangible:

• Two-season comfort : heat pump capable of heating efficiently in cold weather and cooling during Montreal heat waves.

• Energy efficiency : fine modulation of power, better SEER/HSPF than old single wall air conditioners.

• Quiet operation : optimized interior fan, very popular in open spaces.

• Air Quality : Plasmacluster ionization which helps reduce certain particles and odors.

• Potential eligibility for grants (depending on configuration, exact performance and current program criteria), useful for Montreal, Laval, Longueuil, North Shore and South Shore .

Analysis of air positioning and diffusion

Choosing a high installation, on a long wall, allows air to be blown along the ceiling and then allowed to fall naturally into the living area. In this configuration:

• We maintain sufficient upper clearance to prevent hot air recirculation over the probe and to simplify maintenance.

• We avoid obstacles (rods, ceiling drops, recessed lights) so that the shutters can direct the flow without constraint.

• We set a suitable shutter angle : in air conditioning mode, horizontal or slightly upward blowing; in heating mode, lower orientation to send the heat to the heart of the room.

Route of refrigeration and electrical connections

In a condo, short and direct lines are essential. Here, we prioritize:

• Single hole with sealed wall pass-through and controlled slope for condensate drainage (gravity when height allows).

• Continuous line insulation and quality vapor barrier tape to prevent condensation in summer.

• Protected low voltage wiring , grouped routing under discreet capping , matching the light walls.

Depending on the exterior configuration (courtyard, balcony, side wall), the outdoor unit is installed either on wall brackets (regulated height for snow, rear clearance respected), or on an anti-vibration slab . The fixings are sized to withstand freezing-thawing and prevailing winds.

Key steps in AirGreen installation

1. Taking measurements and choosing the template : checking the center distances, identifying obstacles (angles, plasterboard, uprights, rods).

2. Support fixing : certified metal anchors, level control to ensure gravity flow of condensates.

3. Drilling and sealing : calculated drilling angle; foam/mastic sealing to ensure air and water tightness.

4. Passage of connections : dehydrated copper, compliant flares, torques tightened with the dynamometer .

5. Electrical connections : dedicated circuit breaker as needed; protective sheath and circuit breakers according to the Code.

6. Vacuuming and controls : deep vacuum , leak test, validation of pressures at start-up.

7. Calibration and finishing : mode settings, blowing test , capping installation and aesthetic touch-ups.

Challenges encountered and solutions implemented

Ceiling clearance and interior angle. The presence of an angle and a rod requires precise installation . We adjust the lateral position to maintain:

• adequate upper clearance ,

• the freedom of the shutters ,

• access to filters for HVAC maintenance .

Condensate management. To avoid any risk of backflow, we create a continuous slope from the tank outwards. If gravity is insufficient in an area, a float lift pump can be integrated (with acoustic trap), but here the configuration allowed for a simple and silent solution: gravity .

Visual discretion. The aesthetic line of the living room is respected thanks to a short path , clear capping and an exterior exit aligned with the architectural elements. The result is sober , consistent with the atmosphere of the condo.

Sizing and selection tips

Sizing a wall-mounted heat pump isn't just about square footage. We consider:

• Orientation and sunshine ,

• Insulation quality and air infiltration ,

• Ceiling height and open volumes ,

• Use (teleworking, night, guests),

• Sound levels sought .

In this type of Sharp unit (ZU series), typical capacities are around 9,000, 12,000 or 15,000 BTU for main rooms in Montreal condos. We recommend aiming for modulation rather than overpowering, to avoid short cycles, improve summer humidity and maximize winter supplemental heating efficiency.

Results obtained

• Uniform comfort in the living area, without annoying drafts.

• Lower consumption compared to a standard wall-mounted air conditioner and electric convectors alone.

• Improved air quality through filtration and ionization technology.

• Very low noise level , suitable for teleworking and quiet evenings.

Maintenance and best practices to maintain performance

A well-installed system lasts a long time if it is maintained . Our recommendations:

• Clean filters every 4 to 8 weeks during heavy summer use.

• Annual inspection by an AirGreen technician: checking pressures, condensate flow, tightness of connections, deep dusting of the exchanger.

• Clearance around outdoor condenser : 30–60 cm clear, no obstructions; in winter, keep the area clear of snow.

• Good use of modes : prefer moderate Auto-Fan ; use Dry in summer humidity; in heating, set the stable target temperature to take advantage of inverter modulation.

Grants and funding

Depending on the exact configuration (certified performance, test climate, compliant installation), wall-mounted heat pumps may be eligible for financial assistance. We assist our clients in Montreal, Laval, Longueuil, the North Shore, and the South Shore with reviewing criteria, preparing documents, and optimizing the application.

What AirGreen expertise brings in addition

• Unbiased advice on brands and ranges suitable for your home.

• Team of certified installers with expertise in Quebec electrical and refrigeration standards.

• Neat finishes : clean holes, aligned capping, durable seals.

• Responsive after-sales service : maintenance, troubleshooting, original parts.

Success Checklist for Moving into a Montreal Condo

• Choose a load-bearing wall or partition allowing direct drilling to the outside with a slope for condensates.

• Ensure sufficient clearance above and to the sides of the wall head.

• Provide a suitable electrical circuit and an appropriate circuit breaker .

• Consider external noise pollution : judicious orientation of the condenser, anti-vibration pads, sturdy brackets.

• Schedule annual maintenance before extreme heat or frost.

Conclusion

This HVAC installation in Rosemont–La Petite-Patrie illustrates the value of a properly sized and carefully installed Sharp wall-mounted heat pump : four-season comfort, energy savings, stylish aesthetics, and everyday peace of mind. At AirGreen , we support every co-owner in Greater Montreal to transform a living space into a truly comfortable space all year round, with discreet, durable, and easy-to-maintain equipment.
