Project

Installation of a Sharp wall-mounted heat pump in Outremont

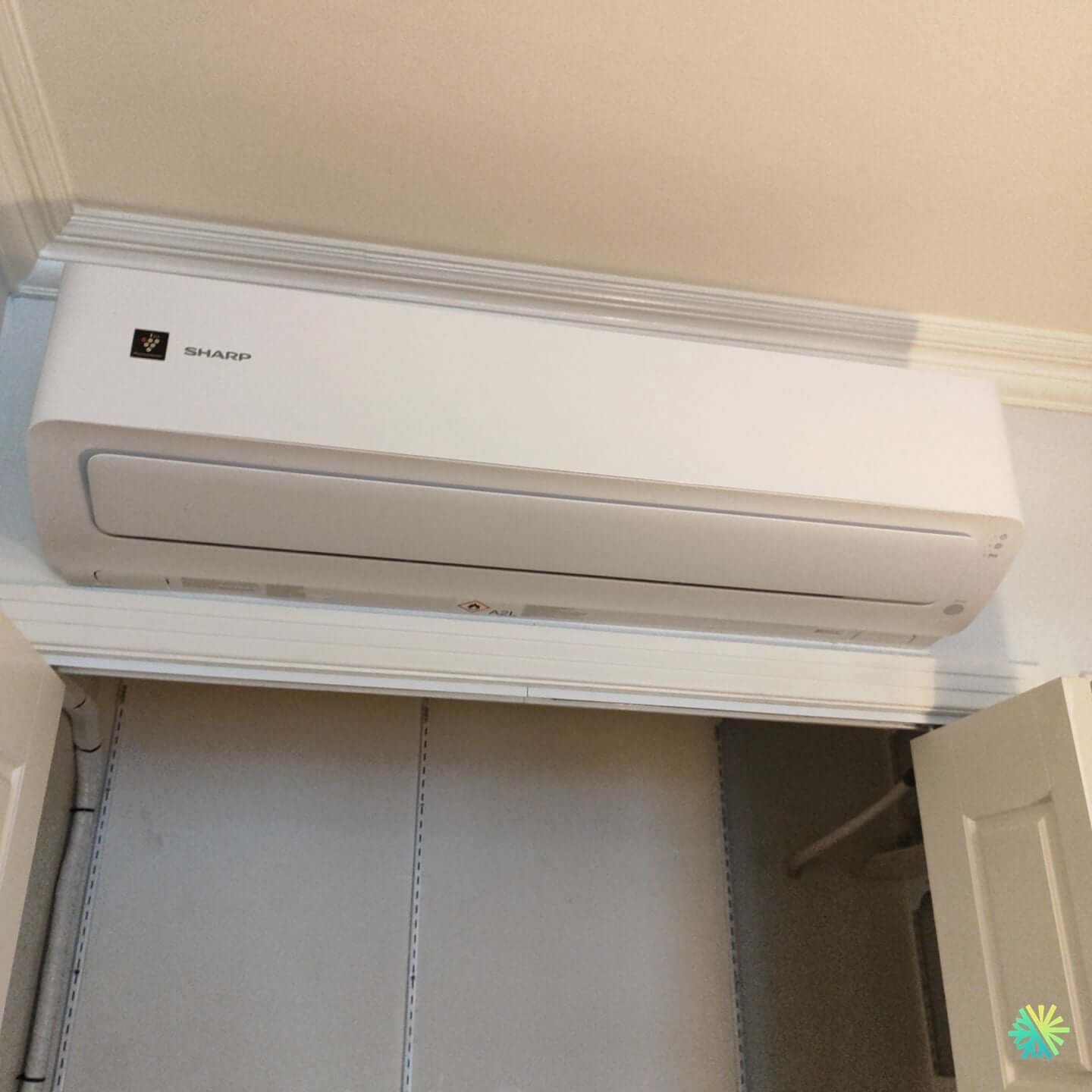

Interior installation of a Sharp wall-mounted heat pump in Outremont by AirGreen: integration under moldings, short path, gravity drain, comfort and silence. Intervention Greater Montreal: Montreal, Laval, Longueuil, North Shore, South Shore .

By AirGreen Climatisation & Chauffage Admin7 min read
Installation of a Sharp wall-mounted heat pump in Outremont
Installation of a Sharp wall-mounted heat pump in Outremont
Generic diagram: wall-mounted heat pump, indoor and outdoor units

In summer, the outdoor unit rejects the house's heat outside.

Generic illustration of this type of installation, not a survey of this job site. Tap a number.

  1. Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.

  2. The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.

  3. Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.

  4. A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.

  5. The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.

  6. On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.

  7. The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

A precise interior installation, designed to maximize comfort in a typical Outremont apartment, with old moldings and built-in storage, without compromising aesthetics.

A project where precision rhymes with discretion

At AirGreen , we adapt each HVAC installation to the actual architecture of the home. Here, the major constraint is to integrate the wall-mounted head above a closet opening with folding doors, under a ceiling decorated with moldings. The client's objective: four-season comfort , minimal noise level and careful visual integration , while maintaining easy access to the filters for HVAC maintenance .

Why a Sharp wall-mounted heat pump in this context?

Sharp's new generation wall-mounted heat pumps ( R-32 refrigerant) combine inverter modulation, high seasonal efficiency and a compact size—perfect for apartments in Outremont, Plateau-Mont-Royal or Rosemont where every inch counts. In real-life use:

  • they heat efficiently in mid-season and during the severe cold weather common in Greater Montreal ;

  • they dehumidify in summer, a guarantee of superior perceived comfort;

  • They maintain a contained interior noise level , essential in rest rooms.

Interior installation architecture

We chose a mono-split configuration (one head – one external condenser) to concentrate the power in the main living area. Inside, the installation follows four principles:

  1. Optimized height
    The head is installed in the upper part, under the molding, at a sufficient distance from the ceiling to allow air recirculation and correct reading of the sensors. This height promotes controlled stratification and limits short cycles .

  2. Clear airway
    Positioned above the closet, the blower directs air along the ceiling before redistributing it into the living room. Doors do not obstruct the flow: there are no obstacles in the blowing cone, therefore uniform and silent diffusion .

  3. Compact technical path
    The refrigerant connections and the condensate drain descend through the discreet white casing visible on the left bank, then pass through the load-bearing wall to the outside. This very short route limits pressure losses, protects the COP and reduces the visual footprint.

  4. Accessibility and maintenance
    The clear front panel allows the panel to be fully opened for filter maintenance and card inspection. The connectors are neatly grouped on the service side for quick interventions.

Technical details delivered

  • Single wall-to-wall drilling with ring and seal: continuous air and water tightness.

  • Gravity slope of the drain towards the outside: no pump, therefore silence and reduced maintenance.

  • Continuous insulation on the connections, without gaps at the curves: no parasitic condensation in the cupboard.

  • Controlled service loop : no stress points on the connections.

  • Communication and power supply in accordance with manufacturer requirements, with clear identification of conductors.

  • Commissioning by deep vacuum , leak test and superheat/subcooling check; basic instructions given to the customer.

Sizing: the AirGreen method

We never size "by eye." Before recommending capacity (most often 9,000, 12,000, 18,000 or 24,000 BTU), we validate:

  • housing envelope (brick wall, shared wall, quality of windows);

  • actual use of the rooms (occupation, internal supplies, open kitchen);

  • solar exposure and gains;

  • permissible noise depending on the configuration (adjoining room, office).

This calculation avoids oversizing (discomfort and premature wear) as well as undersizing (lack of heat on very cold nights).

Expected results for the client

  • Stable heat in winter, fine modulation around the set point, disappearance of jolts.

  • Fresh without drafts in summer thanks to sweeping and dehumidification.

  • Low noise : the blower adjusts its speed, ideal for a bedroom or office.

  • Savings vs pure electric heating, especially visible between December and March.

  • Aesthetics : discreet cowling, no visible bleeding, respect for the moldings.

What makes the difference in an Outremont apartment

Old buildings require irregular walls , prominent moldings , and built-in storage . Our teams anticipate:

  • the ceiling reserve to avoid the “glued box” effect which stifles the intake;

  • free travel of the flaps for full vertical sweep;

  • protection of moldings during drilling;

  • reduction of structural vibrations (pads, tightening to the correct torque).

Result: an integration that respects the spirit of the place while delivering the expected performance.

Grants and Eligibility

Recent wall-mounted heat pumps , particularly those with R-32 and high winter efficiency, are likely to be eligible for energy efficiency assistance in Quebec. Our team verifies, for Montreal, Laval, Longueuil, North Shore and South Shore :

  • Energy Star compliance where applicable;

  • low temperature heating capacity (−25°C / −30°C depending on the series);

  • the installation documentation required by the programs.

We support the client from pre-file to post-installation proof .

HVAC Maintenance: Simple and Essential

A regular maintenance plan maintains performance and extends lifespan:

  • vacuuming/cleaning filters every 4 to 8 weeks;

  • annual inspection of exchangers , drain and line insulation ;

  • checking connections and operating values;

  • Check the outside drain in the fall to prevent the drain from freezing.

We offer AirGreen packages suitable for both small and large homes.

Good practices and mistakes to avoid

To do

  • leave 20–30 cm free under the ceiling to encourage air intake;

  • keep the closet opening clear so that the airflow does not encounter any obstacles;

  • adjust the shutters to suit the geometry of the room.

To avoid

  • wedge the head under a molding that is too low (risk of recirculation of hot air);

  • run the drain without sufficient slope (leaks, odors);

  • ignore the manufacturer's recommended clearances .

What you can expect from AirGreen

  • Thermal study and documented capacity recommendation;

  • Implementation plan taking into account aesthetics and acoustics;

  • Certified, clean installation , with tests and commissioning reports;

  • Support for grants where the range is eligible;

  • After-sales service and parts available quickly.

Are you in Montreal, Laval, Longueuil, North Shore or South Shore?

We understand the local constraints: brick facades, narrow streets, flat roofs, limited parking, condominiums with schedules to respect. Whether your project is in Outremont , Villeray , Le Sud-Ouest , Brossard , Sainte-Dorothée or Repentigny , we apply the same rigor to guarantee lasting comfort .


Express FAQ

Is hanging your head over a cupboard ideal?
Yes, if sufficient clearance and unobstructed airflow are maintained. The air flows along the ceiling and then naturally descends, improving uniformity.

Which capacity to choose?
We validate the thermal load before ordering. In this type of apartment, 9,000 or 12,000 BTUs are often sufficient, but only a study can confirm the correct value.

And the noise?
Recent Sharp series are very quiet at cruising speed. The perceived level depends mainly on the size and blower settings.

Complicated maintenance?
No. Simple actions by the user and an annual visit by our technicians maintain performance and reliability.


Conclusion

This Sharp wall-mounted heat pump installation in Outremont demonstrates our expertise: elegant integration into an architecture with moldings, short technical path , silent gravity drain and controlled commissioning. Do you want the same result in Montreal , Laval , Longueuil , on the North Shore or the South Shore ? We size, install and maintain your system with the AirGreen requirement.

The steps

How it goes, from the first call to the end

The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.

Step 1 of 9The on-site estimate

We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.

  1. The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
  2. The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
  3. Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
  4. The wall openingA single opening, with the slope the drain needs to flow outside.
  5. The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
  6. Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
  7. The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
  8. Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
  9. The walkthroughRemote, modes, filters: we show you the essentials before we leave.
Your numbers

And at your place?

Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.

Size checkYour baseboards, in BTU/h
–BTU/h of installed electric heat

    Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.

    Through the seasons

    What to do, season by season

    Three habits per season for this unit. They take a few minutes and prevent many calls.

    • Clean the indoor unit's filters.
    • Clear leaves and debris left on the outdoor unit by winter.
    • Test cooling before the first hot days.
    And at your place?

    Which type of equipment for your project?

    Pick what looks like your need.

    Mistakes avoided

    Four mistakes we do not make

    Flip each card to see what we do instead.

    Frequently asked questions

    What people ask us about this kind of work

    12 questions
    Does a wall-mounted heat pump heat in winter?
    Yes, it heats and cools. Its capacity drops in very cold weather; the operating range depends on the model and is listed on its spec sheet.
    Wall-mounted or multi-zone: how do I choose?
    One wall head and one condenser outside: the direct solution for a room or an open area. For two to five rooms, a multi-zone puts one head in each room on a single condenser.
    Where does the outdoor unit go?
    Where it stays above the snow, clear and accessible, away from walkways. We decide it with you during the estimate.
    Are there grants?
    Depending on the model and your situation, assistance programs may apply, including Hydro-Québec's LogisVert. AirGreen checks the model number before quoting an amount. See the grants.
    Do I need a permit?
    Rules vary from city to city: location, distances, noise. See permits and by-laws, and we check for your address.
    How cold can it heat?
    It depends on the model. According to Hydro-Québec, newer models work down to a temperature between −15 °C and −25 °C, and some cold-climate models are certified lower. The minimum temperature is on each unit's spec sheet.
    How much can I save?
    Hydro-Québec says a heat pump can be up to three times more efficient than baseboards for heating in the colder months. The result depends on the house, the climate and how it is used.
    How is the LogisVert assistance calculated?
    For ENERGY STAR cold-climate certified heat pumps, Hydro-Québec lists assistance of $120 per 1,000 BTU/h of heating capacity at −8 °C. AirGreen checks the exact model before quoting an amount; only Hydro-Québec confirms the assistance granted. See the grants.
    Is it noisy?
    The sound level depends on the model and is listed in decibels on each unit's spec sheet. Location matters too: when possible, we avoid putting the outdoor unit under a bedroom window.
    The outdoor unit is covered in ice: is that normal?
    Some frost is: the unit runs defrost cycles. Never hit the ice. If the unit stays iced up or stops heating, call us.
    Does AirGreen hold the required licences?
    Yes. AirGreen holds RBQ licence 5645-9605-01, subclasses 15.8 Ventilation, 15.10 Refrigeration and 16 Electricity.
    Is the estimate free?
    Yes. The on-site estimate is free and the quote follows within 24 hours. Book my free estimate.
