4-season comfort on a condo balcony: installation on an aluminum base, short distance, silence and R-32 efficiency for exemplary integration
Project background

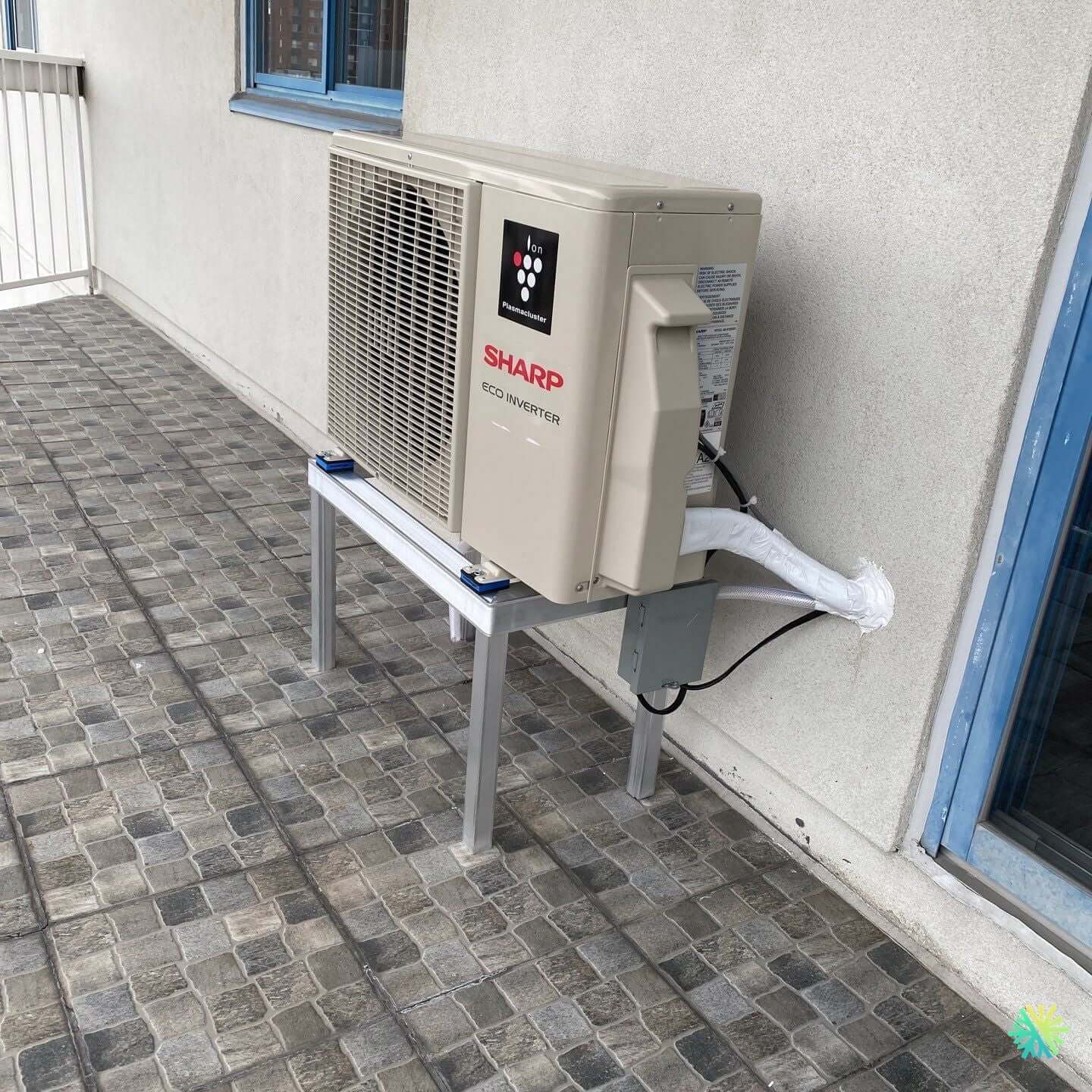

In Griffintown , most condominiums combine large glass surfaces with paved balconies exposed to the wind. The owner of this condo wanted a stable HVAC solution for both heating and cooling, visually discreet and compliant with condominium regulations. We installed a Sharp ZU1 wall-mounted heat pump ( R-32 refrigerant) whose outdoor unit is placed on a four-legged aluminum support , securely anchored to the balcony, to isolate vibrations and maintain optimal clearance around the unit.
Why the Sharp ZU1 R-32 is Right for Downtown Condos
-
R-32 : reduced charge and better seasonal efficiency than older generations with R-410A.
-
Inverter modulation : the machine precisely adjusts its capacity to actual needs, limiting consumption peaks.
-
Low noise levels both indoors and on the balcony – a decisive factor for the peace and quiet of the neighbors.
-
Extreme cold operating range adapted to Montreal's climate, to maintain heat during periods of prolonged freezing.
-
Neutral design and compact size that blend well with a coated facade and blue joinery .
Study and sizing carried out by AirGreen
For a Griffintown condo with an open concept and adjoining bedroom, we analyze:
-
Surface area and ceiling height ;
-
Solar exposure and gains through glazing;
-
Sealing of the envelope;
-
Acceptable noise pollution on the balcony side;
-
Co-ownership constraints: timetables , noise levels , authorized routes .
Sizing targets the 9,000–12,000 BTU range to ensure fine regulation and long cycles in mid-season, with reserve for peak sunlight.
Exterior integration: stability, silence and durability
-
Robust aluminum base , anti-vibration wedges under the pads to absorb micro-vibrations and protect the balcony tiles.
-
Side and rear clearances respected to guarantee air flow and defrosting performance.
-
Electrical disconnect box mounted nearby, compliant sheathed wiring and clean service loop.
-
Short wall crossing towards the interior, sealed with elastomeric mastic and tape suitable for thermal movements.
-
Insulated refrigeration lines (winter thickness) and neatly covered for a neat, UV-resistant finish.
-
Defrosting management and drainage without nuisance: the water drains freely onto the balcony, with the recommendation of a deflector if required by the union.
Execution details: invisible quality that makes the difference
-
Flaring to the prescribed torque, brazing under nitrogen to avoid internal oxidation.
-
Nitrogen test then deep vacuum (< 500 microns) with stability control to guarantee the absence of humidity.
-
Charge adjustment according to the exact length of the refrigerant paths.
-
Functional validation in cooling and heating: intensity, overheating/subcooling, delta-T and acoustic behavior in night mode.
-
Adjustable sweep, speeds and eco-operation for quiet nights and comfortable mornings.
Inside: discreet comfort and air quality
The wall-mounted fan is positioned to cover the open area without blowing directly onto the living area. Immediate benefits:
-
Uniform temperature and efficient dehumidification in summer;
-
Soft start and stable hold in winter;
-
Improved filtration with cleanable pre-filters and Plasmacluster ionization from the Sharp range, popular for reducing cooking odors in open spaces.
Results measured after commissioning
-
Reduced time to return to comfort after prolonged absence.
-
Very low exterior noise level in continuous operation, in accordance with co-ownership rules.
-
Controlled consumption thanks to modulation and R-32 .
-
Preserved aesthetics : discreet white cladding, clean openings, compact base.
Good practices for use in condos
-
Allow the heat pump to modulate rather than turning it off frequently.
-
Program a slightly different nighttime setting to limit cycles.
-
Clean the filters every 4 to 6 weeks; more often during periods of construction or heavy cooking.
-
Keep the clearance around the outdoor unit free of bins and decorative objects.
Recommended HVAC maintenance
-
Spring : deep cleaning of the evaporator, checking of condensate flow, checking of probes.
-
Autumn : inspection of connections, defrost test, check of torque of fittings and insulation.
-
Every 2–3 years : performance audit with pressure/temperature readings and revision of the bushing seals.
Grants and Compliance
High-efficiency R-32 wall-mounted heat pumps may be eligible for financial assistance based on recognized efficiency thresholds. We confirm eligibility and prepare documents for Montreal , Laval , Longueuil , North Shore and South Shore . In co-ownerships, we attach technical data sheets and sound certificates when required.
Common mistakes to avoid… and our method
-
Poor choice of outdoor location leading to air recirculation → study of clearances and orientation of discharge.
-
Non-watertight drilling on coated facade → flexible multi-layer seal to prevent infiltration and cracking.
-
Undersizing in the face of solar gains from a glazed condo → calculation taking into account actual solar gains and latent load .
-
Vibrations transmitted to the balcony → aluminum base with anti-vibration pads and controlled tightening.
Why choose AirGreen in Griffintown and downtown?
-
Accurate sizing , clean and guaranteed HVAC installation .
-
Instrumented commissioning : deep vacuum, complete tests and submission of a value report.
-
Responsive after-sales service and scheduled HVAC maintenance .
-
Mastery of co-ownership requirements (access, noise, evacuations), essential in dense areas.
Conclusion
This Sharp ZU1 R-32 balcony unit in Griffintown offers quiet, efficient, all-season comfort while respecting the building's aesthetics and condominium regulations. The combination of a short refrigerant path , cushioned base installation , and methodical commissioning ensures long-lasting performance for condo living in the heart of Montreal .
