Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie

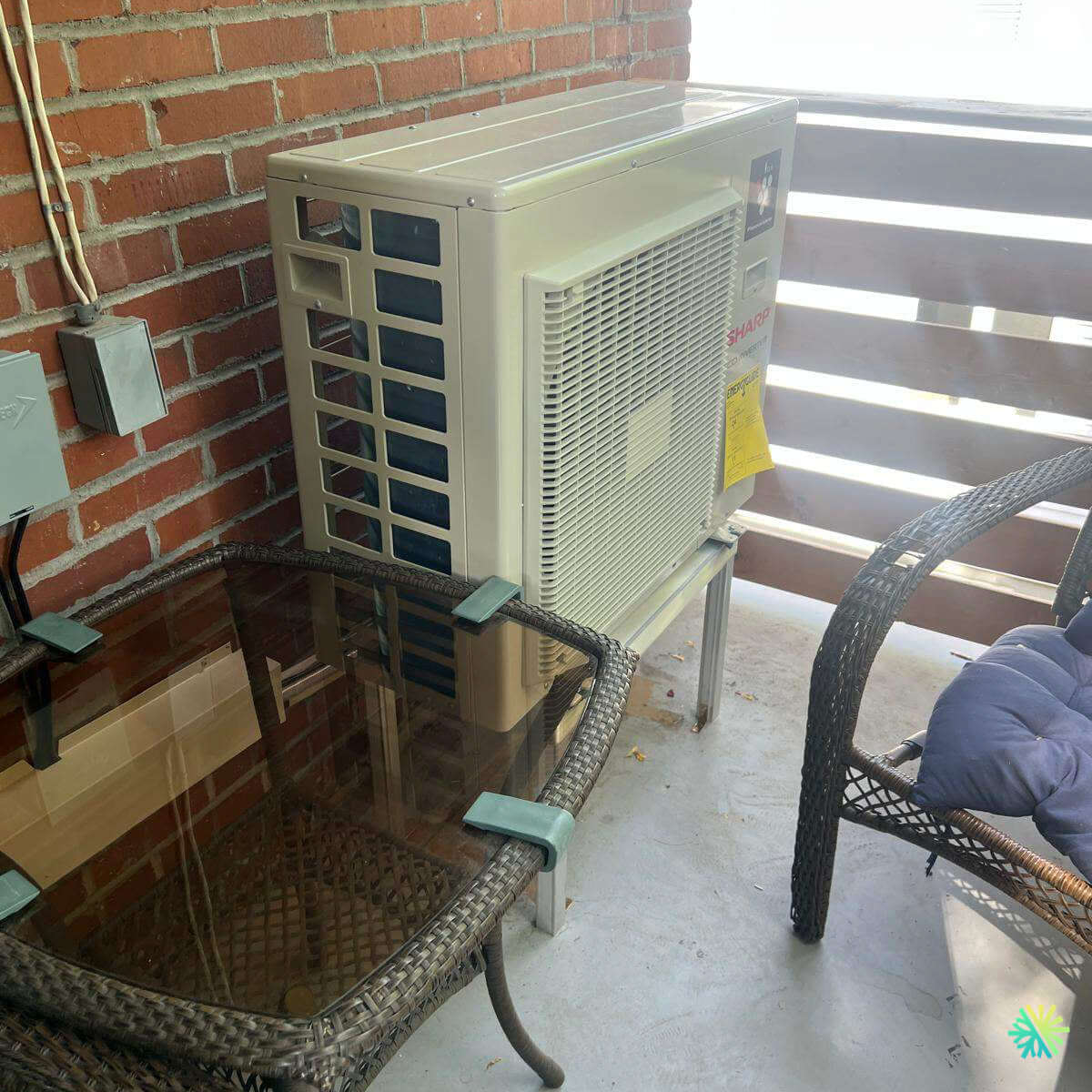

Sharp ZU1 installed on a balcony in Rosemont–La Petite-Patrie : anti-vibration support, optimized airflow, discreet cooling path, and gravity drainage. A carefully designed HVAC installation by AirGreen for four-season comfort.

By AirGreen Climatisation & Chauffage Admin7 min read
City
Region
Equipment
Brand
Challenges
Published
–chapters, to open one by one
7 minto read the whole story
–type of installation
2025year published
At a glance

The job on one screen

Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie
Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie
The unit

The unit’s data sheet

The range as published on airgreen.ca: pick a size to see its capacity in deep cold.

The range, size by size
SizeHeating at −8 °CHeating at −15 °CColdest certified pointCOP at −15 °CSEERHSPFIndicative LogisVert aid
Sharp ZU1 12 00014,50012,000−27 °C: 7,2002.1122.011.0$1,740
Sharp ZU1 15 00018,10015,300−27 °C: 10,1002.124.011.0$2,172
Sharp ZU1 18 00022,00018,000−27 °C: 11,5002.224.011.0$2,640
Sharp ZU1 24 00022,40019,000−27 °C: 12,3002.222.011.0$2,688
14,500Its full nominal heating at −8 °C

According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.

7,200Still 7,200 BTU/h at −27 °C

According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.

17,100A 17,100 BTU/h reserve in mild weather

At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.

Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.

The full story

The article, chapter by chapter

Four-season comfort installed on a Montreal balcony: performance, discretion and impeccable work

At AirGreen , we have just completed the installation of a Sharp ZU1 wall-mounted heat pump in a condominium in the Rosemont–La Petite-Patrie district. The residence has a typical Montreal signature: red brick wall , covered wooden balcony and relaxation area with rattan furniture . Our client's objective: to efficiently cool the living area in the summer , heat stably down to −25 °C in the winter, and preserve the tranquility of the balcony used daily.


Context and needs: a project where every centimeter counts

The balcony, semi-enclosed by horizontal slats, provided natural shelter from rain and snow but imposed air clearance constraints. The electrical outlets and the external disconnect switch were already in place on the brick side, which guided the positioning of the Sharp ZU1 condenser . The space available between the railing and the wall required a raised support to optimize air circulation and condensate management , while freeing up the passage area and limiting vibrations transmitted to the slab.

We therefore recommended:

  • Installation on an anti-vibration base in galvanized aluminum with rubber pads;

  • A front clearance oriented towards the balcony opening to prevent hot air from being recycled against the slats;

  • Side and rear clearance respecting the manufacturer's distances in order to preserve seasonal performance;

  • A wall crossing to the interior head in a direct line, to limit pressure losses and reduce the refrigeration length.


Refrigeration and drainage path: clean, discreet, durable

The refrigeration path connects the living room wall head to the balcony condenser by a brick crossing with an outward slope . We installed:

  • Copper piping insulated with a light-colored UV-resistant sheath for a harmonious visual effect with the brick;

  • Butyl tape and closed-cell foam at critical passages to block air infiltration and thermal bridges;

  • Sealing flap and polyurethane sealant on the outside;

  • Gravity condensate drain , integrated into the bundle and directed outwards, for silent, maintenance-free evacuation .

The total length of the connections is controlled (approximately 3 to 4 meters ), which promotes efficient operation, rapid vacuuming and R-32 refrigerant charging in accordance with the manufacturer's table.


Electrical management and commissioning: safety and compliance

The Sharp ZU1 heat pump is powered by a dedicated circuit from the main panel with a double-pole circuit breaker and calibrated cable . Outside, the proximity disconnect switch installed on the brick wall allows the unit to be isolated for maintenance.
Our commissioning steps include:

  1. Nitrogen leak tests and deep vacuum with micron meter until stabilization;

  2. Checking currents , superheating and subcooling ;

  3. Acoustic step (measurement at 1 m and 3 m) to confirm the low noise level on the balcony;

  4. Setting the comfort mode, sweeping and instructions to limit direct airflow into the relaxation area.


Why the Sharp ZU1: efficiency, silence and R-32 refrigerant

The Sharp ZU1 is one of the new generation of wall-mounted heat pumps that runs on R-32 , a refrigerant with a lower global warming potential than R-410A. It offers:

  • High seasonal efficiency in air conditioning and heating, ideal for Montreal, Laval, Longueuil, the North Shore and the South Shore ;

  • An inverter compressor that finely modulates power to maintain a stable temperature while reducing consumption;

  • Extreme cold operation down to −25°C , consistent with Greater Montreal winters;

  • A contained noise level , crucial for an inhabited balcony ;

  • Compatibility with aid programs when efficiency and installation criteria are met.


Condenser positioning: best practices on balconies

On a Montreal balcony, the rules of the art for a sustainable HVAC installation are clear:

  • Condenser elevation : Here, a rust-proof metal frame with pads absorbs vibrations, facilitates cleaning and protects against stagnant water.

  • Air release : the blown flow is directed towards the balcony opening; we maintain sufficient free space in front of the grille to avoid any recirculation and loss of capacity.

  • Debris Protection : Leaf screening on the upper deck was not required as the space is covered, but we advised the client to perform minimal HVAC maintenance twice a year (spring and fall).

  • Winter management : the balcony naturally protects against snow; we still recommend a visual inspection during storms to keep the facade clear.

  • Acoustics : In addition to buffers, the orientation and absorption of the balcony reduce the propagation of noise to the neighborhood.


Interior integration: comfort without disrupting musical life

Inside, the wall-mounted header is perfectly aligned with the main living room wall. The shutters are adjusted to prevent direct airflow into the piano area and to circulate air evenly between the living room and dining room.
Result: a uniform temperature , better controlled humidity and almost inaudible operation , even during musical rehearsals.


Work progress: fast, clean, structured

The intervention took place over half a day :

  • Protection of sensitive areas (carpets, balcony furniture, glass table) before drilling;

  • Controlled drilling of brick with diamond helicoid and dust control ;

  • Installation of connections , insulation and capping matching the facade;

  • Testing , commissioning and delivery of a clear user guide , including seasonal adjustments .

We systematically schedule a follow-up call after the first week of use to adjust instructions and answer any customer questions.


Recommended maintenance: the key to performance

To maintain the performance of the heat pump :

  • Clean the indoor head filters every 4 to 6 weeks in summer and when the heating is restarted;

  • Dust the outdoor heat exchanger and check that nothing is blocking the air intake ;

  • Annual professional HVAC maintenance with electrical check , pressure control , insulation inspection and gentle fin cleaning ;

  • Recalibration of instructions before the heatwave and before winter to optimize energy savings and comfort .


Subsidies and added value

The Sharp ZU1 R-32 configuration, when sized according to CSA rules and the thermal load of the dwelling , can meet the efficiency criteria required by various assistance programs in effect in Quebec. We support our customers in:

  • Eligibility verification (model, performance, location, eligible work);

  • Preparation of documents (quote, detailed invoice, proof of installation);

  • Best practices for maximizing kWh saved .


What the customer remembers

  • Immediate comfort and silence on the balcony and in the living room;

  • Aesthetic integration : the condenser is discreet, the interior head aligns naturally with the decor;

  • Controlled consumption : fine modulation and maintenance of stable temperature during weather variations;

  • Ease of use : intuitive remote control, Auto/Heat/Cool modes, timer and automatic recovery after failure.


AirGreen, your HVAC partner in Montreal, Laval, Longueuil, North Shore and South Shore

Our team understands the constraints of Montreal plexes , condominiums and single-family homes . We deliver clean, durable and optimized installations , whether it is a wall-mounted heat pump , a central heat pump or interior systems (cassette, ducted, console).
For a similar project in Rosemont–La Petite-Patrie or elsewhere in Greater Montreal, we offer a technical evaluation and rigorous sizing to guarantee the best comfort/economy ratio .

AirGreen — the assurance of a neat, efficient HVAC installation designed for your daily life.

Your numbers

The job tools

Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.

Before / afterThe cost of the same heat

Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):

Before · baseboards11.142¢/kWh
After · heat pump–

Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.

Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.

Size checkYour baseboards, in BTU/h
–BTU/h of installed electric heat

    Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.

    The steps

    How the job unfolds

    The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.

    Step 1 of 9The on-site estimate

    We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.

    1. The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
    2. The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
    3. Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
    4. The wall openingA single opening, with the slope the drain needs to flow outside.
    5. The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
    6. Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
    7. The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
    8. Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
    9. The walkthroughRemote, modes, filters: we show you the essentials before we leave.
    The tour

    What we check on a job like this one

    Each number is a point we check on site. Switch between summer and winter to watch air and heat move.

    Generic diagram: wall-mounted heat pump, indoor and outdoor units

    In summer, the outdoor unit rejects the house's heat outside.

    Generic illustration of this type of installation, not a survey of this job site. Tap a number.

    1. Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.

    2. The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.

    3. Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.

    4. A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.

    5. The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.

    6. On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.

    7. The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

    At your place

    Is your home ready?

    Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.

    0 / 6 checked
    Maintenance

    Good habits, once the unit is in place

    Six simple habits that keep the unit going. Your list stays on this device.

    0 / 6 checked
    Through the seasons

    What to do, season by season

    Three habits per season for this unit. They take a few minutes and prevent many calls.

    • Clean the indoor unit's filters.
    • Clear leaves and debris left on the outdoor unit by winter.
    • Test cooling before the first hot days.
    For your project

    The right pages, at the right time

    True or false

    Four statements: true or false?

    It all comes down to details you have just seen.

    1. In heating mode, the outdoor unit can produce water.

    2. You pick the capacity with a simple square-footage rule.

    3. A multi-zone connects several indoor heads to a single condenser.

    4. The disconnect can sit behind the patio furniture.

    Frequently asked questions

    What people ask us about this kind of work

    12 questions
    Does a wall-mounted heat pump heat in winter?
    Yes, it heats and cools. Its capacity drops in very cold weather; the operating range depends on the model and is listed on its spec sheet.
    Wall-mounted or multi-zone: how do I choose?
    One wall head and one condenser outside: the direct solution for a room or an open area. For two to five rooms, a multi-zone puts one head in each room on a single condenser.
    Where does the outdoor unit go?
    Where it stays above the snow, clear and accessible, away from walkways. We decide it with you during the estimate.
    Are there grants?
    Depending on the model and your situation, assistance programs may apply, including Hydro-Québec's LogisVert. AirGreen checks the model number before quoting an amount. See the grants.
    Do I need a permit?
    Rules vary from city to city: location, distances, noise. See permits and by-laws, and we check for your address.
    How cold can it heat?
    It depends on the model. According to Hydro-Québec, newer models work down to a temperature between −15 °C and −25 °C, and some cold-climate models are certified lower. The minimum temperature is on each unit's spec sheet.
    How much can I save?
    Hydro-Québec says a heat pump can be up to three times more efficient than baseboards for heating in the colder months. The result depends on the house, the climate and how it is used.
    How is the LogisVert assistance calculated?
    For ENERGY STAR cold-climate certified heat pumps, Hydro-Québec lists assistance of $120 per 1,000 BTU/h of heating capacity at −8 °C. AirGreen checks the exact model before quoting an amount; only Hydro-Québec confirms the assistance granted. See the grants.
    Is it noisy?
    The sound level depends on the model and is listed in decibels on each unit's spec sheet. Location matters too: when possible, we avoid putting the outdoor unit under a bedroom window.
    The outdoor unit is covered in ice: is that normal?
    Some frost is: the unit runs defrost cycles. Never hit the ice. If the unit stays iced up or stops heating, call us.
    Does AirGreen hold the required licences?
    Yes. AirGreen holds RBQ licence 5645-9605-01, subclasses 15.8 Ventilation, 15.10 Refrigeration and 16 Electricity.
    Is the estimate free?
    Yes. The on-site estimate is free and the quote follows within 24 hours. Book my free estimate.
