A well-designed wall unit above a passageway to maximize comfort in a Rosemont apartment complex

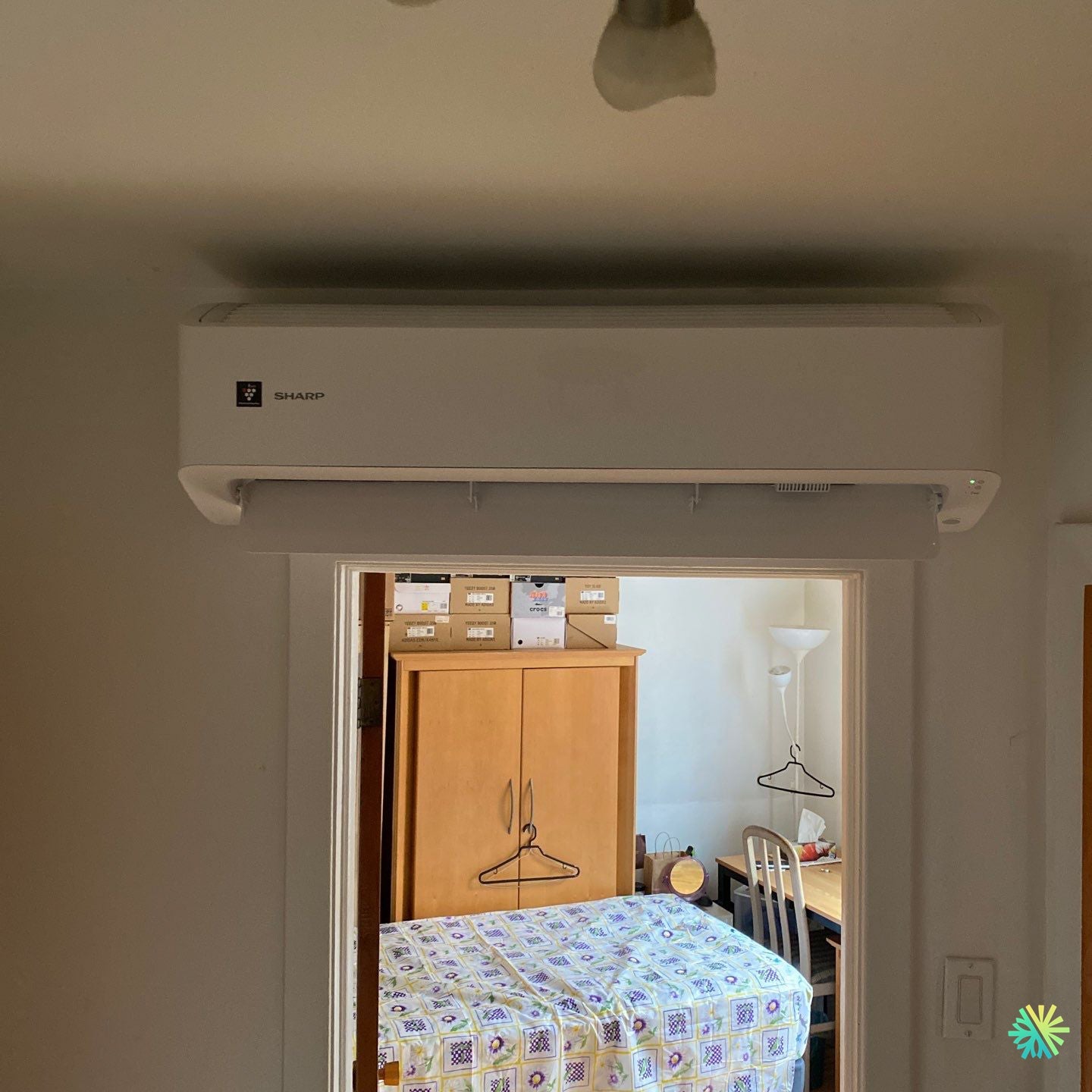

In a typical Montreal plex with adjoining rooms and low ceilings, our team installed a Sharp ZU1 wall-mounted heat pump above a door frame connecting the bedroom to an office area. This placement choice allows two spaces to be covered with a single head, while preserving the available furniture and walls. The client's objective: stable heating in winter , discreet cooling in summer , and controlled consumption in a Rosemont–La Petite-Patrie home.
Project profile and location constraints
The accommodation presents the classic characteristics of Rosemont plexes: aligned doors , renovated lath and plaster load-bearing walls , low ceiling and narrow openings . Mounting a unit just under the ceiling, above a passage , requires:
-
sufficient upper clearance for air suction;
-
air distribution that does not hinder passage or daily circulation;
-
a clean route for the refrigerant connections and the condensate drain to the exterior wall.
We validated the air flow between the bedroom and the office to avoid heat pockets, and chose an installation height ensuring silence , blowing range and access for maintenance .
Why the Sharp ZU1 series for this housing
The Sharp ZU1 ( R-32 refrigerant) is a safe bet for homes in Greater Montreal looking for:
-
heating efficiency up to Quebec cold (low temperature operation);
-
variable speed inverter technology to precisely adapt power;
-
low noise level for nighttime comfort in the bedroom ;
-
energy efficiency and eligibility for grants when performance criteria are met;
-
a sober design that fits in with the renovated interiors of the plexes of Rosemont , Villeray , Le Plateau , etc.
Depending on the area to be served and the actual insulation, the series covers typical capacities of 12,000 to 24,000 BTU ; here, we have sized the equipment to cool the bedroom-office area and support supplementary heating during peak periods.
Technical details of the HVAC installation
Implantation of the inner head
-
Place centered above the doorframe to distribute air to the two adjoining rooms.
-
Millimeter-precise shimming of the support to respect the slight fruit of the ceiling and maintain a superior clearance guaranteeing good air intake.
-
Check the lintel (header) above the door to choose a safe drilling point without weakening the structure.
Refrigerant path and drain
-
Single opening in the side of the wall to quickly reach the exterior facade.
-
Insulated copper connections routed in a discreet white capping , connected outside the passage area.
-
Gravity drain with controlled slope; when the configuration requires it, we integrate a silent and accessible mini-condensate pump for maintenance. Here, the natural slope was sufficient, avoiding an additional accessory.
Outdoor unit and winter protection
-
Condenser placed on galvanized brackets on the rear facade, at a height clear of snow accumulations .
-
Added anti-vibration damping to protect the masonry and reduce noise transmission to neighbors.
-
Snow shield (deflector) provided as needed when orientation and prevailing winds require it.
Power supply and compliance
-
Dedicated circuit from the panel, with suitable circuit breaker and compliant cable section .
-
Outdoor proximity circuit breaker for maintenance.
-
Work carried out in accordance with the requirements of the RBQ and CSA standards, with verified grounding .
This choice of placement above a door: advantages and points of attention
Strengths:
-
Two-piece cross cover to optimize a single blowout tip .
-
Mechanical protection (less risk of shocks) and refined aesthetics.
-
Save space on walls occupied by furniture.
Points of attention mastered by our team:
-
Maintain a minimum of 10–12 cm above the unit for air intake.
-
Avoidance of immediate obstacles (frame, light fixture, rod) which disrupt the air jet.
-
Check the slope of the drain and the vapor barrier around the drilling to prevent condensation and cold air infiltration.
Results obtained at the client's premises
Upon commissioning:
-
Uniform temperature between the bedroom and the office thanks to the automatic oscillation of the shutter.
-
Very quiet noise in night mode, perfect for sleeping.
-
Smooth, gradual starts with reduced consumption based on actual needs.
In summer, the wall-mounted air conditioner ensures rapid cooling after periods of sunshine; in winter, the heat pump limits the use of baseboards, significantly reducing the electricity bill .
HVAC Maintenance: Our Recommended Routine
-
Filters : Gentle vacuuming every 4–6 weeks during use, washing in warm water.
-
Evaporator : periodic professional cleaning (bio-cleaner, controlled rinsing) to maintain heat exchange.
-
Condenser : 30–45 cm clearance around the unit, snow removal; inspection of silent blocks in spring.
-
Drain : annual purge and slope check; if condensate pump, float test.
-
Remote control/thermostat : calibration of setpoints (day/night differences) to avoid short cycles.
This HVAC maintenance discipline extends the life of the ZU1 and maintains its efficiency .
Grants and eligibilities (Montreal, Laval, Longueuil, North Shore, South Shore)
High-performance R-32 wall-mounted heat pumps like the ZU1 may be eligible for financial assistance programs when the cooling and efficiency criteria are met. We support each file: performance certificate , installation photos , serial numbers and proof of electrical compliance . This assistance streamlines the process for customers in Montreal , Laval , Longueuil , North Shore and South Shore .
Sizing tips for row houses
In Rosemont plexes, the question is not only the number of BTUs , but the air dynamics :
-
Identify the traffic axis (aligned doors, corridors).
-
Position the head so that it blows towards the warmest space and sucks from the most stable area.
-
Limit obstacles (thick curtains, tall bookcases) in the blowing cone.
-
Provide a discreet supplement in very closed rooms (e.g. small closed room without return air).
-
Anticipate nighttime noise : choose units like the Sharp ZU1 , whose ultra-quiet mode meets bedroom needs.
What we consistently deliver
-
On-site study and electrical validation .
-
Plan for drilling and routing the shortest and most aesthetic connections.
-
Nitrogen pressurization , deep vacuum , weighing of the refrigerant according to actual lengths.
-
Photo file/numbers for warranty and grants .
-
User training : seasonal adjustments, routine maintenance, energy saving benchmarks.
Why AirGreen for your installation in Rosemont–La Petite-Patrie
We know Montreal's buildings : varied load-bearing walls, brick facades , narrow passages, sometimes complex exterior access. This knowledge translates into clean , durable and easy-to-maintain installations. Whether in Rosemont–La Petite-Patrie , Villeray , Ville-Marie or on the North Shore/South Shore , we bring the same level of rigor: precise sizing , rigorous execution and administrative support until the eligible financial assistance is obtained.
Fast fair: good usage practices
-
When heating, set a stable temperature (e.g. 21–22°C) and avoid sudden variations.
-
In air conditioning, aim for 23–24°C and use automatic ventilation to keep noise levels low.
-
In case of prolonged absence, activate eco mode rather than a complete shutdown in winter, in order to limit excessive dehumidification and cold restarts.
-
Keep the area clear in front of the head for 1.5 to 2 m for unrestricted blowing.
Balance sheet
This Sharp ZU1 wall-mounted heat pump HVAC installation above a passageway in the heart of Rosemont–La Petite-Patrie illustrates an ingenious and understated approach adapted to Montreal interiors. The result: four-season comfort , silence , energy savings , and a visual integration that respects the space. For apartments and plexes in Greater Montreal , it's a coherent choice that enhances space and simplifies maintenance while opening the door to available subsidies depending on the configuration and performance chosen.
