A pedestal condenser, designed for Montreal winters and durability on a brick facade
Client background and objectives
At AirGreen , we are working on a brick bungalow in Saint-Léonard . The owner wanted to modernize his comfort without compromising the aesthetics of the side yard or the basement access. We offer a Sharp wall-mounted heat pump (ZU1 series, R-32 refrigerant) , a coherent choice for the extreme cold of Greater Montreal, acoustic sobriety and reliability in continuous operation.
What we installed
Type, brand and range
-
Machine type: wall-mounted heat pump (mini-split) , one zone.
-
Brand: Sharp .
-
Range: ZU1 ( R-32 , Eco Inverter , Plasmacluster filtration throughout).
-
Target capacity: 12,000 to 18,000 BTU , sized based on a load calculation (insulation, glazing, infiltration, use of rooms).
-
Setting objective: maintain an intermediate speed most of the time to favor seasonal efficiency and noise discretion .
The ZU1 series operates on R-32 , a refrigerant with a lower GWP than R-410A and better suited to inverter modulation . Versions suitable for extreme cold maintain good usable power at temperatures of −25°C to −30°C depending on capacity.
Installation details visible on the facade

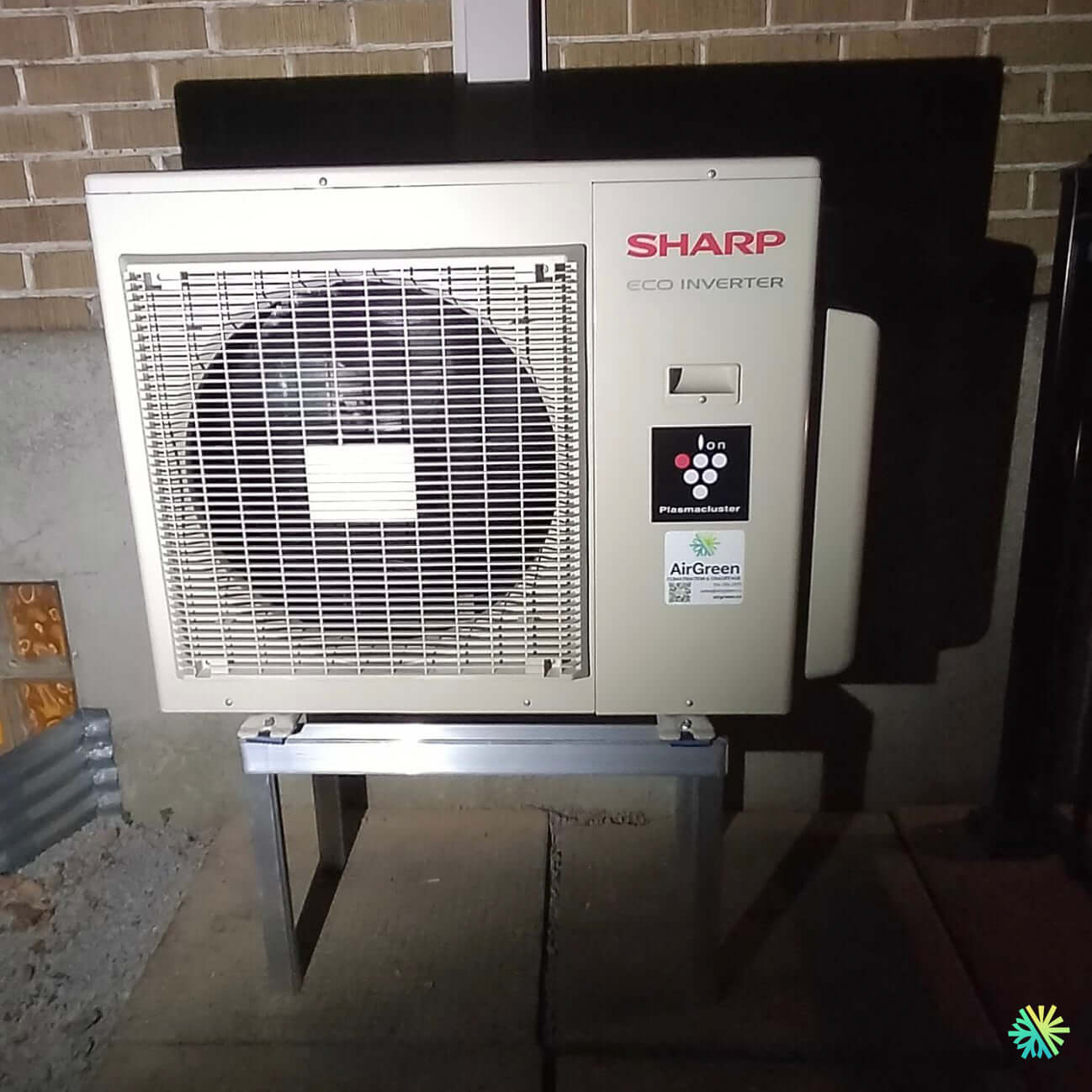

Outdoor unit on galvanized pedestal
We place the condenser on a galvanized steel pedestal anchored to a slab:
-
Outside the snow and splash zone, which makes defrosting safer in winter and prevents ice from building up under the machine.
-
Vibration absorption via anti-vibration pads under the pads.
-
Rigidity and controlled leveling , an asset for the longevity of the compressor .
Refrigeration and aesthetic path
Behind the unit, a black vertical capping rises neatly towards the crossing:
-
Short, straight route , limiting load losses and facilitating maintenance.
-
Insulated connections in closed cell, UV protected under the capping.
-
Wall crossing made with sheath , caulking and vapor barrier on the interior side to preserve the watertightness .
Electricity and safety
-
Waterproof disconnect switch (NEMA 3R) near the unit, accessible for maintenance.
-
Dedicated 240V circuit , rating and circuit breaker comply with the Canadian Electrical Code .
-
Grounding and mechanical shielding when the route runs along passage areas.
Condensate and thawing management
In heating mode, the defrost cycle discharges water. We plan for free flow to a permeable area, away from the aisles to avoid ice patches . Rear and side clearance is respected to eliminate any air recycling .
Site lengths and constraints
-
Estimated refrigeration linearity : 6 to 9 m (exit behind the interior head + vertical rise).
-
Working height : low to medium; clear access thanks to the pedestal installation.
-
Proximity to the air vent : we keep a safe distance so as not to hinder the ventilation of the basement and avoid backflows .
Inside: precise comfort and healthier air
Diffusion and dehumidification
The Sharp wall-mounted fan distributes a laminar flow that sweeps the room . In summer, the Dry mode lowers the relative humidity , which reduces the required setpoint and improves the feeling of freshness . In winter, the inverter modulation stabilizes the temperature smoothly.
Plasmacluster Filtration
Sharp's Plasmacluster technology ionizes the air and reduces certain suspended particles . Combined with regular filter maintenance , it improves indoor air quality in living spaces.
Why this configuration works so well in Saint-Léonard
1) Brick facade + pedestal = winning duo
Brick bungalows in Saint-Léonard often feature a low concrete footing and a level ground . The pedestal places the unit at a good height , limits stress in the masonry and reduces structure-borne noise . Free ventilation around the condenser facilitates thaw cycles .
2) Short route = yield
A short path length means fewer losses and less resonance in the connections. Here, the straight vertical capping and large radius bends optimize the dynamic load of the R-32.
3) Montreal winter anticipated
Respecting clearances and orientation in relation to the prevailing winds prevents the intake of cold air and persistent frost . The discharge of thawing water is guided so as not to create ice near the steps.
AirGreen commissioning and settings
-
Leak test (nitrogen + deep vacuum).
-
Refrigerant charge adjusted according to actual length .
-
Intensive control of intensities, pressures, superheating/subcooling.
-
User settings : fan curve, shutter angle , eco timer, auto restart after power off.
-
Occupant training : good winter/summer usage practices, reminder on defrosting (short stop, normal noise), and anti-icing instructions on the ground.
HVAC maintenance: simple and essential
-
Internal filters : rinse every 4 to 8 weeks during the season.
-
External battery : gentle rinse in spring (never high pressure).
-
Annual AirGreen inspection : electrical tightening, drain test, refrigerant check, support and capping check, evaporator/condenser cleaning.
Regular maintenance preserves performance , extends lifespan and prevents peak breakdowns .
Grants and Eligibility
High-efficiency R-32 wall-mounted heat pumps may be eligible for assistance programs in Quebec, depending on their capacity and cooling performance . We verify the eligibility of the head/condenser pair and prepare the required documents . The goal is to maximize assistance while respecting the ideal sizing for the home.
Quick comparison: why Sharp (ZU1 series)
-
Fine modulation and appreciable silence in residential areas.
-
Integrated Plasmacluster filtration for improved air quality .
-
R-32 = better seasonal efficiency and reduced GWP .
-
Robust condenser design with front grille and easy-access shroud for maintenance.
AirGreen Expert Advice for Your Project
-
Anticipate traffic flow : position the unit to clear aisles, bins and the air vent; consider snow removal operations .
-
Protect the slab : the pedestal prevents permanent freezing on the base and insulates the unit from splashes .
-
Maintain aesthetics : a well-aligned, neutral-colored vertical capping blends naturally with the brick.
-
Listen to the house : load calculation, orientation, glazing; each bungalow dictates a precise dimension .
-
Schedule maintenance : an annual check-up costs less than a breakdown in the middle of January .
Measured results
After commissioning, we note:
-
Stable temperature and silence in continuous operation.
-
Effective dehumidification in summer, comfort felt at higher setpoint.
-
Clean integration : tidy facade, optimal maintenance access, and secure thaw drainage away from passageways.
Conclusion
This Sharp ZU1 installed in Saint-Léonard illustrates our approach: pedestal support , short refrigeration path , discreet capping , sealed disconnect , and fine adjustments for four-season comfort . At AirGreen , each HVAC installation is designed to last and perform in the Montreal climate — in Montreal , Laval , Longueuil , on the North Shore and on the South Shore .
