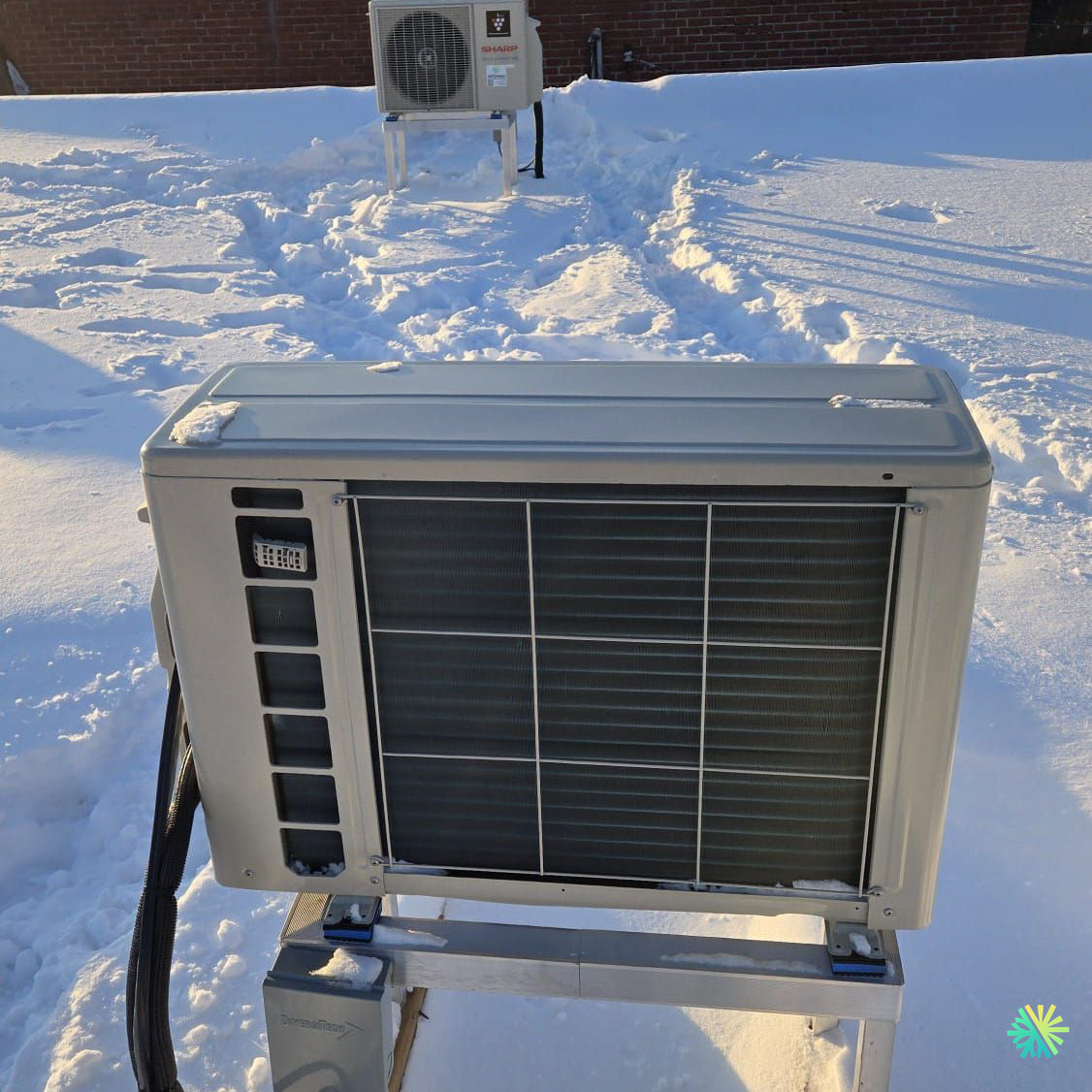

Installation of a Sharp ZU1 wall-mounted heat pump on a flat roof in Rosemont–La Petite-Patrie
AirGreen installation of Sharp ZU1 R-32 wall-mounted heat pumps in Rosemont–La Petite-Patrie: units raised on the roof, optimized clearances and simplified maintenance for four-season comfort in Montreal and the surrounding area.
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen

The unit’s data sheet
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The article, chapter by chapter
Two raised units, designed for Montreal's extreme cold: performance, silence and maintenance access
At AirGreen , we design every HVAC installation to withstand Montreal winters without compromise. This project in Rosemont–La Petite-Patrie illustrates our approach: two Sharp wall-mounted heat pump units (ZU1 series, R-32 refrigerant) , installed on a flat roof , carefully raised above the snow level and cleared to ensure optimal airflow even in extreme cold.
Building context and objectives
The brick building houses several apartments. The occupants wanted an energy-efficient and reliable heating solution down to sustained sub-zero temperatures, without transmission of vibrations inside and with safe maintenance access to the roof. We selected the Sharp ZU1 , an R-32 (A2L) wall-mounted heat pump , renowned for its stable operation in cold weather and excellent seasonal efficiency.
Key objectives:
-
Reliable low-temperature heating and quiet summer air conditioning .
-
Clean, durable roof integration that complies with clearances.
-
Easy HVAC maintenance , with accessible components and clean pathways.
Details of the roof installation
Support and clearances
-
Each condenser rests on a galvanized steel trestle fixed to Unistrut rails with anti-vibration pads .
-
Significant clearance under the frames: the base of the units remains well above the visible accumulation of snow , limiting the risk of blockage of the exchangers and facilitating defrosting.
-
Rear and side clearance respected for optimal airflow: no immediate obstruction around the grilles.
Refrigerant and electrical paths
-
The refrigeration lines are continuously insulated and UV-sheathed (visible black sheath) to protect the insulation from sun, ice and friction.
-
Power and communication cables follow the same protected path, with controlled bend radii to preserve conduit integrity.
-
Service/disconnect boxes located within technical reach (near roof access), reducing intervention time.
Condensate management in heating mode
-
The height under the units and the release from below allow the natural flow of defrost water, avoiding the formation of ice stalagmites in contact with the frame.
-
Drip trays remain clear; seasonal maintenance checks the condition of the drains.
Device and expected performance
-
Brand / range: Sharp ZU1 (R-32)
-
Type: wall-mounted heat pump (mini-split)
-
Use: main supplementary heating in cold weather, efficient air conditioning in summer
-
Key features: inverter technology, high-efficiency compressor, optimized defrost function , low noise levels, high efficiency even in negative temperatures common in Montreal.
-
Energy efficient: R-32 refrigerant, reduced charge and better GWP than older generations, eligible for grant programs when combined with cooling performance criteria.
Winter constraints and solutions implemented
Snow, wind, ice:
-
Significant elevation of the units to maintain free air intake .
-
Orientation designed to avoid recirculation of hot air in defrost mode.
-
Galvanized fasteners and stainless hardware: increased corrosion resistance.
Vibrations and noise:
-
Anti-vibration pads and rigid frame ensure minimal transmission to roof elements.
-
Alignment of the fans and tightening of the fasteners to the correct torque to limit any parasitic noise.
Waterproofing and building envelope:
-
The crossings towards the technical columns are flashed and the vapor barrier restored to preserve the envelope.
-
Slopes and elevations respected so as not to create water retention islands under the supports.
Result: four-season comfort and simplified maintenance
This two-unit rooftop configuration ticks all the boxes:
-
Uniform comfort for separate accommodations, each supervised by its own interior head.
-
Controlled aesthetics : no influence on the facades or balconies.
-
Quick maintenance : direct access to service valves , electronics and filtration without moving the devices.
-
Durability : materials suitable for freeze/thaw cycles, protected parts and long-lasting UV insulation .
AirGreen Best Practices for Rooftop Heat Pumps (Montreal, Laval, Longueuil, North Shore, South Shore)
-
Minimum height : Aim for 30–45 cm of free air below the units for effective defrosting.
-
Short and compact paths : reduce refrigerant pressure losses and facilitate leak detection.
-
UV/frost protection of insulation: sheath and attach at regular intervals.
-
Standard clearances : respect the manufacturer's distances around the grilles.
-
Electrical : dedicated circuit breaker, accessible disconnection , cables secured and protected.
-
HVAC maintenance : cleaning of batteries, checking of pressure switches , checking of refrigerant charge and tightness each season.
What the occupants earn
-
Energy savings thanks to the inverter and R-32 .
-
Quiet and stable in winter heating mode.
-
Flexibility of use: each accommodation controls its own zone, precise and rapid temperature.
-
Increased real estate value through a clean , documented and compliant installation.
Our commitment
Throughout Greater Montreal — Montreal , Laval , Longueuil , North Shore , South Shore — we deliver rigorous installations, designed to last and optimized for the Quebec climate . This project in Rosemont–La Petite-Patrie is a demonstration: two Sharp wall-mounted heat pumps (ZU1, R-32) , raised on a flat roof, ready to provide four-season comfort with easy maintenance.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
