A rooftop installation that required precision, stability, and adaptation to the building
In Montreal-North, our AirGreen team installed a MIDEA EVOX G3 2-ton central heat pump, in a typical urban building context where outdoor space is limited and every installation detail counts. Here, the outdoor unit was installed on a flat roof, securely positioned on a raised structure with wooden crossbeams, metal supports, and protective bases to adequately distribute the load without compromising the membrane's waterproofing.
This configuration is particularly important for central heat pump installations in dense residential areas, especially in Montreal, where access, clearances, drainage management, vibrations, and integration with existing ducts must be carefully planned. Unlike a ground-level installation, a rooftop installation requires greater attention to mechanical stability, surface protection, the trajectory of refrigerant lines, and secure connection to the interior of the building.
A MIDEA EVOX G3 2-ton chosen for efficient heating and central air conditioning
The MIDEA EVOX G3 is a highly relevant solution for homeowners who want to modernize their central system without necessarily transforming the entire building's HVAC infrastructure. In this project in Montreal-North, the choice of a 2-ton capacity met the dwelling's comfort needs while maintaining a balanced approach: enough power to ensure efficient air conditioning in summer, but without unnecessary oversizing that could reduce comfort, increase short cycling, and negatively affect overall performance.
The MIDEA EVOX G3 central heat pump is renowned for its cold-weather performance, variable-speed technology, and ability to provide reliable heating even during typical cold periods in the greater Montreal area. It is a very attractive option for homeowners comparing different central heating, central air conditioning, and replacement solutions for older, less efficient systems.
Visible specifics of this installation

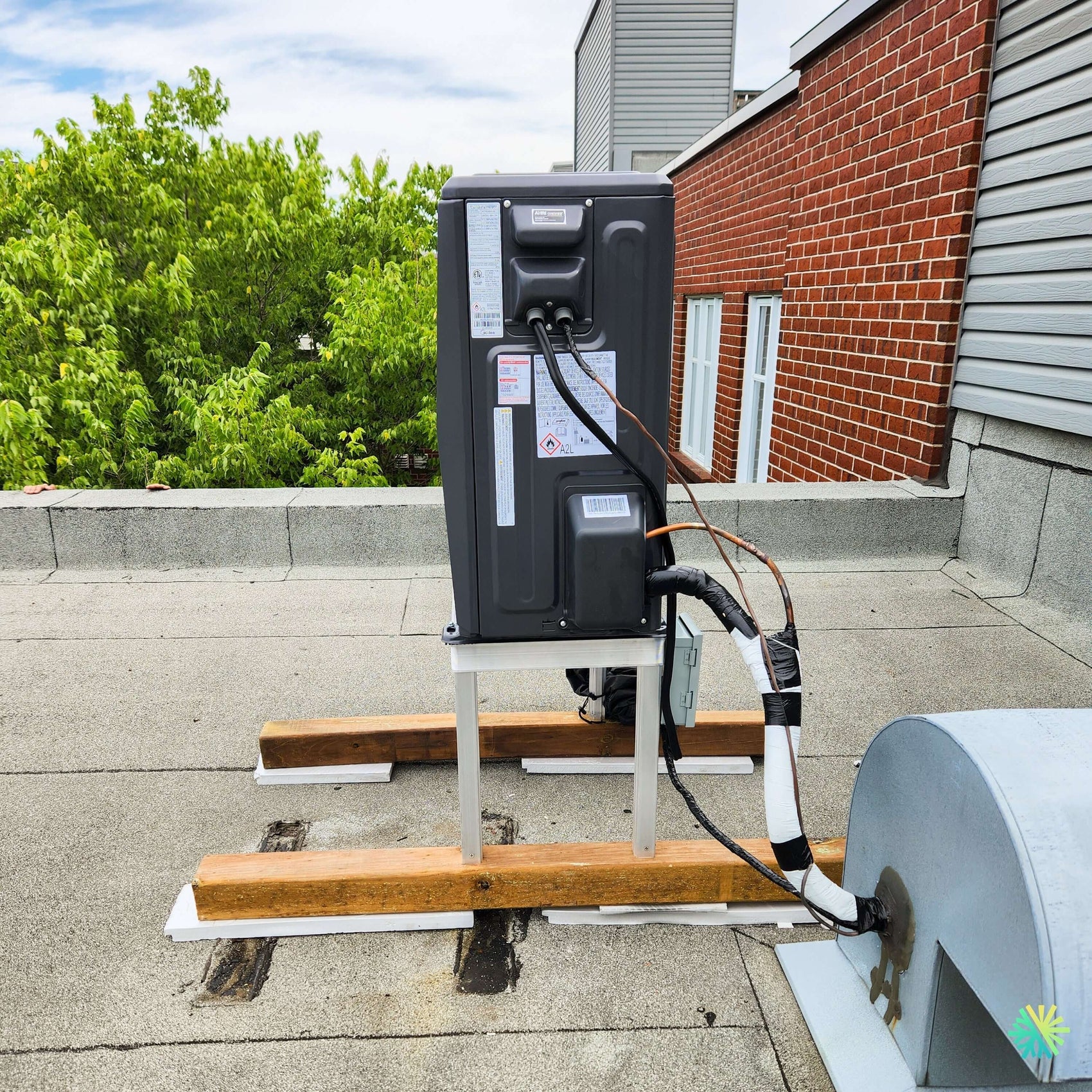

In the photo of this installation, several technical elements deserve to be highlighted. The outdoor unit is positioned on an independent base, composed of wooden crossbeams installed on white protective supports. This approach limits direct contact with the roof membrane and better distributes the equipment's weight.
Also noteworthy:
- vertical metal supports that elevate the unit;
- sufficient clearance around the unit for air circulation;
- refrigerant lines carefully directed towards the roof outlet;
- insulating protection around the pipes;
- electrical connection installed nearby;
- special attention to managing the transition between the roof and the building.
In an HVAC installation of this type, it's not enough to just place the equipment and plug it in. The quality of the result depends on all the details: the unit's orientation, vibration prevention, pipe protection, support solidity, electrical safety, and future accessibility for HVAC maintenance.
Why rooftop installation requires particular expertise
In Montreal-North, as in many areas of Montreal, properties can have significant space constraints. Yards are sometimes small, alleys difficult to access, and adding an outdoor unit at ground level is not always the best option. The roof then becomes a logical solution, but it requires rigorous planning.
Our technicians must check, among other things:
- the stability of the chosen location;
- the protection of the roof membrane;
- the distance between the outdoor unit and the indoor equipment;
- the trajectory of the refrigerant lines;
- the possibility of accessing the unit for future maintenance;
- the necessary clearances to ensure good performance;
- the reduction of vibrations transmitted to the building.
In this specific case, installation on a raised structure keeps the unit well clear of the roof surface. This also helps protect the appliance against water accumulation, light snow, debris, and the impacts of freeze-thaw cycles. For a central heat pump installed in Quebec, this type of detail directly influences the equipment's durability.
Careful integration with existing central ducts
One of the advantages of a 2-ton central heat pump is its ability to power an existing duct network, when compatible. Before installation, our team always evaluates the general system configuration: ducts, plenum, return air, electrical supply, available mechanical space, and compatibility with the indoor unit.
Poor evaluation can lead to several problems: insufficient airflow, excessive noise, reduced performance, discomfort between rooms, or premature equipment wear. At AirGreen, we place great importance on this step, because a high-performing machine can only achieve its full potential if the installation is well adapted to the building.
In this project in Montreal-North, the objective was clear: to offer a modern, efficient, and stable central system, while respecting the building's physical constraints. The rooftop work therefore had to be coordinated with the interior integration to ensure uniform performance in both heating and air conditioning.
Mistakes to avoid when installing a central heat pump on a roof
A rooftop installation may seem simple at first glance, but several mistakes can be costly in the long run. Among the most frequent, we observe:
- placing the unit directly on the membrane without adequate protection;
- neglecting the clearance height under the unit;
- installing pipes without sufficient protection against the elements;
- placing the unit in a hard-to-access location for maintenance;
- poor vibration management;
- underestimating the importance of drainage around the unit;
- choosing an unsuitable capacity for the building.
These errors can reduce the equipment's lifespan and complicate future interventions. A well-executed HVAC installation must plan not only for immediate operation but also for maintenance, safety, and reliability over several years.
A solution adapted to the realities of Montreal, Laval, Longueuil, the North Shore, and the South Shore
We regularly carry out similar installations in Montreal, Laval, Longueuil, on the North Shore, and the South Shore. Each sector has its specificities: semi-detached houses, Montreal plexes, condos, buildings with restricted access, flat roofs, narrow yards, or aging central systems.
The MIDEA EVOX G3 integrates well into many of these contexts, particularly when the client is looking for an efficient central solution, eligible for certain subsidies depending on current programs, and capable of improving the property's overall comfort.
For homeowners, the most important thing is not to choose based solely on price or brand. The final result depends on three elements: correct sizing, installation quality, and compatibility with the building. It is precisely on these three points that our team focuses its work.
Comfort obtained after installation
Once the installation is complete, checks are essential. We control the connections, start-up, unit behavior, communication between components, system pressure, airflow, and thermostat response. This step confirms that the MIDEA EVOX G3 2-ton central heat pump is operating as expected and that the client can enjoy stable comfort.
The desired outcome is simple: a more uniform temperature, efficient central air conditioning during warm periods, powerful heating when temperatures drop, and reduced dependence on more energy-intensive systems. In an area like Montreal-North, where many buildings were constructed before current energy efficiency standards, this modernization can transform the daily experience of occupants.
The importance of regular HVAC maintenance
After installation, HVAC maintenance remains a key element. A central heat pump installed on a roof is exposed to wind, snow, temperature variations, leaves, dust, and debris. Periodic maintenance allows for checking the unit's general condition, coils, connections, pipe insulation, drainage, and overall performance.
We recommend that homeowners schedule regular inspections, especially before seasons of heavy use. A well-maintained system consumes less, operates better, and limits the risk of breakdowns when comfort becomes essential.
