In an area like Rosemont–La Petite-Patrie , houses and duplexes often have stone foundations, compact mechanical spaces, and existing ductwork that is sometimes decades old. This installation perfectly reflects the context: a Midea central system seamlessly integrated into an existing ventilation network, with particular attention paid to airtightness, condensate drainage, and accessibility for maintenance.
At AirGreen , our goal remains the same: to deliver stable, quiet and efficient comfort in air conditioning in the summer and heating in the winter , while adapting the installation to the very Montreal realities of buildings.
A central system, designed for a typical Montreal house

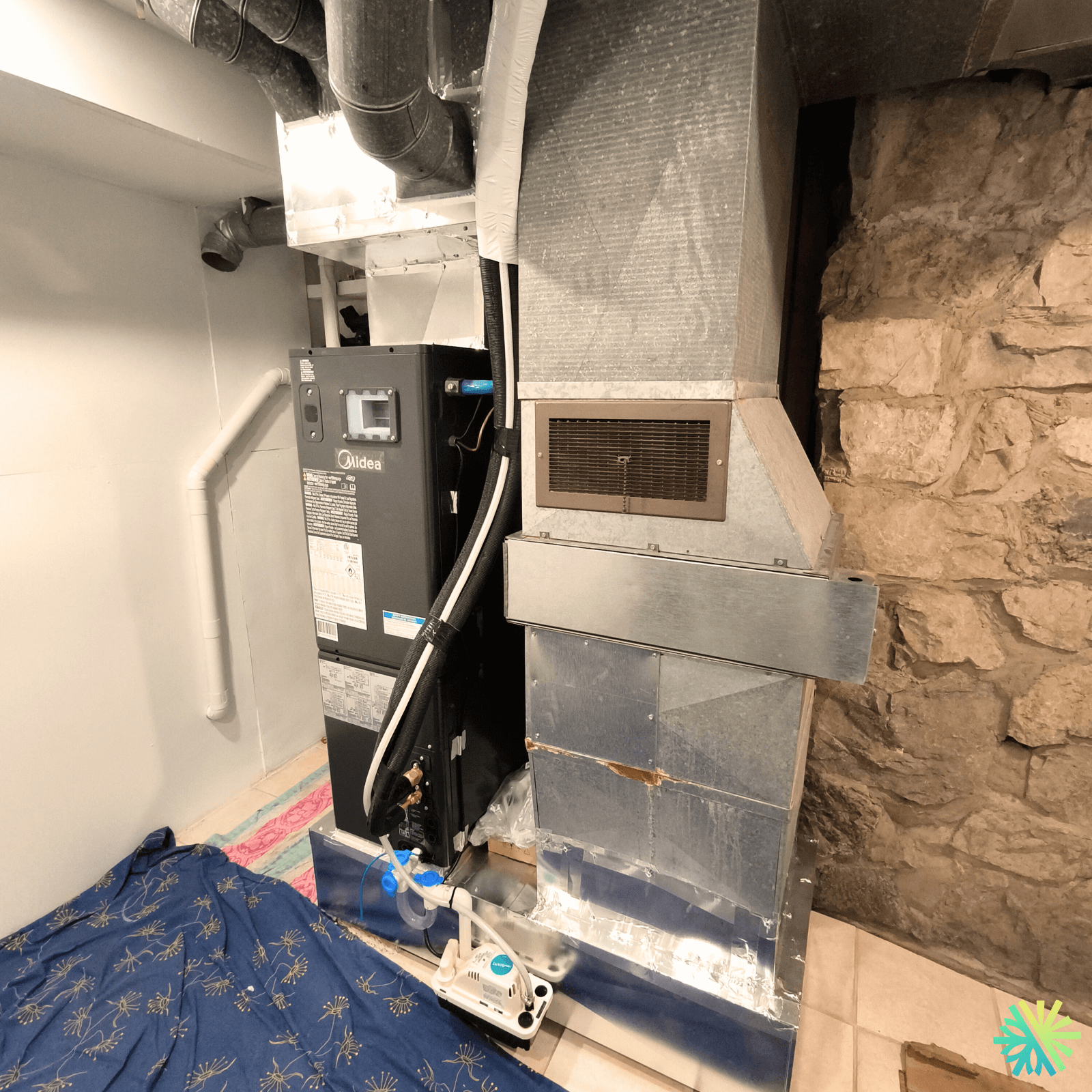

The photo clearly shows a central configuration: we are looking at an air handling unit/ducted indoor unit connected to a plenum and metal ducts (distributing air to several rooms), and not a wall-mounted mini-split unit. This is a perfect solution when:
-
the property already has a functional network of conduits;
-
we want to standardize the temperature throughout the house;
-
We want a discreet look (no visible wall units in the rooms);
-
We aim for serious energy efficiency without compromising on comfort.
The Midea EVOX G3 range is particularly consistent here: it integrates well into residential installations, and allows for excellent overall performance in air conditioning and heating mode, with precise control and stable operation.
What the installation reveals (and why it matters)
Even without being there in person, several visual details speak for themselves. In this type of cramped mechanical room, every installation choice has a direct impact on reliability and performance.
1) Integration with existing conduits: the “real” challenge in central offices
We can see a transition fitting between the indoor unit and the main duct. This point is crucial: a poor transition can create turbulence, increase noise, and reduce airflow.
At AirGreen, the goal is:
-
clean and rigid transitions (not cobbled together);
-
sealed joints (reduced air loss);
-
a configuration that facilitates maintenance (access to panels, filters, etc.).
2) Insulation and loss control
The ducts and sections near the unit are protected, and isolated portions are visible. In a Montreal home, especially in the basement, duct insulation helps to:
-
reduce energy losses;
-
limit condensation on the sheet metal in summer;
-
stabilize the blown air (better comfort in distant rooms).
3) Condensate management: a detail that avoids many problems
A floor-mounted condensate pump with drainage piping is visible. In a centralized system, this is an often underestimated but essential component:
-
In air conditioning, the humidity removed from the air becomes water.
-
If the drainage is not reliable, there is a risk of: overflows, damage, odors, or even system shutdown (safety).
Here, the pump allows controlled flow even if the natural slope of the drain is not ideal—very common in Rosemont basements.
4) Refrigeration connections: stability, durability, efficiency
The insulated (suction) lines are clearly visible, neatly grouped and secured. Proper insulation prevents:
-
capacity losses;
-
Undesirable condensation;
-
premature fatigue of materials.
It's not just "to make it look neat": it's a direct element of performance.
5) Installation in a confined space: the signature of old buildings
The stone foundation wall, the small volume, the pipes already in place… Everything indicates a construction site where precision is required:
-
limited traffic around the unit;
-
access constraints for future maintenance;
-
adaptation to the building (without compromising on safety).
This is exactly the kind of context where installation expertise makes all the difference between a “simply installed” system and a “properly installed” system.
Why choose a Midea central heat pump in Rosemont?
Rosemont–La Petite-Patrie combines hot, humid summers with harsh winters. A well-sized and well-integrated central system allows for:
-
Uniform air conditioning throughout the entire floor and sometimes across multiple levels;
-
Comfortable heating without sudden variations;
-
Centralized filtration , very useful for dust, pollen, and dry air in winter;
-
A discreet and aesthetic solution (the grilles remain, the equipment is in the mechanical room).
And most importantly: a central system, when properly adjusted, reduces the “too hot / too cold” zones that many families tolerate for years… until they decide to correct the problem for good.
Key steps to a successful installation (the AirGreen method)
Analysis and dimensioning
Before even setting the unit, we validate:
-
the surface to be covered;
-
the condition of the conduit network;
-
the distribution (balancing, air returns, restrictions);
-
specific needs (cooling even at night, upstairs bedrooms, etc.).
Mechanical integration
Next, we ensure:
-
watertight fittings;
-
stable support;
-
access to service panels;
-
vibration reduction (important for sound comfort).
Drainage and safety
We are securing water management:
-
reliable condensate pump;
-
evacuation test;
-
clean pipe routing;
-
odor and backflow prevention.
Commissioning
Finally, we validate the actual operation:
-
blowing temperatures;
-
stability in air conditioning and heating mode;
-
normal cycles;
-
noise and vibrations;
-
instructions and control.
Maintenance tips to maintain performance year after year
A high-performing central system also depends on its maintenance. For a client in Montreal, we recommend:
-
Filter : check regularly (and replace as needed). A dirty filter reduces airflow, increases noise, and puts strain on the system.
-
Drainage : ensure that the drain/pump remains clean (prevents odors and overflows).
-
Preventive cleaning : keep the unit and area clear, and schedule periodic professional maintenance.
-
Balancing : if some rooms become less comfortable, this is not “normal”: often, a simple adjustment of the network solves the problem.
Conclusion: a clean, reliable central installation perfectly suited to Rosemont
This installation perfectly illustrates what we at AirGreen are looking for: intelligent integration into a Montreal building, with attention to detail that avoids classic problems (condensation, noise, air leaks, uncertain drainage).
A properly installed Midea EVOX G3 central heat pump is a highly efficient solution for achieving discreet, stable and durable four-season comfort—exactly what more and more homeowners in Rosemont–La Petite-Patrie are looking for.
