A Discreet and High-Performing HVAC Installation in a Tight Westmount Residential Environment
In Westmount, every HVAC installation project requires special attention. Homes there are often built with brick walls, limited exterior access, narrow side spaces, and architecture that must be precisely respected. For this installation, our AirGreen team implemented a MIDEA MIDEA28 dual-zone heat pump, consisting of two indoor wall-mounted units connected to a single outdoor unit.
The choice of the MIDEA28 system was particularly relevant for this residence: it allowed for air conditioning and heating two distinct areas of the house while avoiding the installation of two separate outdoor units. In an area like Westmount, where aesthetics, noise levels, and space optimization are essential, this approach represents an efficient, clean, and sustainable solution.
Why a Dual-Zone Heat Pump Was the Right Choice
The client wanted to improve the comfort of two main rooms without altering the exterior appearance of the property. A dual-zone heat pump precisely meets this need: each room receives its own wall-mounted unit, with independent temperature control, while a single outdoor unit manages the entire system.
This configuration offers several concrete advantages:
- Two independent comfort zones in the house
- A single outdoor unit, more discreet and easier to integrate
- Better energy consumption management
- Reduced outdoor clutter
- A suitable solution for homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore
In this specific case, the MIDEA28 system was chosen for its reliability, good heating performance, and its ability to offer a flexible solution for a property with limited available outdoor space.
An Outdoor Unit Installed Between Two Masonry Walls

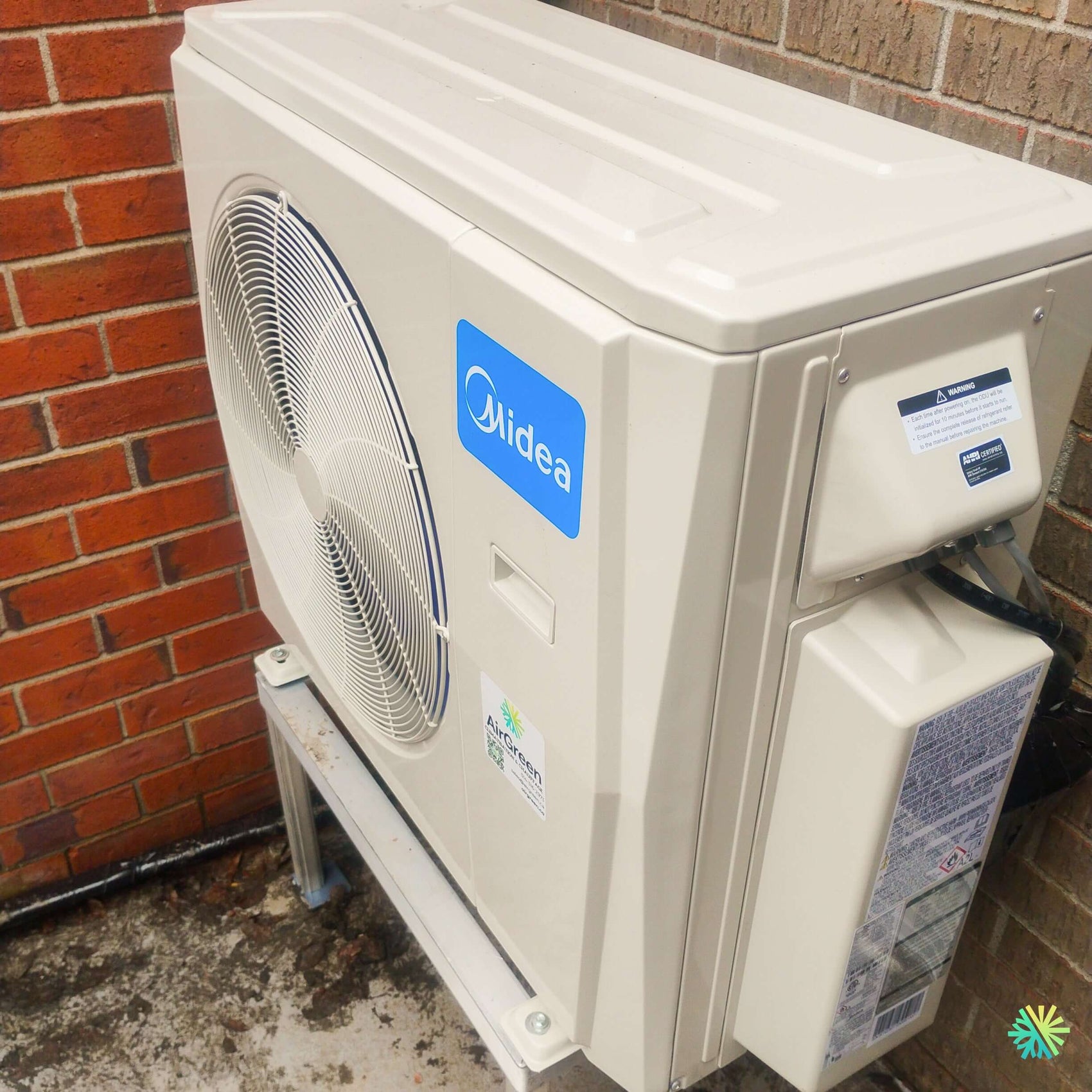

The project image clearly shows one of the most important aspects of this installation: the MIDEA outdoor unit was positioned in a confined space, between two brick and masonry walls. This type of location requires meticulous planning. It's not enough to simply place the unit where space is available; adequate airflow, perfect stability, future access for HVAC maintenance, and proper defrost water drainage must be ensured.
Our team installed the unit on a solid, elevated support to minimize the risks associated with snow, water, or debris accumulation. This detail is particularly important in the Montreal area, where freeze-thaw cycles can quickly damage a poorly prepared installation.
The space between the walls also required special attention to the ventilation of the outdoor unit. A heat pump must be able to breathe properly to maintain its efficiency. We therefore adjusted the positioning to maintain sufficient clearance around the fan, while keeping the installation discreet and well-aligned with the existing structure.
A Technical Installation Designed for Durability, Comfort, and Future Maintenance
The Challenge of Refrigerant Lines in a Westmount Home
In older Westmount homes, the routing of refrigerant lines and communication wiring often needs to be planned with superior precision. Walls can be thick, interior access more complex, and the goal is always to reduce visual impact.
For this MIDEA dual-zone heat pump installation, we paid particular attention to the routing of the lines between the two wall units and the outdoor unit. The aim was to maintain a clean, safe, and efficient path, without compromising the system's performance.
A common mistake in this type of project is to choose the shortest route without considering future maintenance. At AirGreen, we favor a more thoughtful approach: every connection, every wall passage, and every section of conduit must remain accessible whenever possible. This facilitates checks, diagnostics, and any future interventions.
An Ideal Dual-Zone Solution for Temperature Differences Between Rooms
In many residences in Montreal and Westmount, some rooms become too hot in summer while others remain comfortable. In winter, the opposite can happen: a room exposed to the wind or located upstairs may require more heating than another.
With a dual-zone heat pump, the client is not forced to treat the entire house as a single thermal zone. The two wall units allow for temperature adjustment according to the actual use of the rooms. For example, a bedroom can be kept cooler at night, while a living room or office can remain warmer during the day.
This flexibility improves comfort, but it also helps reduce energy expenses. The system does not work unnecessarily in zones that do not require the same level of heating or air conditioning.
Choosing the MIDEA28 for Efficient Residential Installation
The MIDEA28 model is often selected in our HVAC projects when the client seeks a good balance between performance, acquisition cost, energy efficiency, and versatility. For a two-head installation, it is an attractive option when the thermal load is well-evaluated and the needs of the rooms are compatible with the system's capacity.
In this project, our evaluation focused on several elements:
- the area of the zones to be served;
- sun exposure;
- the general insulation of the residence;
- the desired position of the wall units;
- the distance between the indoor units and the outdoor unit;
- the available clearance around the outdoor unit;
- the possibilities for conduit routing.
This type of analysis is essential. An oversized heat pump can lead to short cycling, reduced comfort, and poor dehumidification. Conversely, an undersized system risks running continuously without reaching the desired temperature on very hot or very cold days.
A Clean and Stable Outdoor Installation
The stability of the outdoor unit is an often underestimated point. In this project, the MIDEA unit was installed on a solid, well-secured metal base, with sufficient elevation to better manage winter conditions. This choice helps protect the equipment against humidity, leaves, ice, and ground accumulations.
As the unit was placed near a brick wall, we also checked that vibrations were not unnecessarily transmitted to the structure. A poorly insulated installation can create unpleasant noises indoors, especially in houses where walls are massive and resonate differently from newer constructions.
Our approach always aims to reduce the following risks:
- vibrations transmitted to the building;
- poor airflow around the unit;
- snow accumulation around the base;
- difficult access for maintenance;
- premature wear caused by too tight an installation.
The Importance of Wall Unit Positioning
Indoors, the positioning of the two wall units plays a major role in overall performance. A unit installed too close to an obstacle, too high in a closed corner, or directly above a heat source can lead to inaccurate temperature readings and reduced comfort.
For this Westmount installation, the locations were chosen to promote good air diffusion in each zone. The goal was to avoid direct drafts on occupants while allowing the system to distribute heat or coolness effectively.
A good HVAC installation is not limited to choosing the brand. Two identical systems can offer very different results depending on the quality of sizing, positioning, and commissioning.
Commissioning and Final Checks
After mechanical installation, our team carried out the necessary technical checks: connections, sealing, communication between units, condensate drainage, electrical supply, and operation of both zones. This step is crucial to ensure reliable performance from the first uses.
We specifically check that each head responds correctly to its command, that the outdoor unit modulates as expected, and that the discharge temperatures are consistent. In a dual-zone configuration, it is also necessary to confirm that each zone responds independently without communication conflicts.
This finishing work allows the client to receive a ready-to-use system, well-configured and compliant with expectations.
Practical Tips for Homeowners Considering a Dual-Zone Heat Pump
For homeowners in Westmount, Montreal, Laval, Longueuil, the North Shore, or the South Shore, a dual-zone heat pump can be an excellent solution, but it must be planned correctly.
Before choosing a model, certain mistakes should be avoided:
- choosing a machine based solely on price;
- ignoring the required clearances around the outdoor unit;
- installing the heads without analyzing airflow;
- neglecting condensate drainage;
- forgetting future access for maintenance;
- underestimating the importance of installation quality.
A good system poorly installed will rarely yield good results. Conversely, a well-chosen and well-installed system can transform a home's comfort for many years.
HVAC Maintenance: A Key Factor in Preserving Performance
Once the heat pump is installed, maintenance becomes essential. The filters of the wall units must be cleaned regularly, especially in heavily used rooms. The outdoor unit must also remain clear: leaves, ice, snow, and dust can reduce the appliance's efficiency.
At AirGreen, we recommend periodic HVAC maintenance to check the overall condition of the system, clean important components, confirm drainage, and quickly identify signs of wear. For a dual-zone installation, maintenance also ensures that both heads operate in a balanced manner.
An Installation Representative of AirGreen's Approach
This project in Westmount perfectly illustrates our way of working: analyzing the building, proposing a suitable solution, cleanly installing the equipment, and thinking long-term. The MIDEA MIDEA28 dual-zone heat pump perfectly met the client's needs: improving the comfort of two zones without cluttering the exterior of the property.
The outdoor unit, installed in a limited space between two walls, demonstrates the importance of a team capable of working with precision in real conditions. Every detail counts: support height, clearance, stability, access to panels, fan orientation, conduit connection, and overall finish.
For homeowners considering an HVAC installation in Westmount or elsewhere in Greater Montreal, this type of project shows that it is possible to achieve a high-performing, discreet, and well-integrated solution, even when available space is restricted.
AirGreen: Local Expertise for Complex HVAC Projects
Our field experience allows us to better understand the realities of homes in Westmount, Montreal plexes, Laval condos, Longueuil residences, as well as properties on the North Shore and South Shore. Each building imposes its constraints, and each client has their priorities: comfort, silence, budget, efficiency, exterior appearance, or eligibility for subsidies.
It is precisely this combination of factors that guides our recommendations. We don't just seek to install a machine; we seek to deliver a reliable, clean, and consistent result with the property.
This installation of a MIDEA MIDEA28 dual-zone heat pump in Westmount is an excellent example: a well-sized solution, meticulous work, discreet outdoor integration, and improved comfort in two distinct areas of the house.
