An HVAC installation designed for the real constraints of a Montreal building
In Montreal, every HVAC installation project requires a careful assessment of the building, its access points, mechanical constraints, and the daily use by occupants. In this project, our AirGreen team installed a DoubleZone GREE FREE MATCH R32 heat pump, a 2-zone and 2-wall head solution, designed to offer independent comfort in two distinct spaces from a single outdoor unit.

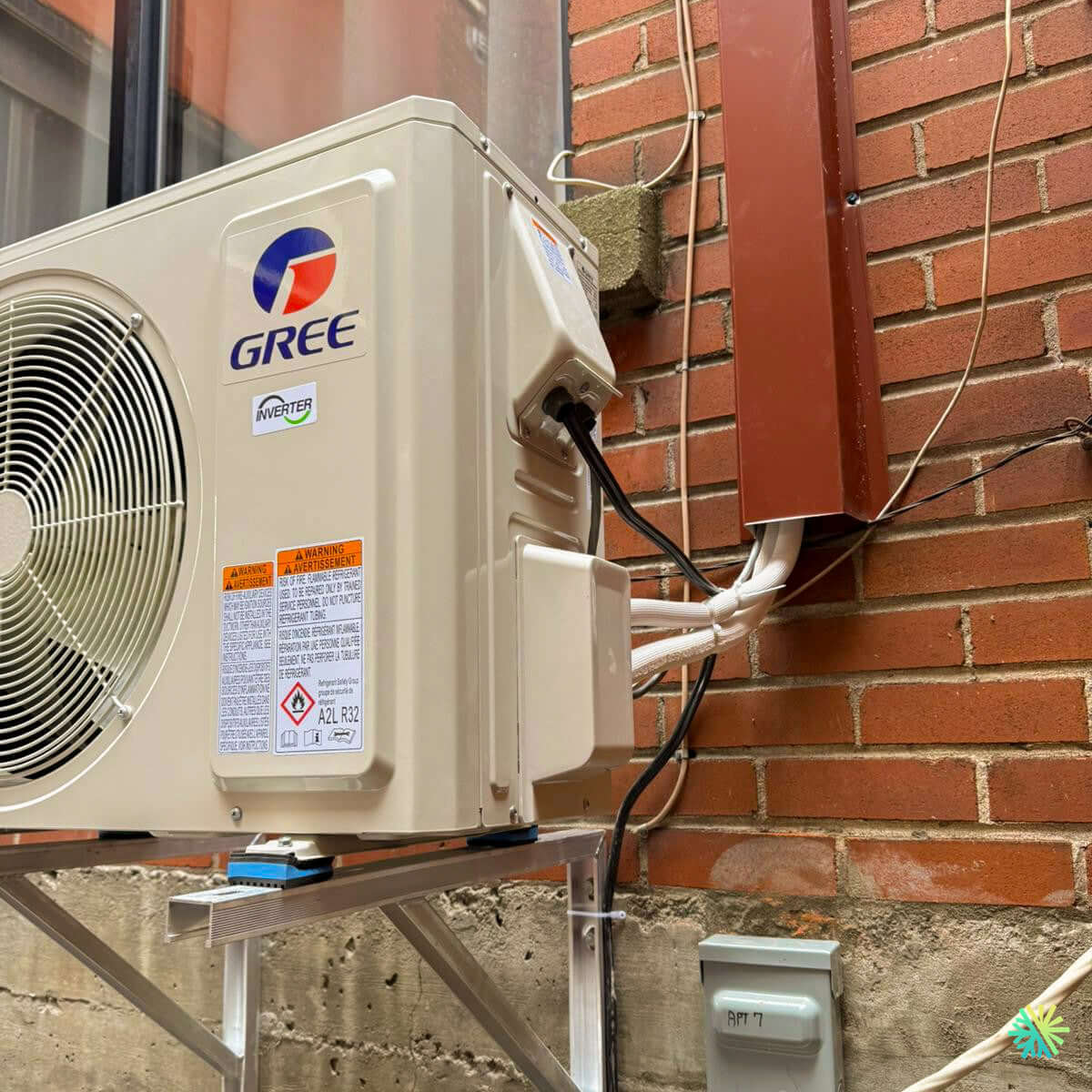

The image of this installation clearly illustrates a common reality in the Montreal area: an exterior brick wall, limited space, existing elements to work around, a wall outlet to organize neatly, and the need to protect refrigerant and electrical conduits with a durable finish. The choice of a GREE FREE MATCH R32 heat pump proved to be a coherent solution for this type of environment, notably thanks to its multi-zone flexibility, inverter operation, and its R32 refrigerant, increasingly sought after for modern residential installations.
This project was not just an equipment installation. It involved integrating a high-performance system into an existing structure, maintaining a clean, safe finish that complies with industry best practices.
Why choose a GREE FREE MATCH R32 DoubleZone for a building in Montreal
The GREE FREE MATCH R32 range is often chosen when the client wants to cool and heat more than one room without installing two separate outdoor units. In this specific case, the DoubleZone system allows powering two indoor units, each able to meet the needs of a particular space.
For a Montreal residence, this configuration offers several concrete advantages:
- A single outdoor unit, which reduces visual and mechanical clutter.
- Two independent zones, convenient for a living room and a bedroom, a main floor and a closed room, or two sections of a condo.
- Better temperature modulation, thanks to inverter technology.
- A more discreet installation than multiple outdoor units.
- A solution adapted to urban buildings, where clearances, brick walls, and external access can be more complex.
The GREE FREE MATCH R32 model meets the needs of customers looking for a reliable, efficient heat pump capable of providing both heating and cooling. In Montreal, where temperature variations between winter and summer are significant, this type of device becomes a relevant choice to improve comfort without completely replacing the existing heating system.
An outdoor unit precisely installed on a wall mount
One of the visible elements on the installation is the metal bracket fixed to the wall, which holds the outdoor unit above ground level. This setup is particularly useful in several areas of Montreal, where direct contact with snow, water, leaves, ice, or ground accumulations is to be avoided.
At AirGreen, we pay special attention to this detail because the external support directly influences the durability of the installation. A poorly positioned unit can experience vibrations, ice buildup, difficult access for HVAC maintenance, or premature wear of certain components.
In this project, the outdoor unit was placed to respect the necessary clearances around the fan and connections. The brick wall required a solid mounting, with anchors suited to the existing support. The stability of the device is essential, especially for a DoubleZone heat pump, as it must meet two distinct indoor demands and operate for long periods in both cold and hot seasons.
Management of conduits, cables, and refrigerant connections
The photo also shows an important aspect of the installation: the exit of cables and conduits into a protective duct. In a multi-zone project, managing refrigerant lines, drainage, and electrical supply must be particularly rigorous.
A common mistake in less careful installations is underestimating the importance of the external routing. The conduits can then be unnecessarily exposed, poorly supported, poorly angled, or insufficiently protected. In the long term, this can lead to wear, condensation, infiltration, or performance issues.
In this installation, our team organized the connections with clear logic:
- Well-positioned wall outlet.
- Protection of conduits with an external duct.
- Stable routing to the outdoor unit.
- Accessible connections for future inspections.
- Clean finish despite the presence of existing elements on the wall.
This type of work is particularly important in Montreal neighborhoods where older buildings sometimes have brick walls, narrow passages, structures added over the years, and constraints specific to condominiums.
R32: a modern refrigerant for a more current installation
The installed model uses the refrigerant R32, clearly identifiable on the outdoor unit's label. This point increasingly interests clients who compare available options before choosing a heat pump.
The R32 is appreciated for its energy efficiency and use in many recent devices. For owners planning to keep their system for several years, choosing current technology represents a significant advantage. It allows opting for a device designed according to recent HVAC market standards.
In the context of a HVAC installation in Montreal, this choice becomes even more relevant when the client seeks a balance between comfort, performance, energy consumption, and long-term value.
Project process: from site analysis to startup
Before proceeding with the installation, our team evaluated several essential elements. For a 2-zone system, it is not enough to choose a device based on the number of BTUs. It is also necessary to understand the interior layout, line lengths, available electrical capacity, condensate drainage constraints, and the best location for each wall unit.
Analysis of the two zones to be treated
In a DoubleZone setup, the two indoor units do not always serve identical rooms. One may be installed in a larger open area, while the other may serve a bedroom, an office, or a room located on another level. Comfort therefore depends on well-thought-out sizing.
At AirGreen, we avoid quick recommendations based solely on area. We also consider:
- the building's orientation;
- the presence of large windows;
- insulation;
- ceiling height;
- natural air circulation;
- the occupants' habits;
- possible heat losses;
- the placement constraints for wall units.
This approach avoids two common mistakes: installing a device that is too weak, which will constantly work without reaching the desired comfort, or installing an oversized device, which risks cycling too quickly and reducing overall efficiency.
Drilling, line passage, and external protection
The brick wall visible in the photo required methodical execution. The drilling had to allow a clean passage of the lines while preserving the wall's integrity. In a wall-mounted heat pump or DoubleZone heat pump project, this detail is crucial, as poor slope or sealing can cause water or condensation problems.
Our team therefore worked precisely to ensure:
- an adequate slope for drainage;
- careful sealing around wall outlets;
- a neat alignment of the duct;
- a durable exterior finish;
- protection of the lines against weather conditions.
The external duct serves both an aesthetic and technical role. It protects the conduits from UV rays, minor impacts, temperature variations, and premature wear. For a building in Montreal, exposed to snow, ice, thaws, and hot summer temperatures, this protection is far from secondary.
Electrical installation and safety checks
A GREE FREE MATCH R32 heat pump requires compliant electrical power. In this project, as with all our installations, we paid special attention to connection safety, cable routing, and overall installation compliance.
Clients sometimes underestimate the importance of the electrical portion. Yet, a high-performance HVAC system depends on a stable, protected, and well-executed power supply. A clean installation reduces the risk of failure, facilitates future inspections, and contributes to the system's durability.
Commissioning and operational tests
Once the mechanical installation is complete, we always proceed with a full commissioning. This step is essential to confirm that the heat pump operates correctly in each zone.
The commissioning includes notably:
- verifying the refrigerant connections;
- checking the tightness;
- testing both indoor units;
- validating the heating and cooling modes;
- checking the drainage;
- listening for vibrations or abnormal noises;
- explaining the operation to the client.
For a DoubleZone heat pump, we test each zone separately, then simultaneously. This method confirms that the system properly meets the combined demands.
The specific challenges of an urban installation in Montreal
Installations in Montreal often present different constraints than those encountered in the suburbs on the North Shore, the South Shore, in Laval, or in Longueuil. The outdoor space may be more limited, access more complex, walls older, and condominium regulations more precise.
Working neatly on an existing brick wall
The brick wall visible in the image requires a cautious approach. Poorly done fastening can damage the wall or create weak points. We use methods adapted to the type of surface to ensure a solid installation without compromising the structure.
The wall mount must remain stable despite the natural vibrations of the outdoor unit. We also add anti-vibration supports when necessary, which improves sound comfort and reduces transmission to the building.
Organizing lines in an already occupied space
The presence of other cables, ducts, or elements fixed to the wall requires more precise planning. The routing must not only be functional; it must also remain accessible and visually acceptable. In this project, the outdoor layout was designed to avoid unnecessary clutter and maintain an orderly whole.
This is an aspect often noticed by our customers after installation. A well-done HVAC installation is not limited to a device that works. It must also give the impression of having been carefully integrated into the building.
Plan for future maintenance
HVAC maintenance is simpler when the installation has been intelligently designed from the start. The outdoor unit must remain accessible for cleaning, inspection, and possible technical interventions. The connections should not be excessively hidden, and the clearance around the device must allow adequate air circulation.
In this project, wall-mounted installation facilitates access to the unit while better protecting it from ground accumulations. For a 2-zone system, this advantage is important because the outdoor unit plays a central role in the comfort of two indoor spaces.
The concrete benefits for the customer after installation
After startup, the customer benefits from a system capable of improving comfort in two sections of the home without multiplying external equipment. The GREE FREE MATCH R32 allows for more flexible temperature management, particularly useful when rooms do not have the same needs at the same time.
Independent comfort in two rooms
The main advantage of a DoubleZone heat pump is the ability to adjust the two heads separately. For example, a very sunny room may require more cooling in summer, while another may need more heating in winter. This flexibility improves real daily comfort.
Better energy use
Inverter technology allows the device to modulate its power according to demand. Rather than operating only on an on-off basis, the system adjusts its output to maintain a more stable temperature. This stability is especially appreciated in Montreal homes where temperature differences can be marked from one room to another.
A discreet and durable solution
A single outdoor unit for two zones also offers an aesthetic advantage. On a brick building, limiting the number of outdoor units helps keep a cleaner and more orderly facade. The exterior finish, well-installed conduits, and wall mount all contribute to the visual quality of the final result.
Practical tips before installing a DoubleZone heat pump
For owners in Montreal, Laval, Longueuil, on the North Shore or the South Shore, a DoubleZone installation can be an excellent solution, but it must be well planned.
Choose the areas to treat carefully
You should avoid choosing locations at random. Wall heads must be installed to promote good air diffusion. A poor location can create cold spots, overly warm areas, or discomfort near occupants.
Check the pipe lengths
The lengths between the outdoor unit and the indoor heads influence the installation. The more complex the routes, the more you need to anticipate passage constraints, possible additional costs, and overall performance.
Do not neglect condensate drainage
Drainage is a critical aspect, especially in air conditioning. Poor drainage can cause unwanted leaks, odors, or damage. At AirGreen, we always carefully plan this part because it determines long-term proper functioning.
Consider access for maintenance
A device that is hard to access will be more difficult to maintain. During the estimate, we always assess the location of the outdoor unit not only for the initial installation but also for the years of use that will follow.
The AirGreen approach: a complete, clean, and building-adapted installation
At AirGreen, we carry out heat pump, wall air conditioner, HVAC installation, and HVAC maintenance projects throughout the greater Montreal area, including Laval, Longueuil, the North Shore, and the South Shore. Our strength lies in our ability to adapt each installation to the actual building, rather than applying a uniform method to all projects.
In this installation of a GREE FREE MATCH R32 DoubleZone, our team combined technical analysis, execution precision, and clean finishing. The result is a functional, discreet system designed to last.
We paid attention to visible and invisible details: wall mounting, duct routing, outdoor protection, connections, sealing, commissioning, and client explanation. These steps make the difference between a simply completed installation and a truly professional one.
A well-integrated DoubleZone heat pump for lasting comfort in Montreal
This installation in Montreal perfectly demonstrates the benefits of a GREE FREE MATCH R32 DoubleZone heat pump in an urban building. With two indoor units powered by a single outdoor unit, the client gets more precise comfort, better flexibility, and a solution well suited to space constraints.
The project image highlights several essential elements: a securely installed outdoor unit, a clean finish on a brick wall, protected ducts, and thoughtful positioning. These details ensure durability, performance, and customer satisfaction throughout the seasons.
For homeowners considering a HVAC installation in Montreal, Laval, Longueuil, on the North Shore or the South Shore, this type of project highlights the importance of entrusting the work to a team capable of understanding both the machine and the building. A good heat pump only delivers its full potential when installed with method, precision, and experience.
