Installation of a GREE All Match Slim Duct R32 ducted heat pump in Châteauguay – Slim Duct system with ducted conduits by AirGreen

A ducted project in a Châteauguay attic where every inch counted

In Châteauguay, this installation of a GREE All Match Slim Duct R32 ducted heat pump perfectly illustrates the type of HVAC project where field experience makes all the difference. The client wanted a discreet, efficient, and well-integrated heating and cooling solution, without a visible wall unit in the living spaces. The goal was not just to add a device: it was necessary to design a clean, quiet, and durable air distribution from a limited technical space in the attic.

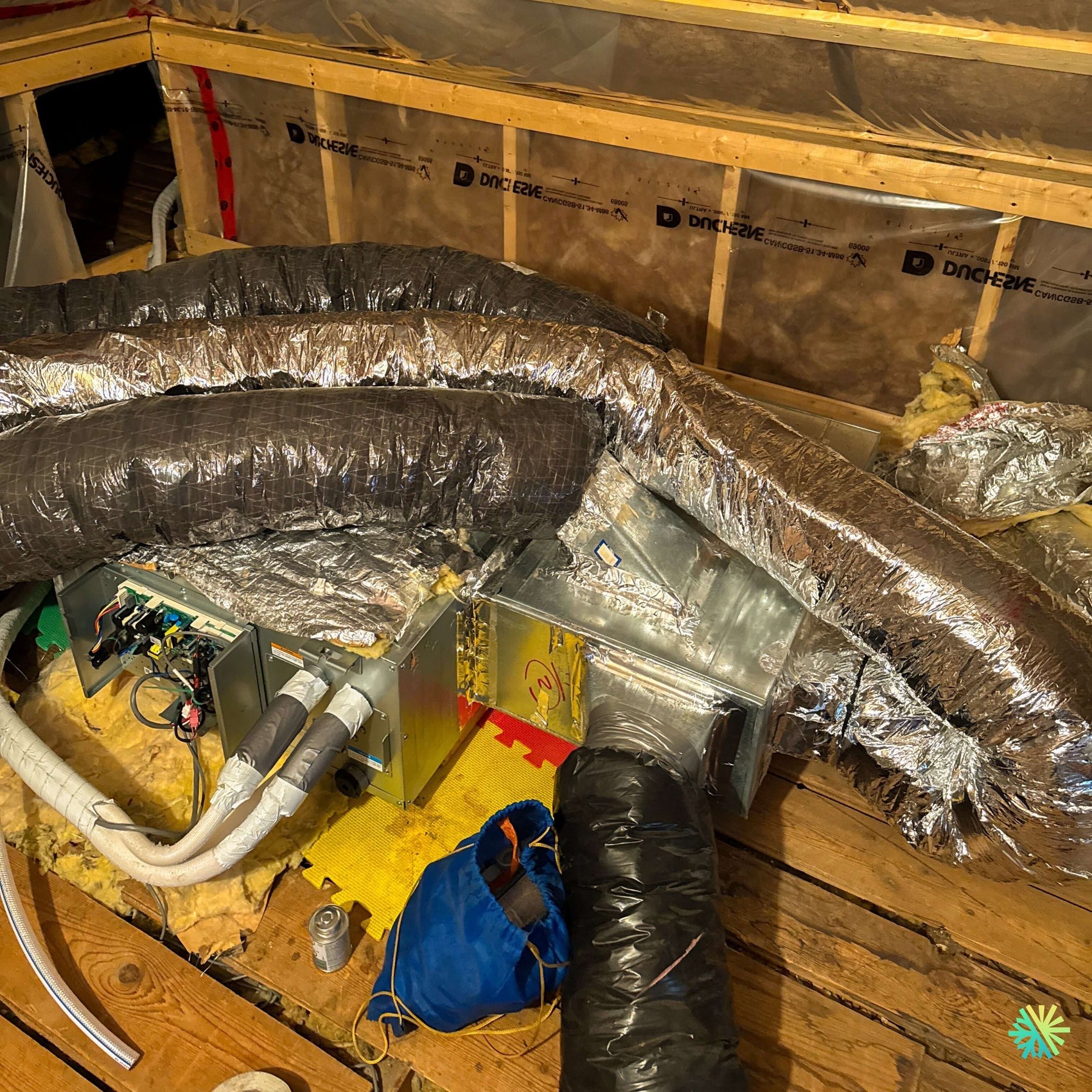

The photo of the site shows a reality that many owners never see once the work is completed: the ducted indoor unit installed in a framing area, surrounded by insulation, vapor barrier, insulated flexible ducts, metal plenums, and refrigerant connections. This type of installation requires precise coordination between the positioning of the unit, the duct routing, condensate drainage, future accessibility, and airflow performance.

At AirGreen, we know that a ducted system is not judged solely by the brand of the equipment. Its performance mainly depends on how it is designed and installed. An excellent device can deliver disappointing results if the ducts are poorly sized, if the air return is insufficient, if the static pressure is miscalculated, or if service access is neglected. That’s why we approached this project in Châteauguay as a truly custom installation.

Why the client chose a GREE ducted solution

In several homes on the South Shore, owners want to enjoy the benefits of a modern heat pump while maintaining a clean interior finish. A wall unit can be very effective, but it remains visible. In some rooms, it can also be difficult to place without blowing directly toward a bed, a sofa, a work table, or a passage area.

The GREE All Match Slim Duct R32 system met the needs of this project well because it allowed hiding the indoor unit in the attic and distributing air through discreet grilles. The client thus obtained more uniform comfort, with minimal visual presence in occupied spaces.

This approach is especially appreciated when:

• interior ceilings or walls must remain clear;
• several adjacent rooms need to be served;
• the client wants to avoid the appearance of a wall unit;
• the attic or a false ceiling allows integration of a ducted unit;
• acoustic comfort is a priority;
• the house has a layout suitable for distribution by short or well-balanced ducts.

The GREE ducted range offered by AirGreen includes several options depending on the building's needs, notably capacities of 9,000 BTU, 12,000 BTU, 18,000 BTU, 24,000 BTU, 30,000 BTU, and 36,000 BTU, depending on models and configurations. For this type of project, capacity must be chosen after a serious thermal load analysis, not just based on area.

An installation in the attic: precision, safety, and accessibility

Installing a ducted heat pump in an attic requires much more than a simple mechanical connection. In this project in Châteauguay, our technicians had to work in a limited space, with an existing wooden structure, blown or batt insulation, a vapor barrier, duct passages, framing obstacles, and restricted access.

The indoor unit was positioned to allow:

• a clean connection to the supply ducts;
• an efficient air return;
• an adequate slope for condensate drainage;
• protection of refrigerant lines;
• access to the control panel;
• reasonable accessibility for future HVAC maintenance;
• a reduction of vibrations transmitted to the structure.

In the photo, the importance of work around insulated flexible ducts is also noticeable. These ducts must be installed carefully: too compressed, too long, too bent, or poorly supported, they can create pressure losses, noise, and uneven air distribution. Our team therefore paid special attention to bends, connections, sealing, and insulation.

Duct design: the heart of a successful ducted system

In a ducted HVAC installation, the ducts are as important as the heat pump itself. The system's role is not only to produce hot or cold air but to deliver it properly to the targeted zones.

For this project in Châteauguay, our team validated several elements before and during installation:

Required airflow

Each room or zone served must receive an appropriate airflow. Too low a flow makes the room uncomfortable. Too high a flow can generate noise, drafts, and an unpleasant sensation.

Static pressure

Static pressure represents the resistance air encounters in the duct network. The more length, bends, reductions, grilles, or restrictive filters there are, the higher the static pressure. A ducted system must be selected and adjusted according to this reality.

The quality of connections

The joints between the unit, plenums, and ducts must be well sealed. Air leaks in an attic can significantly reduce system efficiency and harm indoor comfort.

Duct insulation

In an unconditioned space like an attic, duct insulation is essential. It limits heat loss, reduces condensation risks, and helps the system maintain stable performance.

The return air

A poorly designed return air is one of the most common errors in ducted systems. It can force the unit to work harder, create noise, and unbalance the home. At AirGreen, we give as much importance to the return air as to the supply outlets.

GREE All Match Slim Duct R32: a solution suited for discreet installations

The GREE All Match Slim Duct R32 series is designed for projects seeking discreet integration, good efficiency, and installation flexibility. The Slim Duct format allows the indoor unit to be installed in a small space while supplying a suitable duct network.

GREE ducted models can offer, depending on the selected capacity and configuration:

• inverter operation to modulate power according to demand;
• heating performance adapted to the Quebec climate, with some models designed to operate down to -30 °C;
• Energy Star options Energy Star depending on eligible models;
• the use of refrigerant R32 for certain recent series;
• low or high static pressure configurations;
• possible integration in ceiling, false ceiling, attic, or loft;
• a warranty of up to 12 years on certain selected GREE models, subject to applicable conditions.

As a GREE Elite dealer, AirGreen has special expertise in the selection, installation, and service of GREE equipment, including low and high static pressure ducted systems. This specialization is important because ducted projects require a precise understanding of ventilation, thermodynamic performance, and building mechanics.

An AirGreen execution designed for long-term performance

The final result of a project like this is not limited to what is seen in the attic. For the client, success is measured by comfort in the rooms, temperature stability, reduced noise, energy efficiency, and peace of mind. That is why our installation in Châteauguay was carried out with a comprehensive approach.

Step 1: Site analysis and location choice

Before installation, we assessed the available space in the attic, the existing structure, and possible duct routes. The positioning of the indoor unit had to allow balanced distribution without complicating future maintenance.

A poor location can create several problems: ducts that are too long, difficult access to the filter or electrical panel, complex drainage, noise transmitted to rooms, or efficiency losses. In this project, the chosen location allowed compliance with building constraints while maintaining a logical service layout.

Step 2: Installation of the ducted indoor unit

The GREE unit was installed in the attic with special attention to support, leveling, and component protection. The control panel and electrical connections had to remain accessible, as clearly seen in the photo with the panel open during the work.

This accessibility is essential. A hidden system should never become a system that is impossible to maintain. At AirGreen, we always think about the next service: cleaning, diagnostics, connection checks, filter replacement, drain inspection, or adjustment.

Step 3: Refrigeration connection and line insulation

The refrigerant lines connecting the indoor unit to the outdoor unit must be installed according to the manufacturer's requirements. They must be well insulated, protected, and routed without excessive strain. Connections must be clean, airtight, and made by qualified technicians.

Handling refrigerant is a specialized operation. This is one of the reasons why AirGreen favors complete installations carried out by professional refrigeration technicians rather than just selling equipment. A poorly connected device can lose much of its performance and cause costly problems.

Step 4: connection of flexible ducts and plenums

The ducts visible in the photo show the importance of ventilation work. Insulated flexible ducts must be securely fastened, without crushing, and with curves as gentle as possible. Metal plenums are used to organize air distribution and stabilize the flow before it reaches the grilles.

In an attic, this work requires patience. You have to deal with the framework, insulation, obstacles, existing passages, and the need to keep the installation clean. Our team ensured to limit air restrictions and maintain a coherent installation.

Step 5: condensate drainage

In cooling mode, the indoor unit produces condensate. This condensate must be reliably drained. In an attic, poor drain management can cause significant damage: ceiling stains, humidity, mold, or system safety shutdown.

We have therefore checked the slope, the drain path, and the evacuation conditions. When necessary, some projects require a condensate pump. The choice depends on the exact configuration of the building.

Step 6: startup and adjustments

Once the system is installed, startup allows us to confirm the proper functioning of the whole. We check heating mode, cooling mode, communication between units, drainage, noise, air circulation, and the system's response to settings.

For ducted installations, adjustments are particularly important. It is necessary to ensure that the air reaches the served rooms correctly and that the system operates without excessive noise. Proper commissioning directly contributes to the equipment's durability.

The concrete benefits for the client in Châteauguay

Once the installation is complete, the client benefits from a system that meets several priorities:

Minimal visual presence

The indoor unit is hidden in the attic. In the rooms, only the grilles are visible. This approach is very suitable for clients who want a discreet solution.

More uniform comfort

Thanks to the duct network, air can be distributed in several zones according to the chosen design. The comfort is gentler than with a single visible air source in a room.

Better architectural integration

The ducted system is often preferred in careful renovations, well-finished homes, condos, and projects where interior aesthetics matter a lot.

Performance adapted to the local climate

The GREE models selected for the Quebec market can offer good heating performance, including in demanding winter conditions depending on the model. For a city like Châteauguay, where winters can require long heating periods, this reliability is a key criterion.

Professional support

AirGreen supports its clients in choosing the model, planning the installation, understanding possible subsidies, and future maintenance. When the exact model is eligible, we also help the client gather the necessary documents for applicable programs, including those related to Energy Star equipment.

Mistakes to avoid before installing a ducted system

A ducted system can be an excellent solution, but it must be well planned. Here are the mistakes we often see during evaluations or corrections of existing installations.

Choosing a capacity that is too high

An oversized device may start and stop too often. This reduces comfort, harms humidity control, and can accelerate wear.

Installing ducts that are too long or too tight

A poorly installed flexible duct can create high air resistance. The system becomes noisier and less efficient.

Neglecting filter access

An inaccessible filter will be less well maintained. Over time, this can reduce airflow and harm the device.

Forgetting duct insulation

In an attic, uninsulated or poorly insulated ducts can lose a lot of energy and create condensation.

Incorrectly placing the grilles

A grille placed directly above a bed, desk, or sofa can create discomfort. The positioning must take into account the actual use of the rooms.

Why AirGreen is often called for complex ducted projects

Ducted projects require a comprehensive vision: air conditioning, heating, ventilation, structure, acoustics, drainage, electricity, and after-sales service. This is precisely the type of project where our experience in the greater Montreal area, in Laval, in Longueuil, on the North Shore, and on the South Shore becomes a concrete advantage.

We are used to working in existing homes, condos, multiplexes, renovated spaces, and buildings with many constraints. Our role is to turn these constraints into a reliable solution without sacrificing performance or the appearance of the finished project.

AirGreen also stands out by:

• clear estimates;
• a rigorous model selection;
• professional refrigeration technicians with experience;
• civil liability insurance of 5 000 000 $;
• a structured after-sales service;
• priority access to original GREE parts;
• real expertise in discreet and integrated installations.

A project that reflects the value of a well-thought-out installation

This GREE installation in Châteauguay shows that a successful ducted system relies on a series of good choices. The right device, in the right place, with the right ducts, the right connections, and the right startup.

For the client, the result is simple: effective, discreet comfort tailored to the home. For our team, it’s a project that highlights our technical approach: plan before drilling, measure before connecting, balance before finishing, and always think about durability.

A well-installed GREE Slim Duct system can offer an outstanding solution for homeowners who want to avoid visible wall units while enjoying a modern heat pump. In Châteauguay, this project perfectly fits our mission: to offer HVAC solutions truly adapted to the building, budget, desired comfort, and the demands of the Quebec climate.
