Installation of a GREE FREE MATCH R32 5-Zone heat pump with 5 wall-mounted units in Boucherville

A multi-zone installation in Boucherville where every interior detail mattered

In Boucherville, this installation of a GREE FREE MATCH R32 5-Zone heat pump with 5 wall-mounted units perfectly illustrates the importance of precise HVAC work in an already inhabited, furnished home structured around multiple comfort zones. The photo shows one of the indoor units installed above a large patio door, in a bright space overlooking the outdoors. This type of location requires particular attention: one must consider the available height, the upper molding, vertical blinds, proximity to glazing, airflow orientation, and aesthetic integration into a highly used daily living space.

In this Boucherville home, the goal was not merely to add a wall-mounted unit. The project aimed to create a complete multi-zone heating and air conditioning system, capable of serving multiple rooms while maintaining a discreet finish. A 5-Zone heat pump requires more extensive planning than a simple installation, as each indoor unit must be positioned according to the actual needs of the room, constraints of conduit passage, and the comfort expected by the occupants.

At AirGreen, we regularly undertake this type of project in Greater Montreal, particularly in Montreal, Laval, Longueuil, on the North Shore and the South Shore. In Boucherville, homes often feature open living spaces, glazed rear access, finished basements, multi-bedroom upper floors, and rooms where temperature varies significantly with sun exposure. It is precisely in this context that a GREE FREE MATCH R32 becomes a very relevant solution when properly designed and installed.

The GREE FREE MATCH R32: an effective solution for managing five comfort zones

The GREE FREE MATCH R32 system is designed to connect multiple indoor units to a single compatible outdoor unit. In this configuration, the house benefits from 5 wall-mounted units, each capable of meeting a specific need. This flexibility is particularly useful in a residence where some rooms are more exposed to the sun, where bedrooms require more stable comfort at night, or where a home office requires a different temperature from the rest of the house.

One of the major advantages of a multi-zone heat pump is the ability to adapt its operation according to the actual use of each space. It is not necessary to treat the entire house identically at all times. One room can be air-conditioned more in summer, while another can receive heating in mid-season. This finer management of comfort often leads to better energy utilization.

The R32 technology also plays an important role. This refrigerant is used in several modern HVAC systems for its good thermal performance and reduced environmental impact compared to some older generations of refrigerants. For owners who wish to invest in a current, high-performing installation adapted to contemporary standards, the GREE FREE MATCH R32 represents a serious option.

In this project, the choice of a 5-Zone system was based on clear logic: to improve comfort in multiple areas of the house while avoiding the proliferation of outdoor units. This approach contributes to a cleaner exterior installation, which is more technically coherent and better suited to a family home.

A wall-mounted unit installed above a patio door: a demanding location

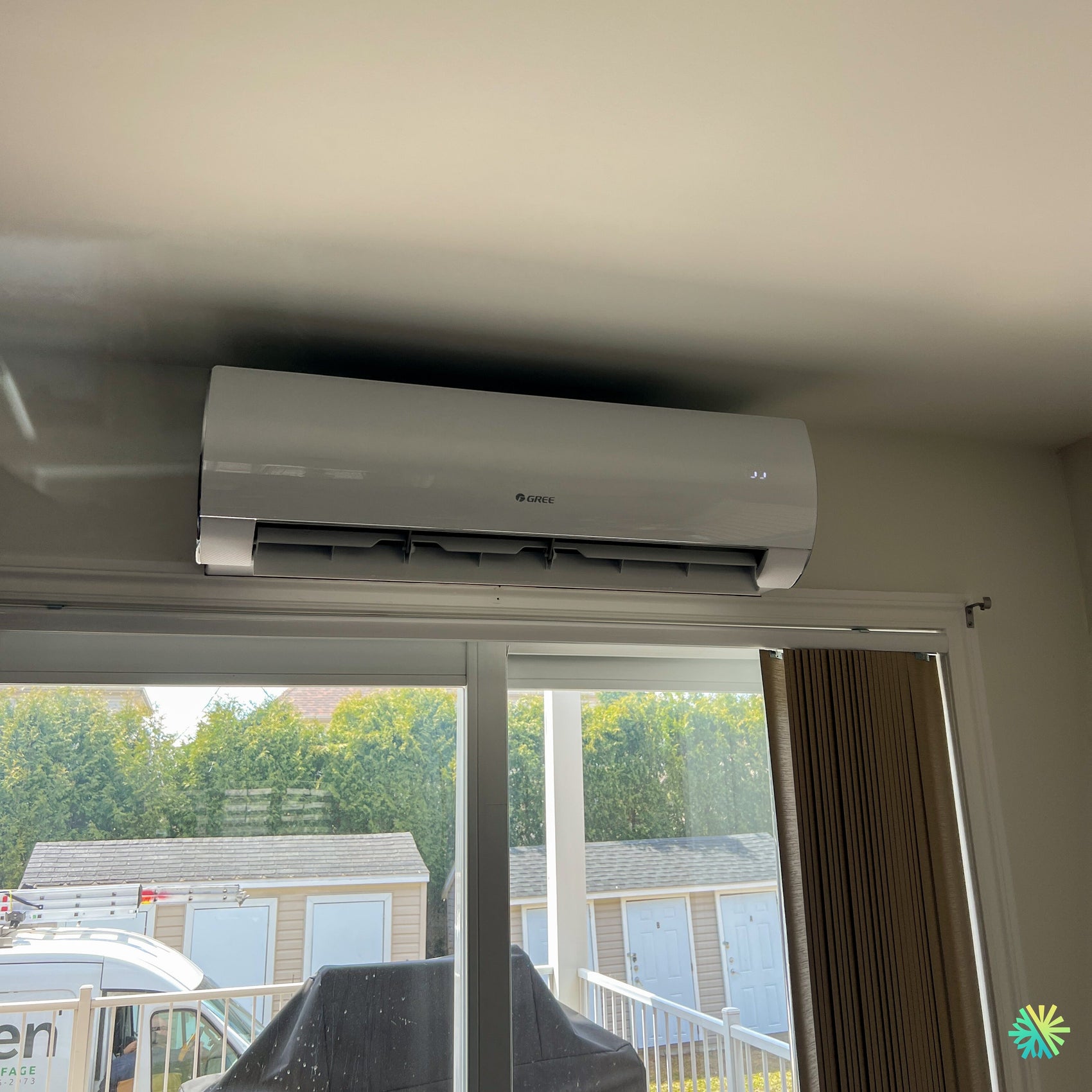

The photo of this installation in Boucherville shows a GREE wall-mounted unit installed directly above a large glazed surface. This type of location is common in homes where the living room, dining room, or family area overlooks the backyard. It is also very technical.

Installing a wall-mounted unit above a patio door requires checking several elements:

• the clearance available between the top of the window and the ceiling;
• the presence of moldings or casings;
• the operation of blinds or curtains;
• the path of the airflow;
• access to filters for HVAC maintenance;
• the possibility of neatly routing refrigerant lines;
• condensation drainage;
• the solidity of the wall and visual alignment with the opening.

In this specific case, the unit was installed to take advantage of a central position above the patio door, allowing for efficient air distribution in the room. The unit is well-aligned, clear of vertical blinds, and placed high enough not to obstruct the use of the opening. The result is clean and functional, while respecting the existing layout.

This positioning decision is important. A unit placed too low would have interfered with the window or window treatments. A misaligned unit could have created uneven air distribution. A unit too close to the ceiling would have reduced recommended clearances and complicated maintenance. In a quality HVAC installation, these details are analyzed before installation, not corrected afterwards.

The challenges of a 5-head system in a Boucherville home

A 5-Zone heat pump requires rigorous coordination. Each wall-mounted unit corresponds to a zone, but the whole must function as a coherent system. Distances between the outdoor unit and indoor units must be planned, permitted piping lengths respected, drainage slopes managed, and a complete commissioning ensured.

In Boucherville, this type of residence can present several constraints: large windows, walls already occupied by furniture, open-plan rooms, ceilings with moldings, outdoor access sometimes limited by a terrace or landscaping. In this installation, the presence of a large patio door required a meticulous interior finish to ensure the wall-mounted unit integrated neatly above the opening.

For a 5-head configuration, our team generally follows a structured method:

1. Analysis of rooms to be served
   We evaluate volume, sun exposure, insulation, daily use, and hot or cold spots.
2. Choice of indoor locations
   Each wall-mounted unit must be placed to maximize comfort, avoid direct drafts, and remain accessible for maintenance.
3. Conduit planning
   Refrigerant lines, communication cables, and drains must follow a logical, clean, and compliant path.
4. Outdoor unit installation
   Its location must consider clearance, noise, future access, and winter conditions.
5. Vacuuming, testing, and startup
   This step confirms the system's integrity and the proper functioning of each zone.

A good multi-zone installation does not rely solely on the brand of the machine. It depends above all on the quality of the assessment, the precision of the work, and the experience of the technicians.

Why installation above a glazed surface can improve comfort

In many homes, areas near windows are the most difficult to stabilize. In summer, the sun can quickly warm a room. In winter, glazed surfaces can create a feeling of coolness, even when the ambient temperature seems correct. Placing a wall-mounted heat pump above a patio door can therefore be a relevant strategy, provided the installation respects the necessary clearances.

In this Boucherville home, the indoor unit can help directly treat an area exposed to natural light. The airflow helps to better distribute air in the room and reduce temperature variations felt near the fenestration. For owners, the result is more stable comfort in a significant living space.

However, certain mistakes must be avoided. A wall-mounted unit should not be installed in such a way that it blows directly onto occupants sitting for long periods. Nor should it be blocked by curtains or blinds. In this project, the location was chosen to preserve the use of vertical blinds while maintaining appropriate clearance in front of the appliance.

The importance of interior finish in an HVAC installation

A visible installation in a living space must be clean. Owners immediately notice the alignment, height, symmetry, finish of the penetrations, and integration of the unit. In the photo, the GREE wall unit is neatly installed above the patio door, with a discreet presence despite its central position.

At AirGreen, we place great importance on this finish, because an HVAC installation should not look improvised. The wall unit must appear to be in its rightful place. Conduits must be protected and properly routed. Penetrations must be carefully made. The client must obtain a high-performing system, but also an installation that respects the appearance of their home.

This requirement is particularly important in residential areas of the South Shore, where many homes feature meticulously designed interiors, large glazed openings, and open living spaces. In Boucherville, thermal comfort must go hand in hand with a clean visual integration.

Concrete benefits for occupants

Once installed and properly configured, a GREE FREE MATCH R32 5-Zone offers several concrete daily benefits. Occupants can better control the temperature of each zone, reduce temperature differences between rooms, and use the system according to their lifestyle.

The main advantages observed in this type of installation are:

• improved comfort in bedrooms;
• more efficient air conditioning in sunny rooms;
• practical heating in mid-season;
• reduction of overly hot or cold zones;
• more flexible operation than a single-zone system;
• better adaptation to family schedules;
• a more discreet solution than multiple outdoor units.

For a home in Boucherville, where temperature differences can be significant between sun-exposed rooms and shaded areas, this flexibility quickly becomes a major advantage.

Subsidies and energy efficiency: what you need to know

Homeowners considering the installation of a heat pump in Quebec are often interested in subsidies and energy efficiency programs. Eligibility depends on the exact model, configuration, applicable criteria, and documents provided after installation.

In the case of a GREE FREE MATCH R32 heat pump, it is important to keep complete documentation: installed model, detailed invoice, technical information, proof of installation, and any other information required by the applicable program. At AirGreen, we help our clients understand the administrative steps so that they have the necessary documents.

However, energy efficiency is not limited to a technical data sheet. A high-performing machine poorly installed can lose some of its advantage. Conversely, a well-sized and properly commissioned installation allows for greater benefits from the system. This is why the choice of contractor is as important as the choice of equipment.

Tips for a successful 5-Zone heat pump project

Before investing in a 5-Zone heat pump, it's useful to consider several practical elements. Good preparation avoids costly or uncomfortable compromises.

Here are the points we recommend evaluating:

• the rooms that actually need a wall unit;
• zones that overheat in summer;
• bedrooms that become too cold in winter;
• available walls for installing units;
• constraints related to windows, patio doors, and moldings;
• presence of blinds, curtains, or tall furniture;
• possible location of the outdoor unit;
• future access for HVAC maintenance.

A common mistake is to choose locations solely for aesthetic reasons. Appearance matters, but performance and comfort must remain priorities. The right location is one that combines efficient air diffusion, practical access, clean integration, and technical feasibility.

AirGreen expertise adapted to South Shore homes

This project in Boucherville is part of our daily experience with residential HVAC installations on the South Shore. We work in homes with varied configurations: bungalows, cottages, semi-detached houses, condos, renovated houses, open spaces, finished basements, and properties with large glazed surfaces.

Each project requires a precise understanding of the building. A solution that works perfectly in a home in Longueuil will not necessarily be ideal in a property in Boucherville. An installation above a patio door, as in this case, can be excellent if properly executed, but it must be validated according to the available space, the use of the room, and technical constraints.

Our role is to recommend a solution that takes all these elements into account. We don't just aim to install a machine. We aim to create reliable, durable comfort adapted to the client's reality.

A clean, discreet, and high-performing result in Boucherville

The installation of this GREE FREE MATCH R32 5-Zone heat pump with 5 wall-mounted units in Boucherville demonstrates the importance of a professional approach for multi-zone projects. The unit visible in the photo, installed above the patio door, shows careful integration into a bright and already furnished room. The positioning respects the space, preserves the use of blinds, and allows for efficient air distribution.

For homeowners seeking a comprehensive heat pump, wall-mounted air conditioner, HVAC installation, or HVAC maintenance solution in Boucherville, Montreal, Laval, Longueuil, on the North Shore or South Shore, this type of project exemplifies what a well-planned multi-zone installation can offer: comfort, efficiency, discretion, and room-by-room control.

At AirGreen, we leverage our field experience to transform every constraint into a concrete solution. A patio door, molding, restricted space, a room with many windows, or a house with multiple zones are not obstacles when a project is properly analyzed from the outset. This rigor ensures a reliable, aesthetically pleasing, and durable installation.
