A DoubleZone Installation Designed for Daily Comfort in a Dense Montreal Space
In Côte Saint-Luc, heat pump projects often require more than a simple technical connection. Between restricted access, brick walls, outdoor staircases, required clearances, co-ownership regulations, and the need to preserve the building's appearance, every detail matters. For this installation, our AirGreen team installed a GREE FREE MATCH R32 DoubleZone heat pump, a 2-zone and 2-head configuration, perfectly suited for a dwelling where two distinct spaces needed independent comfort.
The choice of a GREE FREE MATCH R32 system addressed a clear need: to provide efficient heating, stable air conditioning, and flexible temperature management, without multiplying outdoor units. In a residential area like Côte Saint-Luc, where many buildings combine brick structure, limited side access, and shared outdoor spaces, the ability to power two indoor units with a single outdoor unit represents a concrete advantage.

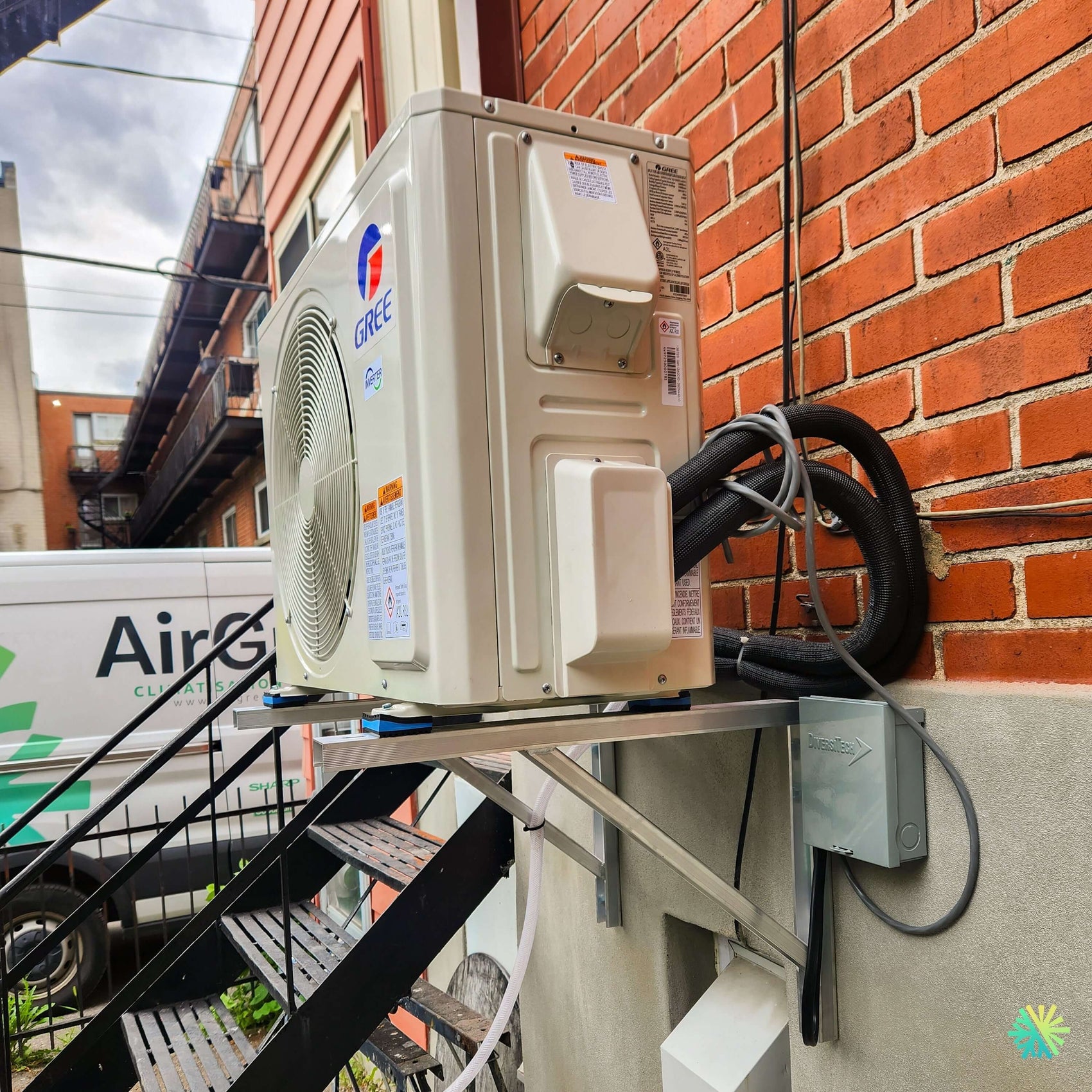

The photo of this project shows an important element of our approach: the outdoor unit was installed on a robust wall structure, above ground level, with particular attention paid to stability, clearance, condensate drainage, and connection protection. The AirGreen truck visible nearby also illustrates an essential aspect of our projects in Montreal, Laval, Longueuil, on the North Shore and the South Shore: our teams arrive prepared, with the tools, supports, ducts, electrical accessories, and finishing solutions necessary to carry out a complete and durable HVAC installation.
Why a GREE FREE MATCH R32 DoubleZone was the Right Choice in Côte Saint-Luc
The GREE FREE MATCH R32 range is particularly interesting for clients who want to air condition and heat more than one room without installing two separate systems. Here, the client wanted to improve comfort in two zones of the dwelling, while maintaining a discreet and technically well-organized outdoor installation.
A Single Outdoor Unit for Two Comfort Zones
The main advantage of a DoubleZone heat pump is the ability to control two spaces separately. For example, one wall-mounted head can serve a main living area, while the second can be installed in a bedroom, an office, a secondary living room, or another strategic room. This approach helps avoid excessive temperature differences between rooms and limits the need for auxiliary heating or portable air conditioners.
In this project in Côte Saint-Luc, this logic was particularly relevant. Urban dwellings can exhibit significant temperature differences depending on the building's orientation, the presence of large windows, insulation, air circulation, or the floor occupied. A 2-head system allows for adjusting comfort according to the actual use of the rooms, rather than overheating or over-air conditioning the entire dwelling.
R32 Refrigerant: A Technology Adapted for Modern Installations
The installed model uses R32 refrigerant, now increasingly present in recent residential HVAC systems. R32 is appreciated for its thermal efficiency and improved environmental profile compared to some older refrigerants. For the client, this means a modern solution, compatible with new market trends, while benefiting from GREE's reputation in the field of wall-mounted and multi-zone systems.
At AirGreen, we pay particular attention to the products we install, especially when it comes to multi-zone systems. A DoubleZone unit must be correctly sized, well configured, and installed according to rigorous practices, as a design error can affect comfort, energy efficiency, and compressor lifespan.
A Valued Solution for Côte Saint-Luc's Brick Buildings
The project image perfectly illustrates the typical environment of many installations in the west of the island of Montreal: a brick wall, an outdoor metal staircase, limited clearance between the building and circulation areas, as well as a technical space that must remain clean, safe, and accessible.
In this context, the choice of the outdoor unit's positioning is never improvised. We must consider several elements:
- the solidity of the wall and the support;
- possible vibrations;
- the distance between the outdoor unit and the wall-mounted heads;
- the aesthetics of the conduits and ducts;
- future access for HVAC maintenance;
- electrical requirements;
- condensate drainage;
- clearances around the unit for good air circulation.
This installation precisely reflects this type of work: a clean mounting, a well-cleared unit, functionally grouped connections, and an integration that respects the building's reality.
A Stable Outdoor Wall Installation Adapted to Site Constraints
The GREE outdoor unit was placed on a solid metal support, fixed to ensure the system's stability. This type of mounting is often preferred when it is necessary to avoid placing the unit directly on the ground, particularly to limit risks related to snow accumulation, stagnant water, debris, or circulation constraints.
In Côte Saint-Luc, as in several areas of Montreal, outdoor spaces are sometimes narrow. Installing a unit on the ground can obstruct passage, hinder maintenance, or create a risk of accidental impact. By elevating the unit, we optimized the available space while facilitating ventilation around the condenser.
The anti-vibration pads visible under the unit are also important details. They help reduce the transmission of vibrations to the structure, which is particularly relevant in a residential building where acoustic comfort matters as much as energy performance.
Connections, Refrigerant Lines, and Finishing: The Invisible Work That Changes Everything
A successful HVAC installation is not limited to attaching a machine to the wall. Behind the final appearance, there is a set of technical decisions that determine the system's reliability. In this project, our technicians paid particular attention to the routing of refrigerant lines, the grouping of cables, the protection of connections, and the finishing near the brick wall.
The insulated lines visible behind the unit show the complexity of a DoubleZone system: two circuits must be correctly connected, with appropriate lengths, adequate insulation, and verified sealing. For a multi-zone system, adherence to best practices is even more important, as each indoor head depends on the proper balancing of the entire system.
We always proceed methodically:
- validation of indoor unit placement;
- planning of line routing;
- controlled drilling and protection of openings;
- outdoor unit installation;
- refrigerant and electrical connection;
- leak test;
- vacuuming;
- startup;
- verification of heating and air conditioning modes;
- explanation of operation to the client.
This sequence helps avoid common problems: performance losses, abnormal noise, deficient drainage, vibrations, poor efficiency, or discomfort between zones.
Clean and Safe Electrical Supply
The photo also shows the outdoor electrical box installed near the unit. This element is essential for safety, compliance, and ease of maintenance. A heat pump must be electrically isolated during maintenance or diagnostic interventions.
Our installations are carried out with particular attention to applicable standards in Quebec. The electrical connection of a system like the GREE FREE MATCH R32 must be executed safely, with appropriate protections and clean cable routing. This aspect is often underestimated by homeowners who only compare the price of a quote, but it is a determining factor for long-term reliability.
Two Wall-Mounted Heads for Better Distributed Comfort
A 2-zone 2-head system offers highly appreciated flexibility. Unlike a single wall-mounted unit that sometimes has to push air too far into the dwelling, two heads allow for a more logical distribution. Each space can receive its own target temperature, depending on the time of day, occupancy, and sun exposure.
For a Côte Saint-Luc client, this can make a notable difference in several situations:
- a bedroom that gets too hot in the summer;
- a living room exposed to the sun in the afternoon;
- a home office that requires a stable temperature;
- an open-plan area difficult to air condition with a single supply point;
- a dwelling where air circulation between rooms is limited.
The expected result is more constant comfort, fewer abrupt variations, and a better ability to adapt energy consumption to actual needs.
Subsidies and Eligibility: A Point to Verify According to the Installed Combination
Financial aid programs, such as those associated with Hydro-Québec, can represent a significant advantage for homeowners who install an eligible heat pump. In the case of a multi-zone system like the GREE FREE MATCH R32, eligibility generally depends on the exact combination of the outdoor unit and indoor units, as well as the lists and criteria in effect at the time of the project.
At AirGreen, we help our clients understand important information related to subsidies, model numbers, necessary documents, and post-installation steps. As criteria can change, we always prioritize precise validation at the time of quotation and project finalization.
Mistakes to Avoid with a DoubleZone Heat Pump
A poorly planned DoubleZone installation can create more problems than it solves. Here are some mistakes we systematically avoid on our job sites:
Installing heads without analyzing air circulation
Placing a wall-mounted head solely based on available space can reduce its effectiveness. The shape of the rooms, doors, ceilings, occupancy zones, and obstacles must be considered.
Underestimating the importance of drainage
In cooling mode, indoor units produce condensation. Poor drainage can cause leaks, odors, damage, or avoidable service calls.
Neglecting the exterior finish
In a residential area like Côte Saint-Luc, appearance matters. Conduits, cables, and protections must be neatly organized, especially on a visible brick wall.
Comparing only the initial price
A cheaper system, if poorly installed, can cost more in the long run in repairs, discomfort, and loss of efficiency. The quality of mounting, support, sealing, and electrical connection must be part of the evaluation.
Forgetting access for maintenance
An outdoor unit must remain accessible for inspections, cleaning, diagnostics, and future interventions. An overly tight or poorly positioned installation complicates HVAC maintenance.
AirGreen's Experience on Multi-Zone Projects in Montreal and Surrounding Areas
AirGreen regularly carries out installations of multi-zone heat pumps in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each territory presents its own challenges: bungalows, duplexes, condos, townhouses, semi-detached houses, brick buildings, narrow backyards, alleys, balconies, outdoor staircases, and co-ownership regulations.
This experience allows us to anticipate problems before they arise. In Côte Saint-Luc, this preparation was particularly useful for organizing the outdoor installation without compromising access, safety, or the building's general appearance. Our team worked with precision to deliver a clean, functional solution ready for both heating and cooling seasons.
A Final Result Focused on Reliability and Peace of Mind
At the end of the project, the client had a GREE FREE MATCH R32 DoubleZone system capable of managing two indoor zones with a single outdoor unit. The exterior mounting, visible in the photo, demonstrates an installation designed for durability: solid metal support, adequate clearance, protected connections, well-placed electrical supply, and preserved access for service.
This type of realization perfectly illustrates what we strive for at AirGreen: to offer a complete, meticulous, and building-adapted HVAC installation, rather than a quick setup that neglects details. For a multi-zone heat pump, this rigor is essential.
Practical Tips for Côte Saint-Luc Homeowners Considering a Similar Installation
Before choosing a DoubleZone heat pump, it is recommended to have several elements evaluated:
- the actual area of the rooms to be served;
- the dwelling's insulation;
- window orientation;
- ceiling height;
- possible locations for wall-mounted heads;
- exterior wall constraints;
- refrigerant line routing;
- proximity to the electrical panel;
- co-ownership rules, if applicable;
- potential eligibility for subsidies.
A technical visit helps avoid approximations. It also allows for proposing a solution that respects both desired comfort, budget, aesthetics, and building constraints.
AirGreen: A Comprehensive Approach to Wall-Mounted and Multi-Zone Heat Pumps
For this project in Côte Saint-Luc, our objective was simple: to install an efficient, clean, and sustainable system while respecting the building's specific characteristics. The GREE FREE MATCH R32 emerged as a relevant solution due to its multi-zone configuration, modern R32 technology, and its ability to provide independent comfort in two spaces.
Our role is not limited to recommending a brand or model. We analyze the building, plan the installation, meticulously execute the connections, and support the client after commissioning. It is this combination of technical expertise, field experience, and attention to detail that makes the difference in heat pump, wall-mounted air conditioner, HVAC installation, and HVAC maintenance projects in Greater Montreal.
