Installation of a 4-head GREE FREE MATCH R32 Quad-Zone heat pump in Old Montreal

A discreet and strategic HVAC installation in a historic area where every detail counts

Installing a GREE FREE MATCH R32 Quad-Zone Heat Pump in Old Montreal's Old Port requires much more than simply setting up equipment. In this district, where buildings often combine ancient architecture, space constraints, thick walls, irregular ceilings, and high aesthetic demands, every technical decision must be carefully considered. At AirGreen, we recently completed a full HVAC installation in a dwelling located in the heart of the Old Port, featuring a GREE FREE MATCH R32 system composed of 4 independent zones and 4 wall-mounted units.

The client's objective was clear: to improve comfort in several rooms without multiplying outdoor equipment, while maintaining a clean, modern, and discreet appearance indoors. The choice of a multi-zone heat pump was a natural fit, as this type of system allows for air conditioning and heating of different areas of the dwelling with a single outdoor unit, while offering independent control for each room.

The installation photo perfectly illustrates the adopted approach: a GREE wall-mounted unit installed near the ceiling, carefully aligned, with a clean finish that blends into the interior environment. In an Old Port apartment, where walls can have structural peculiarities and available heights are not always standard, this installation precision makes all the difference.

A GREE Quad-Zone Heat Pump designed for urban dwellings in Montreal

The GREE FREE MATCH R32 system is particularly well-suited for urban residences that require a flexible solution. In this project, the client wanted to serve four distinct zones to maintain a comfortable temperature in the main rooms without relying on a single diffusion point. This configuration is ideal for apartments, condos, townhouses, and multi-level units in Montreal, as well as in Laval, Longueuil, on the North Shore, and the South Shore.

Why a 4-zone configuration was the best solution

In this type of installation, each indoor unit becomes an autonomous comfort zone. The client can therefore adjust the temperature according to the actual use of the rooms. For example, a living area can be kept cooler in summer during the day, while a bedroom can be adjusted only in the evening. This zone management helps avoid temperature fluctuations common in older or renovated buildings, where insulation and room orientation are not always uniform.

The main advantages observed with this configuration are:

• Independent control of 4 zones for personalized comfort.
• Reduced temperature variations between rooms.
• A single outdoor unit to limit bulk.
• Better energy efficiency than a solution consisting of several separate systems.
• Cleaner and more consistent installation in a high-end residential context.
• Use of R32 refrigerant, known for its improved performance compared to older generations of refrigerants.

In the Old Port, this approach is particularly relevant because outdoor space available for mechanical equipment is often limited. Balconies, courtyards, rooftops, party walls, and service access points must be meticulously evaluated before any installation.

A GREE wall-mounted unit installed with a meticulous finish

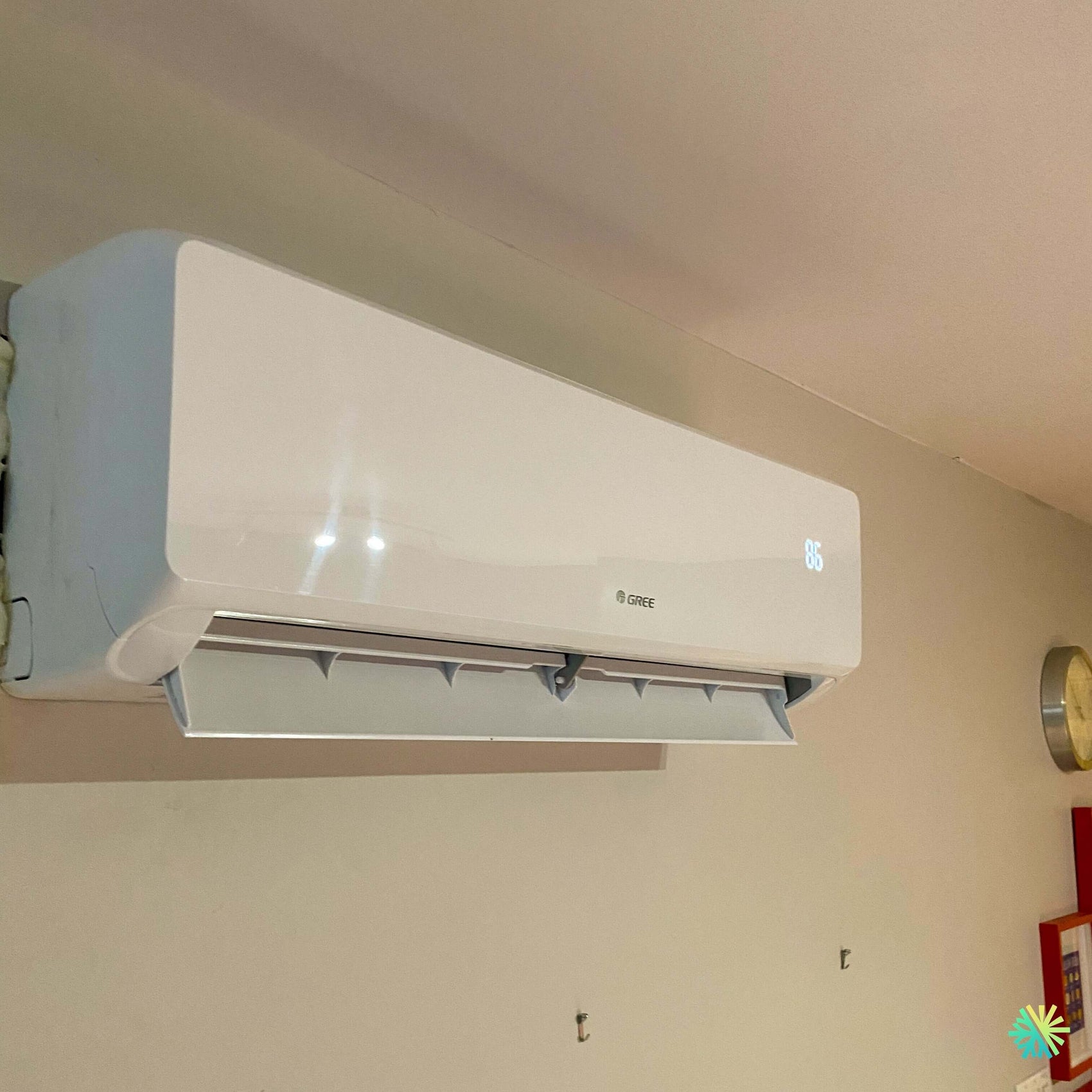

In the photo, we notice a GREE wall-mounted unit placed near the ceiling, with a glossy white facade and a discreet digital display. The unit is installed to optimize air circulation in the room while minimizing visual impact. Adjustable louvers allow for comfortable distribution, without aggressive drafts directed directly at occupants.

For our technicians, the location of a wall-mounted unit is never chosen at random. Several elements must be considered:

• the distance between the indoor unit and the outdoor unit;
• the path of the refrigerant lines;
• condensate drainage;
• the wall structure;
• available height;
• the presence of furniture, light fixtures, curtains, or decorative elements;
• the natural direction of air circulation in the room.

In this project, the challenge was to achieve a discreet installation in an already furnished indoor environment, without compromising system performance. A poorly positioned unit can create cold spots, unnecessary noise, poor air return, or problematic condensate drainage. This is precisely what we avoid through rigorous planning before work begins.

Challenges specific to Old Montreal's Old Port

The Old Port of Montreal presents very specific installation conditions. Buildings there are often old, with thicker walls, less uniform ceilings, more restricted access, and sometimes strict co-ownership requirements. For a wall-mounted or multi-zone heat pump installation, this requires concrete expertise in the Montreal terrain.

In this project, our teams paid particular attention to three aspects: pipe routing, aesthetic integration, and drainage management. When a system includes 4 heads, the refrigerant lines must be logically organized to avoid unnecessary crossovers, excessive lengths, or visible passages. Every foot of piping matters, not only for appearance but also for system performance.

We also ensured that the installation respected the interior constraints of the dwelling. The image shows a unit installed near a slightly sloped or irregular ceiling, which requires precise alignment so that the head is straight, stable, and functional. A quick but poorly leveled installation can lead to drainage problems, vibrations, or premature wear. At AirGreen, we attach great importance to these details, because they are what distinguish an ordinary installation from a durable and professional HVAC installation.

GREE FREE MATCH R32: a high-performance solution for heating and air conditioning

The GREE FREE MATCH R32 model is designed to offer a flexible heating and air conditioning solution. Its multi-zone architecture allows multiple indoor units to be connected to a single outdoor unit, which is perfect for dwellings where different rooms need to be served without multiplying visible outdoor units.

The R32 refrigerant also represents a significant advantage. It generally allows for better heat transfer and increased efficiency compared to some older refrigerants. For owners looking for a modern, more efficient solution that is better suited to current needs, it is a relevant choice.

In an area like Montreal, where summers can be hot and humid and where shoulder seasons often require intermittent heating, a multi-zone heat pump offers great flexibility. It can effectively air condition during hot days, then heat certain rooms when temperatures drop, without necessarily starting a full central system.

An installation designed for real comfort, not just the spec sheet

A good HVAC system is not just about its brand or BTU capacity. The quality of the installation directly influences comfort, energy consumption, noise level, and equipment lifespan. That's why, for this installation in the Old Port, we analyzed the dwelling's configuration before determining the best distribution of the four units.

In several similar projects carried out by AirGreen in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, we have observed that clients are not just looking for a temperature drop in summer. They primarily want a stable temperature, a quiet solution, simple control, and an installation that does not detract from the appearance of their interior space. This project perfectly aligns with this logic.

The four zones allow the client to better manage comfort according to their lifestyle. A very sunny room can receive more air conditioning, while a less used room can remain at a more moderate temperature. This approach reduces unnecessary cycles and improves overall comfort.

Common mistakes to avoid with a multi-zone heat pump

A Quad-Zone heat pump offers great advantages, but only if it is well-selected and properly installed. Certain errors can significantly reduce its efficiency. In our experience, the most common problems arise from poor initial planning.

The first mistake is underestimating the number of zones needed. Some owners think that a single very powerful unit can suffice for several rooms, but air does not always circulate as expected, especially in dwellings with hallways, closed divisions, or thick walls. Conversely, installing too much capacity in a small room can lead to short cycling, poorly controlled humidity, and discomfort.

The second mistake concerns the positioning of the wall-mounted units. A unit placed in the wrong spot can blow directly onto a bed, sofa, or workspace. It can also be blocked by furniture or fail to adequately cover the room. In the Old Port project, the location visible in the photo was chosen to promote balanced diffusion while maintaining a clean appearance.

The third mistake is neglecting condensate drainage. Each indoor unit produces water in air conditioning mode. This water must be drained correctly, with a sufficient slope or a pump when necessary. In old buildings, this point is essential, as drainage paths are sometimes more complex.

Finally, it is important to avoid choosing a contractor based solely on price. A poorly executed HVAC installation can lead to significant costs: repairs, re-piping, leaks, noise, reduced performance, or persistent discomfort. At AirGreen, we favor a comprehensive approach: evaluation, recommendation, installation, startup, verification, and usage advice.

The importance of an experienced HVAC contractor in Montreal

In a district like the Old Port, local experience is a major advantage. Our teams understand the realities of Montreal buildings: restricted access, co-ownerships, masonry walls, irregular ceilings, urban planning constraints, finishing requirements, and high owner expectations.

For this type of installation, we coordinate the steps rigorously. Before installation, we confirm the locations of the units, the line paths, possible outlets, electrical supply, and drainage constraints. During installation, we work cleanly to minimize impact on the living space. After startup, we verify the operation of each zone, the supply air temperature, remote controls, operating modes, and maintenance instructions.

This method is the same one we apply in our projects for wall-mounted heat pumps, wall-mounted air conditioners, multi-zone systems, and complete HVAC solutions across Montreal, Laval, Longueuil, the North Shore, and the South Shore.

A result tailored to client needs

At the end of the installation, the client had a flexible, discreet, and high-performance system. Each zone can now be controlled independently, which improves daily comfort and allows for better energy management. The indoor unit visible in the photo clearly demonstrates the desired result: a clean, understated, well-aligned installation, with a natural integration into the space.

The client particularly appreciated the ability to adjust different rooms according to their use. In an urban dwelling, this flexibility truly changes the comfort experience. Rather than over-cooling one zone to try to cool another, the system distributes heating and air conditioning where they are needed.

Practical advice for homeowners considering a similar installation

For owners in the Old Port or other areas of Montreal, a GREE FREE MATCH R32 Quad-Zone heat pump can be an excellent solution when several rooms need to be served by a single outdoor system. However, before choosing the model, it is important to have the building evaluated.

We particularly recommend checking:

• the area and configuration of each room;
• the insulation of walls and windows;
• the solar orientation of the dwelling;
• the possible location of the outdoor unit;
• the distance between the indoor units and the outdoor unit;
• drainage possibilities;
• co-ownership or building regulations;
• available electrical capacity;
• heating, cooling, and noise level expectations.

A good evaluation prevents unpleasant surprises. It also allows for proposing a truly adapted solution, rather than a system chosen solely based on an approximate BTU number.

HVAC Maintenance: Protecting Your System's Performance

After installation, HVAC maintenance plays an essential role. A multi-zone heat pump operates with multiple indoor units, which means each unit must be cleaned regularly. Filters should be washed, coils inspected, drains checked, and the outdoor unit kept clear.

Neglected maintenance can reduce airflow, increase energy consumption, and cause odors or leaks. For a system installed in an urban environment like the Old Port, where dust, humidity, and temperature variations can be significant, periodic maintenance is highly recommended.

At AirGreen, we always explain to the client how to use their system correctly: operating modes, recommended temperature, basic filter cleaning, and signs to watch for. This step is an integral part of our approach, because a successful installation must remain performing for many years.

AirGreen: Local Expertise for Multi-Zone Installations

This installation of a GREE FREE MATCH R32 Quad-Zone 4-head heat pump in Old Montreal perfectly reflects our way of working: a solution adapted to the building, careful execution, a clean finish, and constant attention to the client's real comfort.

We carry out this type of project in all sectors of Montreal, as well as in Laval, Longueuil, on the North Shore and the South Shore. Whether it's a condo, a townhouse, a duplex, a renovated building, or a property with particular constraints, we take the time to propose a coherent and sustainable HVAC solution.

A well-installed multi-zone heat pump can transform the comfort of a dwelling. It allows for better room management, reduces temperature differences, improves energy efficiency, and preserves interior aesthetics. In this Old Port project, the GREE system achieved this balance between performance, discretion, and daily comfort.
