Installation of a MIDEA MIDEA28 dual-zone heat pump in Côte Saint-Luc: two wall-mounted units, one outdoor unit, and precise comfort for each space
AirGreen installs a MIDEA MIDEA28 dual-zone heat pump in Côte Saint-Luc: two wall-mounted units, one compact outdoor unit, and precise HVAC comfort for two spaces.
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen
The article, chapter by chapter
A Compact Installation Designed for a Residential Balcony in Côte Saint-Luc
In this project carried out in Côte Saint-Luc, our AirGreen team installed a MIDEA MIDEA28 dual-zone heat pump, consisting of two indoor units connected to a single outdoor unit. The objective was clear: to provide stable comfort in two distinct areas of the dwelling, while minimizing outdoor clutter in a confined space.

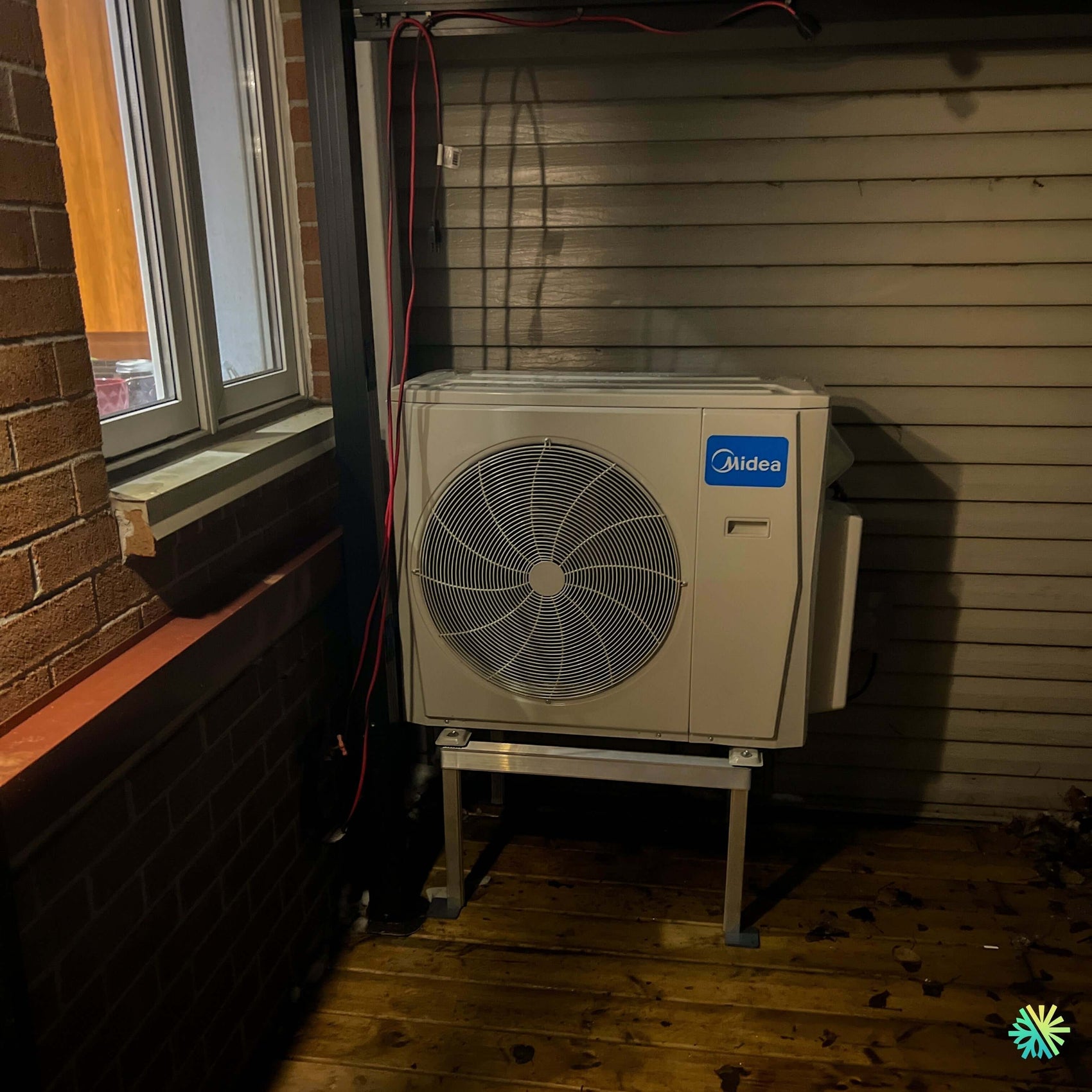

The site photo clearly shows one of the central elements of this installation: the Midea outdoor unit was positioned on a raised aluminum stand, directly on a wooden deck, near an exterior wall and a window. This type of configuration requires particular attention to stability, vibration, air clearance, accessibility for HVAC maintenance, and aesthetic integration.
Why a MIDEA28 Dual-Zone Heat Pump Was Suitable for This Project
A dual-zone heat pump allows two indoor units to be connected to a single outdoor condenser. For a dwelling in Côte Saint-Luc, where outdoor space can be limited, this approach offers an excellent balance between performance, discretion, and flexibility.
The Midea multi-zone system allows individual control of indoor units: each room can be adjusted according to its needs, without having to air condition or heat the entire dwelling uniformly. According to the Midea technical brochure, multi-zone systems are designed to connect a single outdoor unit to multiple indoor units, with independent control of each zone.
Concrete Benefits for the Customer
This installation offers several practical benefits:
- Two independent comfort zones with a single outdoor unit.
- Reduced clutter on the terrace.
- Inverter technology operation, allowing capacity to be adjusted according to actual demand.
- Better energy management, especially when only one room is in use.
- Solution suitable for houses, condos, and plexes in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
An Outdoor Installation That Required Precision
The outdoor unit was installed in a relatively tight space, between a wall structure, a window, and exterior siding. In this type of situation, it's not enough to "just put the machine down." It's necessary to consider:
- the necessary clearance for air exhaust;
- a solid and perfectly level base;
- a reduction of vibrations transmitted to the terrace;
- a neat routing of refrigerant lines;
- a safe electrical installation;
- future access for service, cleaning, and diagnostics.
The metal support visible in the photo keeps the unit above the floor, which helps protect the machine from accumulation of water, snow, leaves, and debris. In Côte Saint-Luc, as in many residential areas of Montreal, this precaution is important to extend the system's lifespan.
The Challenge of Refrigerant Lines on a Dual-Zone Installation
A dual-zone HVAC installation requires more planning than a single-zone system. Two indoor units mean two refrigeration circuits, two communication sets, and precise coordination between the interior and exterior.
In this project, the lines had to be neatly grouped to maintain a tidy appearance on the facade and prevent mechanical stress on the fittings. The narrow space near the window required rigorous management of line routing, without compromising accessibility.
At AirGreen, we pay particular attention to these details, as they directly influence:
- system reliability;
- heating performance;
- noise level;
- ease of maintenance;
- the final appearance of the installation.
MIDEA28: A Flexible Multi-Zone Solution for Montreal Area Homes
The MIDEA28 range is particularly interesting for projects where a good level of comfort is desired without multiplying outdoor units. The Midea multi-zone system offers several possible combinations of indoor units, including wall-mounted, ducted, console, and cassette units, depending on the building's needs.
In the context of this installation in Côte Saint-Luc, the choice of a two-wall-mounted-head configuration made it possible to address a common reality: two areas of the dwelling had different needs. One room might require more heating or air conditioning depending on its exposure, use, or distance from natural heat sources.
Better Room-by-Room Control
One of the great advantages of a dual-zone heat pump is the ability to adapt comfort to the actual use of the rooms. For example, a bedroom can be kept at a cooler temperature at night, while a living room can be heated more in the evening.
This logic is particularly relevant in Côte Saint-Luc residences, where many dwellings combine open spaces, closed bedrooms, extensions, or rooms with very different levels of sunlight.
A Well-Integrated Outdoor Unit Despite Limited Space
The photo shows a simple, compact, and functional outdoor installation. The Midea unit is placed on a robust stand, with sufficient height to limit direct exposure to ground conditions. The back wall and proximity to the window made the layout more delicate, but our team prioritized a configuration that respects site constraints while maintaining good airflow.
In a heat pump installation on a terrace, the most common mistakes are:
- installing the unit too close to a wall;
- neglecting vibration on a wooden structure;
- leaving lines exposed or poorly secured;
- underestimating snow accumulation;
- making the unit difficult to access for maintenance.
This project was carried out with these risks in mind from the outset.
Performance, Efficiency, and Grant Eligibility
Midea multi-zone systems are designed to offer high efficiency thanks to inverter technology. Depending on the configurations, Midea multi-zone models can achieve high SEER2 ratings and offer capacities adapted to several residential zones.
For customers in Montreal, Laval, Longueuil, the North Shore, and the South Shore, one of the important points also remains the potential eligibility for available grants, particularly depending on the exact model, the installed combination, and the criteria in force at the time of application.
At AirGreen, we always verify the information applicable to the project: outdoor model, indoor units, AHRI combination, power, efficiency, and necessary documents. This step prevents customers from choosing a machine solely on price, without considering the technical requirements related to financial assistance programs.
The Role of the AirGreen Team on This Project
Our work is not limited to installing a machine. On this project, our team had to evaluate the outdoor location, plan the line routing, install the support, connect the circuits, perform operational tests, and verify that both zones responded correctly.
A good HVAC installation always includes:
- a building analysis;
- an adapted capacity selection;
- a careful mechanical installation;
- a compliant electrical installation;
- a complete commissioning;
- clear explanations to the customer on system use.
This method helps avoid several common problems: lack of performance in winter, excessive noise, poor drainage, short cycling, or discomfort between rooms.
Why the Outdoor Unit's Location is So Important
The outdoor unit is the heart of the system. Even an excellent machine can perform poorly if installed in a bad location. In this project in Côte Saint-Luc, the stand installation allowed the unit to be stabilized while improving protection against humidity and debris.
We also took into account the proximity of the window. When a heat pump is installed near a living space, noise, vibrations, and airflow direction must be considered. A well-thought-out installation reduces discomfort and improves the customer's daily experience.
A Solution Adapted to the Realities of Condominiums and Urban Homes
In many areas of Montreal and its surroundings, heat pump installations must contend with limited outdoor spaces: balconies, terraces, narrow courtyards, party walls, alleys, restricted access, or condominium regulations.
The MIDEA MIDEA28 dual-zone effectively addresses these constraints, as it allows two zones to be air-conditioned and heated without installing two condensers. This is a particularly interesting solution for:
- condos with two main rooms to treat;
- duplexes and triplexes;
- houses with a bedroom far from the living room;
- dwellings with extensions;
- spaces where installing a central system is not practical.
Practical Advice for Homeowners Considering a Dual-Zone Installation
Before installing a dual-zone heat pump, it's important not to limit yourself to the brand or price. The true success of the project depends on the overall design.
Here are the elements to check:
- The actual capacity needed for each room.
- The location of the indoor heads.
- The distance between the indoor units and the outdoor unit.
- Condensate drainage.
- The acceptable noise level.
- The available space around the condenser.
- Condominium requirements, if applicable.
- Eligibility for grants.
A well-chosen but poorly placed machine can become uncomfortable. Conversely, a well-thought-out installation genuinely transforms the heating and air conditioning experience.
A Clean, Stable, and Durable Result in Côte Saint-Luc
The final result of this installation highlights what we strive for in every project: a discreet, functional, and durable solution. The Midea outdoor unit is well-positioned, the support is stable, the space is optimized, and the system now allows precise control of two indoor zones.
For AirGreen, this type of project perfectly illustrates our approach: adapting the solution to the building, not the other way around. Each residence in Côte Saint-Luc, Montreal, Laval, Longueuil, on the North Shore, or the South Shore presents its own constraints. Our role is to transform these constraints into a reliable, high-performance, and well-integrated installation.
The Importance of Post-Installation Maintenance
Once the heat pump is installed, HVAC maintenance remains essential. A dual-zone system includes several components: filters, coils, fans, drains, refrigerant connections, and an outdoor unit. Regular maintenance helps maintain performance, reduce noise, prevent water leaks, and avoid a drop in efficiency.
We recommend that homeowners:
- clean the indoor unit filters regularly;
- keep the outdoor unit clear;
- avoid the accumulation of leaves or snow around the machine;
- have the system inspected periodically;
- promptly report any unusual noise or loss of performance.
Good maintenance protects the investment and helps the heat pump maintain its efficiency for many years.
AirGreen: Local HVAC Expertise for Multi-Zone Installations
This installation of a MIDEA MIDEA28 dual-zone heat pump in Côte Saint-Luc demonstrates the importance of a local, technical, and personalized approach. Our team understands the realities of residential buildings in the Greater Montreal area: difficult access, narrow balconies, co-ownership constraints, harsh winters, and high expectations for comfort.
At AirGreen, we install HVAC systems while considering efficiency, durability, appearance, and customer experience. A good installation is never just about power. It's a combination of technical choice, on-site precision, and respect for the building.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
An on-site estimate, the right capacity, the right equipment.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
