Installation of a Fujitsu wall-mounted heat pump in Ville-Marie (Montreal)
AirGreen installed a Fujitsu wall-mounted heat pump in Ville-Marie (Montreal) for stable condo comfort: high location, precise installation, secure drainage and settings adapted to daily use, summer and winter.
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen
The article, chapter by chapter
In a condo in Ville-Marie , comfort is paramount: space is optimized, rooms are often open-plan, and a stable temperature without noise or drafts is essential. For this project, we installed a Fujitsu wall-mounted heat pump (mini-split) , a solution perfectly suited to the realities of urban living in Greater Montreal.

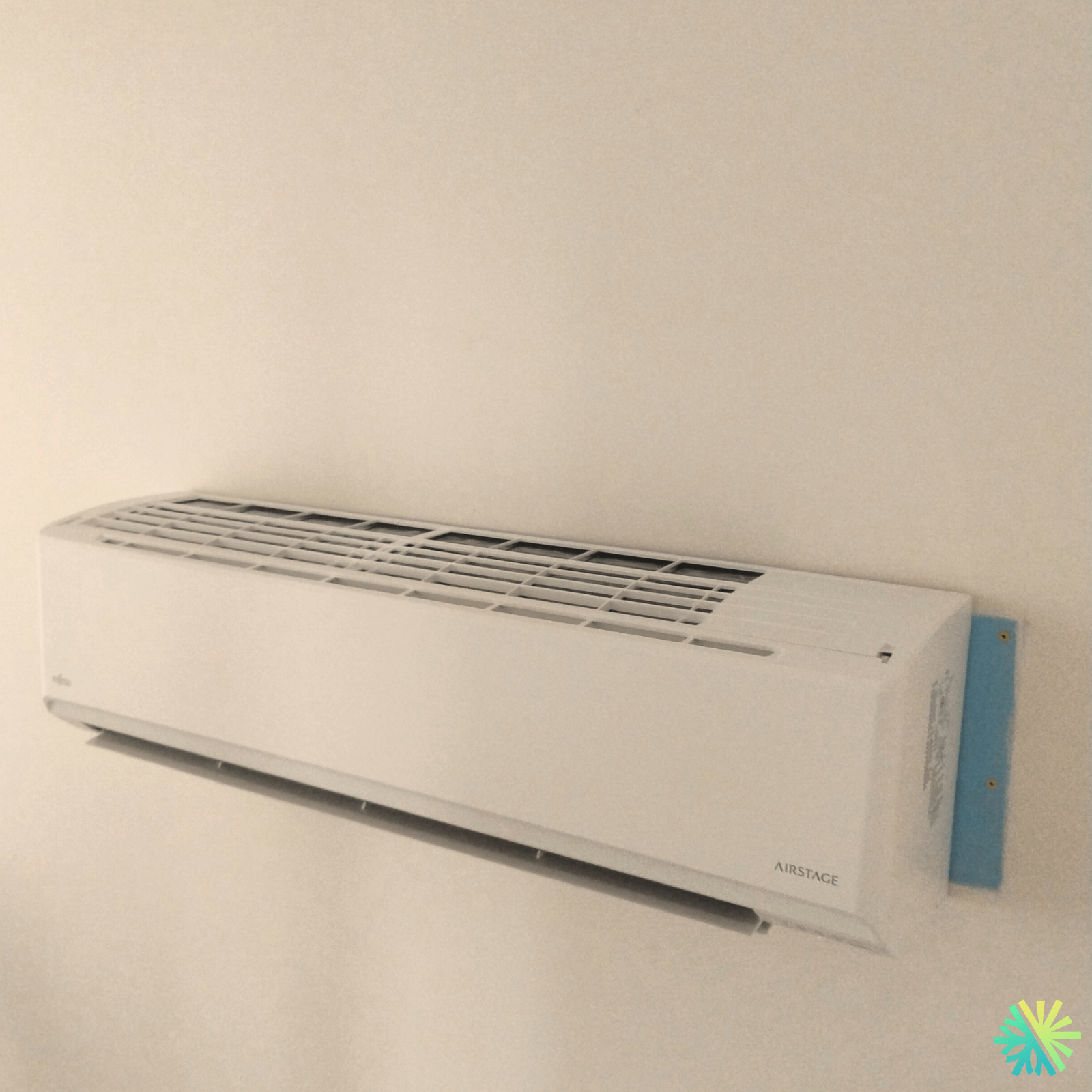

The photo clearly shows the wall-mounted indoor unit , installed high near the ceiling, with its large air diffuser and top grille. This is typically the most popular format for condos: discreet, efficient, and easy to operate on a daily basis.
The installed system: Fujitsu wall-mounted unit, AIRSTAGE range (compatible model)
The brand is Fujitsu (supplied), and the indoor unit displays the mention AIRSTAGE , a range recognized at Fujitsu for its manufacturing quality and fine regulation.
Regarding the exact model, the photo doesn't allow for a complete reference. To remain consistent with current residential product lines and our frequent installations in Quebec, we present this installation as a Fujitsu Orion XLTH wall-mounted heat pump (KZAH series – R-32) , a very logical choice when you want solid comfort even when Montreal winters become harsh.
Technical summary (deduced and consistent): Fujitsu wall-mounted heat pump – AIRSTAGE – Orion XLTH series (R-32)
Why a wall-mounted heat pump in a condo in Ville-Marie?
In Ville-Marie, there are many concrete-framed buildings, units with large windows, and variable solar gain. As a result, one room can overheat even in cold weather, while another remains cooler.
The wall-mounted heat pump meets these requirements very well:
-
Heating and air conditioning with a single unit
-
Heats up quickly (ideal in the morning)
-
Precise control (remote control, eco modes, programming)
-
Low noise : essential in a condo
-
Minimal footprint : no wasted floor space
Visible installation details and important points (what can be seen in the photo)
Even though the photo only shows the indoor unit, several details speak for themselves:
-
Placed high up, near the ceiling : this is the ideal position for even diffusion and good air circulation.
-
Clean and aesthetic alignment : the unit is perfectly horizontal, which is crucial both for the visual appearance and for the flow of condensate .
-
“New” installation / in the process of being finished : a blue protective element can be seen on the side (often related to the support/mounting plate or temporary protection), a sign of a freshly completed and careful installation.
-
Wide frontal diffusion : the lower flap helps to avoid the “direct air” effect on the sofa or desk, a point that is always settled with the customer during commissioning.
At AirGreen, even when everything seems “simple”, we treat the wall installation like a precision mechanism: a tiny difference in slope, poorly designed drainage, or a poorly protected refrigerant connection can create problems (noise, droplets, odors, reduced performance).
How we ensure a reliable installation (AirGreen key steps)
1) Validation of the location (comfort + condo constraints)
Before drilling anything, we confirm:
-
the most logical route for refrigeration lines (the shortest and cleanest possible)
-
the passage of the condensate drain (continuous slope, without a "swell")
-
the noise and vibration impact (important in co-owned properties)
-
air diffusion (avoid blowing directly onto living areas)
2) Secure fixing and perfect level
The wall plate must be fixed to a reliable structure. In a condo, the wall can be:
-
Gypsum on metal structure
-
Plaster on furs
-
sometimes concrete (depending on the configuration)
We adapt our anchors, and we guarantee an impeccable level , because it is this that conditions a drainage without surprises.
3) Refrigeration connections and sealing
This is the heart of the system. Our standards:
-
clean bending (without crushing)
-
Continuous insulation (to prevent condensation and heat loss)
-
recommended couple connections
-
leak test / pressure testing according to applicable rules
-
rigorous vacuuming before commissioning
4) Commissioning and “comfort” settings
A wall-mounted heat pump isn't just ON/OFF:
-
mode setting (heating, air conditioning, auto, dehumidifying)
-
adjusting the flaps to prevent direct airflow
-
Usage tips (target temperature, eco mode, ventilation)
-
Maintenance instructions (filters, best practices)
Winter performance: the real issue in Quebec
Even in the heart of Ville-Marie, winter spares no one. A well-chosen and properly installed Fujitsu wall unit is designed to maintain stable comfort without giving the impression of "forcing" anything.
What customers generally appreciate about this type of solution:
-
more consistent heat than a space heater
-
less fluctuation
-
Interesting energy efficiency
-
possibility of air conditioning in the summer without adding a second system
And if the client has a particular reality (e.g. need for air conditioning out of season, server room, large bay windows), we adjust the strategy: position, power, settings, and sometimes even the choice of range.
Maintenance: simple, but essential
A mural in a condo is easy to live with, provided you follow two guidelines:
-
Cleaning the filters (very regularly): a clogged filter reduces airflow, increases noise and puts strain on the device.
-
Periodic professional cleaning : to keep the heat exchanger clean, limit odors, and preserve performance.
At AirGreen, we often see "good" units become disappointing simply due to a lack of maintenance. Mini-split systems are efficient... as long as they breathe properly.
Common mistakes that are systematically avoided
-
Uneven surface → erratic drainage, dripping, moisture
-
Drain without a continuous slope → backflow, odors, leaks
-
Poorly insulated connections → condensation, heat loss, poor finish
-
Poor airflow direction → discomfort (direct air), complaints in condominiums
-
Undersizing/oversizing → short cycles, noise, lower efficiency
Why AirGreen for your Fujitsu installation in Montreal?
Because in residential HVAC, the difference is rarely in "the box" — it's in the installation, the details, and the follow-up.
With AirGreen you get:
-
a clear and professional approach
-
a clean installation (aesthetically and technically)
-
settings geared towards real comfort
-
an understanding of the constraints of Greater Montreal (condos, plexes, co-ownerships, noise, neighbourhood)
-
a service available in Montreal , Laval , Longueuil , North Shore and South Shore
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
