An HVAC installation on an urban facade, designed for performance, discretion, and technical access
At the heart of Ville-Marie, in a dense area of Montreal where every facade, every balcony, and every exterior clearance matters, our AirGreen team installed a Fujitsu AIRSTAGE Orion XLTH 24,000 BTU wall-mounted heat pump. This project perfectly illustrates the type of HVAC intervention that requires both technical precision, practical sense, and respect for the built environment.

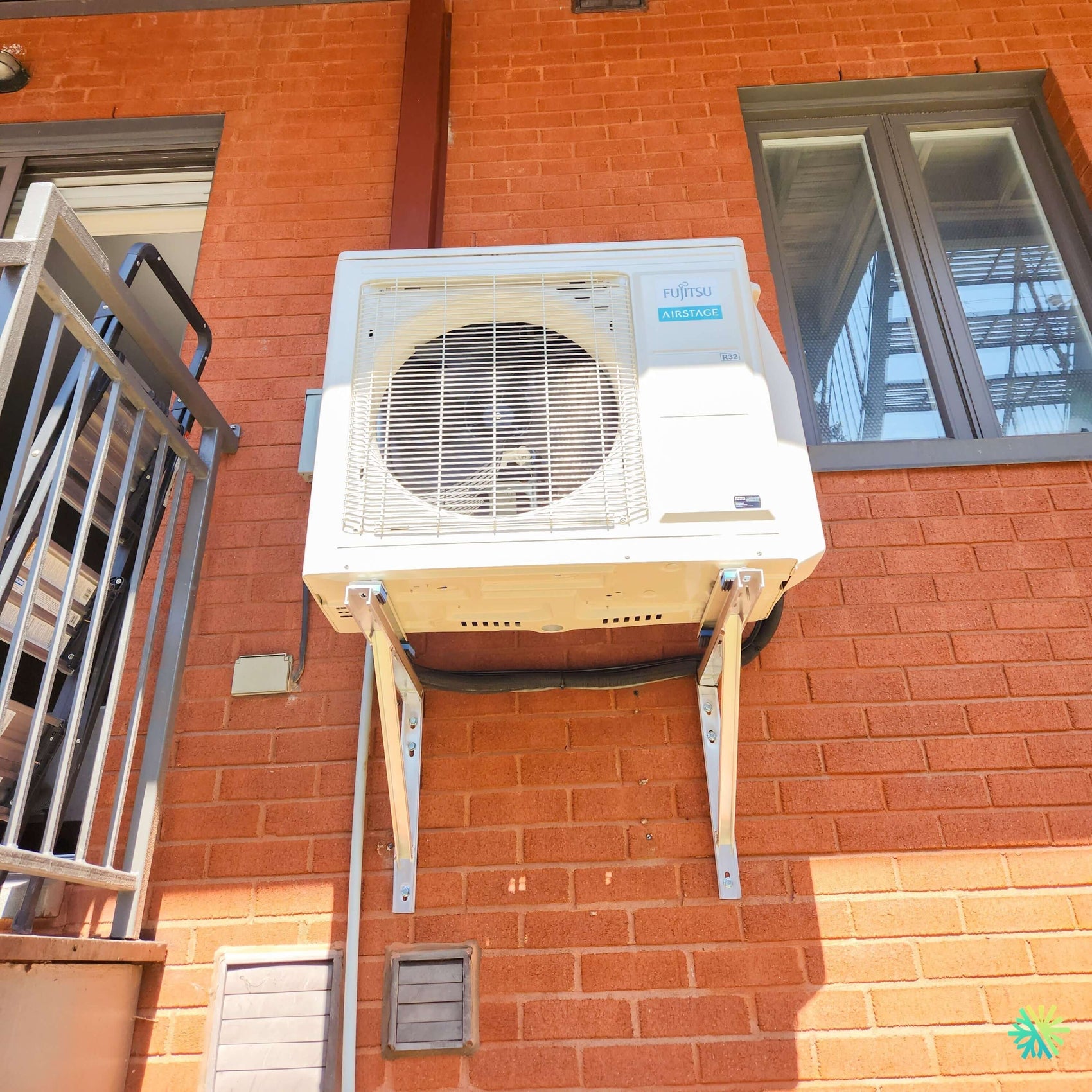

The construction site photo shows an outdoor installation fixed on robust wall brackets, directly on a red brick facade. The outdoor unit is positioned high up, between a window and a metal balcony structure, with carefully assessed clearance to allow for air circulation, service access, and mechanical stability. In a neighborhood like Ville-Marie, this configuration is common: ground spaces are limited, exterior walls often share architectural constraints, and the installation must remain clean, solid, and safe.
The choice of the Fujitsu Orion XLTH 24,000 BTU model met a clear need: to provide reliable air conditioning comfort in summer and heating during Montreal's cold periods. This series operates in heating down to -26 °C, uses R-32 refrigerant, and benefits from Inverter technology, which automatically adjusts performance according to the actual needs of the space. According to the Fujitsu technical sheet, the 24KZAH1 model offers a nominal cooling capacity of 22,000 BTU/h and a nominal heating capacity of 25,200 BTU/h, with a heating range from -26 °C to 24 °C.
Why a Fujitsu Orion XLTH 24,000 BTU for this project in Ville-Marie
In a dwelling or residential space located in Ville-Marie, temperature variations can be significant. Brick buildings accumulate heat during the summer, especially when solar exposure is high, while periods of intense cold require a heat pump capable of maintaining stable heating without relying too quickly on a backup system.
The Fujitsu Orion XLTH wall-mounted heat pump was chosen for several concrete reasons:
- Adapted capacity: The 24,000 BTU size is suitable for more open spaces, large living rooms, apartments with common areas, or zones requiring greater air diffusion.
- Cold climate heating: The XLTH series is designed to operate down to -26 °C, an essential point in Montreal.
- R-32 Refrigerant: This refrigerant has a lower global warming potential than R-410A, making it a more current choice for a residential HVAC installation.
- Inverter Technology: The compressor modulates its operation, reducing abrupt cycles and improving comfort.
- Quiet operation: The technical sheet indicates an outdoor sound level of 49/50 dB(A) for the 24KZAH1 model, an important detail in dense urban environments.
- Integrated Wi-Fi and control options: The AIRSTAGE series allows for more flexible comfort management.
For a customer located in Montreal, this type of system represents a good balance between comfort, energy efficiency, reliability, and adaptability to the constraints of urban buildings.
A brick facade: solid, but demanding
The installation visible in the photo shows an outdoor unit mounted on wall brackets. This decision is never made at random. A brick facade offers a solid base, but it requires rigorous fastening. Our technicians must check the quality of the masonry, the location of the joints, the alignment of the supports, and the weight distribution.
On this construction site in Ville-Marie, the goal was to create an installation that was:
- stable in the long term;
- accessible for HVAC maintenance;
- well-clear for outdoor unit ventilation;
- visually clean despite facade constraints;
- safe in relation to windows, balcony, and passageways.
The wall brackets were carefully installed to maintain the unit at an adequate height. This configuration also protects the heat pump from snow accumulation on the ground, a significant advantage in areas of Montreal, Laval, Longueuil, the North Shore, and the South Shore, where winters can quickly complicate access to poorly positioned outdoor equipment.
Duct routing: a detail that changes everything
A successful HVAC installation is not limited to mounting a machine on the wall. The routing of refrigerant lines, drainage, communication wiring, and electrical power directly influences the performance, durability, and final appearance of the project.
In this installation, the routing of the lines was planned to remain discreet and functional. The space under the outdoor unit, the presence of windows, and the balcony structure forced our team to work with precision. A bad angle, inadequate slope for the drain, or a too tight curve in the lines can cause problems in the medium term: vibration, noise, imperfect water evacuation, or difficult access during maintenance.
At AirGreen, we pay particular attention to these elements because they often make the difference between a simply functional installation and a durable installation that is easy to maintain and well integrated into the building.
Technical Performance of the Fujitsu Orion XLTH 24,000 BTU Model
The installed model belongs to the Fujitsu AIRSTAGE Orion XLTH series, a wall-mounted range designed for cold climates. For the 24,000 BTU model, important technical data include:
- Nominal cooling: 22,000 BTU/h
- Cooling range: 9,100 to 28,900 BTU/h
- Nominal heating: 25,200 BTU/h
- Heating range: 8,200 to 36,800 BTU/h
- SEER2: 24.0
- HSPF2 region V: 9.4
- EER2: 12.5
- Refrigerant: R-32
- Heating range: up to -26 °C
- Required breaker: 20 A
- Maximum piping length: up to 50 m, depending on installation conditions
- Maximum vertical difference: 30 m
These features make it a serious option for owners looking for a wall-mounted heat pump capable of providing air conditioning in summer and a significant portion of heating in winter.
The importance of outdoor positioning in urban environments
In Ville-Marie, one often has to contend with alleys, balconies, exterior staircases, shared facades, restricted access, and condominium or building regulations. A poorly placed outdoor unit can lead to several problems: noise perceived by a neighbor, maintenance difficulties, obstruction of airflow, snow accumulation, or vibrations transmitted to the structure.
On this project, the Fujitsu unit was installed at a height that frees up ground space, while maintaining realistic access for future interventions. The clearance around the fan was respected to allow the unit to properly discharge air. This point is particularly important for a heat pump: when air circulation is poor, the machine works harder, consumes more, and can lose efficiency.
What the client wanted to avoid
During this type of replacement or new installation, clients often mention the same concerns:
- a machine that is too noisy;
- a visible and poorly finished installation;
- an outdoor unit placed too low, exposed to snow;
- condensation not properly drained;
- poorly protected lines;
- insufficient performance during extreme cold;
- a lack of clarity regarding future maintenance.
In this project, our approach was to address these points from the planning stage. The choice of a Fujitsu Orion XLTH responded to the need for reliability in cold climates, while the wall-mounted installation provided better protection against the physical constraints of the site.
Mistakes to avoid when installing a wall-mounted heat pump in Montreal
A wall-mounted heat pump can offer excellent performance, but only if it is well chosen and properly installed. Here are the mistakes we still too often see during inspections or corrections of existing installations:
Choosing only based on price
A low price may seem attractive, but you need to compare the actual capacity, heating performance, component quality, parts availability, and the installer's expertise. A poorly adapted machine can cost more in the long run.
Neglecting heating capacity
In Montreal, a heat pump should not be evaluated solely on its cooling capacity. Low-temperature heating is essential, especially for clients who want to reduce their reliance on electric baseboards or another supplementary system.
Installing the outdoor unit too close to an obstruction
A wall, fence, balcony, or railing can hinder air circulation. The outdoor unit must breathe properly to maintain its performance.
Underestimating drainage
Condensation water must be properly drained. An inadequate slope or a poorly placed drain can cause visible runoff, freezing, or damage to surfaces.
Forgetting maintenance
Even an excellent machine requires regular HVAC maintenance: filter cleaning, coil inspection, drainage verification, pressure checks, and support examination.
Comfort adapted to Ville-Marie's realities
Ville-Marie includes old buildings, renovated condos, plexes, compact apartments, and spaces with sometimes atypical configurations. A wall-mounted solution like the Fujitsu Orion XLTH integrates well into this context because it can treat a large area without a duct network.
In this project, the wall-mounted heat pump becomes both a practical and high-performing solution. In summer, it stabilizes the indoor temperature despite solar gains and heat accumulated in the brick. In winter, it provides effective heating for a large part of the cold season. For many homeowners in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, this type of system represents a sustainable investment in daily comfort.
The AirGreen approach: precision, cleanliness, and responsibility
This construction site reflects our way of working. Before installing, we analyze the actual environment: wall structure, distance between windows, pipe routing, indoor unit location, outdoor clearance, noise level, maintenance access, and aesthetic constraints.
During installation, our technicians ensure that the supports are solid, the unit is level, connections are clean, and the system is properly tested. After startup, we validate cooling and heating operation, controls, settings, and condensate drainage.
This rigor is essential in a sector like Ville-Marie, where a poorly designed installation can quickly become problematic for the owner, neighbors, or the building.
Subsidies and eligibility: a point to validate before purchase
Financial assistance programs can vary depending on the period, the exact model, the project configuration, and the criteria in force. High-performance heat pumps like the Fujitsu Orion XLTH models may be eligible for certain programs when the conditions are met. At AirGreen, we help our customers verify available information before installation to avoid unpleasant surprises.
It is important to keep the exact model numbers, detailed invoice, installation information, and technical documents. For this project, the precision of the model — Fujitsu Orion XLTH 24,000 BTU — is a central element, as subsidies are generally based on verifiable data.
A Fujitsu installation in Ville-Marie that shows the importance of a job well done
This installation of a Fujitsu AIRSTAGE Orion XLTH 24,000 BTU wall-mounted heat pump in Ville-Marie demonstrates that a good HVAC project does not only depend on the choice of machine. It also depends on the analysis of the building, the outdoor positioning, the quality of the supports, the routing of the lines, respect for clearances, and commissioning.
In an urban environment like Montreal, every detail counts. A brick facade, a neighboring balcony, a close window, or limited space can turn a simple installation into a technical project. This is precisely where AirGreen's experience proves invaluable.
For homeowners considering an HVAC installation in Montreal, Laval, Longueuil, on the North Shore or the South Shore, this project is an excellent example of what to look for: a well-suited machine, a clean installation, a competent team, and planning that takes into account the actual building, not just the technical specifications.
