A meticulous outdoor installation for a Beaconsfield residence exposed to the realities of the Quebec climate
In Beaconsfield, on the West Island of Montreal, residences are often exposed to very specific conditions: winds from Lake Saint-Louis, rapid temperature variations, significant humidity in spring and autumn, as well as winters where heating must remain reliable even when the mercury suddenly drops. It is in this context that our AirGreen team installed a Fujitsu ALTAIR 300 wall-mounted heat pump, a mini split system designed to offer stable, quiet, and efficient comfort in a home where installation quality matters as much as the appliance's performance.
Upon arrival, the objective was clear: install the outdoor unit cleanly, durably, and safely, while respecting the property's architectural environment. The project photo shows a Fujitsu Airstage R32 outdoor unit installed on a robust aluminum support, slightly raised from the patio surface. This choice is not just aesthetic. It meets several practical requirements: protecting the unit against water, snow, and ice accumulation, promoting better air circulation around the appliance, and simplifying future HVAC maintenance operations.
At AirGreen, we pay particular attention to this type of detail, because a successful HVAC installation is never limited to plugging in a machine. It relies on a comprehensive site survey, an understanding of the building, drainage planning, stable fastening, clean management of refrigerant lines, and rigorous commissioning.
Why the Fujitsu ALTAIR 300 was a relevant choice for this residence
The choice of a wall-mounted heat pump must always consider the actual use of the house. In Beaconsfield, many residences have large living spaces, open rooms, large windows, and sometimes extensions that are not always perfectly served by the existing central system. A mini split solution like the Fujitsu ALTAIR 300 allows comfort to be targeted where it is needed, without modifying the entire heating and air conditioning infrastructure.
This model falls into the category of high-performance wall-mounted units, adapted to Quebec residential needs. It is appreciated for its ability to maintain a comfortable temperature with precise modulation, avoiding abrupt on/off cycles that can cause temperature fluctuations and unnecessary consumption. Thanks to inverter technology, the appliance adjusts its operation according to the actual demand of the room, which improves comfort and reduces energy loss.
In this project, the client was looking for a solution that was reliable, discreet, and durable. The system had to meet three priorities:
- improve air conditioning comfort during hot and humid periods;
- provide effective heating during cold seasons;
- preserve the exterior appearance of the residence with a clean and well-integrated installation.
The Fujitsu ALTAIR 300 met these expectations well, particularly thanks to its quiet operation, modern design, and use of R32 refrigerant, a feature increasingly sought after in recent HVAC equipment.

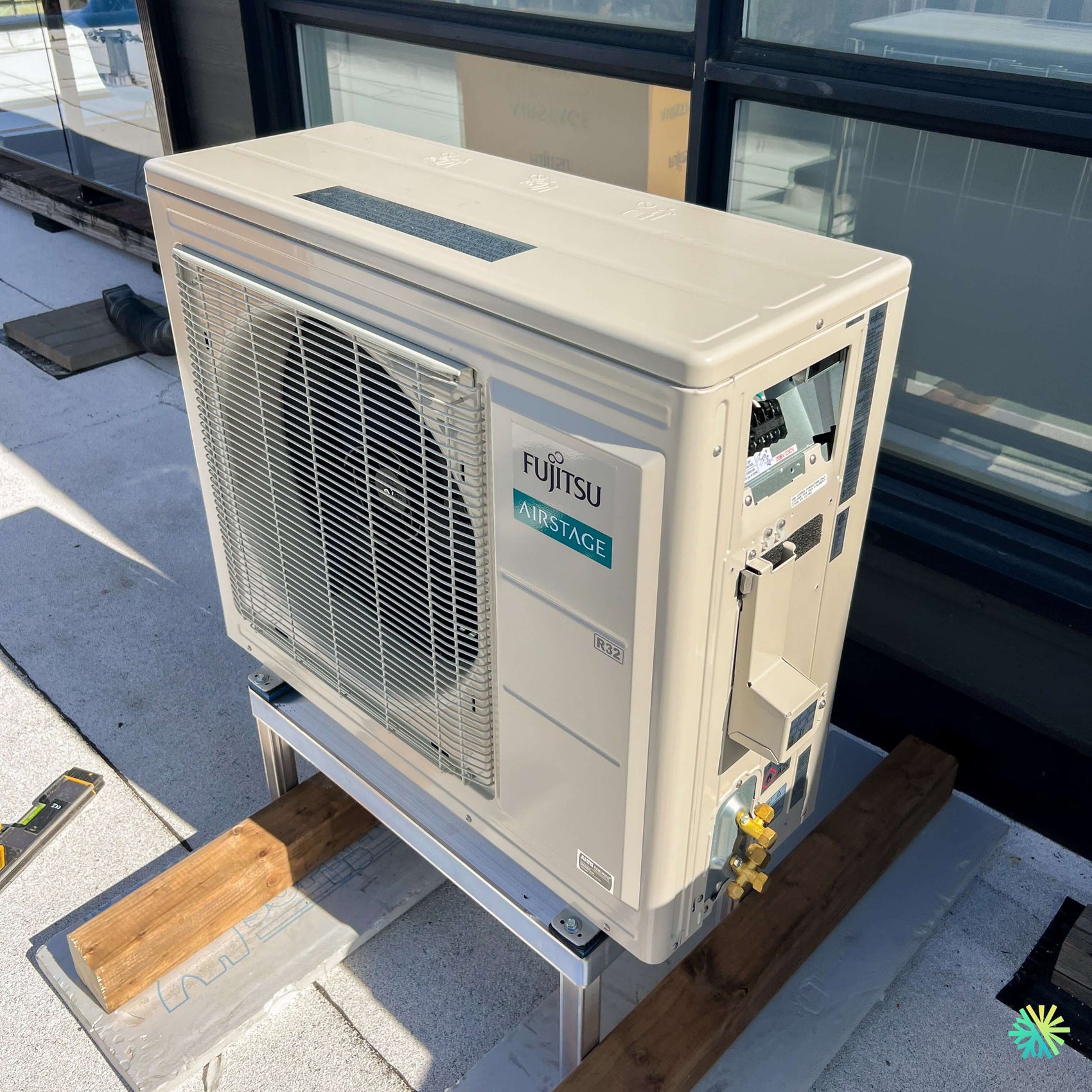

What the installation photo reveals: stability, clearance, and technical access
The image of this installation in Beaconsfield shows several important elements. The outdoor unit is not placed directly on the ground. It rests on a stable metal structure, itself supported by solid bases. This installation method is particularly relevant for residential installations where the ground can be exposed to humidity, freeze-thaw cycles, and winter accumulations.
Clearance around the fan is also essential. An outdoor unit needs adequate airflow to function correctly. If the appliance is too close to a wall, fence, hedge, or obstacle, its performance can decrease, noise can increase, and the compressor can work harder than necessary. In this specific case, our team positioned the appliance to maintain technical access on the connection side, while correctly orienting the ventilation zone.
Attention to surface protection is also noticeable. The temporary wooden pieces visible on the ground serve to protect the workspace during installation and to stabilize certain steps before complete finishing. This type of precaution is common in AirGreen projects: we must work efficiently, but also respect the client's property from start to finish.
An HVAC installation adapted to Beaconsfield homes
Beaconsfield presents a distinct residential profile: well-maintained single-family homes, landscaped yards, patios, balconies, neat facades, and noise-sensitive neighborhoods. Installing a wall-mounted heat pump in this area therefore requires a precise approach. It's not just about choosing a high-performance machine, but also installing it in a way that limits vibrations, reduces visual impact, and ensures quiet operation.
For this installation, our team paid particular attention to four elements:
1. The position of the outdoor unit
The unit had to be installed close to the building to optimize the path of the refrigerant lines, but without compromising airflow. A too-tight positioning could have hindered performance. A too-distant positioning could have unnecessarily increased line length, potential losses, and installation cost.
2. Support stability
The aluminum support used allows the unit to be raised and reduces the risks associated with snow accumulation. An outdoor unit placed too low can be partially obstructed in winter, which can hinder defrosting and heating performance. A stable base also helps reduce vibrations transmitted to the structure.
3. Connection quality
The refrigerant connections visible on the side of the appliance require meticulous execution. Since mini split systems operate with pressurized refrigerant, connections must be tightened according to best practices, tested, properly vacuumed, and checked before commissioning. This work must be carried out by qualified professionals.
4. Future access for HVAC maintenance
A well-designed installation must allow easy access to valves, electrical connections, service panels, and inspection areas. This is a point often overlooked by some installers, but essential for extending the equipment's lifespan.
The AirGreen project process: technical precision and clean finishing
Initial assessment and location selection
Before proceeding with the installation, we assessed the available outdoor location, the distance from the indoor unit, access to the electrical panel, the path of the lines, wind exposure, and drainage possibilities. In a Beaconsfield residence, these decisions must take into account both performance and appearance.
The Fujitsu ALTAIR 300 outdoor unit had to be placed in an area where it would remain accessible without becoming intrusive. The client wanted to maintain a clean and functional outdoor space. Our team therefore worked with a discreet approach, favoring an aligned, solid, and consistent installation with the existing environment.
Installation of the Fujitsu Airstage R32 outdoor unit
The outdoor unit visible in the photo clearly bears the mention Fujitsu Airstage and the indication R32. R32 refrigerant is used in several recent systems due to its thermodynamic performance and its more advantageous environmental profile than some previous generations of refrigerants. For the client, this means a modern appliance, designed according to current HVAC market standards.
The installation work included:
- preparation of the installation area;
- installation of the raised support;
- adjustment of the unit's level;
- secure fastening of the appliance;
- connection of refrigerant lines;
- electrical connection according to manufacturer's requirements;
- leakage verification;
- circuit vacuuming;
- heating and cooling function tests;
- drainage and sound behavior validation.
Each step was performed with care, as the long-term reliability of a heat pump directly depends on the quality of its commissioning.
The importance of correctly executed vacuuming
One technical point deserves special attention: vacuuming. When a mini split system is installed, air and moisture must be removed from the lines before opening the refrigerant circuit. Insufficient vacuuming can lead to medium or long-term problems: decreased performance, acid formation, premature compressor wear, or unstable operation.
At AirGreen, we consider this step non-negotiable. A beautiful outdoor installation is worthless if the refrigerant circuit has not been prepared correctly. This is precisely what distinguishes a quick installation from a true professional HVAC installation.
Performance, comfort, and quiet operation
The Fujitsu ALTAIR 300 is designed to meet the expectations of homeowners seeking constant comfort without excessive noise. In a residential neighborhood like Beaconsfield, noise level is an important criterion. No one wants to install a heat pump that bothers neighbors, disturbs the outdoor space, or creates vibrations in the house.
A good installation helps limit these risks. The chosen support, the unit's position, the fastening level, and line management all contribute to reducing vibrations. The appliance can thus operate more stably, smoothly, and comfortably.
Indoors, a wall-mounted heat pump generally offers rapid air diffusion, with a temperature adjustable room by room. This allows the client to air condition or heat the targeted space without having to modify the entire house. For owners who want to reduce their reliance on an older system or improve the comfort of a specific area, this approach is particularly interesting.
Subsidies and eligibility: an aspect to check before installation
In several residential projects in Quebec, clients ask us if their heat pump may be eligible for subsidy programs, particularly according to the criteria applicable at the time of installation. Programs may vary depending on the type of appliance, energy performance, building configuration, and current regulations.
For an installation such as the Fujitsu ALTAIR 300 in Beaconsfield, we always recommend verifying the exact eligibility of the model before finalizing the purchase decision. AirGreen regularly assists its clients in this step by providing the necessary information on the installed equipment, the detailed invoice, and useful documents for the application.
Homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore often contact us precisely for this reason: they want an efficient installation, but also a clear file to maximize available financial aid when the model is eligible.
Mistakes to avoid when installing a wall-mounted heat pump
An installation like this may seem simple at first glance, but several errors can compromise a system's performance.
Installing the outdoor unit too close to an obstacle
Lack of clearance can cause poor air evacuation, which reduces efficiency and increases compressor load. The outdoor unit must breathe correctly.
Placing the appliance directly on the ground without protection
In the Quebec climate, snow, ice, standing water, and freeze-thaw cycles can affect a unit that is too low. A raised installation, as in this project, is often preferable.
Neglecting condensate drainage
In air conditioning, the indoor unit produces condensation water. This water must be properly drained. Poor drainage can cause infiltration, odors, or interior damage.
Choosing an unsuitable capacity
A heat pump that is too weak will run continuously without achieving desired comfort. A heat pump that is too strong risks short cycling, which can harm dehumidification and performance. The choice of the mini split must be based on the area, insulation, solar orientation, ceiling height, and room usage.
Entrusting installation to an unspecialized team
Refrigerant systems must be installed by competent professionals. Connections, vacuuming, pressure tests, electricity, and commissioning require real expertise. Incorrect installation can void warranties and create costly problems.
Why AirGreen is often chosen for Fujitsu installations
Our team regularly installs Fujitsu systems in the greater Montreal area, including Beaconsfield, Kirkland, Pointe-Claire, Dorval, Laval, Longueuil, the North Shore, and the South Shore. This experience allows us to adapt each project to the building, the client, and the local context.
In some projects, the main challenge is outdoor access. In others, it's the path of the lines, visual discretion, condo management, electrical distance, or choosing the right capacity. In Beaconsfield, the challenge was to achieve a clean, solid, and durable outdoor installation, without compromising technical access.
Our advantage is based on a clear working method:
- complete analysis before installation;
- selection of the right location;
- compliance with applicable standards;
- clean and safe installation;
- explanation of operation to the client;
- post-installation support;
- availability for HVAC maintenance and future follow-ups.
This rigor is important, because a performing wall-mounted heat pump depends as much on the unit as on the quality of the installation.
Final Result: A Fujitsu Heat Pump Well Integrated and Ready for Quebec Seasons
At the end of the project, the client had a Fujitsu ALTAIR 300 system carefully installed, solidly positioned, and ready to provide efficient heating and cooling comfort. The outdoor unit, neatly placed on its support, demonstrates a professional approach adapted to the realities of Beaconsfield: stability, accessibility, adequate ventilation, and a meticulous finish.
For homeowners considering installing a heat pump, this project clearly illustrates the importance of not just comparing brands and prices. The choice of installer is crucial. A quality machine installed without rigor can disappoint. A well-selected and correctly installed machine can transform the comfort of a home for many years.
Whether in Beaconsfield, Montreal, Laval, Longueuil, on the North Shore or on the South Shore, AirGreen supports its clients with a comprehensive approach: advice, installation, commissioning, maintenance, and technical support.
Practical Advice for Homeowners Considering a Mini Split
Before choosing a wall-mounted heat pump, it is useful to take the time to evaluate several concrete elements:
- the actual area to be heated or cooled;
- the building's insulation;
- sun exposure;
- the number of floors;
- occupancy habits;
- external constraints;
- the desired sound level;
- available space for the outdoor unit;
- subsidy possibilities;
- the quality of after-installation service.
A mini split system can be an excellent solution, but it must be chosen intelligently. In Beaconsfield, the Fujitsu ALTAIR 300 proved to be a consistent option to meet the client's needs, with an outdoor installation that reflects the level of precision expected in a high-end residential project.
A Project Representative of AirGreen's Philosophy
This installation in Beaconsfield truly represents our way of working: we don't simply aim to install a device quickly, but to create a durable, clean, and building-adapted solution. Comfort, energy efficiency, reliability, and final appearance are all part of the same project.
In the HVAC field, the visible details in a photo often tell a lot: a well-chosen support, a well-leveled unit, preserved technical access, a clean installation, and thoughtful integration. These are the details that allow a Fujitsu ALTAIR 300 wall-mounted heat pump to deliver its full performance, season after season, in a Beaconsfield home.
