Installation of a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump in La Prairie, on the South Shore

Precise Wall-Mounted Installation in a Bedroom in La Prairie: Discreet Comfort, Winter Performance, and Meticulous Finish

In La Prairie, on the South Shore, our AirGreen team installed a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump, a mini-split system designed to offer excellent comfort in both summer and winter. The project involved an upstairs room, used as a bedroom, where the client wanted to achieve a more stable temperature, quiet operation, and a solution capable of performing well during the cold periods typical of the greater Montreal area.

The installation visible in the photo perfectly illustrates a common challenge in homes in La Prairie, Brossard, Candiac, Longueuil, and several sectors of the South Shore: integrating a wall-mounted unit into an already furnished room, with little space available above the window and an interior configuration that requires a clean, straight, and discreet installation.

In this specific case, the FUJITSU indoor unit was installed near the ceiling, on a side wall adjacent to a window. This position allows for good air distribution in the room, while keeping the appliance away from traffic areas and furniture. For a wall-mounted heat pump, placement is essential: a high-performing machine poorly positioned can create uncomfortable drafts, cold spots, or a less accurate temperature reading.

At AirGreen, we pay particular attention to these details, as they often make the difference between a simple installation and a truly comfortable HVAC installation on a daily basis.

Why the choice of a FUJITSU ORION XLTH 15,000 BTU was relevant here

The FUJITSU ORION XLTH range is particularly popular for residential projects where winter heating is a priority. In La Prairie, as in the rest of Greater Montreal, clients are not just looking for an air conditioner for the summer. They often want a solution that reduces the use of primary heating for a good part of the year, while ensuring a comfortable temperature during more intense cold periods.

The model installed here, the FUJITSU ORION XLTH 15,000 BTU, represents an excellent compromise for a generously sized bedroom or an enclosed space requiring a capacity greater than a 9,000 or 12,000 BTU. The choice of 15,000 BTU was not made at random. It depends on several elements:

• the actual area of the room;
• the level of insulation;
• sun exposure;
• proximity to windows;
• ceiling height;
• winter heating needs;
• natural air circulation to adjacent rooms.

In this installation, the presence of a window on the adjacent wall and the room's configuration demanded a machine capable of maintaining stable comfort without continuously operating at full capacity. A unit that was too small might have struggled during cold days. A unit that was too large might have caused too short cycles, which are less efficient and sometimes less comfortable.

The FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump thus proved to be a balanced option, offering reliable performance, good modulation, and constant comfort.

An interior installation that respects the existing space

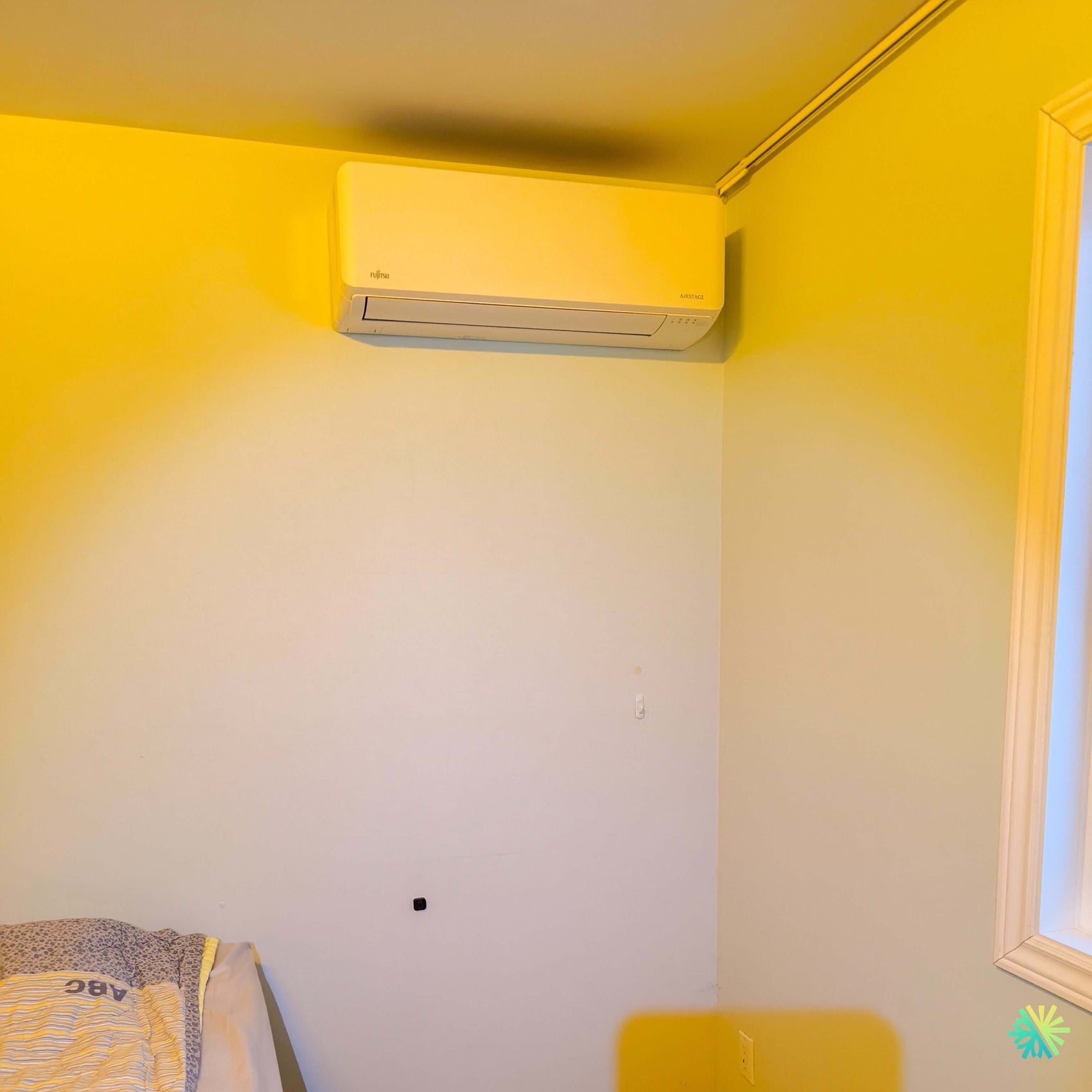

The photo shows an indoor unit placed near the ceiling, in an upper corner of the room. This configuration offers several advantages. First, it completely frees up floor space. Second, it allows air to be effectively blown towards the center of the bedroom. Finally, it maintains a clean visual appearance, especially when the unit is installed in a well-aligned manner.

During a mini-split installation, we always check the necessary clearances around the unit. Enough space must be left for air intake, filter access, future maintenance, and proper airflow circulation. In a bedroom, this point is even more important, as the appliance must remain quiet, comfortable, and easy to clean.

Another important detail in this project: the proximity of the ceiling and the wall corner required precise measurements. A few centimeters' error can complicate drain evacuation, hinder the opening of the front panel, or create a less neat finish. Our technicians carefully prepared the location to achieve a straight, stable installation adapted to the existing structure.

The challenge of drainage in an upstairs wall-mounted installation

In homes on the South Shore, particularly in La Prairie, Saint-Constant, Brossard, Candiac, and Longueuil, several wall-mounted installations are done upstairs. This often adds a significant challenge: condensate drainage.

A wall-mounted heat pump produces water when operating in cooling mode. This water must be properly drained, ideally by gravity when the configuration allows. Insufficient slope, a poor drain outlet, or a poorly planned path can lead to leaks, odors, blockages, or humidity problems.

On this project, our team paid particular attention to the drain's trajectory and the exterior outlet. The objective was simple: ensure reliable drainage without compromising the interior appearance of the bedroom. This type of detail is not always visible in a final photo, but it is essential for the durability of the installation.

A well-done installation is not judged solely by the appearance of the wall unit. It is also judged by what is behind it: the drain's slope, the quality of the drilling, the sealing, the protection of the lines, the solidity of the outdoor support, and the precision of the refrigerant connection.

A wall-mounted heat pump adapted to the climate of La Prairie and Greater Montreal

The climate of La Prairie requires an HVAC system capable of handling significant temperature fluctuations. In summer, humidity can make a bedroom uncomfortable, even when the outdoor temperature seems moderate. In winter, prolonged cold periods demand a heat pump that maintains good performance.

FUJITSU's XLTH technology is designed to better meet heating needs in cold climates. For South Shore homeowners, this represents a concrete advantage: the ability to use the heat pump for a longer portion of the cold season, with more stable comfort and energy consumption that is generally more advantageous than traditional electric heating used alone.

In a bedroom, comfort is not limited to achieving a precise temperature. One must also consider:

• noise level;
• airflow direction;
• fan speed;
• temperature stability during the night;
• ability to reduce humidity in summer;
• ease of daily use.

The FUJITSU ORION XLTH 15,000 BTU meets these criteria well, especially when installed in a thoughtful and well-calibrated position.

The importance of a clean installation in an already inhabited room

Unlike new construction, an installation in an already occupied house requires more precautions. The room is furnished, the walls are finished, the moldings are in place, and the client expects a clean, fast, and respectful intervention of their environment.

In this project in La Prairie, the unit was installed in a bedroom with a bed nearby. Our technicians therefore worked by protecting the space, limiting dust, and ensuring that the interior finish remained neat. This type of intervention requires a rigorous working method, especially when it is necessary to drill an exterior wall from the inside.

A successful residential HVAC installation largely depends on preparation. Before fixing the unit, we validate the location, the wall structure, the path of the refrigerant lines, the exterior position of the condenser, and the feasibility of drainage. This step avoids unpleasant surprises and allows for a cleaner result.

Mistakes to avoid when installing a mini-split in a bedroom

Several homeowners in Montreal, Laval, Longueuil, on the North Shore and the South Shore contact us after having had a bad experience with a previous installation. The problems often come down to the same causes.

The first mistake is choosing capacity based solely on area. Area is important, but it is not enough. A bedroom heavily exposed to the sun, poorly insulated, or located upstairs may require a different approach.

The second mistake is placing the unit in the wrong place. A wall-mounted heat pump installed directly above the bed, too close to a closed corner, or facing an obstacle can become uncomfortable, even if the machine is excellent.

The third mistake concerns the drain. A poorly installed drain can turn a recent installation into a source of problems. Water must drain properly, without counter-slope or low points likely to block it.

The fourth mistake is neglecting future maintenance. The unit must remain accessible for cleaning filters and performing regular HVAC maintenance. A machine that is difficult to access will often be less well maintained, which can reduce its efficiency and lifespan.

Finally, avoid choosing a contractor solely based on price. A cheaper installation can become costly if it requires corrections, repairs, or premature replacement.

An installation designed for nocturnal comfort

In a bedroom, the heat pump's behavior at night is crucial. The client was looking for a quiet, stable solution capable of maintaining a comfortable temperature without sudden variations. The choice of the FUJITSU ORION XLTH fits well into this logic, as wall-mounted units in this range are known for their discreet operation and good modulation.

We also advised the client on the optimal use of the device. For example, it is often preferable to let the heat pump operate stably rather than constantly turning it off and on. This approach generally leads to better efficiency, fewer temperature variations, and more natural comfort.

For a bedroom, we also recommend adjusting the direction vanes to avoid a direct air jet towards the bed. The goal is to create gentle circulation, not a noticeable draft.

Subsidies and energy value of a heat pump installation

Homeowners in La Prairie and the greater Montreal area are increasingly interested in available subsidies for eligible wall-mounted heat pumps. Programs can vary according to periods, technical criteria, model numbers, and administrative requirements.

In the case of a FUJITSU ORION XLTH 15,000 BTU, it is important to verify exact eligibility according to the installed combination, current lists, and applicable conditions at the time of purchase. At AirGreen, we help our clients understand the important criteria and choose a machine that not only meets their comfort needs but also financial aid possibilities when available.

A well-chosen heat pump can represent an excellent investment. It improves comfort, reduces dependence on traditional electric heating during part of the winter, effectively cools in summer, and adds tangible value to the property.

Why AirGreen pays so much attention to invisible details

In a final photo, mainly the indoor unit is visible. However, a large part of an installation's quality lies in the less visible elements: connections, lines, insulation, drainage, drilling, sealing, vacuum testing, functional tests, and final configuration.

Our teams apply a structured method to ensure that each wall-mounted heat pump installation is durable. We check pressures, connections, heating and cooling operation, remote control response, condensate drainage, and unit stability.

In this project in La Prairie, the interior finish was particularly important. The bedroom had to remain clean, functional, and pleasant. The final result is discreet: the FUJITSU unit integrates into the top of the wall, without cluttering the space or detracting from the room's layout.

An AirGreen achievement in La Prairie illustrating our residential HVAC approach

This installation of a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump in La Prairie demonstrates what we aim for in every project: a coherent equipment choice, precise installation, a clean finish, and comfort truly adapted to the room's use.

For homeowners in La Prairie, Longueuil, Montreal, Laval, on the North Shore, and the South Shore, choosing a mini-split system should never be limited to a brand or a price. Location, capacity, noise, heating efficiency, installation quality, and future maintenance must all be considered.

At AirGreen, we apply our HVAC expertise to concrete residential projects, with a practical and transparent approach. This achievement in La Prairie is a good example: a clean wall-mounted installation, designed for daily comfort, with a high-performing FUJITSU machine adapted to the Quebec climate.
