Installation of a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump in Rosemont–La Petite-Patrie, Montreal
AirGreen installs a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump in Rosemont–La Petite-Patrie, with careful installation in an interior courtyard and HVAC expertise adapted to Montreal buildings.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A compact and neat installation in a typical Rosemont inner courtyard
In the Rosemont–La Petite-Patrie borough of Montreal, wall-mounted heat pump installations often require a more precise approach than in the suburbs. Backyards are narrow, brick walls are sometimes old, metal balconies and stairs limit working space, and every detail counts to achieve a durable, discreet, and safe result.
For this installation, our AirGreen team installed a FUJITSU ORION XLTH 15,000 BTU wall-mounted heat pump, a machine known for its heating performance in cold weather and its excellent comfort level in both summer and winter. The outdoor unit was fixed on solid wall brackets, directly on the brick, under a covered balcony. This configuration partially protects the unit from direct snow accumulation while maintaining adequate air circulation around the condenser.
Why the FUJITSU ORION XLTH 15,000 BTU was an excellent choice for this project
The FUJITSU ORION XLTH 15,000 BTU is a highly relevant solution for Montreal dwellings seeking a balance between performance, reliability, and energy efficiency. In an area like Rosemont–La Petite-Patrie, where many buildings have dense architecture and limited outdoor spaces, the choice of machine must consider both power and possible physical installation.
This wall-mounted mini-split heat pump is particularly suitable for:
- efficiently heating a main living area;
- reducing reliance on conventional electric heating;
- providing stable air conditioning during hot periods in Montreal;
- maintaining good comfort without occupying indoor floor space;
- integrating neatly into a backyard or confined space.
A well-thought-out outdoor installation

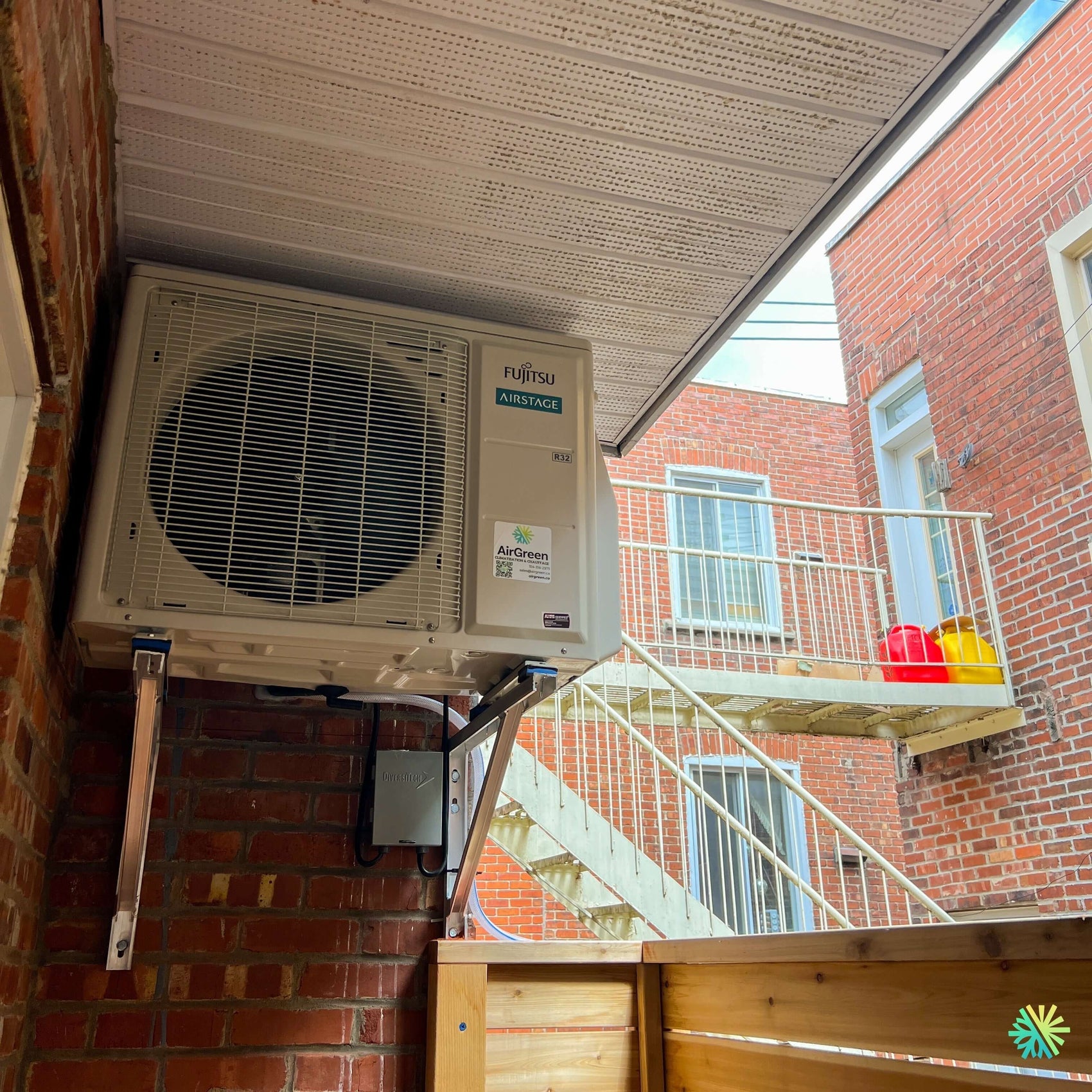

The photo immediately highlights the main constraint: the outdoor unit had to be installed in an inner courtyard framed by brick walls, a perforated balcony ceiling, a metal railing, and a wooden structure below. This type of environment leaves little room for error.
Our technicians opted for a wall-mounted installation on brackets, with precise positioning allowing for:
- sufficient clearance for fan operation;
- good accessibility for HVAC maintenance;
- partial protection from the elements;
- solid fastening into the masonry;
- a clean finish for refrigerant and electrical lines.
The disconnect box was also installed in an accessible and safe manner, in accordance with best practices in HVAC installation.
Technical challenges encountered on-site
An installation in a Montreal backyard often presents challenges not seen in a technical sheet. Here, the presence of the balcony above the unit required careful evaluation of ventilation around the condenser. A heat pump needs to breathe properly: if hot or cold air discharged by the outdoor unit remains trapped in too confined a space, performance can decrease.
Our team therefore checked:
- the distance between the unit and surrounding surfaces;
- frontal clearance in front of the fan;
- the solidity of the brick wall;
- the path of the refrigerant lines;
- the drain location;
- ease of access for future cleaning.
This preparatory work is essential. A quality machine like a FUJITSU ORION XLTH will only perform at its best if installed correctly.
A discreet and professional finish
In central neighborhoods like Rosemont–La Petite-Patrie, the visual aspect of an installation is important. Backyards are often visually shared with neighbors, balconies, or stairs. A disorganized installation can quickly detract from the building's appearance.
In this project, the conduits were carefully placed, the unit was neatly aligned, and the brackets were securely fixed to ensure good stability. The result is a compact, functional, and well-integrated installation within the existing environment.
Why avoid a ground-level installation in this type of space
In many projects in Laval, Longueuil, on the North Shore or South Shore, a ground-level installation can be a good option. But in this Montreal inner courtyard, a ground-level installation would have been less practical.
It could have:
- reduced circulation space;
- further exposed the unit to snow or ice accumulation;
- complicated maintenance;
- created an obstruction near the wooden structure;
- increased the risk of vibrations being transmitted to the floor or adjacent elements.
The wall mount was therefore the most logical solution for this configuration.
The importance of proper drainage management
A detail often underestimated in a wall-mounted heat pump installation is water management. In cooling mode, the indoor unit produces condensation. In heating mode, the outdoor unit can also generate water during defrost cycles.
In Montreal, with frequent freezes and thaws, poor drainage management can cause ice accumulation, slippery areas, or damage nearby. For this project, our team paid particular attention to the orientation of the drainage and how water would behave in this confined backyard.
A high-performance solution for four-season comfort
The FUJITSU ORION XLTH 15,000 BTU offers significant comfort for owners who want to use their system not only for cooling but also for heating during much of the winter. In a well-insulated or partially renovated dwelling, this type of mini-split can become a primary source of comfort in the most used rooms.
Clients often look for three things: stable temperature, reasonable consumption, and a reliable machine. This installation precisely met these priorities.
What owners should check before a similar installation
Before installing a wall-mounted heat pump in a building in Montreal, a few elements should always be checked:
- the condition of the wall where the outdoor unit will be fixed;
- the available clearance around the condenser;
- electrical access;
- the possible path between the indoor and outdoor units;
- co-ownership rules, if applicable;
- the visual impact in the courtyard or on the facade;
- the possibility of future maintenance without difficulty.
These checks help avoid unpleasant surprises and ensure a durable installation.
AirGreen's Expertise in Urban Installations
At AirGreen, we regularly carry out installations in complex environments: narrow alleys in Montreal, superimposed balconies, old brick walls, co-owned condos, duplexes, triplexes, and buildings with limited access. This type of experience allows us to adapt each project to the actual building, rather than applying a standard solution.
A successful HVAC installation doesn't just depend on the machine chosen. It also depends on the quality of the diagnosis, positioning, fastening, sealing, electrical connection, drainage, and finish.
Mistakes to avoid with a wall-mounted heat pump
In this type of project, the most frequent errors are:
- installing the outdoor unit too close to a wall or obstacle;
- neglecting access for maintenance;
- fixing brackets in fragile masonry without verification;
- improperly managing water drainage;
- choosing too low or too high a capacity;
- installing the machine in too confined a space;
- underestimating vibrations.
A FUJITSU heat pump can offer excellent performance, but only if the installation respects the manufacturer's technical requirements and the realities of the building.
An installation that combines performance, discretion, and durability
This project in Rosemont–La Petite-Patrie perfectly illustrates the type of intervention we like to carry out: a clean, thoughtful installation, adapted to the building, and designed to last. The FUJITSU ORION XLTH 15,000 BTU allows the client to enjoy efficient comfort all year round, with a compact solution that respects the constraints of the available space.
For homeowners in Montreal, Laval, Longueuil, the North Shore or the South Shore, this type of project shows that it is possible to achieve a high-end installation even in a restricted environment, provided the work is entrusted to an experienced HVAC team.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
