A precise wall installation in an interior space where every detail mattered
In Montreal East, our AirGreen team installed a FUJITSU ORION XLTH 18,000 BTU wall-mounted heat pump, a system perfectly suited for Quebec residences seeking reliable comfort in both summer and winter. In this project, the challenge was not only to install an efficient appliance: it was necessary to integrate the wall-mounted air conditioner into an already carefully furnished room, without harming the interior aesthetics or compromising air circulation.

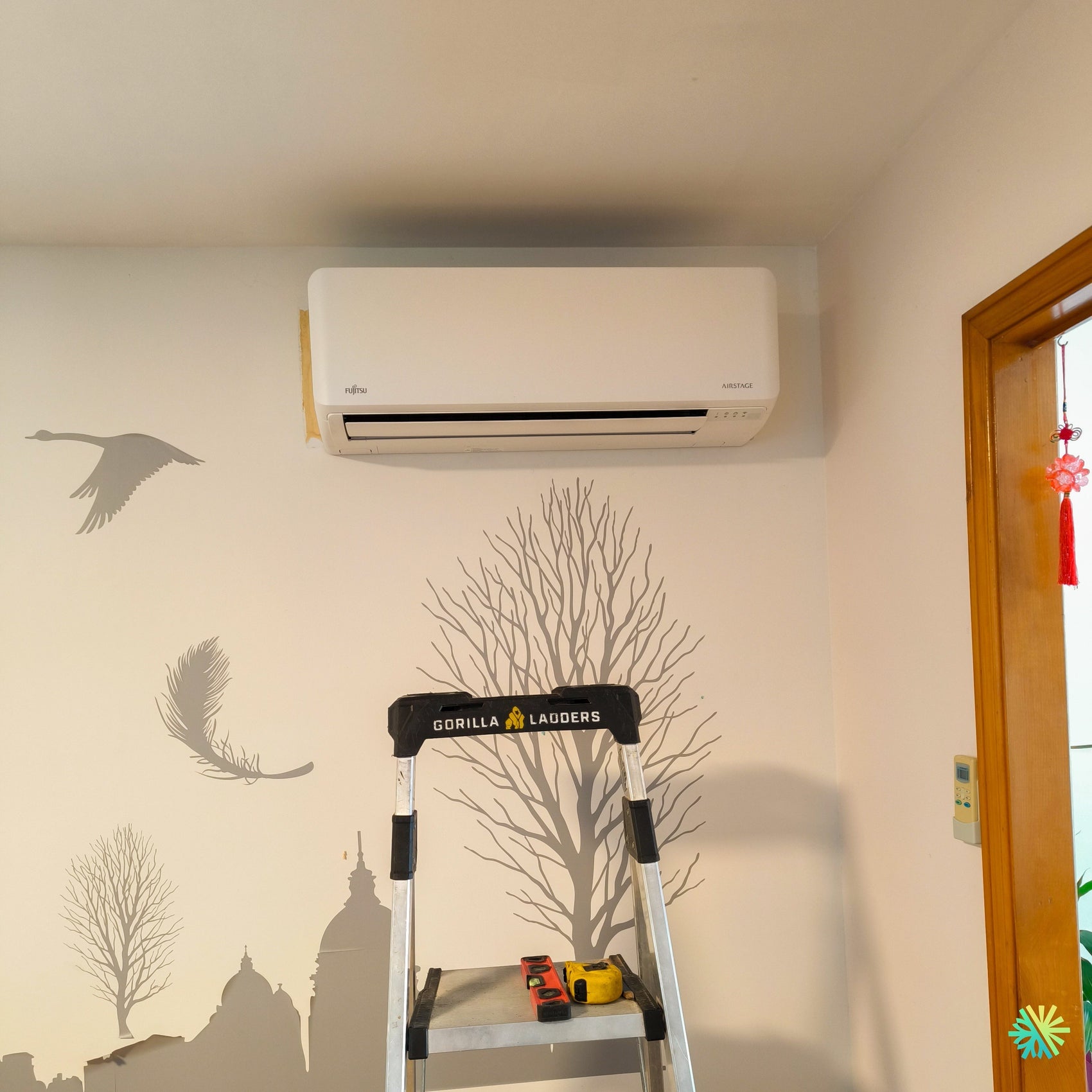

Upon our arrival, one element was evident: the indoor unit had to be installed high up, in a restricted space between the ceiling, the side wall, and the opening to the adjacent room. The construction site photo clearly shows this reality: an installation above a decorative wall, with limited clearance to the left and right, and an interior finish to respect. This type of configuration requires meticulous planning, as a successful HVAC installation is never limited to simply mounting a unit on the wall.
Why the choice of the FUJITSU ORION XLTH 18,000 BTU was relevant
The FUJITSU ORION XLTH 18,000 BTU model is renowned for its ability to provide effective heating even during typical cold periods in Montreal, Laval, Longueuil, the North Shore, and the South Shore. In a Montreal East residence, where temperature variations can be significant between seasons, this type of wall-mounted heat pump represents a very interesting solution for reducing dependence on traditional electric heating while improving overall comfort.
With a capacity of 18,000 BTU, this unit is well-suited for large open rooms, main floors, or spaces where a smaller unit might run too long without effectively reaching the desired temperature. Choosing the right capacity is essential: an undersized appliance works relentlessly, while an oversized appliance can create too short cycles and less stable comfort.
In this project, our analysis focused on several elements:
- the area to be covered;
- the ceiling height;
- the location of interior openings;
- natural air circulation;
- the room's exposure;
- the client's usage habits;
- the feasibility of routing refrigerant lines and drainage.
Careful interior installation despite a decorative wall
The wall unit was installed above an existing wall decor. This detail is important, as many residential installations require working in already finished environments, sometimes with paints, wall decals, moldings, door frames, or decorative elements that must not be damaged.
Our team therefore took the time to position the unit to preserve the visual balance of the room while respecting the required technical clearances. The wall mount had to be perfectly level, solidly anchored, and aligned to allow for adequate condensation drainage.
A common mistake in this type of installation is to choose the location solely based on appearance. At AirGreen, we take aesthetics into account, but never at the expense of performance. A poorly positioned heat pump can create cold spots, uncomfortable airflow, or long-term drainage problems.
The work behind the wall: what the client doesn't always see
A significant part of a wall-mounted heat pump installation takes place behind the unit. Refrigerant lines, communication cable, drain, and wall drilling must be precisely coordinated. In this case, the available space to the left of the unit was limited, requiring a clean and methodical approach to avoid any unnecessarily visible finishes.
We paid particular attention to:
- the drilling angle towards the outside;
- the slope of the condensation drain;
- the protection of refrigerant lines;
- the sealing of the wall penetration;
- the solidity of the indoor unit support;
- the cleanliness of the finish after installation.
These details may seem technical, but they make all the difference. A poorly sloped drain can cause water leaks indoors. Poor sealing can cause air or moisture infiltration. A unit installed slightly out of level can impair the silent operation of the appliance.
A discreet appliance, but designed for the Quebec climate
The FUJITSU ORION XLTH integrates well into residences where winter comfort is as important as summer air conditioning. In Montreal East, customers often seek a system capable of providing stable heat without excessive noise, especially in main living areas.
This model is appreciated for its quiet operation, efficient modulation, and ability to adjust its power according to actual demand. Unlike a system that starts and stops abruptly, an inverter wall-mounted heat pump adapts its speed to maintain a more constant temperature. The result is more natural comfort, fewer variations, and better controlled consumption.
Subsidies and the importance of checking eligibility
Wall-mounted heat pumps like the FUJITSU ORION XLTH can, depending on the programs in force and the applicable technical criteria, be eligible for certain financial aid such as residential programs related to energy efficiency. Eligibility always depends on the exact model, the installed configuration, program requirements, and the conditions in force at the time of application.
At AirGreen, we help clients understand the general outlines of available subsidies, but we always recommend validating the amounts and conditions at the time of the project. In the HVAC field, criteria can change, and a good contractor must avoid promising an amount without verification.
Mistakes to avoid during a wall installation
This project in Montreal East illustrates several mistakes that homeowners should avoid when planning the installation of a wall-mounted air conditioner or wall-mounted heat pump.
The first mistake is to choose the appliance solely based on price. A cheaper model may seem attractive at first, but if winter performance, parts availability, or installation quality do not follow, the initial savings can quickly disappear.
The second mistake is to neglect the interior location. A unit placed too close to a ceiling, too close to a side wall, or oriented towards an uncomfortable area can impair air diffusion. In this project, space was restricted, but the installation was planned to ensure the proper functioning of the appliance.
The third mistake is to underestimate drainage. Even an excellent machine can cause problems if condensation drainage is poorly executed. That's why our technicians always check the slope, path, and outlet of the drain.
The fourth mistake is to choose an approximate capacity. The 18,000 BTU is not a random choice. It must correspond to the actual needs of the space, its insulation, its configuration, and daily use.
An AirGreen approach focused on durability, finish, and real comfort
At AirGreen, we believe that a successful HVAC installation must be efficient, clean, and durable. In this project, the photo shows a neat, aligned, and well-integrated interior installation. But behind this simple appearance lies a set of technical decisions that ensure the proper functioning of the system for many years.
A clean installation in an occupied residence
Installing a heat pump in an already inhabited residence requires particular discipline. Tools, ladders, drilling, unit handling, and line routing must be managed with care. Respect for the client's home is an integral part of our working method.
Our technicians protect surfaces, plan movements in the room, and ensure the space is left clean at the end of the work. In this specific case, the presence of a decorative wall and a nearby door frame required extra attention.
Commissioning: an essential step
Once the installation is complete, we don't just check that the unit turns on. Commissioning confirms that the system is working correctly in cooling and heating, that the airflow is adequate, that the controls respond well, and that the drain is discharging correctly.
We also verify that the client understands the main functions of the remote control: heating mode, cooling mode, ventilation, target temperature, vane direction, and basic filter maintenance.
HVAC maintenance: extending system performance
Even an excellent FUJITSU heat pump requires regular maintenance. Indoor filters must be cleaned periodically, especially in homes with dust, pets, or frequent use. Professional maintenance also allows checking the condition of the indoor unit, outdoor unit, drain, coils, and connections.
Good HVAC maintenance helps maintain:
- better air quality;
- more stable energy consumption;
- quiet operation;
- longer system lifespan;
- reduced risk of water leaks or performance loss.
What this project demonstrates for homeowners in Montreal East
This installation of a FUJITSU ORION XLTH 18,000 BTU wall-mounted heat pump in Montreal East shows that a successful HVAC project depends as much on the choice of appliance as on on-site execution. The right model, installed in the right place, with a clean finish and serious commissioning, can transform the comfort of a residence.
For homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this type of installation represents an effective solution for summer cooling, heating for much of the winter, and improving indoor comfort without undertaking major renovations.
At AirGreen, we always favor a practical approach: analyze the space, recommend a suitable solution, install cleanly, and clearly explain the operation to the client. It is this combination of technical expertise and attention to detail that allows us to achieve a reliable, aesthetic, and durable result.
