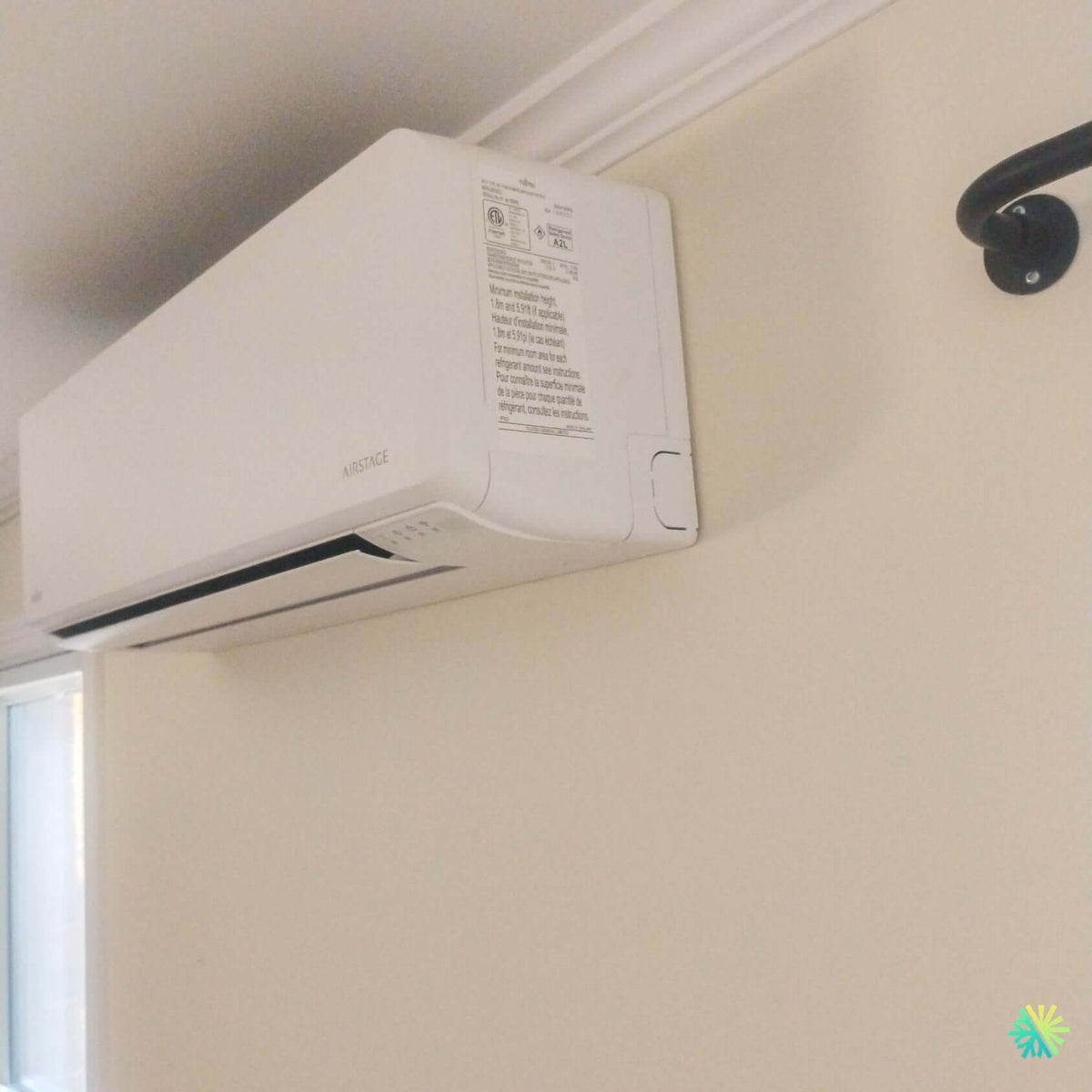

Installation of a FUJITSU ORION XLTH KZAH R-32 12,000 BTU wall-mounted heat pump in Beaconsfield
Professional installation of a FUJITSU ORION XLTH 12,000 BTU wall-mounted heat pump in Beaconsfield. Performance, silence, and energy savings at the heart of the AirGreen project.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A High-End HVAC Installation Perfectly Integrated into a Beaconsfield Residence
At AirGreen, every HVAC installation project is unique. This recent installation of a FUJITSU ORION XLTH 12,000 BTU wall-mounted heat pump in Beaconsfield, in the west of Montreal, is an excellent example. The client wanted a reliable solution to face Quebec winters while enjoying optimal comfort during the summer.
From our first visit, several elements caught our attention: a main room with a standard ceiling, direct proximity to a side window, and a significant aesthetic constraint related to the interior finish. The goal was clear: integrate a high-performance, discreet wall-mounted heat pump, perfectly aligned with the existing architecture.
Challenges Encountered and Tailored Technical Solutions
Strategic Positioning of the Indoor Unit
As can be seen from the completed installation, the indoor unit was installed high up, near the ceiling, to optimize air distribution. This positioning allows for:
- Better air circulation throughout the room
- Uniform heat distribution in winter
- Effective air conditioning without direct drafts
However, this type of installation requires extreme precision. We had to adjust the position to avoid ceiling moldings and respect the clearances recommended by the manufacturer.
Piping Management and Aesthetics
The client insisted on a clean visual appearance. We therefore used:
- Discreet pipe covers perfectly aligned with the wall
- An optimized wall outlet to minimize visual impact
- Careful integration near the window to reduce visible length
In this project, standard 1/4 - 3/8 piping was used, with a total length of less than 15 feet, which is included in our standard installation at AirGreen.
Drainage Verification and Level Management
As with all our installations, we performed an essential practical test: pouring water into the system to confirm proper drainage. This simple but effective method ensures that:
- Water drains correctly
- No backflow or accumulation occurs
- The system is ready to operate without risk
This test is particularly important in wall-mounted installations where the slope can influence condensate evacuation.
Why Choose the FUJITSU ORION XLTH 12,000 BTU?
Exceptional Heating Performance
In a region like Beaconsfield, where winter temperatures can drop very low, this model stands out for:
- Heating capacity down to -26°C
- Impressive power even at -15°C (16,600 BTU)
- Inverter technology allowing constant modulation
Result: stable thermal comfort, even during periods of extreme cold.
Remarkable Energy Efficiency
This heat pump offers:
- SEER2: 30.5 (very efficient cooling)
- HSPF2: 12.7 (excellent heating performance)
- ENERGY STAR® Cold Climate certification
For the client, this means:
- Significant savings on electricity bills
- Reduced reliance on electric baseboard heaters
- A profitable long-term investment
R-32 Refrigerant: A Modern Choice
The system uses R-32 gas, which offers:
- Better energy efficiency
- Reduced environmental impact
- Compliance with new ecological standards
A Quiet Installation Adapted to Daily Life
The client also wanted a discreet appliance. With:
- 23 dB(A) indoors
- 47 dB(A) outdoors
The heat pump is practically inaudible in a residential environment. This is particularly important in quiet neighborhoods like Beaconsfield.
Technical Details of the Installation
Here are the key specifications of the installed system:
- Indoor model: ASUH12KZAS
- Outdoor model: AOUH12KZAH1
- Capacity: 12,000 BTU
- Voltage: 220V
- Piping: 1/4 - 3/8
- WiFi: Included
- Indoor sound level: 23 to 44 dB(A)
The complete installation was carried out in a single day by our team of certified refrigeration technicians.
LogisVert Subsidy: A Tangible Advantage
This project is eligible for the LogisVert subsidy of $1,200. This allows for:
- Significantly reducing the initial cost
- Accelerating the return on investment
- Encouraging the adoption of energy-efficient solutions
At AirGreen, we always support our clients in these endeavors to simplify the process.
Mistakes to Avoid During a Wall-Mounted Heat Pump Installation
Throughout this project, several essential points emerged:
Incorrect Unit Positioning
Installing the unit too low or improperly oriented can:
- Reduce efficiency
- Create cold or hot spots
- Increase energy consumption
Neglecting Drainage
Poorly designed drainage can lead to:
- Water leaks
- Wall damage
- Loss of performance
Underestimating the Importance of Installation
Even the best heat pump loses efficiency if:
- Vacuum pulling is poorly done
- Refrigerant charge is not adjusted
- Connections are approximate
Client Feedback After Installation
After a few days of use, the client confirmed to us:
- A stable temperature throughout the room
- Very quiet operation
- A noticeable reduction in electric baseboard heater use
This type of feedback accurately reflects our goal at AirGreen: to offer lasting and measurable comfort.
Why Trust AirGreen for Your HVAC Installation?
We distinguish ourselves by:
- In-depth technical expertise in wall-mounted heat pump installation
- A transparent approach with no hidden fees
- A clean, aesthetic, and durable installation
- In-depth knowledge of the climatic realities of Greater Montreal, Laval, Longueuil, North Shore, and South Shore
Every project is handled with precision, as if it were for our own home.
Conclusion: A Smart Choice for Beaconsfield
This installation in Beaconsfield perfectly demonstrates that a well-installed FUJITSU ORION XLTH 12,000 BTU heat pump can transform the comfort of a space while reducing energy costs.
With rigorous planning, professional installation, and a unit adapted to Quebec conditions, the client now benefits from a reliable system for years to come.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Fujitsu Orion XLTH 9 000 | 7,500 | 15,400 | −30 °C: 11,400 | 2.26 | 33.1 | 13.3 | – |
| Fujitsu Orion XLTH 12 000 | 10,000 | 16,600 | −30 °C: 12,200 | 2.16 | 30.5 | 12.7 | $1,200 |
| Fujitsu Orion XLTH 15 000 | 11,400 | 21,000 | −30 °C: 16,400 | 2.1 | 27.5 | 12.7 | $1,368 |
| Fujitsu Orion XLTH 18 000 | 13,600 | 24,800 | −30 °C: 19,110 | 2.08 | 25.5 | 12.5 | $1,632 |
| Fujitsu Orion XLTH 24 000 | 15,900 | 25,200 | −30 °C: 19,110 | 2.14 | 24.0 | 11.9 | $1,908 |
According to NEEP, it delivers up to 11,400 BTU/h at −26 °C (−15 °F), more than its 9,000 BTU cooling rating. Its efficiency there is still 1.70.
According to NEEP, its COP at −15 °C is 2.26: the highest of the Orion XLTH line, which ranges from 2.08 to 2.16 at that temperature.
At 8 °C, its certified maximum capacity reaches 23,000 BTU/h, more than double its nominal size.
According to NEEP, it delivers up to 12,200 BTU/h at −26 °C (−15 °F), more than its 12,000 BTU cooling rating. Its efficiency there is still 1.81.
At 8 °C, its certified maximum capacity reaches 23,600 BTU/h, 97% more than its nominal 12,000 BTU size.
At −26 °C, its certified minimum capacity is 1,400 BTU/h (3,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, it delivers up to 16,400 BTU/h at −26 °C (−15 °F), more than its 15,000 BTU cooling rating. Its efficiency there is still 1.92.
According to NEEP, its COP at −26 °C is 1.92: the highest of the Orion XLTH line, which ranges from 1.65 to 1.81 at that temperature.
At 8 °C, its certified maximum capacity reaches 25,000 BTU/h, 67% more than its nominal 15,000 BTU size.
According to NEEP, it delivers up to 19,110 BTU/h at −26 °C (−15 °F), more than its 18,000 BTU cooling rating. Its efficiency there is still 1.65.
At 8 °C, its certified maximum capacity reaches 31,800 BTU/h, 77% more than its nominal 18,000 BTU size.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 24,800 BTU/h, 138% of its nominal 18,000 BTU size. Its COP there is 2.08.
According to NEEP, its certified maximum capacity at −26 °C (−15 °F) is 19,110 BTU/h, 80% of its nominal 24,000 BTU size.
At 8 °C, its certified maximum capacity reaches 36,800 BTU/h, 53% more than its nominal 24,000 BTU size.
At −26 °C, its certified minimum capacity is 3,540 BTU/h (8,200 at 8 °C). It slows down instead of cycling on and off.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.A dash in the aid column: amount to be confirmed for this model.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
