A Compact Wall-Mounted Unit in a Demanding Room: When Location Makes All the Difference
In Sainte-Dorothée, in the western part of Laval, our AirGreen team recently installed a FUJITSU ORION XLTH KZAH R-32 18,000 BTU wall-mounted heat pump. This unit is known for its cold-weather performance, high energy efficiency, and ability to provide stable comfort in Quebec homes. The project was particularly interesting, not only for the choice of equipment but especially for the room's configuration: a relatively narrow interior wall, a very close window on the right side, a low ceiling, and a space where every inch had to be used precisely.

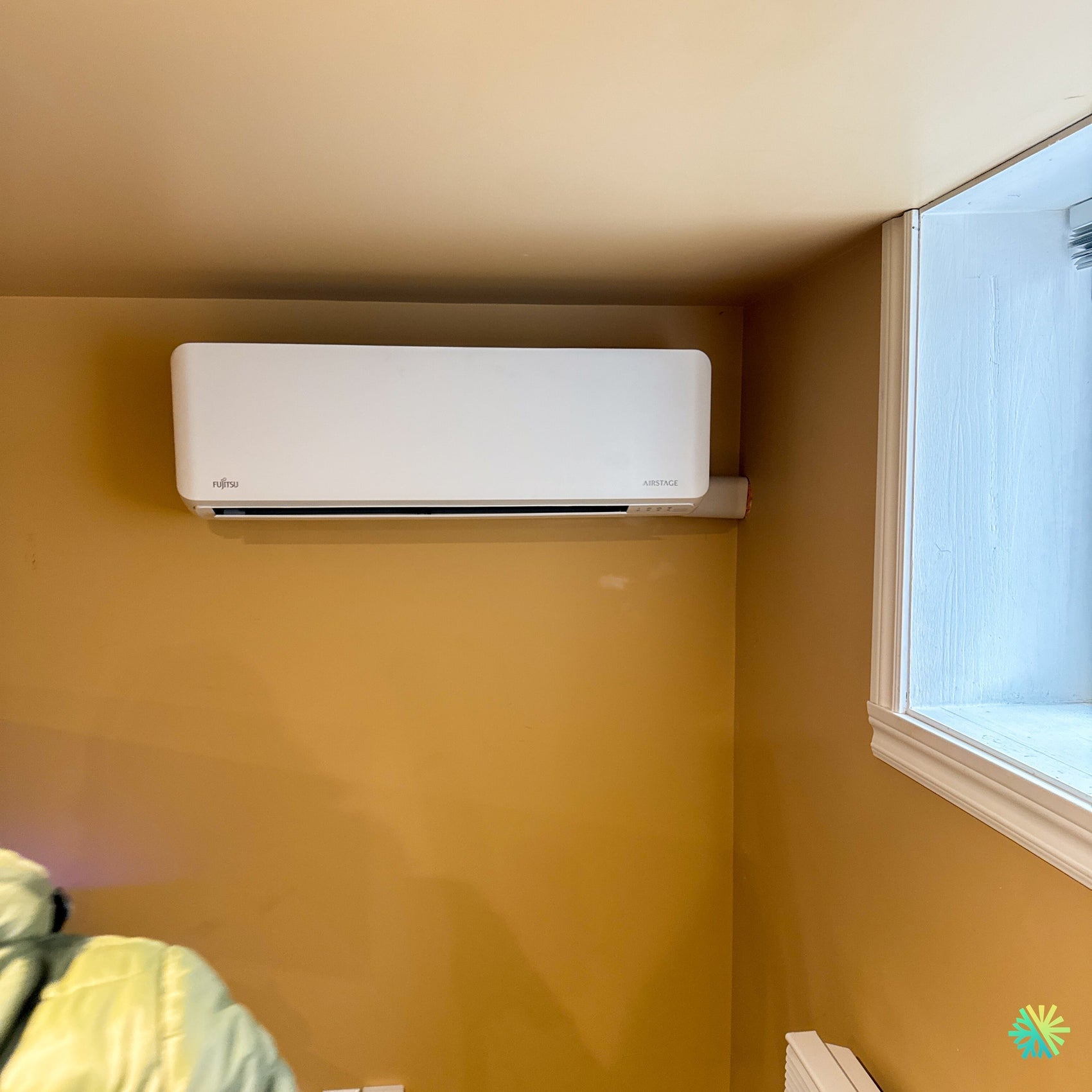

The photo of this project perfectly illustrates the type of challenge we often encounter during a residential HVAC installation in Montreal, Laval, Longueuil, on the North Shore or South Shore: the best appliance only performs at its best if it is installed in the right place, with the correct clearances, well-designed drainage, properly routed piping, and air orientation adapted to the room's reality.
In this specific case, the Fujitsu wall-mounted heat pump was installed near a wall corner, immediately adjacent to a window, in a room where both vertical and horizontal space were limited. Our objective was clear: to provide the client with effective heating and cooling comfort, without hindering window usage, without visually cluttering the room, and without compromising the indoor unit's performance.
Why the FUJITSU ORION XLTH 18,000 BTU was an excellent choice for this Sainte-Dorothée residence
The Sainte-Dorothée area includes several types of homes: single-family homes, semi-detached houses, condos, older renovations, and properties with sometimes specific architectural constraints. In this type of context, a wall-mounted heat pump must meet several expectations simultaneously: effectively heating in winter, quickly cooling in summer, operating silently, remaining discreet in the decor, and offering reasonable electricity consumption.
The model installed here, the FUJITSU ORION XLTH KZAH R-32 18,000 BTU, meets these criteria very well. It is a machine designed for Quebec winters, with heating capacity down to -26 °C, making it a serious option for homeowners who want to reduce the use of electric baseboard heaters in the main areas of their home. Its nominal cooling capacity of 18,000 BTU also allows it to cover a large room, a semi-open area, or a living space difficult to stabilize with an old wall-mounted air conditioner.
A powerful unit, but above all, well-suited to the room's configuration
During our visit and technical analysis, we paid particular attention to several elements:
- the proximity of the window to the right of the indoor unit;
- the short distance between the top of the unit and the ceiling;
- the orientation of the air jet in a confined space;
- the routing of the piping to the exterior;
- the aesthetics of the interior finish;
- future accessibility for HVAC maintenance;
- the possibility of avoiding uncomfortable zones, especially direct draft towards occupants.
The photo clearly shows that the indoor unit was carefully positioned to maximize available wall space. The choice of location is never just a matter of "making the unit fit." It also involves considering air circulation, maintenance, drainage, pipe routing, and visual integration into the room.
In a room with a low ceiling or a tight corner, poor installation can create several problems: air hitting the ceiling directly, less efficient air return, a feeling of draft, noise amplified by nearby surfaces, or difficulty accessing filters. It is precisely to avoid these errors that our team takes the time to validate the location before installation.
Important technical data of the installed system
For this project in Sainte-Dorothée, the installed equipment corresponds to the following technical sheet:
- Brand: FUJITSU
- Series: ORION XLTH KZAH R-32
- Type: wall-mounted heat pump, mini split, wall-mounted air conditioner
- Nominal capacity: 18,000 BTU
- Indoor model: ASUH18KZAS
- Outdoor model: AOUH18KZAH1
- AHRI: 215647921
- Refrigerant: R-32
- ENERGY STAR®: Yes
- ENERGY STAR® Cold Climate: Yes
- ENERGY STAR ID: 3629537
- Heating capacity: down to -26 °C
- SEER2: 25.5
- HSPF2: 12.5
- EER2: 14.0
- WiFi: included
- Indoor sound level: approximately 30 / 46 dB(A)
- Outdoor sound level: approximately 50 dB(A)
- Piping: 3/8 - 5/8 in
- Voltage: 220 V
- MCA / MOP: 20 A / 20 A
- Warranty: 12 years compressor, 12 years parts, labor according to applicable options
- Indicated provincial LogisVert subsidy: $1,632, subject to eligibility and current criteria
These figures are not only useful for comparing products on paper. They concretely influence the client's daily comfort. A SEER2 of 25.5 means excellent cooling efficiency during hot periods. An HSPF2 of 12.5 indicates very good seasonal heating performance. The Cold Climate certification is particularly relevant for Laval and Greater Montreal, where winter temperatures can quickly drop below the thresholds where standard appliances become less effective.
A clean installation in a visually sensitive space
One of the most important aspects of this project was the final appearance. In a room with colored walls, a very visible window, and a unit placed at eye level, the finish must be impeccable. The client not only wanted a high-performing system but also a neat, straight, discreet installation that was coherent with the room.
Our refrigeration technicians therefore paid particular attention to the alignment of the indoor unit, the piping outlet on the right side, and the finish of the wall penetration. The small cover visible to the right of the unit was integrated subtly to protect and conceal the connections. In this type of installation, a sloppy finish is immediately noticeable. Conversely, precise installation gives the impression that the unit is a natural part of the room.
At AirGreen, we believe that a successful wall-mounted heat pump installation must meet three requirements simultaneously: performance, durability, and aesthetics. Too often, installations are carried out simply to "make the appliance work," without considering the final result in the living space. This is not our approach.
Specific challenges encountered on site
This project presented several technical constraints that deserve to be explained, as they are common in homes and condos in Laval.
Clearance near the ceiling
The wall-mounted heat pump must be able to draw in ambient air from above and properly redistribute it from below. When the ceiling is close, it is necessary to ensure that the unit maintains sufficient clearance to operate efficiently and allow access to the filters. A unit installed too high can become difficult to maintain and less effective in terms of air circulation.
In this case, the location was chosen to balance aesthetics, available height, and performance. The unit is placed high on the wall, but in a controlled manner, to maintain adequate air distribution.
Proximity to the window
The window immediately to the right added another constraint. It was necessary to avoid obstructing its opening, the frame, the moldings, and the integrity of the wall. We also considered temperature variations near the window, especially in winter, to prevent the unit from being affected by a localized cold zone.
Poor positioning near a window can sometimes lead to a temperature reading that is less representative of the room. Our installation was therefore designed so that the system could modulate effectively without reacting excessively to variations near the glazing.
Piping routing
Piping routing is one of the most underestimated aspects of an HVAC installation. For a FUJITSU ORION XLTH 18,000 BTU, the 3/8 - 5/8 inch piping must be installed with precision, adequately protected, and connected according to refrigeration standards. Drainage must also be planned to avoid any risk of backflow or water accumulation.
In this project, the routing was carried out to limit visual impact indoors, while respecting the best practices necessary for the system's durability.
What the client gains concretely on a daily basis
After installation, the client benefits from a system capable of efficiently heating and cooling this area of the house, with much more comfortable management than baseboard heating or an old wall-mounted air conditioner. The included WiFi also allows remote control of the unit, which is practical for adjusting the temperature before returning home, reducing consumption during absences, or stabilizing comfort during very cold nights.
In a residence in Sainte-Dorothée, where temperature differences between seasons are significant, this type of flexibility is particularly useful. In winter, the heat pump can provide stable heat down to very low temperatures. In summer, it becomes a very effective wall-mounted air conditioner for maintaining a comfortable temperature during Laval and Montreal's humid and hot periods.
Why R-32 is an important detail
The R-32 refrigerant used by this generation of Fujitsu heat pumps represents a significant evolution compared to older refrigerants used in several residential systems. It allows for the design of modern, efficient equipment that is better aligned with the HVAC industry's new environmental expectations.
For an owner, this means choosing current technology, compatible with regulatory trends, and designed to offer good energy efficiency. In a market where owners are increasingly comparing performance, subsidies, warranties, and environmental impact, this type of technical detail can truly make a difference.
Mistakes to avoid during a similar installation
Based on our experience with this project, here are the mistakes we strongly advise homeowners against making when considering a wall-mounted heat pump installation in Laval, Montreal, Longueuil, on the North Shore or the South Shore.
Choosing power based solely on surface area
An 18,000 BTU unit can be excellent in one configuration, but oversized or unsuitable in another. Insulation, solar orientation, number of windows, ceiling height, air circulation, and the actual use of the room must be considered. Incorrectly chosen power can lead to short cycling, discomfort, poorly controlled humidity, or unnecessary consumption.
Installing the unit too close to an obstruction
A side wall, a low ceiling, a beam, a curtain, or a window can hinder air distribution. In the case of this installation in Sainte-Dorothée, space was limited, but the location was precisely validated. This type of technical judgment cannot be improvised.
Neglecting condensation water drainage
In air conditioning, the indoor unit produces condensation that must be properly drained. An inadequate slope, a poorly positioned drain, or a badly designed passage can cause leaks, odors, or water damage. This is one of the reasons why installation by experienced refrigeration technicians is essential.
Only thinking about the indoor unit
The outdoor unit is just as important. Its location influences noise, access for maintenance, protection against snow, the length of refrigerant lines, and overall performance. A good installation starts inside, but always concludes with comprehensive consideration for the exterior.
The Importance of HVAC Maintenance After Installation
Even a high-end appliance like the FUJITSU ORION XLTH needs proper maintenance. Indoor filters must be cleaned regularly, the heat exchanger should be kept clean, the drain checked, and the outdoor unit cleared of snow, leaves, and debris.
Regular HVAC maintenance helps maintain:
- good air quality;
- high energy efficiency;
- a low noise level;
- an extended lifespan;
- a reduction in breakdown risks;
- better heating stability during winter.
At AirGreen, we often remind our clients that maintenance is not a secondary expense. It is what protects the investment and maintains the advertised performance over several years.
A Relevant Solution for Laval, and also for Greater Montreal
This installation in Sainte-Dorothée perfectly reflects the needs we observe throughout the region. In Montreal, constraints are often related to party walls, balconies, alleys, co-ownership regulations, or confined spaces. In Laval, there are many homes where owners want to improve the comfort of a floor or an open area. In Longueuil and on the South Shore, owners often seek efficient systems to replace aging units. On the North Shore, the need for high-performance heating is particularly important in areas more exposed to cold.
The FUJITSU ORION XLTH KZAH R-32 18,000 BTU model is interesting because it combines several sought-after qualities: low-temperature heating, very good cooling efficiency, quiet operation, included WiFi, potential subsidy, and a solid warranty. But as this project demonstrates, choosing the model is only one part of success. The quality of installation remains crucial.
The AirGreen Approach: Precision, Transparency, and Lasting Results
For this project, our team applied the same method as for all our residential installations:
- Analysis of the room and actual configuration.
- Validation of appropriate power.
- Selection of the best indoor location.
- Planning of piping passage and drainage.
- Careful installation of the indoor unit.
- Compliant refrigerant connection.
- Verification of heating and cooling operation.
- Explanation to the client of settings, WiFi usage, and good maintenance practices.
This process helps avoid unpleasant surprises and provides an HVAC installation that remains reliable over time. We don't just aim to quickly install a device. We aim to deliver a solution that correctly integrates into the home, respects building constraints, and meets the client's actual expectations.
A Seemingly Simple Project, but Highly Technical in Execution
At first glance, a wall-mounted heat pump installed on a wall might seem like a standard project. However, this achievement in Sainte-Dorothée demonstrates that every detail counts. The unit is near the ceiling, near a window, in a room corner, with compact ducting. Everything had to be precise: the level, clearances, orientation, aesthetics, and performance.
It is in this kind of project that the experience of a company specializing in wall-mounted heat pumps, wall-mounted air conditioners, mini splits, and HVAC systems becomes evident. A successful installation is noticeable by what it avoids: no misaligned piping, no uncertain drainage, no poorly positioned appliance, no approximate finishing, no unnecessary compromise on comfort.
For this client in Laval, the final result is a clean, efficient, and well-integrated solution, capable of offering reliable comfort year-round.
Conclusion: A Precise and Efficient Fujitsu Installation in Sainte-Dorothée
This installation of a FUJITSU ORION XLTH KZAH R-32 18,000 BTU wall-mounted heat pump in Sainte-Dorothée perfectly summarizes what we do at AirGreen: choosing the right appliance, installing it rigorously, respecting building constraints, and delivering a result that genuinely improves client comfort.
Thanks to its performance down to -26 °C, high energy efficiency, included WiFi, R-32 refrigerant, quiet operation, and potential eligibility for the LogisVert subsidy, this model represents an excellent choice for homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore who want to upgrade their heating and air conditioning.
But above all, this project highlights an essential point: even the best heat pump must be installed correctly to achieve its full potential. In Sainte-Dorothée, our team transformed a tight wall configuration into a clean, efficient, and durable installation, perfectly aligned with the client's needs.
