Anjou HVAC Installation Where Every Detail Mattered: Brick Wall, Restricted Space, and Clean Finish
In Anjou, in eastern Montreal, our AirGreen team recently installed a GREE CHARMO R32 wall-mounted heat pump, an air conditioning and heating solution designed to provide reliable, quiet, and energy-efficient comfort in an urban residential setting. This project perfectly illustrates the type of intervention we regularly carry out in dense Montreal neighborhoods: a brick building, limited outdoor space, an existing structure to respect, and an absolute necessity to deliver a clean, safe, and durable installation.
The GREE outdoor unit was installed on a robust metal wall bracket, securely attached to the building structure. This approach frees up ground space, protects the equipment from snow accumulation, improves air circulation around the unit, and facilitates access for future HVAC maintenance. The photo also highlights the attention paid to refrigeration connections, electrical supply, clearance around the unit, and the organization of insulated conduits behind the unit.
This type of installation requires much more than simple mechanical placement. In an area like Anjou, where residential buildings are often close together, external walls are brick, and passages can be narrow, every step must be planned with precision. At AirGreen, we place particular importance on this preparation, as it directly influences the performance, durability, and final appearance of the heat pump.
Why the GREE CHARMO R32 was an excellent choice for this project
The GREE CHARMO R32 is a wall-mounted heat pump of the mini-split type, designed for homeowners looking for a reliable heating and cooling solution without major ductwork. It is very suitable for homes, duplexes, triplexes, condos, and small commercial spaces in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
In this project in Anjou, the choice of the GREE CHARMO R32 was made for several reasons:
- Its compact format facilitates integration on an existing exterior wall.
- Its operation with R32 refrigerant aligns with current trends in efficiency and reduced environmental impact.
- Its wall-mounted air conditioner and heat pump design allows for managing both summer comfort and auxiliary heating in the cold season.
- Its inverter compressor technology adjusts power according to actual demand, which improves indoor temperature stability.
- Its quiet operation is well suited to residential environments where neighbors are close.
The GREE CHARMO R32 is often selected by clients who want a good balance between performance, installation cost, reliability, and daily comfort. It represents a serious option for replacing an old wall-mounted air conditioner, adding an efficient heating source, or improving the comfort of a main room, a rental unit, or an entire floor depending on the configuration.
Site analysis before installation: the step that avoids costly mistakes
Before installing a wall-mounted heat pump in Anjou, our team always conducts a comprehensive site analysis. This step allows us to validate several essential elements:
- the ideal location for the indoor unit;
- the path of the refrigerant lines;
- the feasibility of the wall exit;
- the available electrical capacity;
- the positioning of the outdoor unit;
- the necessary clearance around the unit;
- protection against snow, water, and vibrations;
- the final appearance on the facade or side wall.
In this specific case, the brick wall required careful execution. Drilling into a masonry building envelope requires appropriate tools, good knowledge of materials, and a watertight finish. A poorly made opening, bad sealing, or an incorrectly oriented passage can lead to infiltration, loss of efficiency, or aesthetic problems.
We therefore planned the conduit exit to limit unnecessary lengths, maintain an adequate slope for drainage, and ensure a clean finish. The outdoor unit was positioned on an aluminum wall mount to provide a stable and resistant base, while keeping the unit sufficiently elevated from the ground.
An outdoor installation designed to last

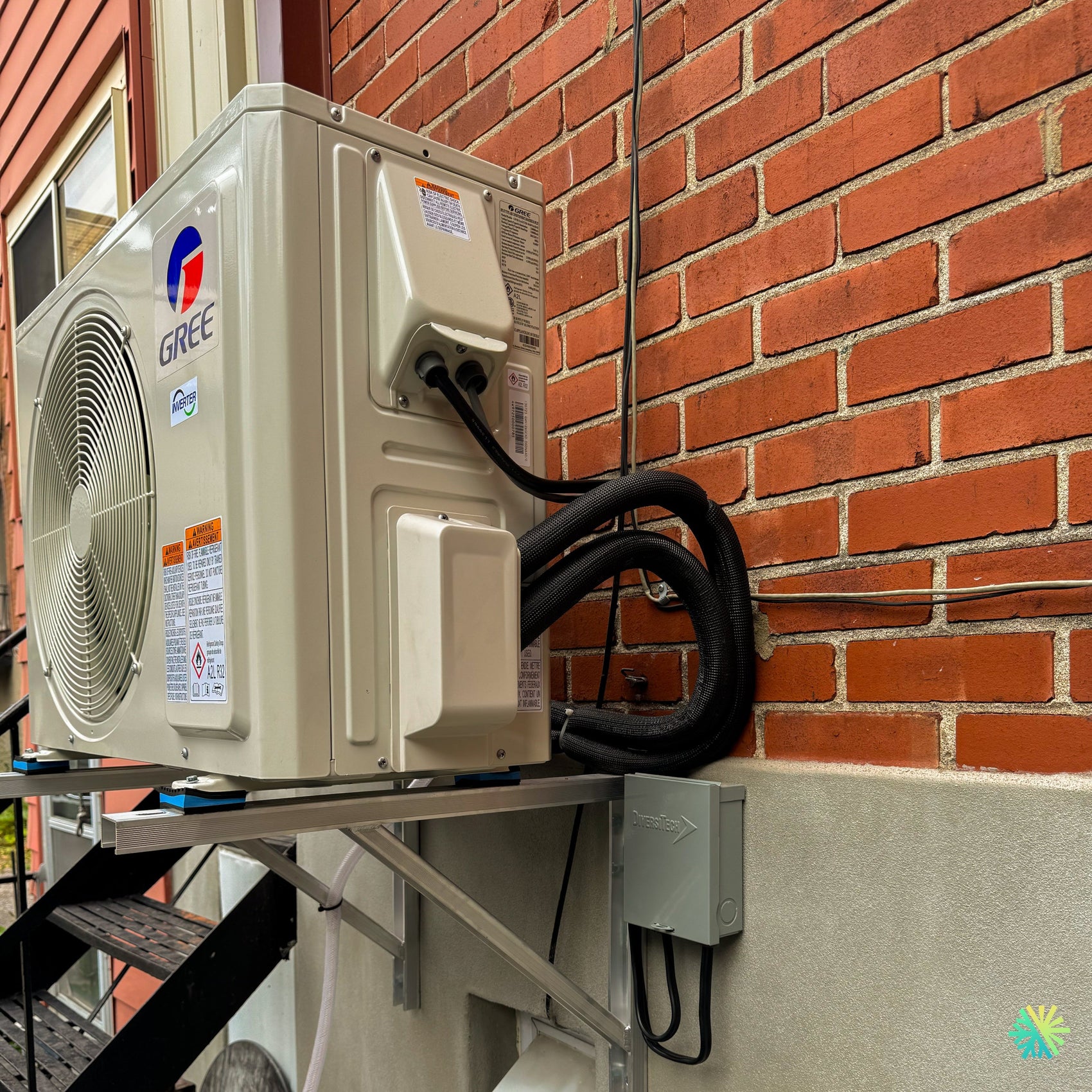

In the project image, several technical elements deserve to be highlighted. The GREE outdoor unit is placed on blue anti-vibration mounts, installed between the unit and the metal structure. These components play an important role: they reduce the transmission of vibrations to the wall and contribute to quieter operation.
The wall mount is also a key element of this HVAC installation. In Quebec's climate, placing an outdoor unit directly on the ground can sometimes create problems: accumulated snow, ice, water splashes, dead leaves, difficult access, and premature wear. By installing the unit on a well-anchored wall mount, we improve the overall protection of the equipment.
The insulated refrigeration conduits are grouped and protected. Their curvature must respect the manufacturer's technical limits to avoid pinching or excessive stress. A poorly bent line can reduce system performance, create restrictions, and compromise compressor lifespan. Our team therefore takes care to work the lines with precision, without excessive tension and with complete insulation.
The electrical supply is connected to an outdoor disconnect switch, visible near the unit. This device allows the power to the unit to be cut during maintenance or technical intervention. It is an essential safety element and a practical requirement for any well-installed wall-mounted heat pump system.
Specific challenges of an installation in Anjou
Anjou presents varied residential characteristics: bungalows, semi-detached houses, triplexes, rental buildings, condos, and older buildings. In this project, the urban context required particular attention to the available space and the proximity of existing elements.
The first challenge concerned the location of the outdoor unit. It was necessary to install the unit in an accessible, safe, and technically appropriate place, without obstructing circulation around the building. The presence of an outdoor staircase and a brick wall imposed clear limitations. We therefore chose a wall installation that maximizes available space while ensuring good air circulation.
The second challenge concerned the finishing of the connections. Refrigerant lines and cables must be protected, but also carefully organized. A neglected installation can result in a cluttered visual appearance, especially on a highly visible brick wall. In this case, we opted for a compact and clean layout, while maintaining the necessary clearances for maintenance.
The third challenge involved vibration management. An outdoor unit attached to a residential wall must be installed with appropriate anchors and effective anti-vibration elements. This precaution is particularly important in duplexes and triplexes, where occupants may be sensitive to noise transmitted through the structure.
The importance of R32 refrigerant in new installations
The GREE CHARMO R32 model uses R32 refrigerant, which is increasingly present in new air conditioning and heat pump systems. This refrigerant is appreciated for its good energy efficiency and its lower global warming potential compared to some older refrigerants commonly used in the industry.
For the customer, the benefit is twofold: to acquire modern equipment and to ensure that the installation is part of a more contemporary approach to HVAC performance. This does not only mean better efficiency on paper. In daily use, a well-sized and properly installed system can help reduce short cycling, improve temperature stability, and optimize electricity consumption.
At AirGreen, we always emphasize that model selection is only part of the equation. Even an excellent machine can deliver disappointing results if it is poorly installed, incorrectly sized, or placed in an unsuitable location. This is why we combine equipment selection with a concrete analysis of the building.
Sizing: avoiding the "bigger is better" trap
One of the most important pieces of advice we give to homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore is not to choose a wall-mounted heat pump solely based on the highest BTU number. A unit that is too powerful for the space can lead to short cycling, uneven comfort, insufficient dehumidification in summer, and premature wear.
Conversely, a unit that is too weak risks running almost continuously during periods of intense heat or cold. The right choice depends on several factors:
- area to be covered;
- building insulation;
- solar orientation;
- ceiling height;
- number of occupants;
- number and size of windows;
- room configuration;
- presence of stairs or open areas;
- actual heating and cooling needs.
In this project in Anjou, our objective was to offer a solution adapted to the building and its intended use, while ensuring stable operation. A successful HVAC installation is not only measured by the brand of the appliance, but by the comfort achieved in the weeks and months that follow.
Interior installation: comfort, airflow and discretion
Even though the photo mainly highlights the outdoor unit, the performance of a mini-split system greatly depends on the placement of the indoor wall unit. We generally look for a wall that allows for good air distribution, without blowing directly on occupants for long periods.
For a wall-mounted heat pump, the indoor position should promote natural circulation to the main areas. In homes in Anjou, where some interior divisions may be more closed off, client expectations sometimes need to be adjusted: a wall unit can be very effective in an open area, but it does not always replace a central system for all enclosed rooms. Our role is to clearly explain these limitations so that the client can make an informed decision.
We also pay attention to the visual aspect. An indoor unit must be practical for maintenance, accessible for filter cleaning, and installed at an appropriate height. Poor placement can complicate maintenance operations and reduce long-term performance.
Subsidies and eligibility: a point to validate before purchase
Subsidy programs for heat pumps in Quebec are constantly evolving. Several high-performance models may be eligible for financial aid, particularly under provincial programs such as LogisVert, when applicable criteria are met. For each project, we recommend validating the eligibility of the exact model, installed capacity, and current requirements at the time of purchase.
At AirGreen, we support our clients in this step by providing the necessary documents after installation, such as the detailed invoice, information on the installed model, and the elements required for the application. The client remains responsible for submitting their application according to program rules, but our job is to make this process much simpler.
For a homeowner in Anjou, this potential aid can influence the net cost of the project. That's why it's best to discuss it before installation rather than after, in order to choose a device that meets both comfort needs and available criteria.
What this installation reveals about the quality of HVAC work
A wall-mounted air conditioner or wall-mounted heat pump installation may seem simple when only looking at the final unit. However, several invisible details determine the actual quality of the work:
- the quality of drilling;
- the sealing of the wall penetration;
- the cleanliness of the refrigerant lines;
- compliance with minimum and maximum lengths;
- the quality of condensate drainage;
- the solidity of the outdoor support;
- vibration protection;
- compliant electrical connection;
- startup and performance tests;
- explaining operation to the client.
In this project in Anjou, we paid particular attention to the stability of the outdoor unit. The wall mount was installed to adequately support the weight of the appliance, while taking into account the constraints related to the brick wall and the immediate environment. The result is a compact, clean, and functional installation.
Practical tips for homeowners considering a similar installation
For homeowners planning to install a GREE CHARMO R32 or other mini-split system in Anjou, Montreal, Laval, Longueuil, on the North Shore, or on the South Shore, here are some recommendations based on our field experience.
Don't choose the location solely for appearance
It's normal to want to hide the outdoor unit, but it needs to breathe. A unit placed in too confined a space can lose efficiency, make more noise, or wear out faster. The location must combine discretion, clearance, accessibility, and performance.
Plan for maintenance from installation
An outdoor unit that is difficult to access complicates future inspections, cleaning, and interventions. In this project, the wall bracket provides more convenient access while protecting the unit from ground accumulation.
Avoid installations without electrical analysis
A heat pump must be correctly powered, with the necessary protections. Adding an outdoor disconnect switch, as in this installation, facilitates maintenance and enhances safety.
Don't underestimate duct finishing
Refrigerant lines, cables, and the drain must be installed cleanly. A poorly organized layout can detract from the building's appearance and complicate future repairs.
Request a clear explanation of operation
After installation, it's important to understand the operating modes, remote control usage, filter cleaning, and good seasonal practices. Proper use improves comfort and extends the equipment's lifespan.
AirGreen's Experience with Wall-Mounted Installations in Montreal and Surrounding Areas
AirGreen regularly carries out similar projects in Anjou and throughout Greater Montreal. Our teams work in a wide variety of contexts: condos in Montreal, single-family homes in Laval, duplexes in Longueuil, properties on the North Shore, family residences on the South Shore, and light commercial buildings.
This diversity allows us to adapt our methods to each situation. An installation in a condo is not planned the same way as an installation in a detached house. A brick wall does not require the same precautions as light siding. A narrow yard demands a different strategy than a large, open space. It is this concrete experience that helps us avoid common mistakes and deliver solid installations.
In several previous projects, we have had to deal with similar constraints: outdoor units placed far from neighbors' windows, wall brackets installed on irregular facades, refrigerant lines routed through limited spaces, or requests for more discreet finishes to respect the building's appearance. Each time, our priority remains the same: to ensure a compliant, durable, and aesthetically acceptable installation.
A clean, reliable result adapted to the client's daily life
This installation of a GREE CHARMO R32 wall-mounted heat pump in Anjou truly represents our approach at AirGreen: precise work, a solution adapted to the building, and constant attention to details that influence long-term performance. The client now benefits from a system capable of improving indoor comfort in summer as well as during cooler periods, with an outdoor unit installed stably, accessibly, and well-protected.
The photo shows a simple yet technically thought-out installation: robust wall bracket, adequate clearance, organized connections, accessible disconnect switch, and line insulation. These are the elements that make the difference between a simply functional installation and a truly professional one.
For homeowners considering an HVAC installation in Anjou or elsewhere in Greater Montreal, this achievement demonstrates the importance of working with a team that understands both the equipment, local buildings, and real-world constraints. A high-performing heat pump deserves an installation that matches its capabilities.
Why choose AirGreen for a GREE wall-mounted heat pump
Choosing AirGreen means benefiting from comprehensive support: site evaluation, model recommendation, clear estimate, installation by qualified technicians, start-up, client explanation, and post-installation support. We know that purchasing a wall-mounted air conditioner or a wall-mounted heat pump represents an important decision. Our role is to make this decision simpler, more transparent, and safer.
The GREE CHARMO R32 installed in Anjou is an excellent example of a solution well integrated into a residential building in Montreal. It meets a concrete need: improving comfort without transforming the house, while maintaining a clean and durable outdoor installation.
