A HVAC installation in Montreal where every inch counted
In this Montreal residence, our AirGreen team installed a GREE CHARMO R32 wall-mounted heat pump, a mini-split air conditioner system designed to offer precise, silent, and efficient comfort in a residential space where the interior configuration required special attention.

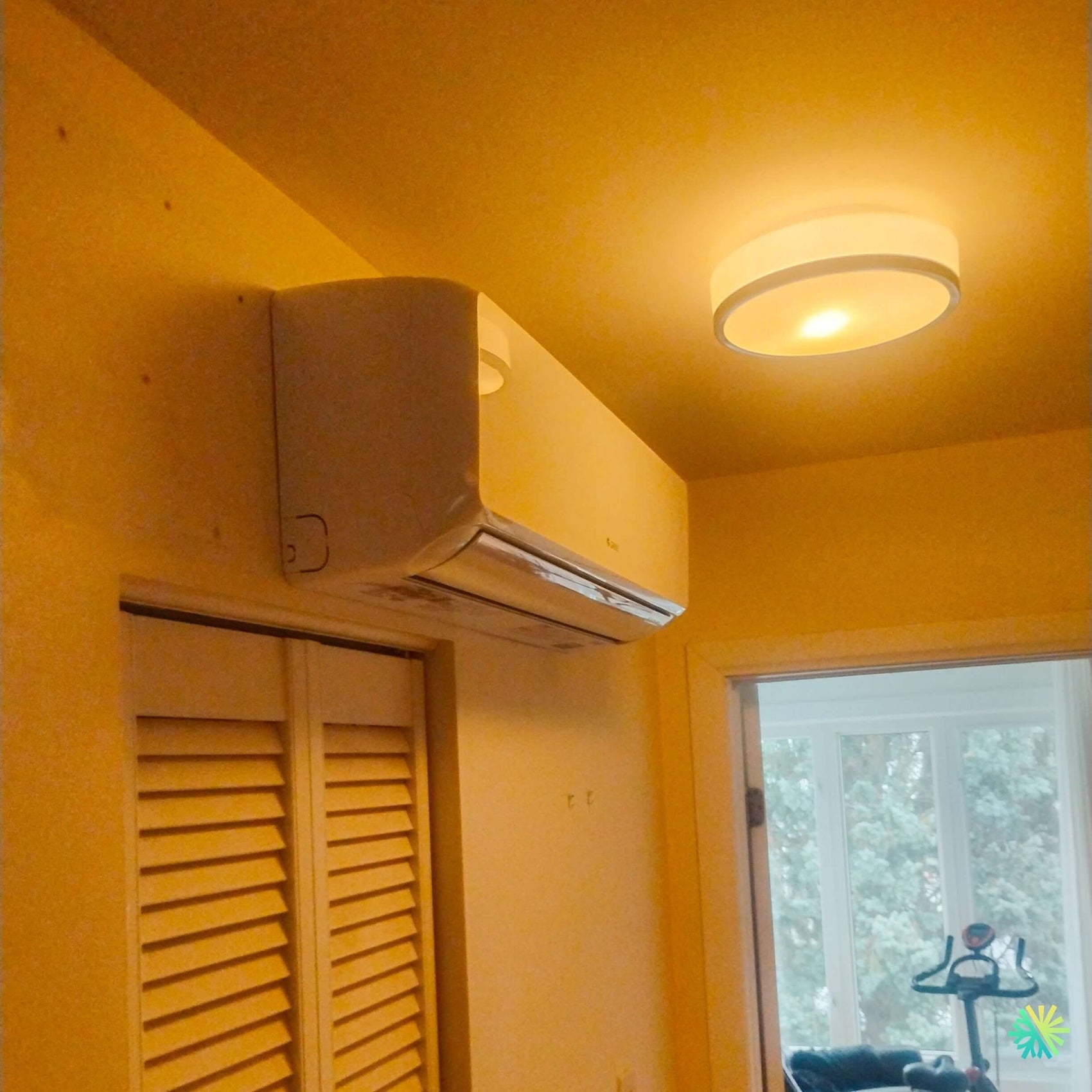

The photo of this installation immediately shows the context: a wall unit placed very close to the ceiling, above a storage space with bifold doors, in a room where natural light enters through a large side window. This type of environment is very common in Montreal, particularly in houses, duplexes, renovated condos, and apartments where available wall space is limited by windows, closets, light fixtures, mouldings, or air circulation constraints.
In this project, the goal was not just to install a wall-mounted heat pump. It was necessary to install a high-performance appliance in a strategic location, without detracting from the aesthetics of the room, without compromising air diffusion, and while respecting the physical constraints of a wall already occupied by several architectural elements.
At AirGreen, we approach every HVAC installation in Montreal as a custom project. Even when it's a compact wall system, the choice of location, the blowing angle, the available height, the distance from closet doors, the proximity to the ceiling, and the presence of openings must be precisely evaluated.
Why the GREE CHARMO R32 was the right choice for this room
The GREE CHARMO R32 is a well-suited solution for residences looking for a modern, efficient, and discreet appliance. In this specific case, the client wanted to improve the comfort of a room that quickly became hot in summer, particularly due to light exposure and limited air circulation.
A wall-mounted heat pump of the mini-split type can effectively air condition without requiring central ducts. This is a major advantage in many Montreal properties where adding ducts would be too invasive, too costly, or simply impossible without major work.
The GREE CHARMO R32 model offers several important advantages for this type of installation:
- A compact wall-mounted design, ideal for confined spaces.
- Quiet operation, essential in a living room, bedroom, office, or multifunctional space.
- The use of R32 refrigerant, known for its energy efficiency.
- Good capacity modulation thanks to inverter technology.
- Comfortable air diffusion, when the unit is well positioned and correctly commissioned.
- A sober aesthetic that integrates easily into a residential decor.
In this project, discretion was particularly important. The unit had to be visible but not dominate the room. The GREE CHARMO R32, with its white casing and simple lines, integrates well with the existing wall and ceiling.
A typical interior configuration for residential installations in Montreal
Many clients believe that it is enough to find a free wall to install a wall-mounted air conditioner. In reality, a good installation depends on a series of technical details.
For this installation in Montreal, the indoor unit was placed above a closet, in a space where the available height between the top of the wall and the ceiling was limited. This type of positioning requires rigorous verification, as sufficient space must be maintained around the appliance to allow for:
- good air return from the top of the unit;
- reasonable access for HVAC maintenance;
- adequate opening of the front panel for filter cleaning;
- air diffusion that is not blocked by doors, mouldings, or furniture;
- a compliant drainage slope for condensation evacuation.
The unit is also installed near a window. This requires thought about the thermal circulation of the room. Windows can generate significant heat gains in summer and colder areas in winter. A well-positioned wall-mounted heat pump can compensate for these variations, provided its airflow is not obstructed.
In this case, our team chose a position that allows treated air to circulate towards the main volume of the room, rather than remaining trapped in a corner or blowing directly onto a surface too close.
Technical challenges encountered on site
This installation of a GREE CHARMO R32 in Montreal presented several concrete challenges.
Limited ceiling height
The first challenge concerned the distance between the ceiling and the appliance. A wall unit must always be installed with sufficient clearance to allow air to return to the evaporator. If the appliance is too close to the ceiling, it can lose efficiency, become noisier, or operate less stably.
Our technicians therefore took precise measurements before fixing the wall bracket. The objective was to maximize the available space while keeping the unit high enough not to interfere with the use of the cupboard below.
Presence of a ceiling light fixture
The photo also shows a circular light fixture placed nearby. This detail may seem secondary, but it matters in a carefully executed HVAC installation. A light fixture can influence the choice of location if the blown air causes a draft sensation in a specific area, or if access to the light fixture becomes complicated.
Our team therefore took the entire room into account, not just the wall where the unit was to be installed.
Routing of refrigerant lines
The installation of a mini-split involves routing refrigerant lines, communication wiring, electrical power, and the condensation drain. In an existing residence in Montreal, the ideal path is rarely perfectly direct.
It is necessary to find a clean, solid, compliant, and as discreet a path as possible. Our approach is to limit visual impacts indoors, while ensuring a reliable connection to the outdoor unit. Poor planning of line routing can lead to unnecessarily long visible conduits, insufficient drain slopes, or more complex future interventions.
Condensation drainage
A wall-mounted air conditioner produces condensation in cooling mode. This water must be properly drained. In this project, as the unit is installed high on the wall, the positioning of the drain was carefully checked to avoid water accumulation, backflow, or flow noise.
A properly installed drain is one of the invisible details that distinguish a professional installation from a rough one.
A clean, efficient installation designed for daily comfort
One of the strengths of this installation is its visual integration. The unit is well-aligned, stable, neatly positioned, and adapted to the interior configuration. For a client, this result translates into an appliance that does its job without disrupting the daily use of the room.
Installation steps performed by AirGreen
Our installations follow a structured method, adapted to each building. For this GREE CHARMO R32 wall-mounted heat pump project in Montreal, our team proceeded with a rigorous sequence.
1. Interior space analysis
Before installation, we evaluated the room as a whole: dimensions, orientation, windows, ceiling height, obstacles, occupied areas, closet location, and connection possibilities to the exterior.
This analysis confirms that the chosen unit will offer real comfort, not just theoretical capacity.
2. Wall location validation
The location was validated taking into account the upper clearance, unit width, ceiling proximity, filter access, and airflow into the room.
A common mistake is to place the appliance solely according to available space, without checking the air path. At AirGreen, we always seek a balance between aesthetics, performance, and future maintenance.
3. Wall bracket installation
The wall bracket was installed securely to ensure a stable hold of the indoor unit. Inadequate fastening can lead to vibrations, noise, or progressive misalignment.
In a high installation, level precision is essential. A slight misalignment can affect condensation drainage.
4. Line routing and connections
The refrigerant lines and necessary connections were carefully prepared. Work on the lines requires great rigor, as the performance of a heat pump depends directly on the quality of the connections, sealing, and commissioning.
5. Vacuuming and checks
Adequate vacuuming is an essential step. It removes moisture and air present in the lines before the system is started. This step protects the compressor, improves reliability, and contributes to overall performance.
6. Start-up and tests
After commissioning, we checked the unit's operation, remote control response, airflow, drainage, stability, noise level, and overall performance.
The client also received the necessary explanations to effectively use their new mini-split air conditioner, adjust modes, maintain filters, and adopt the right settings according to the season.
What the client gains from this installation
An installation like this brings several immediate benefits.
Comfort becomes more stable, especially during the hot and humid periods of Montreal summers. The room can be cooled quickly, without having to cool the entire house. Inverter technology allows power to be adjusted according to real demand, which improves comfort while reducing abrupt on and off cycles.
In heating mode, a wall-mounted heat pump can also serve as an effective auxiliary during several periods of the year, depending on outdoor conditions and residential needs.
The client also benefits from a discreet appliance. In a room where wall space is limited, choosing a compact and well-positioned system greatly changes the daily experience.
Mistakes to avoid during mini-split installation
This project illustrates several important points for homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore considering a wall-mounted heat pump installation.
Installing the unit too close to the ceiling
An appliance installed too high may lack return air. Even if space seems available, recommended clearances must be respected and access for maintenance checked.
Neglecting the drain location
A poorly planned drain can lead to water problems, odors, backflow, or repeated interventions. Drainage must be considered from the outset.
Choosing capacity based only on area
Area alone is not enough. Insulation, windows, sun exposure, ceiling height, room usage, and air circulation must also be considered.
Forgetting future maintenance
An appliance must remain accessible. Filters must be easily removable, the panel must open, and technicians must be able to intervene without having to dismantle surrounding elements.
Entrusting installation to an unskilled team
An HVAC installation is not limited to mounting a unit on a wall. It involves refrigerant, electrical, and mechanical connections that must be made according to applicable standards. A poor installation can reduce the appliance's lifespan, increase noise, create leaks, or harm energy efficiency.
The GREE CHARMO R32 and the importance of R32 refrigerant
Refrigerant choice has become an important criterion in modern systems. R32 is used in several new generations of wall-mounted heat pumps due to its good thermodynamic performance and efficiency.
For clients, this generally means better energy performance and a more up-to-date design. For installers, it requires professional, compliant, and rigorous handling. Work related to refrigerants must be performed by qualified technicians, with appropriate tools.
At AirGreen, we place great importance on the quality of commissioning. A high-performance appliance loses much of its advantage if the installation is not done correctly.
A solution adapted to the realities of Montreal homes
Buildings in Montreal often have specific characteristics: shared walls, narrow spaces, lower ceilings, numerous windows, complex staircases, limited outdoor access, co-ownership requirements, facade constraints, or non-standard pipe routing.
This GREE CHARMO R32 installation clearly demonstrates why field experience matters. The final result must be clean, functional, and durable. The client does not always see all the decisions made during installation, but they feel them in the comfort, silence, efficiency, and reliability of the system.
We regularly carry out this type of project in various sectors: Montreal, Laval, Longueuil, the North Shore, and the South Shore. Each building has its constraints, but the objective remains the same: install the right system, in the right place, with a professional finish.
Practical tips for using a wall-mounted heat pump
After installation, usage habits have a direct impact on comfort and energy consumption.
We generally recommend:
- maintain a stable temperature rather than making frequent large adjustments;
- clean filters regularly, especially during periods of intensive use;
- avoid blocking airflow with furniture, curtains, or decorative objects;
- use the appropriate mode according to the season;
- have the system checked periodically as part of HVAC maintenance;
- monitor for any unusual noise or change in performance.
In a room like this installation, it is also important to allow air to circulate freely around the area where the unit is installed. Closet doors, curtains, or tall objects should not obstruct airflow.
Why choose AirGreen for an HVAC installation in Montreal
AirGreen supports clients through all stages: model selection, location assessment, installation, commissioning, usage advice, and after-installation service.
Our expertise is based on concrete projects carried out in various contexts: single-family homes, condos, duplexes, Montreal plexes, local businesses, and technical spaces. We know that each installation requires a precise understanding of the building.
For this installation of a GREE CHARMO R32 wall-mounted heat pump in Montreal, our team delivered a compact, clean solution adapted to a room where available space was limited. The result is a discreet, well-integrated system ready to provide reliable comfort daily.
A project that demonstrates the importance of a well-thought-out installation
This installation illustrates an essential reality: choosing the right appliance is only part of the project. The quality of the result depends just as much on positioning, connections, drainage, commissioning, and advice given to the client.
A GREE CHARMO R32 wall-mounted heat pump can offer excellent comfort when installed methodically. In this Montreal residence, the system was integrated into a confined space without sacrificing aesthetics or performance.
For homeowners considering adding a wall-mounted air conditioner, a mini split, or a heat pump in the greater metropolitan area, this project demonstrates the importance of entrusting the installation to a team that understands local realities, the constraints of existing buildings, and the technical requirements of residential HVAC.
