Installation of a GREE CHARMO R32 Wall-Mounted Heat Pump in Rosemont–La Petite-Patrie, Montreal: a compact Mini Split air conditioner for a high-rise residential space

An HVAC Installation in Rosemont–La Petite-Patrie Where Available Space Dictated Strategy

In this project carried out in Rosemont–La Petite-Patrie, in the heart of Montreal, our AirGreen team installed a GREE CHARMO R32 wall-mounted heat pump, a Mini Split wall-mounted air conditioner type, in a residential space where the interior configuration required precise analysis. The image shows an indoor unit installed very close to the ceiling, in a high area, near an interior opening and a tall piece of furniture decorated with plants. This type of location is common in Montreal dwellings where every available wall must be used intelligently.

At first glance, the installation seems simple: a discreet white wall unit, placed in an upper corner. In reality, this kind of project requires real expertise in HVAC installation, as several factors can influence the final performance: ceiling height, air circulation, lateral clearance, access to filters, drain slope, refrigerant line routing, proximity of furniture, and the unit's ability to effectively treat the targeted area.

In a neighborhood like Rosemont–La Petite-Patrie, we often work in apartments, condos, duplexes, and plexes where walls are not always perfectly clear. Ceilings can be low or irregular, rooms are sometimes separated by large openings, and clients want a solution that is both efficient, discreet, and respectful of interior aesthetics. This is exactly the type of context where a well-chosen and well-positioned wall-mounted heat pump can make a big difference.

The GREE CHARMO R32 was selected here for its ease of integration, efficient operation, and profile well-suited to residential needs. It allows for cooling the space during warm periods, contributing to heating during intermediate seasons, and offering better comfort control than a mobile unit or a window air conditioner. For the occupants, the desired result was clear: to obtain a more stable temperature, reduce discomfort in summer, and benefit from a permanent, clean, and easy-to-use system.

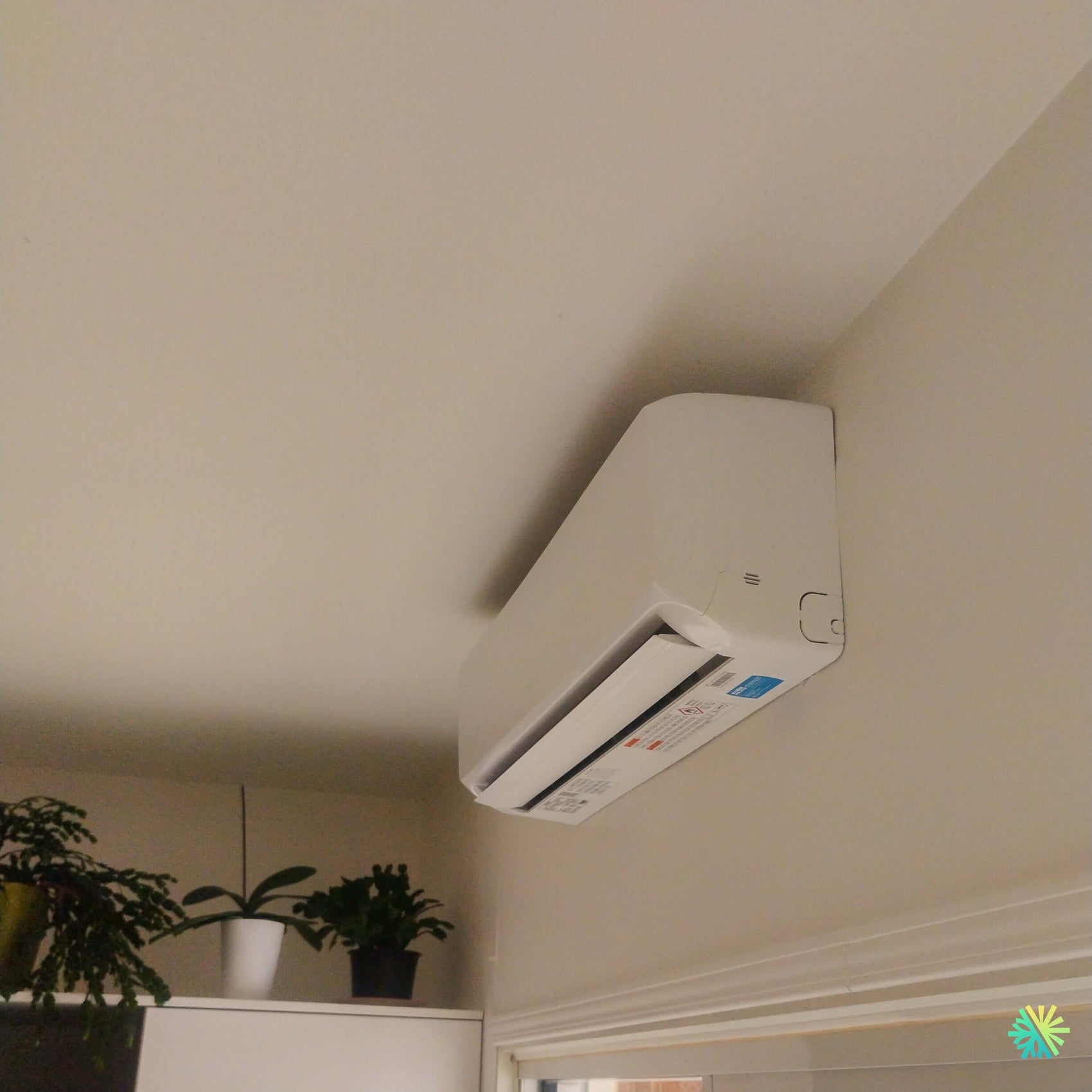

A high location, chosen to preserve living space

One of the most visible elements of this installation is the position of the indoor unit. Placed above an interior opening, in the upper corner of the wall, the GREE CHARMO R32 wall-mounted heat pump utilizes an area often underused in homes: the space above doors, passages, or storage.

This choice offers several advantages:

• it frees up lower walls for furniture, plants, and decoration;
• it promotes air diffusion from a high point;
• it keeps the unit out of traffic areas;
• it allows for more discreet visual integration;
• it avoids blowing directly on occupants sitting nearby.

However, this type of location requires rigor. A wall unit should not be installed too close to the ceiling to the point of impeding air intake. Sufficient clearance around the unit must be maintained for proper operation. Our technicians therefore checked the available space, the solidity of the wall, access to the front panel, and the possibility of ensuring adequate condensation drainage.

In this project, the unit was installed with an orientation allowing it to treat the main area without visually encroaching on the room. The presence of plants on the neighboring furniture was also taken into account. A professional HVAC installation must consider the actual use of the room, not just the available wall.

Why the GREE CHARMO R32 Was Suitable for This Montreal Home

The GREE CHARMO R32 is an interesting solution for residences seeking a balance between performance, price, reliability, and sober design. It uses R32 refrigerant, now very common in new generations of wall-mounted systems. This choice of refrigerant improves the overall efficiency of the equipment while meeting current expectations for more modern HVAC solutions.

Depending on the selected capacity, the CHARMO R32 range can be suitable for a bedroom, a living room, a compact open-plan area, a floor of a dwelling, or a difficult-to-cool zone. In this project in Rosemont–La Petite-Patrie, the priority was to create stable comfort in a residential space where adding a central system was not necessary. A Mini Split wall-mounted heat pump then represents a logical solution: it directly treats the targeted area, without major ventilation work and without occupying a window.

The client also sought a more permanent solution than a portable air conditioner. Portable units take up floor space, often require an exhaust to a window, and generally produce more noise. A wall-mounted unit like the GREE CHARMO R32 allows for more natural daily use, with better air distribution and a much neater appearance.

An Installation That Respects the Aesthetics of the Home

In many projects in Montreal, interior aesthetics are as important as performance. Clients want to improve their comfort without turning their space into a technical room. Here, the white and compact façade of the GREE CHARMO R32 blends discreetly with the pale wall. The unit is located in a high area, above daily sightlines, which reduces its visual impact.

Positioning near the ceiling and above an interior opening creates a natural integration effect. The unit does not block light, does not hinder movement, and does not force the client to move their furniture. This is an important aspect in homes in Rosemont–La Petite-Patrie, where spaces are often optimized down to the last centimeter.

Our technicians always pay particular attention to the finish. A clean installation is not limited to mounting the unit straight. It also includes care taken with drilling, pipe routing, drainage, surface protection, and commissioning. The result must be functional, but also pleasant to look at.

Air Circulation: A Central Element of Comfort

The role of a wall-mounted heat pump is not just to produce cool or warm air. It must also distribute this air effectively throughout the space. In this installation, the proximity of an interior opening allows for promoting circulation to the neighboring area, provided the louvers are well-oriented and the unit is used with appropriate settings.

We always explain to the client how to use the ventilation modes and the orientation of the louvers. Incorrect orientation can create a draft sensation or limit diffusion. Conversely, a well-chosen setting significantly improves comfort.

In a Montreal home, several factors can influence air circulation:

• the presence of closed rooms;
• interior openings;
• tall furniture;
• curtains;
• sun exposure;
• insulation;
• ceiling height;
• actual use of rooms throughout the day.

For this installation, the location was selected to utilize the wall height while maintaining good distribution potential. This type of decision is based on field experience. Two homes of the same size may require two completely different approaches depending on their configuration.

Technical Constraints Behind a Discreet Installation

A discreet installation can give the impression that it was easy to achieve. However, there are many technical constraints. In this project, it was particularly important to ensure that:

• the unit was perfectly level;
• the wall mount was securely fastened;
• the condensation drain could function correctly;
• refrigerant lines were installed without excessive tension;
• access to filters was maintained;
• the unit was not too close to an obstruction;
• commissioning confirmed the system's proper operation.

Drainage is particularly important. In cooling mode, the indoor unit removes moisture from the air, which produces condensation water. This water must be reliably evacuated. A poor slope or a poorly designed path can cause leaks or inconveniences. At AirGreen, we check this point with great care, as it directly influences the durability of the installation.

A Practical Solution for Montreal's Residential Neighborhoods

Rosemont–La Petite-Patrie is an area with a wide variety of buildings: apartments in plexes, renovated condos, townhouses, dwellings above shops, units with specific ceilings, or reconfigured interior spaces. In these contexts, a wall-mounted heat pump often represents a flexible solution.

It allows for modernizing comfort without installing ducts throughout the property. It is also suitable for clients who wish to treat a specific area: living room, master bedroom, home office, upper floor, or common area. For many residents of Montreal, this approach is more realistic than a complete central system.

AirGreen regularly operates in Montreal, Laval, Longueuil, on the North Shore and on the South Shore for this type of project. Each installation reminds us that the choice of location is as important as the choice of unit. A good machine poorly placed can result in average comfort. A suitable machine, well-positioned and well-installed, yields a much more satisfying result.

What You Need to Know Before Installing a GREE CHARMO R32 Wall-Mounted Heat Pump in a Montreal Home

Before investing in a wall-mounted heat pump, it is essential to consider the expected outcome. Some clients primarily want summer air conditioning. Others want to reduce the use of electric baseboards for part of the year. Some are looking for a solution for a room that is too hot, while others want to treat an open-plan area. The right recommendation always depends on the building and its use.

Choosing the Right BTU Capacity

The BTU capacity must be adapted to the space. A unit that is too weak risks running continuously without achieving the desired comfort. A unit that is too strong can cool too quickly without properly dehumidifying the air. Comfort therefore depends not only on the nominal power but also on proper sizing.

At AirGreen, we analyze several factors:

• actual area to be treated;
• ceiling height;
• solar orientation;
• number and quality of windows;
• insulation;
• circulation between rooms;
• presence of heat sources;
• occupancy habits;
• heating and cooling expectations.

In a neighborhood like Rosemont–La Petite-Patrie, where dwellings can have very varied configurations, this analysis is essential. A simple quick calculation based on area is not always sufficient.

Checking Eligibility for Subsidies

Financial aid programs can help reduce the net cost of an installation, but eligibility depends on the exact model, capacity, current criteria, and required documents. For a GREE CHARMO R32 heat pump, it is important to validate the information at the time of the project.

At AirGreen, we guide our clients through understanding the procedures. When the equipment is eligible, we provide the necessary documents to facilitate the application. For owners in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, this step can make a real difference in evaluating the total budget.

Considering Maintenance from the Outset

HVAC maintenance begins with an accessible installation. Filters must be easily removable and cleanable. The front panel must be able to open without obstruction. The unit must be placed to allow for future inspection.

In this installation in Rosemont–La Petite-Patrie, the unit is high up but remains accessible for basic operations. We generally recommend that clients clean the filters regularly, especially during periods of intensive use. A clean filter improves airflow, reduces system effort, and helps maintain comfort.

Periodic professional maintenance also checks the condition of the evaporator, drain, connections, general operation, and the outdoor unit. A well-maintained wall-mounted heat pump maintains better performance throughout the seasons.

Mistakes to Avoid in a Mini Split Project

Several errors can impair the performance of a wall-mounted system, even when the chosen unit is of good quality.

Installing the unit too close to tall furniture

Furniture, plants, shelves, or decorative objects can disrupt air intake or diffusion. In this project, the unit was positioned to maintain functional space around it.

Choosing the easiest location rather than the most efficient

The easiest wall for running conduits is not always the best for comfort. A true HVAC installation must balance technical feasibility, performance, and aesthetics.

Forgetting the actual use of the room

A unit installed in a rarely occupied area will not yield the same result as a unit placed to treat the main living space. Daily habits must be considered.

Neglecting drainage

A poorly designed drain can cause significant problems. The slope, path, and outlet must be carefully checked.

Postponing maintenance

Even a recent GREE CHARMO R32 needs to be maintained. The efficiency of a wall-mounted system also depends on the cleanliness of the filters and the good condition of the components.

The AirGreen approach: precision, cleanliness, and lasting results

This GREE CHARMO R32 wall-mounted heat pump installation in Rosemont–La Petite-Patrie perfectly reflects our way of working. We first analyze the space, then we determine the most logical location based on comfort, access, technical feasibility, and final appearance. Then, our technicians carefully install the equipment and proceed with the complete commissioning.

The result is a Mini Split solution that is well integrated, adapted to a Montreal dwelling, and designed to improve daily comfort. The wall-mounted unit offers a cleaner, more stable, and more discreet alternative than a temporary air conditioner, while giving the client better temperature control.

For residents of Rosemont–La Petite-Patrie, Montreal, and the surrounding areas, this type of project shows that a wall-mounted heat pump can be installed even in a constrained space, provided you work with a team accustomed to the realities of local buildings. At AirGreen, this local knowledge is part of our added value: we know how to adapt the installation to the space, the client, and the technical requirements of each system.
