Installation of a GREE CLIVIA R32 wall-mounted heat pump in Terrebonne in an open-concept residential area with an adjoining kitchen
AirGreen installs a GREE CLIVIA R32 wall-mounted heat pump in Terrebonne, positioned in an open area near the kitchen for efficient and discreet comfort.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A wall-mounted heat pump installed at a strategic point in the house
In this Terrebonne residence, our AirGreen team installed a GREE CLIVIA R32 wall-mounted heat pump, an air conditioner – mini split system designed to provide efficient comfort in an open living area. The indoor unit, visible in the photo, was installed on a central wall located between the entrance, a hallway, and the kitchen. This choice of location is not insignificant: in a house where rooms communicate with each other, the position of the wall-mounted unit directly influences the quality of air distribution.
The appliance was installed high up, above an unobstructed wall, in close proximity to the kitchen and a high-traffic area. This configuration allows conditioned or heated air to circulate to multiple spaces without unnecessarily forcing the system. For a Terrebonne home, where temperature differences between seasons are significant, this approach allows the heat pump to be used regularly, both to cool during warm days and to maintain stable comfort during colder periods.
The GREE CLIVIA R32 is a range of wall-mounted heat pumps offered in several nominal capacities, including 9,000, 12,000, 18,000, and 24,000 BTU, depending on the residential configuration and heating load requirements. CLIVIA R32 models use R32 refrigerant and, depending on the selected capacity, can achieve up to 26.0 SEER2, 15.0 EER2, and 10.4 HSPF2, with a heating operating range down to approximately -30 °C according to the range's specifications.
An indoor installation that respects existing architecture

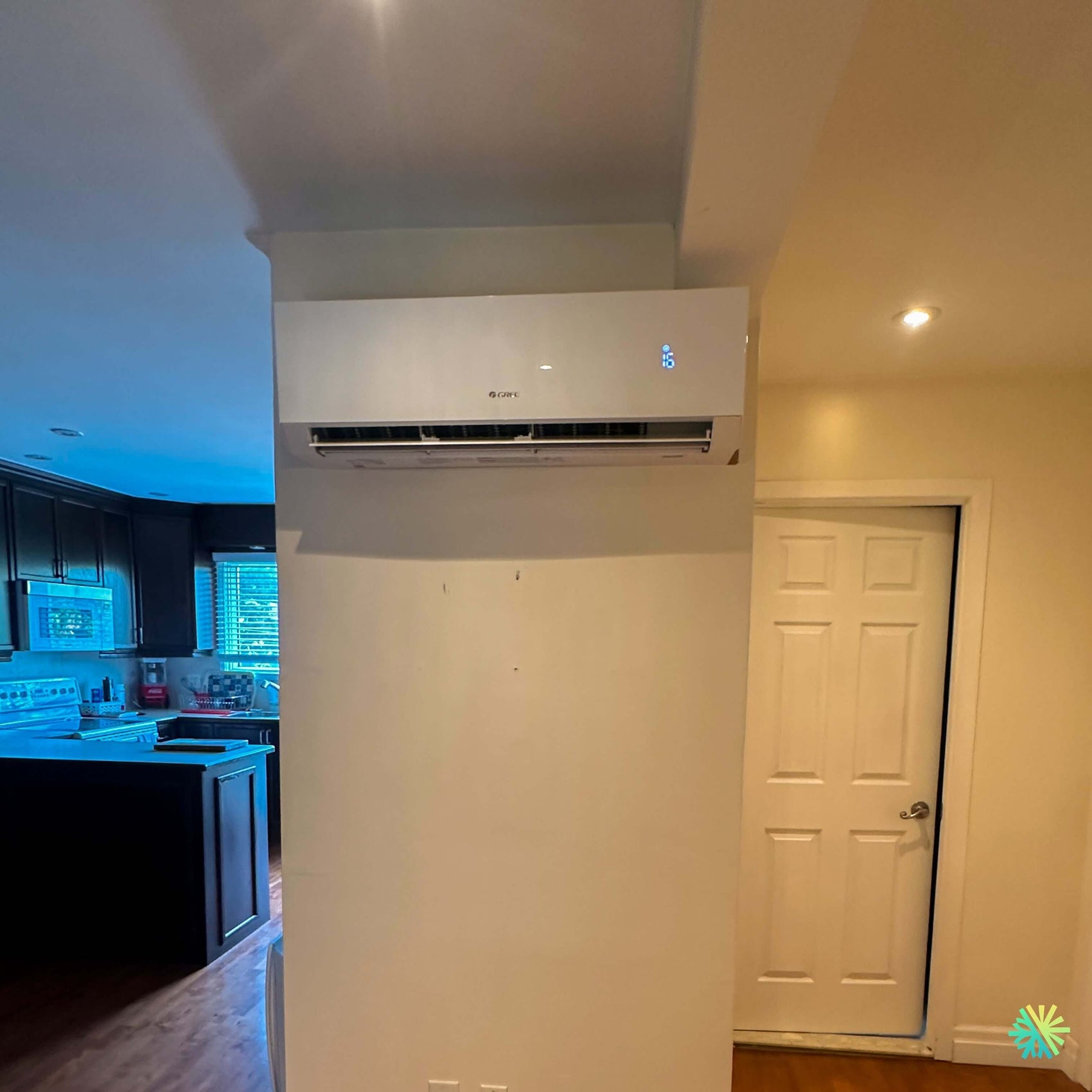

The photo shows a clean, centered, and discreet installation on a white wall, in an area where several constraints had to be considered. To the left, the open kitchen creates interesting air circulation but also a challenge: the unit should not blow directly into a too restricted area or create discomfort for occupants when they are in the kitchen, near the entrance, or in the adjacent hallway.
To the right, the interior door and sloped ceiling limited placement options. We had to maintain adequate clearance around the unit, respect the aesthetic alignment of the wall, avoid architectural obstacles, and allow easy access to filters for HVAC maintenance. A poorly positioned wall-mounted unit can lead to poor air diffusion, a sensation of cold drafts, less precise temperature readings, or less stable performance.
In this project, the indoor unit was installed in a location that allows for:
- air diffusion towards the open area;
- a sober visual integration into the decor;
- simple access to filters;
- good airflow height;
- reduction of hot or cold spots near the kitchen;
- comfortable daily use.
Why the GREE CLIVIA R32 was a good fit for this Terrebonne home
The GREE CLIVIA R32 is particularly relevant for homeowners looking to replace or supplement an existing heating system with a more modulating solution. Thanks to its inverter technology, the heat pump continuously adjusts its speed according to actual demand. This avoids abrupt cycles, improves temperature stability, and reduces uncomfortable variations in main rooms.
In a house with an open concept, this modulation is important. An overly aggressive unit can quickly cool one area without effectively treating adjacent spaces. A well-sized and well-installed unit, on the contrary, works more gradually and maintains more uniform comfort.
The CLIVIA R32 model also offers a modern interior design. In this project, the white unit blends naturally with the light-colored wall. This is very important for owners who want an efficient HVAC installation but without visually cluttering their interior.
The importance of positioning near an open kitchen
Installing a wall-mounted heat pump near a kitchen requires particular analysis. The kitchen is often an area that generates heat: cooking, appliances, recessed lighting, frequent traffic. In this Terrebonne residence, the wall-mounted unit was positioned to contribute to the comfort of this area without being directly exposed to steam or the usage constraints of the kitchen.
We generally avoid locations that direct air directly towards a cooking surface or place the unit too close to a heat source. A heat pump must be able to reliably read the ambient temperature. If it is influenced by a localized heat source, its behavior can become less precise.
Here, the unit is installed on an adjacent wall, which promotes a better reading of the overall temperature of the living area. This is a concrete example of planning that goes beyond simple wall mounting.
What this GREE installation in Terrebonne shows about good HVAC execution
Careful interior finishing in a visible space
The indoor unit is located in a highly visible thoroughfare. In this type of project, the quality of finish is essential. Occupants walk past the unit every day, and the installation must appear natural within the existing environment. A wall-mounted unit that is misaligned, too low, too close to a corner, or installed without coherence with the wall's architecture immediately draws attention.
Our team therefore paid attention to several details:
Unit alignment
The unit was installed straight and proportionally to the wall. This contributes to an impression of cleanliness and stability.
Top clearance
The proximity to the ceiling and interior soffit required precise positioning. A wall-mounted heat pump needs sufficient space for air intake from above. This clearance influences performance and facilitates maintenance.
Filter access
Filters must be easily removable and cleanable. In an occupied home, an appliance that is too high or too cramped makes maintenance more complicated, which can harm long-term performance.
Sound comfort
The wall unit is located near a living area. We therefore chose a stable installation, with appropriate mounting, to limit vibrations and ensure quiet operation.
The concrete advantages of a wall-mounted heat pump in a Terrebonne home
Homeowners in Terrebonne often seek a flexible solution capable of meeting various seasonal needs. A GREE CLIVIA R32 wall-mounted heat pump can significantly improve comfort, especially in homes where existing electric heating does not always distribute heat uniformly.
Among the desired advantages:
- rapid and stable cooling in summer;
- efficient heating for a large part of the cold season;
- reduced use of certain less modulating systems;
- precise temperature control;
- quieter operation than a window air conditioner;
- better aesthetic integration;
- possibility of smart control depending on the chosen configuration.
The CLIVIA R32 range also features characteristics such as G10 inverter technology, a design aimed at facilitating installation and maintenance, as well as air conditioning and heating operation over wide temperature ranges.
Mistakes to avoid when installing a mini split in an open area
A mini split installation may seem simple at first glance, but several errors can reduce comfort or complicate daily use.
Choosing the location based solely on available wall space
The best wall is not always the emptiest wall. Air circulation, room shape, door positions, ceilings, windows, and living areas must be analyzed.
Installing the unit too close to the ceiling
An installation that is too high can hinder air intake and complicate filter maintenance. In this project, the ceiling and architectural volume required precise installation.
Directing airflow to an uncomfortable spot
A draft directly aimed at a table, sofa, bed, or passageway can become irritating. Positioning must allow for comfortable diffusion, not just quick installation.
Neglecting the outdoor unit
Although the photo shows the indoor unit, final performance also depends on outdoor positioning, support, clearances, pipe length, drainage, and the quality of the refrigerant connection.
Underestimating sizing
A heat pump that is too small can run non-stop. A heat pump that is too large can create short cycles and less stable comfort. Load calculation and field experience are essential.
A solution adapted to the realities of Montreal, Laval, Longueuil, North Shore and South Shore
Even though this installation was carried out in Terrebonne, the challenges encountered are similar to those we regularly see in Montreal, Laval, Longueuil, on the North Shore and on the South Shore. Renovated houses, open kitchens, partially sloped ceilings, narrow hallways, and load-bearing walls often impose particular constraints.
At AirGreen, we don't treat an installation as a mere mechanical placement issue. We analyze the daily lives of occupants: where they spend the most time, which areas become too hot in summer, which rooms remain cool in winter, where the appliance will be most practical, and how it will integrate into the decor.
In an open-plan area like this, the right location often improves several zones at once. The kitchen benefits from better heat control, the entrance becomes more comfortable, and air can circulate to adjacent spaces.
The impact of R32 refrigerant in new HVAC installations
The choice of an R32 appliance is increasingly common in residential projects. This refrigerant allows manufacturers to design efficient systems, adapted to new market expectations. For homeowners, the main benefit remains tangible: to have a modern, high-performance appliance designed according to current wall-mounted heat pump standards.
The GREE CLIVIA R32 is part of this transition, with a range that emphasizes efficiency, inverter operation, and installation flexibility. For an owner comparing several options for a wall-mounted air conditioner or wall-mounted heat pump, this type of system represents an attractive solution when sizing and installation are performed correctly.
A customer experience focused on real comfort, not just equipment
In this project in Terrebonne, the request was not limited to installing a machine. The goal was to improve comfort in a central area of the house. This is often what distinguishes a good installation from an average one: the appliance must meet the actual use of the residence.
We therefore took into account:
- the kitchen layout;
- the available wall;
- the ceiling height;
- the proximity of the door;
- the volume of air to be treated;
- acoustic comfort;
- the final appearance;
- accessibility for maintenance.
The result is a clean, functional, and coherent HVAC installation with the interior space.
Practical advice for homeowners considering a GREE CLIVIA R32
Before installing a wall-mounted heat pump, we recommend considering a few essential elements.
Observe uncomfortable areas in the house
Before the technical visit, it's helpful to note which rooms get too hot in summer, which are colder in winter, and at what times of day the problem is most visible.
Avoid choosing solely based on price
Price is important, but the quality of installation, sizing, warranty, after-sales service, and ease of maintenance have a direct impact on long-term satisfaction.
Plan maintenance from the start
A wall-mounted heat pump must be cleaned regularly. The indoor filters must remain accessible, and the outdoor unit must remain clear. A well-thought-out installation facilitates these actions.
Check applicable subsidy programs
Certain heat pump models may be eligible for financial assistance programs according to current criteria, the exact model, capacity, certification numbers, and provided documentation. AirGreen assists its clients with the necessary information to facilitate their applications when the installed appliance is eligible.
Why choose AirGreen for a GREE installation in Terrebonne
AirGreen installs HVAC systems throughout the greater metropolitan area, including Montreal, Laval, Longueuil, on the North Shore, and on the South Shore. Our experience with wall-mounted heat pumps allows us to offer installations adapted to existing homes, condos, plexes, light commercial spaces, and renovated areas.
For a GREE CLIVIA R32, our work doesn't stop at commissioning. We pay particular attention to location selection, conduit routing, fastening, drainage, sealing, functional testing, and explanations given to the customer. Once the installation is complete, the owner must understand how to use their system, how to clean the filters, and when to schedule maintenance.
This rigor helps reduce future problems and achieve more stable performance throughout the seasons.
A discreet, efficient, and well-adapted installation for the home
This GREE CLIVIA R32 wall-mounted heat pump installation in Terrebonne is a good example of a project where indoor positioning makes all the difference. Installed in a central area, near the kitchen and entrance, the wall-mounted unit can contribute to the comfort of several spaces while remaining discreet and well-integrated into the decor.
For homeowners who wish to improve their comfort without undertaking major renovations, a well-chosen and well-installed wall-mounted heat pump – air conditioner – mini-split is a reliable solution. With a model like the GREE CLIVIA R32 and careful installation by AirGreen, the result combines performance, aesthetics, and daily comfort.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
