A GREE CROSSOVER R32 Installation Adapted to Ahuntsic-Cartierville's Realities
In Ahuntsic-Cartierville, HVAC installation projects often require a more thorough analysis than simply installing equipment. This sector of Montreal comprises houses, duplexes, triplexes, condominiums, and residential buildings with sometimes compact backyards, outdoor wooden structures, narrow passages, and access constraints that directly influence how a wall-mounted heat pump is installed. For this project, our AirGreen team installed a GREE CROSSOVER R32, a wall-mounted heat pump – air conditioner – mini split designed to provide efficient comfort in both cooling and heating, while integrating into an outdoor space already occupied by another HVAC system.

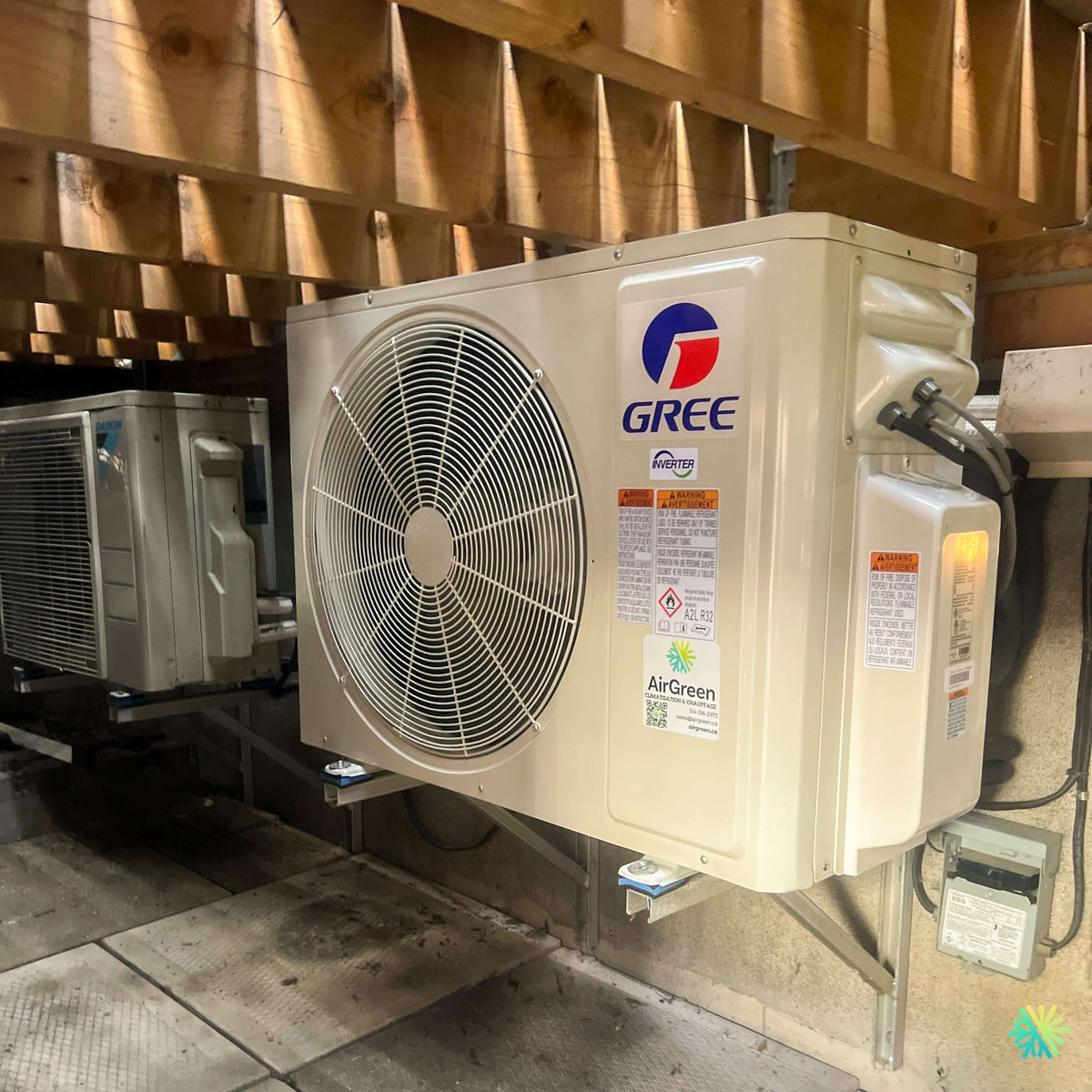

The photo of this realization shows a particularly interesting installation: the outdoor GREE unit is fixed on robust wall brackets, under a wooden structure, near an existing old outdoor equipment. The available space required precise installation, with careful alignment, stable supports, anti-vibration pads visible under the unit, clean side connections, and sufficient clearance to ensure air circulation in front of the fan. This type of configuration is common in Montreal, especially in alleys, backyards, and semi-sheltered areas where every inch counts.
A Project Where Outdoor Location Made All the Difference
The outdoor unit of a heat pump should never be placed haphazardly. In this case, the space was partially covered by a wooden structure, with limited height and another unit already installed nearby. Our team therefore had to find the right balance between accessibility, clearance, mechanical protection, stability, and performance.
The goal was clear: install the GREE CROSSOVER R32 safely, without compromising air exchange, while keeping the equipment accessible for future HVAC maintenance. An outdoor unit needs to breathe. Even if it's compact, it needs adequate clearance around the fan and sides to dissipate heat in cooling mode and capture outdoor energy in heating mode.
In this Ahuntsic-Cartierville installation, we therefore considered several elements:
- the presence of a wooden structure above the unit;
- the proximity of another condenser;
- the lateral space available for refrigerant connections;
- the height from the ground to avoid water, snow, or dirt accumulation;
- the need to limit vibrations transmitted to the building;
- future access for inspection, cleaning, and service.
The result is a compact, clean, and coherent installation, where every visible element has a precise technical function.
Why the GREE CROSSOVER R32 Was Suitable for This Montreal Building
The GREE CROSSOVER R32 is a very relevant choice for owners who want to improve indoor comfort without resorting to a central ducted system. In several buildings in Montreal, particularly in Ahuntsic-Cartierville, adding ducts can be costly, intrusive, or simply impossible depending on the structure. A wall-mounted mini split heat pump then provides a flexible, efficient, and less invasive solution.
This model is appreciated for its inverter operation, practical format, and the use of R32 refrigerant. This technology allows the unit to modulate its operation according to actual demand, rather than constantly cycling on and off. For the customer, this translates into more stable temperature, better comfort, and smarter energy use.
The GREE CROSSOVER R32 particularly meets the following needs:
- efficiently cooling a living area during the summer;
- providing efficient heating during cooler periods;
- reducing reliance on certain backup systems;
- offering a discreet and practical wall-mounted solution;
- improving comfort in an existing building without major renovation;
- benefiting from modern R32 refrigerant technology.
For an owner comparing different systems in the Montreal, Laval, Longueuil regions, on the North Shore or the South Shore, this type of model often represents an excellent compromise between performance, cost, installation flexibility, and ease of use.
An Installation Under a Wooden Structure: Precision, Clearances, and Vibration Management
One of the most important aspects of this project was the installation of the outdoor unit under a wooden structure. This type of location offers certain advantages, including partial protection from direct weather. However, it also imposes significant technical requirements.
Maintaining Sufficient Clearance Despite Limited Space
A structure above the unit can limit the available height. It is therefore necessary to ensure that the hot or cold air discharged by the unit is not trapped in an enclosed space. In this installation, the front fan benefits from sufficient opening towards the front, allowing the machine to operate normally.
Poor clearance can lead to:
- a decrease in performance;
- higher energy consumption;
- less effective defrost cycles in winter;
- premature compressor wear;
- increased noise;
- avoidable service calls.
This is why our team always checks the immediate environment of the unit before finalizing its positioning. A durable HVAC installation depends as much on the chosen model as on the quality of its location.
Installing on Wall Brackets to Protect the Equipment
The GREE unit visible in the photo is installed on metal wall brackets fixed to the foundation. This approach offers several advantages, especially in an area like Ahuntsic-Cartierville where backyards can be wet, snowy, or partially cluttered.
Wall-mounted installation allows for:
- lifting the unit above the ground;
- reducing exposure to snow accumulation;
- preventing the unit from resting directly on slabs or unstable ground;
- facilitating drainage around the unit;
- maintaining cleaner access for maintenance;
- limiting certain risks related to ground movement during freeze-thaw cycles.
The anti-vibration pads visible under the machine also play an essential role. They reduce the transmission of vibrations to the support and the building structure. This detail is particularly important when the unit is installed near living spaces, bedrooms, party walls, or areas where noise could become irritating.
Coordinating the New Installation with Existing Equipment
The photo also shows another outdoor unit nearby. This type of situation requires experience. Installing a new wall-mounted heat pump near an existing system is not just about finding a free space. It is necessary to ensure that the two devices do not interfere with each other.
Our technicians check, among other things:
- the direction of airflow;
- the distance between units;
- the possibility of accessing each for maintenance;
- the separation of refrigerant lines;
- the location of electrical connections;
- the risks of hot air recirculation in summer;
- the risks of snow or ice accumulation in winter.
In this project, the new GREE CROSSOVER R32 was positioned to function efficiently without compromising access to the existing unit. This coordination is an often underestimated aspect in residential installations, but it can make a big difference in long-term performance.
Clean and Secure Side Connections
The refrigerant lines are connected to the right side of the unit, with a short and tidy path. A mini split installation requires careful handling of refrigerant lines, as the system's performance depends on the quality of the connection, sealing, insulation, and vacuuming.
During an AirGreen installation, the technical steps generally include:
- choosing the route between the indoor and outdoor units;
- controlled drilling and adequate inclination for drainage;
- installing refrigerant lines and communication cable;
- insulating the lines;
- connecting to the units;
- vacuuming;
- leakage checks;
- startup and functional tests;
- explaining usage and maintenance to the customer.
These steps are not formalities. They ensure that the heat pump operates correctly from the start and maintains its performance throughout the seasons.
A Solution Designed for Indoor Comfort
Although the photo shows the outdoor unit, the desired result is indoors: a more stable temperature, better air conditioning in summer, efficient heating when temperatures drop, and more precise control of the served area.
For many Ahuntsic-Cartierville residents, a wall-mounted heat pump is an ideal solution when certain rooms become too hot in summer or when existing heating lacks flexibility. Montreal houses and plexes often have specific configurations: central staircases, closed rooms, rear extensions, finished basements, brick walls, varying ceilings. An on-site analysis helps choose the right indoor location for optimal air circulation.
Felt performance depends on several factors:
- the area to be treated;
- building insulation;
- sun exposure;
- ceiling height;
- airflow between rooms;
- unit capacity;
- indoor unit location;
- customer usage habits.
This is why AirGreen does not limit itself to selling a machine. We install a complete solution, adapted to the building and the client's lifestyle.
Mistakes to Avoid When Installing a Wall-Mounted Heat Pump
This Ahuntsic-Cartierville installation illustrates several important points for owners planning to install a wall-mounted air conditioner or a mini split heat pump.
Installing the outdoor unit too close to an obstacle
An outdoor unit placed too close to a wall, fence, wooden structure, or another condenser can lose efficiency. The fan needs sufficient space to exhaust air. Poor air circulation can make the unit work harder, increase consumption, and reduce the system's lifespan.
Neglecting vibrations
Vibrations should not be taken lightly. A poorly fixed unit or one without appropriate pads can transmit noise to the structure. In Montreal buildings, where spaces are sometimes close together, a quiet and stable installation is essential.
Forgetting maintenance access
A difficult-to-access unit will be more complicated to clean, inspect, or repair. HVAC maintenance must be considered during installation. It must be possible to reach panels, connections, and important components without having to dismantle part of the surrounding structure.
Choosing a capacity without analysis
A heat pump that is too small will constantly work without achieving the desired comfort. A machine that is too large can lead to short cycles, less stable comfort, and less effective dehumidification in air conditioning. The selection of the right model depends on the actual configuration of the building, not just the approximate area.
Subsidies and Energy Efficiency: What to Check
Subsidy programs can help reduce the net cost of an HVAC installation, but eligibility always depends on the exact model, capacity, current lists, and criteria of the applicable program at the time of work. For a GREE CROSSOVER R32, it is important to validate precise information before purchase and keep all required documents after installation.
At AirGreen, we help our clients understand the necessary documents, including:
- the detailed invoice;
- indoor and outdoor model numbers;
- system technical information;
- proof of installation;
- forms required by the applicable program.
This step is particularly important for clients in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore who want to maximize the value of their investment while choosing efficient equipment.
Maintenance Tips to Extend System Lifespan
A well-installed GREE wall-mounted heat pump must also be well maintained. Regular maintenance helps maintain performance, reduce noise, preserve air quality, and prevent breakdowns.
Here are the most useful actions after installation:
- clean indoor unit filters according to usage;
- keep the outdoor unit free of leaves, dust, snow, and debris;
- check that the outdoor fan is not obstructed;
- monitor for any change in noise or vibration;
- have the system inspected periodically by a qualified team;
- avoid blocking the indoor unit with furniture or curtains;
- use operating modes appropriately according to the season.
In the case of an installation under a wooden structure, it is also recommended to periodically check that nothing falls onto the outdoor unit: leaves, dust, wood fragments, ice, or objects inadvertently placed above it. A clean space around the appliance promotes better performance.
Useful Local Expertise for Montreal, Laval, Longueuil, the North Shore, and the South Shore
AirGreen installs wall-mounted heat pumps, wall-mounted air conditioners, and mini split systems in a wide variety of buildings. Our experience in Montreal's neighborhoods, including Ahuntsic-Cartierville, allows us to better anticipate constraints: rear access, alleys, old foundations, balcony or terrace structures, brick walls, condominiums, close neighbors, facade rules, and space limitations.
This project clearly demonstrates our approach: we adapt the installation to the site, rather than forcing a standard solution. The GREE CROSSOVER R32 was installed with particular attention to clearances, stability, vibrations, and coexistence with existing equipment. This level of precision is essential for achieving a lasting result.
A Clean, Compact, and Reliable Result for Ahuntsic-Cartierville
This installation of a GREE CROSSOVER R32 in Ahuntsic-Cartierville represents an excellent example of a residential project where the quality of the installation is as important as the quality of the equipment. The outdoor unit is solidly fixed, well-aligned, protected from direct contact with the ground, equipped with anti-vibration supports, and integrated into a constrained space without compromising its operation.
For homeowners looking for a reliable wall-mounted heat pump in Montreal, or comparing wall-mounted air conditioner options in Laval, Longueuil, on the North Shore, or the South Shore, this project demonstrates the importance of entrusting the installation to a team that understands building realities. A good machine only reaches its full potential when installed with method, precision, and attention to detail.
