In Rosemont–La Petite-Patrie, there are many brick plexes and narrow side yards—exactly the kind of environment where an HVAC system needs to be meticulously planned. For this residential project, our AirGreen team installed aSharp wall-mounted heat pump , a particularly relevant choice for year-round comfort in Montreal: cooling in the summer, efficient heating in the fall, and solid performance when the temperature drops .

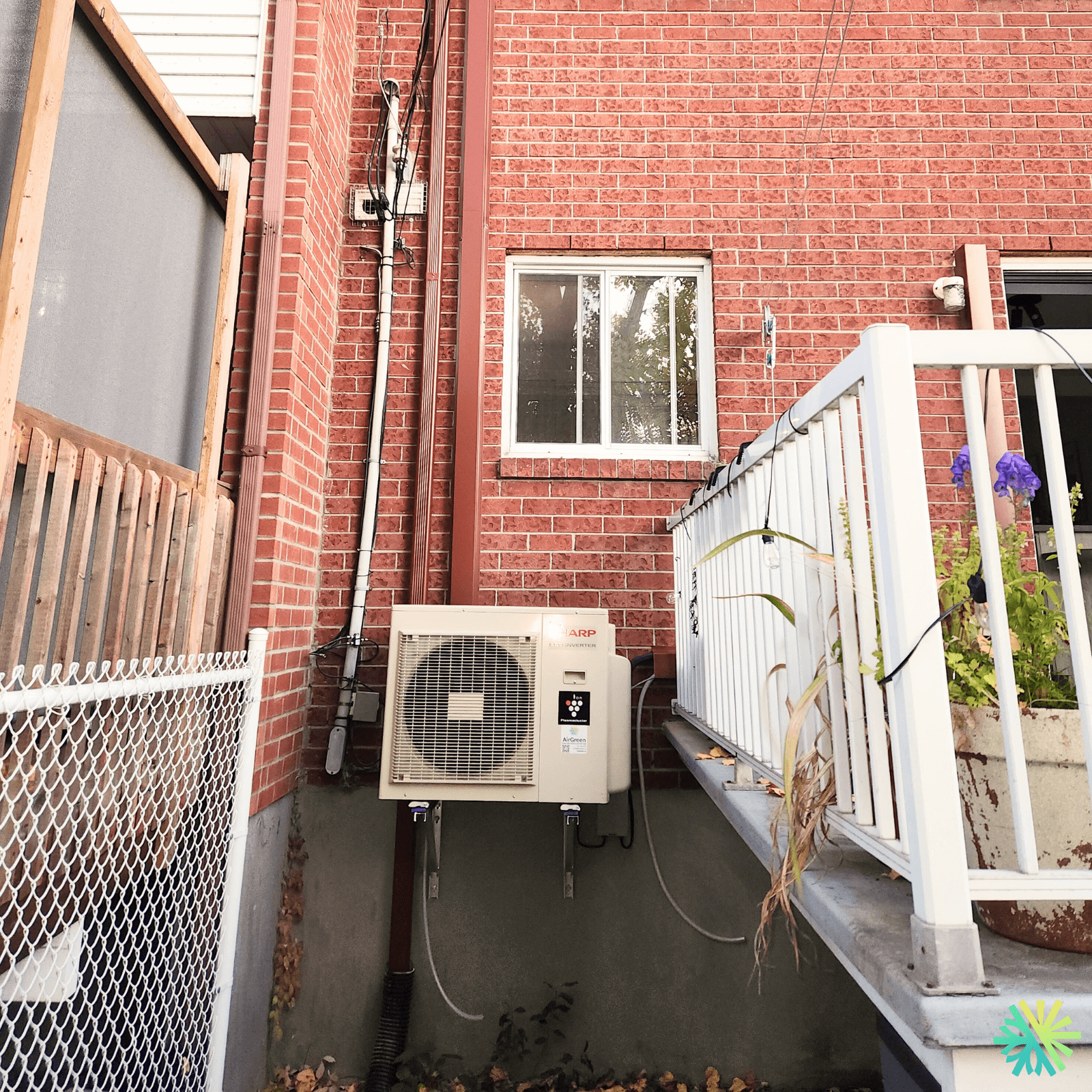

The photo clearly shows the Sharp outdoor unit mounted on wall brackets , in a side passage between the brick facade and a fence, right next to a terrace with a railing. This setting is typical of Rosemont: limited access, aesthetic constraints, and the need to minimize vibrations and noise for the comfort of the occupants… and the neighbors.
Why a Sharp wall-mounted heat pump in Rosemont?
Rosemont is a vibrant, densely populated neighborhood where indoor comfort must coexist with a very urban reality: closely spaced windows, balconies, small courtyards, alleyways, and shared walls. A wall-mounted heat pump (mini-split) offers two major advantages here:
-
No conduit network required : perfect for existing buildings (plexes, condos, renovations).
-
Precise zone control : heating/cooling is done where and when it is needed.
The brand supplied is Sharp — we use it as our primary reference. For a project like this, a consistent and frequently chosen model is the Sharp ZU1 (R-32) , a range renowned for its efficiency and its ability to withstand Quebec's temperature variations.
Type of system installed
This is a Sharp wall-mounted heat pump (mini-split/wall unit) , consisting of:
-
An outdoor unit (condenser/compressor) , visible in the image
-
An indoor wall-mounted unit (not visible here), installed in the main area to be air-conditioned/heated.
-
Refrigeration lines and cabling connecting the interior and exterior (neatly routed for a discreet and durable finish)
What the image reveals about the constraints of the construction site
Even a "small" wall-mounted heat pump requires rigorous execution — and the photo shows several elements that directly influence our installation decisions:
1) Narrow side passage and close proximity
In a corridor between a building and a fence, airflow around the outdoor unit is crucial. We must:
-
respect the recommended clearances (air intake/exhaust),
-
Avoid areas where snow can accumulate and block heat exchange.
-
limit the recirculation of hot/cold air in a confined space.
2) Unit mounted on wall brackets (not on the floor)
Here, the unit is mounted on wall brackets — an excellent choice in an urban environment:
-
reduces the risks associated with snow and water on the ground,
-
protects equipment from debris, leaves, ice,
-
frees up floor space in a narrow courtyard
-
facilitates maintenance (access and cleaning).
We pay particular attention to:
-
fixing into a solid structure,
-
alignment,
-
the addition of silent blocks/anti-vibration mounts to reduce resonance on the brick.
3) Proximity to a terrace and living areas
A balcony railing is visible on the right: this signifies that acoustic comfort is non-negotiable. AirGreen chooses the location and orientation to:
-
reduce the spread of noise towards the terrace,
-
limit transmitted vibrations,
-
maintain a safe and aesthetically pleasing passageway.
4) Cable management and routing
The electrical wiring and conduits are clearly visible along the wall. In this type of building, the objective is twofold:
-
safety and compliance (circuit breaker, service switch, protected wiring),
-
clean finish (well-defined lines, logical path, minimization of visual impact).
Our AirGreen approach for a “clean” and sustainable installation
In Rosemont, a successful installation is not measured solely by "it works". It is measured by stability, quietness, efficiency, and quality of finish.
Key steps we apply on this type of construction site
1) Location validation
-
air circulation
-
access maintenance
-
distance from windows/rest areas
-
exposure to snow/ice accumulation
2) Secure wall mounting
-
supports calibrated to the weight of the Sharp condenser
-
anchors adapted to the structure
-
level control and rigidity
3) Vibration and noise reduction
-
anti-vibration
-
Adjusting the lines to avoid rigid contacts
-
checking of operating behavior (ventilation + compressor)
4) Drainage management
In air conditioning mode (summer) and during seasonal transitions, condensation must be properly drained. We ensure that:
-
a suitable slope,
-
a path that prevents water from contacting the masonry
-
a solution that remains reliable through freeze/thaw cycles.
5) Commissioning and testing
-
pressure/leak tests
-
vacuum pull
-
validation of operating parameters
-
blowing temperature control and stability
-
explanation to the client (methods, maintenance, best practices)
Expected performance in Montreal this winter
The challenge isn't summer: it's smart and efficient heating when the temperature drops. A Sharp wall-mounted heat pump (e.g., ZU1 with R-32 refrigerant) is particularly well-suited for:
-
to maintain high yields in mid-season,
-
to provide comfortable heating without excessive energy consumption,
-
improve thermal stability (fewer variations, less discomfort).
In neighborhoods like Rosemont, where insulation varies greatly from one building to another (renovated plex vs original plex), we always adjust the choice of capacity and usage parameters according to the reality of the dwelling: ceiling height, window size, orientation, habits of the occupants.
Best practices for maximizing lifespan
Even the best heat pump will lose performance if it's neglected. For a Sharp wall-mounted system, we recommend:
-
Regular filter cleaning (simple, quick, very cost-effective)
-
Keep the outdoor unit clear:
-
leaves in autumn,
-
snow/ice in winter,
-
avoid storing objects too close
-
-
Watch for simple signs:
-
decrease in airflow,
-
abnormal noise
-
persistent odors,
-
poorly drained condensation
-
At AirGreen, we offer maintenance and deep cleaning when needed — particularly useful in urban environments where dust, pollen and pollution can accumulate more quickly.
Result: a Sharp installation adapted to the reality of Rosemont
This project perfectly illustrates what we do on a daily basis in Montreal: integrating a high-performance wall-mounted heat pump into a small space , without sacrificing aesthetics, reliability, or comfort.
With a Sharp outdoor unit installed on wall brackets, in a typical side passage of a brick building in Rosemont–La Petite-Patrie, the client obtains:
-
four-season comfort
-
an energy-efficient solution
-
a clean installation designed to last.
-
a controlled noise level near living areas.
If you live in Rosemont (or elsewhere in Montreal, Laval, South Shore or North Shore) and are looking for a reliable HVAC solution, our team can guide you to the most suitable Sharp configuration for your building.
