Installation of a Sharp wall-mounted heat pump in Ville-Marie (Montreal)
AirGreen installed a Sharp wall-mounted heat pump in Ville-Marie, with the indoor unit positioned high for better air distribution and a discreet aesthetic. An ideal solution for urban comfort: precise air conditioning, supplemental heating, and long-lasting performance.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
In a Ville-Marie apartment—often more compact, very exposed to the sun in summer, and where every detail counts when it comes to comfort—a wall-mounted heat pump is a particularly logical solution. It allows for efficient air conditioning during heat waves, while also providing effective supplemental heating during the transitional seasons (autumn and spring), all with precise temperature control.
On this project, AirGreen installed a Sharp wall-mounted heat pump , with an indoor unit positioned high up to maximize air diffusion and maintain a clean, discreet and modern aesthetic.
The system installed: Sharp, mini-split (wall-mounted) format
The brand supplied manually is Sharp — therefore this is the brand used throughout this installation and in the recommendation.
Machine type
We are dealing with a wall-mounted heat pump (mini-split / wall unit) : an indoor head installed at the top of the wall (visible in the photo), connected to an outdoor unit via refrigerant lines and a condensate drain.
Model (consistent with the Sharp range)
Since the exact model isn't visible in this photo, we've selected a model consistent with the residential range: the Sharp ZU1 (R-32) , a series frequently chosen for its performance, heating stability, and acoustic comfort. The capacity (12,000, 18,000, or 24,000 BTU, for example) depends on the actual size of the dwelling and the amount of sunlight it receives.
What the image reveals: an interior design focused on comfort

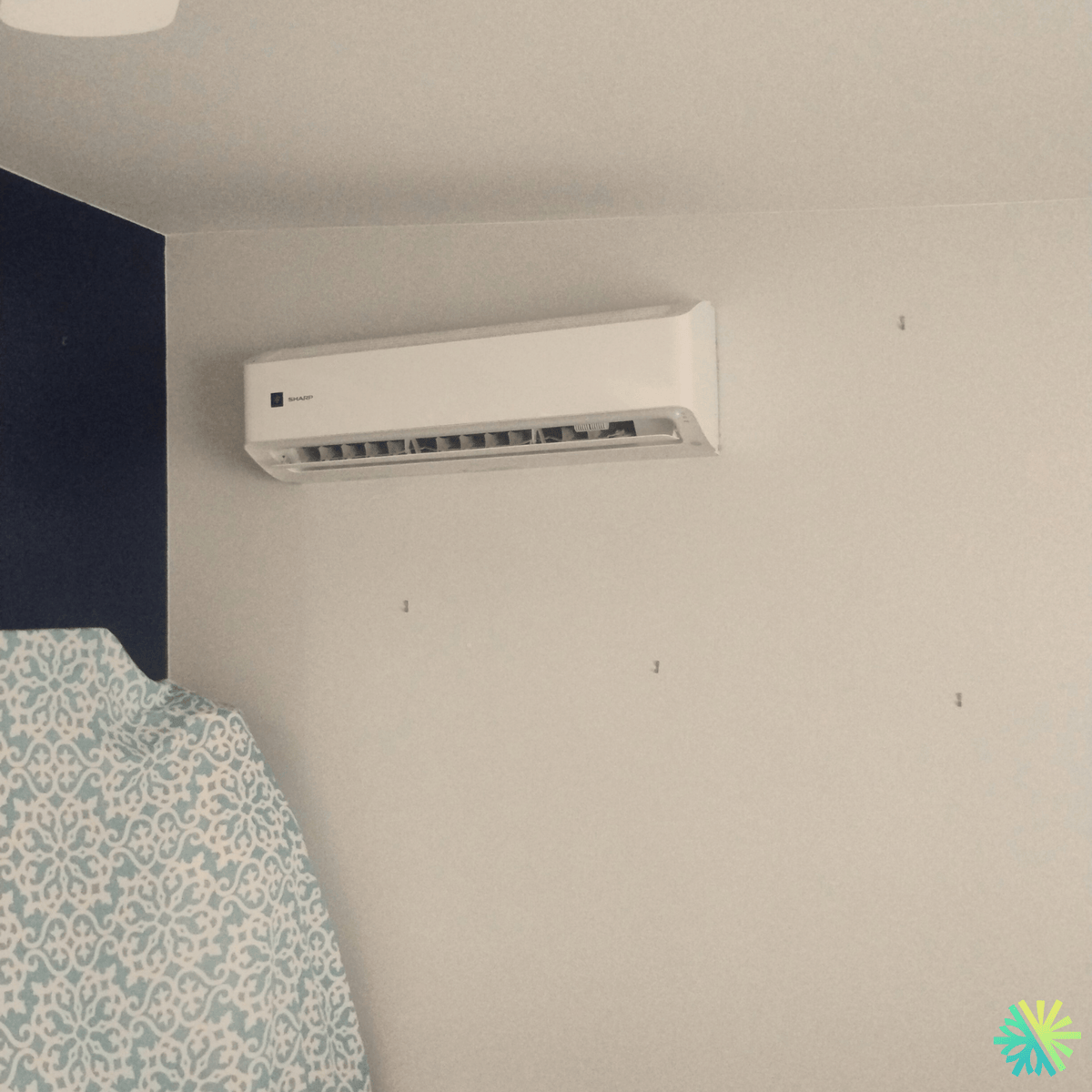

The photo shows a Sharp head installed:
-
Very high up on the wall , close to the ceiling
-
In an open area , without any direct obstruction in front of the wind tunnel
-
Slightly set back from a corner , which helps to "launch" the air into the room rather than blocking it
This positioning is not accidental. In an urban residential area (like Ville-Marie), the goal is to achieve:
1) A more even air distribution
Placing the wall unit high promotes more even air circulation in the room. The result: fewer "too cold" or "too hot" areas, and more stable comfort, especially when using air conditioning.
2) Less unpleasant draft
A poorly positioned unit can blow directly onto a bed, sofa, or desk. Here, the elevated placement reduces the risk of discomfort (a feeling of drafts) while maintaining efficiency.
3) A clean, aesthetically pleasing finish
In many condos and modernized apartments in Ville-Marie, the goal is for an installation that "blends" into the decor. A well-centered and neatly installed indoor unit is also a finishing element—just like the electrical wiring, moldings, or paint.
The technical points that AirGreen monitors (and that make the difference)
Even though a wall-mounted installation may seem simple, the actual performance depends on specific details:
Sizing: avoid over- or undersizing
-
Too small: the machine is strained, the comfort is inconsistent.
-
Too large: short cycles, less optimal dehumidification, sometimes less stable comfort.
In urban areas, consideration is also given to exposure (full sun), glazing, floor level, and configuration (open area, closed rooms, lower ceiling, etc.).
Condensate management: an invisible but essential detail
In air conditioning, a heat pump produces water (condensation). The drain must be:
-
correctly inclined,
-
secure,
-
designed to prevent odors from returning or overflowing.
Discreet connections: visual cleanliness and durability
In a lived-in home, the finishing touches (pipe routing, cover plates, clean cuts, sealing) are just as important as the initial installation. This ensures a durable installation… that's also pleasing to the eye every day.
Why the Sharp wall-mounted heat pump is a good match in urban environments
In Ville-Marie, people generally look for a system that ticks several boxes:
-
Quick comfort (the room stabilizes quickly)
-
Quiet noise level (close neighbors, condo living)
-
Precise control (constant temperature, efficient dehumidification mode)
-
Energy efficiency (better cost management)
A properly sized Sharp wall-mounted heat pump responds very well to this logic, especially when the installation is done carefully, respecting clearances and the actual use of the rooms.
Recommended maintenance to maintain performance
To preserve efficiency and air quality:
-
Regular filter cleaning (simple, quick)
-
Maintaining clearances around the indoor unit
-
Periodic maintenance (general check, cleaning, inspection of drainage and connections)
At AirGreen , we always insist: a high-performing machine is also a well-maintained machine.
Conclusion: a clean, efficient, and suitable Sharp installation for Ville-Marie
This installation of a Sharp wall-mounted heat pump in Ville-Marie illustrates exactly what we aim for in urban residential settings: intelligent placement, efficient air distribution, a clean aesthetic finish and real comfort on a daily basis — summer as well as mid-season.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
