Installation of a Sharp wall-mounted heat pump on a balcony in Rosemont–La Petite-Patrie: stability, quiet operation, and condo compliance

In Rosemont–La Petite-Patrie , one often finds brick buildings, narrow balconies and condominiums where the installation of a heat pump must be thought out down to the millimeter: clearances, vibrations, noise, drainage, and above all, clean integration to respect the building… and the neighbors.

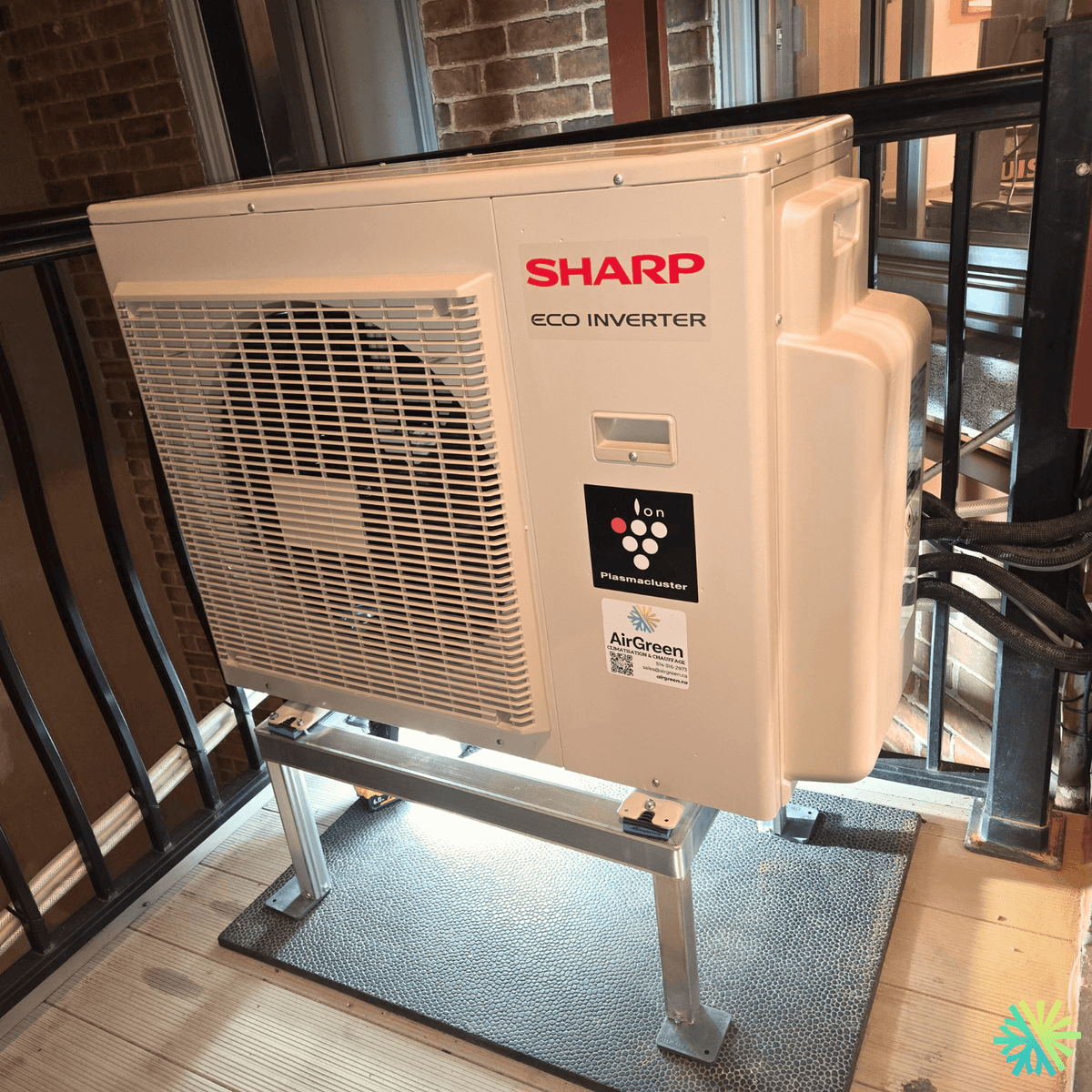

The photo clearly shows the Sharp outdoor unit ( SHARP Eco Inverter logo and Plasmacluster designation) installed on a raised stand directly on the balcony, with a shock-absorbing base. This is an excellent example of a well-executed "urban" installation: stable, accessible for maintenance, and protected from water/snow accumulation.

The system installed: Sharp wall-mounted heat pump (mini-split)

The outdoor unit's size and residential use make it suitable for a wall-mounted heat pump (mini-split) , an ideal choice for:

• ductless condos and plexes;

• housing where effective air conditioning is desired in the summer;

• supplementary heating (or main heating depending on the configuration) to reduce the electricity bill.

Model (consistent with Sharp)

Even though the technical specifications aren't visible in the photo, the setup is consistent with a Sharp ZU1 series wall-mounted heat pump (often installed in 12,000 to 24,000 BTU units depending on the size, sunlight exposure, and insulation). The key here is proper sizing and quality installation: these are what determine real, everyday comfort in Montreal.

What the image reveals: a carefully designed outdoor installation on a balcony

This photo is particularly interesting because it shows a common situation in condominiums: the outdoor unit on a balcony .

Here are the key elements we observe:

1) Sturdy raised support (and this is not a minor detail)

The unit is placed on a solid metal structure, raised off the floor. This choice helps to:

• avoid placing the device directly in water during heavy rain;

• limit the effect of snow/ice in winter;

• facilitate cleaning and maintenance;

• improve air circulation around the unit (more stable performance).

2) Vibration and noise reduction

We see a shock-absorbing base under the support, and a stable fixing. In densely populated areas (Rosemont, Plateau, Ville-Marie…), this is essential:

• less resonance in the guardrails;

• less vibration transmission in the building structure;

• better sound comfort for you and your neighbors.

3) Air clearance requirements respected

The ventilation grille needs to "breathe." On a balcony, this can sometimes be a trap: the unit is placed too close to a wall, a panel, or outdoor furniture. Here, the visible space around the unit is a good sign for preserving:

• the airflow;

• energy efficiency;

• the lifespan of the compressor.

4) Grouped and protected connections and cabling

The pipes and cables are visible coming out on the side. In a typical AirGreen installation, we ensure that:

• The refrigeration connections are insulated and protected;

• The process is clean and logical;

• nothing rubs or “hangs” (premature wear, noise, aesthetics).

Why this type of Sharp installation is perfect for Rosemont

Rosemont–La Petite-Patrie often combines:

• semi-open-plan (living room/kitchen) apartments that are well suited to a wall-mounted head;

• a reality of co-ownership (facade rules, noise, authorized location);

• hot and humid summers, and winters where the heat pump needs to remain reliable.

A Sharp Eco Inverter provides a simple solution: a 4-season system with modulation, which maintains a stable temperature without operating on “all or nothing”.

Our AirGreen approach: performance + compliance + finish

Installing something on a balcony requires special attention. We systematically incorporate these points into our method:

Compliance and neighborhood

• Compliance with the clearances required by the manufacturer.

• Location that limits noise pollution (orientation, vibrations, support).

• Installation designed to comply with condominium regulations (access, appearance, security).

Winter Sustainability (Montreal)

• Elevated support to limit the impact of snow/ice.

• Drainage management (condensation in summer, defrosting in winter).

• Strong, corrosion-resistant fixings suitable for the climate.

Full commissioning

• Rigorous vacuuming.

• Leak test.

• Verification of parameters and explanation to the client (modes, instructions, best practices).

The tangible benefits after installation

Summer comfort: efficient air conditioning without drafts

A well-sized and well-placed heat pump cools quickly, but above all maintains a stable temperature, with pleasant dehumidification on hot days.

Winter: more economical heating than baseboards alone

In many Rosemont homes, the heat pump is becoming an important tool for reducing costs, while maintaining consistent comfort.

Silence and stability: a major criterion in condominiums

On a balcony, the quality of the support and the vibration damping makes a real difference. It's often what customers notice first: "you forget it's there."

Best practices for keeping a Sharp in top condition (without complications)

• Cleaning the filters of the indoor unit (simple, but essential).

• Keep the outdoor unit clear (no furniture placed in front of the grille).

• In winter: avoid snow accumulation around the base and maintain clearance.

• Periodic maintenance: inspection, more thorough cleaning, validation of drainage and performance.

A Sharp installation on a balcony: when it's done right, it makes all the difference.

This installation in Rosemont–La Petite-Patrie perfectly illustrates what we aim for at AirGreen: a high-performance Sharp wall-mounted heat pump, placed on a support adapted to the balcony, with an approach focused on comfort, silence and sustainability in the real Montreal climate.
